IslandPath Analysis: Helicobacter pylori G27

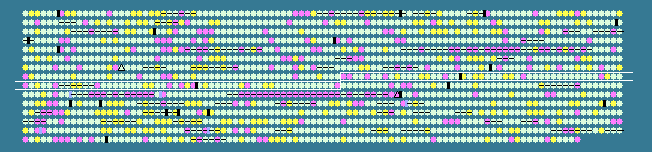

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.14 STD DEV: 3.74
Helicobacter pylori G27, complete genome - 1..1652982
1493 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
754	 35.49	0	839786..840295	-	169	208434730	-	HPG27_775	-	hypothetical protein
755	 33.21	-1	840352..841170	-	272	208434731	-	HPG27_776	-	DNA methylase
756	 39.95	0	841421..843082	+	553	208434732	-	HPG27_777	-	osmo protection protein
757	 38.47	0	843086..843727	+	213	208434733	-	HPG27_778	-	osmoprotection protein
758	 35.06	-1	843910..844371	+	153	208434734	-	HPG27_779	-	hypothetical protein
759	 37.87	0	844372..846156	+	594	208434735	-	HPG27_780	-	excinuclease ABC subunit C
760	 40.28	0	846167..847432	+	421	208434736	uvrC	HPG27_781	-	excinuclease ABC subunit C
761	 35.07	-1	847433..847777	+	114	208434737	-	HPG27_782	-	hypothetical protein
762	 39.56	0	847866..848186	+	106	208434738	trxA	HPG27_783	-	thioredoxin
763	 43.70	+1	848192..849127	+	311	208434739	trxB	HPG27_784	-	thioredoxin reductase
764	 37.96	0	849336..850157	+	273	208434740	-	HPG27_785	-	beta-1,4-galactosyl transferase
765	 36.95	0	850380..850628	-	82	208434741	-	HPG27_786	-	RNA binding protein
766	 41.85	0	850949..851629	-	226	208434742	-	HPG27_787	-	ATP synthase F0, subunit a
767	 44.74	+1	851751..853196	-	481	208434743	-	HPG27_788	-	inosine-5'-monophosphate dehydrogenase
768	 43.83	+1	853206..854567	-	453	208434744	-	HPG27_789	-	Glu-tRNA amido transferase, subunit A
769	 38.07	0	854626..855216	-	196	208434745	-	HPG27_790	-	dephospho-CoA kinase
770	 36.50	0	855218..856006	-	262	208434746	-	HPG27_791	-	spermidine synthase
771	 35.27	-1	856098..856976	-	292	208434747	-	HPG27_792	-	hypothetical protein
772	 40.49	0	857053..858435	+	460	208434748	-	HPG27_793	-	GTP-binding protein-like protein
773	 40.70	0	858578..858862	+	94	208434749	-	HPG27_794	-	DNA-binding protein HU
774	 47.06	+2	859455..860066	+	203	208434750	-	HPG27_795	-	hypothetical protein
775	 37.38	0	860086..860703	+	205	208434751	-	HPG27_796	-	hypothetical protein
776	 44.39	+1	860700..862463	+	587	208434752	-	HPG27_797	-	outer membrane protein P1
777	 43.61	+1	862467..863468	+	333	208434753	-	HPG27_798	-	UDP-GlcNAcC6de hydratase
778	 39.59	0	863465..864742	+	425	208434754	-	HPG27_799	-	pantothenate metabolism flavoprotein
779	 37.53	0	864742..865479	+	245	208434755	-	HPG27_800	-	hypothetical protein
780	 41.98	0	865511..866146	-	211	208434756	-	HPG27_801	-	thiamine phosphate pyrophosphorylase
781	 42.96	+1	866166..866975	-	269	208434757	-	HPG27_802	-	thiamine biosynthesis protein
782	 43.42	+1	866972..867754	-	260	208434758	-	HPG27_803	-	thiamine phosphate pyrophosphorylase
783	 37.65	0	867840..870830	-	996	208434759	-	HPG27_804	-	type I restriction enzyme R protein
784	 34.73	-1	870967..872256	-	429	208434760	-	HPG27_805	-	HP0790-like protein
785	 40.79	0	872266..873861	-	531	208434761	-	HPG27_806	-	type I restriction enzyme M protein
786	 41.67	0	874035..874718	+	227	208434762	-	HPG27_807	-	hypothetical protein
787	 38.48	0	874947..875879	-	310	208434763	-	HPG27_808	-	hypothetical protein
788	 41.32	0	875876..877477	-	533	208434764	-	HPG27_809	-	ABC transporter, ATP-binding protein
789	 42.23	0	877675..878652	+	325	208434765	-	HPG27_810	-	guanosine 5'-monophosphate oxido reductase
790	 40.74	0	878808..879374	-	188	208434766	-	HPG27_811	-	phosphoheptose isomerase
791	 41.88	0	879379..880770	-	463	208434767	-	HPG27_812	-	ADP-heptose synthase
792	 38.47	0	880767..881759	-	330	208434768	-	HPG27_813	-	ADP-L-glycero-D-mannoheptose-6-epimerase
793	 35.94	0	881768..882265	-	165	208434769	-	HPG27_814	-	hypothetical protein
794	 40.66	0	882279..883001	-	240	208434770	-	HPG27_815	-	hypothetical protein
795	 39.14	0	883010..883681	-	223	208434771	-	HPG27_816	-	hypothetical protein
796	 37.65	0	883686..885353	-	555	208434772	-	HPG27_817	-	hypothetical protein
797	 35.46	0	885358..886014	-	218	208434773	-	HPG27_818	-	hypothetical protein
798	 43.61	+1	886011..886370	-	119	208434774	-	HPG27_819	-	deoxyuridine5'-triphosphate nucleotidohydrolase
799	 39.19	0	886438..886932	-	164	208434775	greA	HPG27_820	-	transcription elongation factor
800	 38.41	0	886973..888055	-	360	208434776	-	HPG27_821	-	lipid A disaccharide synthetase
801	 34.63	-1	888055..888516	-	153	208434777	-	HPG27_822	-	hypothetical protein
802	 38.98	0	888523..888876	-	117	208434778	-	HPG27_823	-	hydrogenase and urease maturation protein
803	 45.67	+1	888935..891091	-	718	208434779	flgE-1	HPG27_824	-	flagellar hook protein
804	 42.04	0	891300..892034	-	244	208434780	-	HPG27_825	-	CDP-diglyceride hydrolase
805	 36.36	0	892387..892716	+	109	208434781	-	HPG27_826	-	alkylphosphonate uptake protein
806	 35.65	0	892768..892983	-	71	208434782	-	HPG27_827	-	hypothetical protein
807	 40.64	0	893068..893943	-	291	208434783	-	HPG27_828	-	hypothetical protein
808	 42.03	0	894088..895605	-	505	208434784	-	HPG27_829	-	catalase
809	 43.73	+1	895928..898303	+	791	208434785	-	HPG27_830	-	iron-regulated outer membrane protein
810	 43.04	+1	898304..898777	-	157	208434786	-	HPG27_831	-	Holliday junction endodeoxyribonuclease
811	 38.29	0	898909..899634	+	241	208434787	-	HPG27_832	-	hypothetical protein
812	 40.21	0	899788..899976	-	62	208434788	-	HPG27_833	-	hypothetical protein
813	 32.83	-1	900121..900318	-	65	208434789	-	HPG27_834	-	hypothetical protein
814	 36.67	0	900465..900614	-	49	208434790	-	HPG27_835	-	hypothetical protein
815	 40.76	0	900797..901348	-	183	208434791	-	HPG27_836	-	Holliday junction DNA helicase
816	 37.18	0	901374..903218	-	614	208434792	-	HPG27_837	-	hypothetical protein
817	 37.92	0	903311..904771	+	486	208434793	mviN	HPG27_838	-	virulence factor mviN protein
818	 39.91	0	904772..906169	+	465	208434794	-	HPG27_839	-	cysteinyl-tRNA synthetase
819	 42.57	0	906393..910277	+	1294	208434795	vacA	HPG27_840	-	vacuolating cytotoxin A
820	 39.45	0	910336..911103	-	255	208434796	-	HPG27_841	-	iron (III) dicitrate ABC transporter, ATP-binding protein
821	 47.15	+2	911103..912050	-	315	208434797	-	HPG27_842	-	iron (III) dicitrate ABC transporter, permease protein
822	 43.04	+1	912076..912930	-	284	208434798	-	HPG27_843	-	short-chain oxidoreductase
823	 40.80	0	913019..913594	+	191	208434799	-	HPG27_844	-	acyl coenzyme A thioesterase
824	 39.22	0	913732..913884	-	50	208434800	-	HPG27_845	-	hypothetical protein
825	 33.01	-1	913958..914269	-	103	208434801	-	HPG27_846	-	hypothetical protein
826	 36.51	0	914347..914535	-	62	208434802	-	HPG27_847	-	hypothetical protein
827	 33.87	-1	914600..914971	-	123	208434803	-	HPG27_848	-	hypothetical protein
828	 44.49	+1	915374..917596	-	740	208434805	hopU	HPG27_849	-	outer membrane protein
829	 24.64	-2	917595..917801	+	68	208434804	-	HPG27_850	-	hypothetical protein
830	 38.12	0	918088..918609	+	173	208434806	-	HPG27_851	-	hypothetical protein
831	 44.38	+1	918560..919672	-	370	208434807	hypD	HPG27_852	-	hydrogenase expression/formation protein
832	 41.88	0	919678..919911	-	77	208434808	hypC	HPG27_853	-	hydrogenase expression/formation protein
833	 40.19	0	919911..920639	-	242	208434809	hypB	HPG27_854	-	hydrogenase expression/formation protein
834	 41.33	0	920885..921184	-	99	208434810	-	HPG27_855	-	hypothetical protein
835	 40.52	0	922356..923900	+	514	208434811	-	HPG27_857	-	hypothetical protein
836	 40.27	0	923951..924901	+	316	208434812	flgD	HPG27_858	-	hook assembly protein, flagella
837	 42.68	0	924898..926715	+	605	208434813	flgE-2	HPG27_859	-	flagellar hook protein
838	 32.99	-1	926767..927354	+	195	208434814	-	HPG27_860	-	restriction endonuclease
839	 36.65	0	927364..928509	+	381	208434815	-	HPG27_861	-	adenine specific DNA methyltransferase
840	 39.69	0	928518..930545	+	675	208434816	-	HPG27_862	-	rephelicase, single-stranded DNA-dependent ATPase
841	 45.82	+1	931085..932638	+	517	208434817	hopC	HPG27_863	-	outer membrane protein
842	 43.59	+1	932660..934258	+	532	208434818	hopB	HPG27_864	-	outer membrane protein
843	 39.93	0	935039..936661	-	540	208434819	hopG-2	HPG27_865	-	outer membrane protein
844	 42.28	0	936831..939266	-	811	208434820	-	HPG27_866	-	iron-regulated outer membrane protein
845	 39.35	0	939443..939874	-	143	208434821	-	HPG27_867	-	hypothetical protein
846	 41.90	0	939879..943136	-	1085	208434822	-	HPG27_868	-	carbamoyl-phosphate synthase
847	 40.84	0	943237..943929	-	230	208434823	-	HPG27_869	-	hypothetical protein
848	 41.04	0	944074..945072	+	332	208434824	gapA	HPG27_870	-	glyceraldehyde-3-phosphate dehydrogenase
849	 38.41	0	945152..952672	+	2506	208434825	-	HPG27_871	-	vacuolating cytotoxin (VacA)-like protein
850	 36.78	0	952724..953827	+	367	208434826	hopK-2	HPG27_872	-	outer membrane protein
851	 39.13	0	953894..954100	-	68	208434827	-	HPG27_873	-	4-oxalocrotonate tautomerase
852	 36.94	0	954241..954822	+	193	208434828	recR	HPG27_874	-	recombinational DNA repair protein
853	 35.08	-1	954819..955964	+	381	208434829	-	HPG27_875	-	hypothetical protein
39.14	MEAN

3.74	STD DEV
