IslandPath Analysis: Helicobacter pylori G27

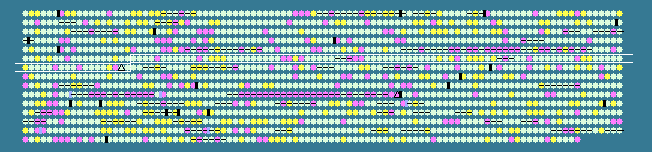

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.14 STD DEV: 3.74
Helicobacter pylori G27, complete genome - 1..1652982
1493 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
519	 42.35	0	573809..574507	-	232	208434495	-	HPG27_534	-	hypothetical protein
520	 39.40	0	574516..575388	-	290	208434496	lepB	HPG27_535	-	signal peptidase I
521	 42.61	0	575388..576260	-	290	208434497	-	HPG27_536	-	methylene-tetra hydrofolate dehydrogenase
522	 37.05	0	576339..578384	-	681	208434498	-	HPG27_537	-	hypothetical protein
523	 35.14	-1	578390..578944	-	184	208434499	-	HPG27_538	-	hypothetical protein
524	 38.81	0	578951..580027	-	358	208434500	-	HPG27_539	-	hypothetical protein
525	 39.41	0	580045..581064	-	339	208434501	-	HPG27_540	-	dihydroorotase
526	 37.12	0	582017..582913	-	298	208434502	-	HPG27_542	-	hypothetical protein
527	 36.83	0	582910..583281	-	123	208434503	fliY-2	HPG27_543	-	flagellar switch protein
528	 40.49	0	583363..584019	-	218	208434504	-	HPG27_544	-	endonuclease III
529	 39.83	0	584016..584246	-	76	208434505	-	HPG27_545	-	hypothetical protein
530	 35.04	-1	584248..587181	-	977	208434506	-	HPG27_546	-	hypothetical protein
531	 39.58	0	587225..588088	+	287	208434507	-	HPG27_547	-	amino deoxy chorismate lyase
532	 45.03	+1	588273..588614	+	113	208434508	-	HPG27_548	-	2-oxoglutarate oxidoreductase OorD subunit
533	 44.50	+1	588614..589741	+	375	208434509	korA	HPG27_549	-	2-oxoglutarate oxidoreductase OorA subunit
534	 44.16	+1	589744..590565	+	273	208434510	korB	HPG27_550	-	2-oxoglutarate oxidoreductase OorB subunit
535	 42.42	0	590565..591125	+	186	208434511	korC	HPG27_551	-	2-oxoglutarate oxidoreductase OorC subunit
536	 37.55	0	591285..594227	+	980	208434512	-	HPG27_552	-	type IIIR-M system restriction enzyme
537	 37.81	0	594224..596098	+	624	208434513	-	HPG27_553	-	type III R-M system modification enzyme
538	 36.36	0	596206..596370	+	54	208434514	-	HPG27_554	-	hypothetical protein
539	 40.19	0	596379..597851	+	490	208434515	-	HPG27_555	-	DsbB-like protein
540	 38.03	0	598266..598904	+	212	208434516	-	HPG27_556	-	hypothetical protein
541	 40.90	0	598907..600889	-	660	208434517	-	HPG27_557	-	penicillin-binding protein 1A
542	 37.68	0	600890..602038	-	382	208434518	bioF	HPG27_558	-	8-amino-7-oxononanoate synthase
543	 38.71	0	602035..603336	-	433	208434519	-	HPG27_559	-	hemolysin secretion protein
544	 31.01	-2	603408..604355	-	315	208434520	-	HPG27_560	-	multi drug resistance protein
545	 31.19	-2	604396..605190	-	264	208434521	-	HPG27_561	-	hypothetical protein
546	 44.03	+1	605351..606883	+	510	208434522	flaA	HPG27_562	-	flagellin A
547	 34.55	-1	607011..607667	+	218	208434523	-	HPG27_563	-	3-methyladenine DNA glycosylase
548	 38.83	0	607664..608281	+	205	208434524	-	HPG27_564	-	hypothetical protein
549	 41.18	0	608350..609369	+	339	208434525	-	HPG27_565	-	uroporphyrinogen decarboxylase
550	 38.91	0	609379..610812	+	477	208434526	hefA	HPG27_566	-	outer-membrane protein of the hefABC efflux system
551	 40.43	0	610822..611526	+	234	208434527	hefB	HPG27_567	-	membrane fusion protein of the hefABC efflux system
552	 42.47	0	611539..614625	+	1028	208434528	hefC	HPG27_568	-	cytoplasmic pump protein of the hefABC efflux system
553	 39.47	0	614622..615191	+	189	208434529	-	HPG27_569	-	hypothetical protein
554	 39.29	0	615343..624921	+	3192	208434530	-	HPG27_570	-	putative vacuolating cytotoxin(VacA)-like protein
555	 30.54	-2	624980..625480	-	166	208434531	-	HPG27_571	-	ABC transporter, permease
556	 30.83	-2	625497..625736	-	79	208434532	-	HPG27_572	-	ABC transporter, permease
557	 32.76	-1	625736..626437	-	233	208434533	-	HPG27_573	-	ABC transporter. ATP-binding protein
558	 38.74	0	626748..627080	-	110	208434534	-	HPG27_574	-	hypothetical protein
559	 38.95	0	627181..629157	-	658	208434535	ligA	HPG27_575	-	DNA ligase
560	 38.85	0	629236..630177	+	313	208434536	cheV-1	HPG27_576	-	chemotaxis protein
561	 40.60	0	630212..631945	+	577	208434537	-	HPG27_577	-	aspartyl-tRNA synthetase
562	 38.89	0	631962..632537	+	191	208434538	-	HPG27_578	-	adenylate kinase
563	 38.86	0	632562..633122	+	186	208434539	-	HPG27_579	-	putative lipopolysaccharide biosynthesis protein
564	 36.18	0	633193..633825	+	210	208434540	-	HPG27_580	-	putative lipopolysaccharide biosynthesis protein
565	 41.19	0	633877..634398	+	173	208434541	-	HPG27_581	-	inorganic pyrophosphatase
566	 39.06	0	634540..636636	-	698	208434542	mutS2	HPG27_582	-	DNA mismatch repair protein
567	 36.48	0	636788..637168	-	126	208434543	-	HPG27_583	-	hypothetical protein
568	 38.08	0	637168..638430	-	420	208434544	-	HPG27_584	-	UDP-N-acetylmuramate-alanine ligase
569	 39.54	0	638510..639637	-	375	208434545	-	HPG27_585	-	amino transferase
570	 42.87	0	639757..640836	+	359	208434546	-	HPG27_586	-	1-hydroxy-2-methyl-2-(E)-butenyl4-diphosphate synthetase
571	 40.63	0	640839..642044	+	401	208434547	-	HPG27_587	-	tetra hydro dipicolinateN-succinyl transferase
572	 44.19	+1	642056..643114	+	352	208434548	-	HPG27_588	-	cysteine-rich protein F
573	 29.76	-2	643197..643364	+	55	208434549	-	HPG27_589	-	hypothetical protein
574	 40.22	0	643498..645384	+	628	208434550	-	HPG27_590	-	hypothetical protein
575	 45.30	+1	645428..646012	-	194	208434551	-	HPG27_591	-	modulator of drug activity
576	 46.49	+1	646172..647326	+	384	208434552	hydA	HPG27_592	-	quinone-reactive Ni/Fe hydrogenase
577	 42.72	0	647336..649072	+	578	208434553	hydB	HPG27_593	-	quinone-reactive Ni/Fe hydrogenase
578	 40.44	0	649085..649759	+	224	208434554	hydC	HPG27_594	-	quinone-reactive Ni/Fe hydrogenase
579	 42.83	0	649756..650292	+	178	208434555	hydD	HPG27_595	-	quinone-reactive Ni/Fe hydrogenase
580	 37.56	0	650294..651832	+	512	208434556	hydE	HPG27_596	-	hypothetical protein
581	 33.33	-1	651837..652193	-	118	208434557	-	HPG27_597	-	hypothetical protein
582	 42.38	0	652268..652720	-	150	208434558	-	HPG27_598	-	hypothetical protein
583	 38.20	0	652914..653837	+	307	208434559	hopH	HPG27_599	-	outer membrane protein
584	 39.35	0	653883..654563	-	226	208434560	-	HPG27_600	-	ExsB trans-regulatory protein
585	 35.57	0	654626..655834	+	402	208434561	-	HPG27_601	-	poly(A) polymerase
586	 39.68	0	655848..656351	+	167	208434562	-	HPG27_602	-	hypothetical protein
587	 41.72	0	656366..657223	+	285	208434563	-	HPG27_603	-	putative 3-hydroxy acid dehydrogenase
588	 41.07	0	657244..657876	+	210	208434564	-	HPG27_604	-	NAD(P)H-flavinoxido reductase
589	 37.12	0	658041..659360	+	439	208434565	-	HPG27_605	-	glutamyl-tRNA synthetase
590	 40.14	0	659357..659650	+	97	208434566	-	HPG27_606	-	hypothetical protein
591	 37.85	0	659664..661346	+	560	208434567	-	HPG27_607	-	soluble lytic murein transglycosylase
592	 41.97	0	661343..662164	+	273	208434568	-	HPG27_608	-	UDP-glucosepyrophosphorylase
593	 35.54	0	662176..662583	+	135	208434569	-	HPG27_609	-	hypothetical protein
594	 44.52	+1	662586..663854	+	422	208434570	-	HPG27_610	-	UDP-N-acetylglucosamine enolpyruvyl transferase
595	 43.07	+1	663912..665318	+	468	208434571	-	HPG27_611	-	aspartate ammonia-lyase
596	 40.44	0	665363..665953	+	196	208434572	-	HPG27_612	-	hypothetical protein
597	 36.72	0	665962..667350	-	462	208434573	-	HPG27_613	-	alpha1,3-fucosyl transferase
598	 42.31	0	667389..668012	-	207	208434574	-	HPG27_614	-	phospho serine phosphatase
599	 38.49	0	668028..668531	-	167	208434575	-	HPG27_615	-	non heme iron-containing ferritin
600	 38.60	0	668828..669910	+	360	208434576	-	HPG27_616	-	hypothetical protein
601	 43.25	+1	670032..672743	+	903	208434577	-	HPG27_617	-	protective surface antigen D15
602	 40.87	0	672745..673806	+	353	208434578	-	HPG27_618	-	hypothetical protein
603	 38.01	0	673812..675116	+	434	208434579	-	HPG27_619	-	processing protease
604	 41.82	0	675116..676540	+	474	208434580	-	HPG27_620	-	Glu-tRNA(Gln) amido transferase subunit B
605	 39.42	0	676540..677787	+	415	208434581	-	HPG27_621	-	hypothetical protein
606	 34.61	-1	677799..678815	+	338	208434582	-	HPG27_622	-	hypothetical protein
607	 40.40	0	678937..679233	+	98	208434583	-	HPG27_623	-	ribonuclease H
608	 40.00	0	679245..679964	+	239	208434584	-	HPG27_624	-	ribonuclease III
609	 42.17	0	679961..681058	+	365	208434585	-	HPG27_625	-	chorismate synthase
610	 33.91	-1	681096..681611	+	171	208434586	-	HPG27_626	-	hypothetical protein
611	 39.81	0	681611..682984	+	457	208434587	-	HPG27_627	-	oxygen-independent coproporphyrinogen III oxidase
612	 39.17	0	682981..684282	+	433	208434588	-	HPG27_628	-	glycerol-3-phosphate dehydrogenase
613	 39.83	0	686461..689124	+	887	208434589	-	HPG27_630	-	hypothetical protein
614	 42.56	0	689366..690178	+	270	208434590	horF	HPG27_631	-	outer membrane protein
615	 43.05	+1	690337..691509	+	390	208434591	-	HPG27_632	-	aspartate amino transferase
616	 31.52	-2	691653..691982	+	109	208434592	-	HPG27_633	-	hypothetical protein
617	 38.10	0	691989..693080	+	363	208434593	-	HPG27_634	-	integrase-recombinase protein
618	 36.69	0	693142..693648	-	168	208434594	-	HPG27_635	-	methylated-DNA--protein-cysteine methyl transferase
39.14	MEAN

3.74	STD DEV
