IslandPath Analysis: Helicobacter pylori G27

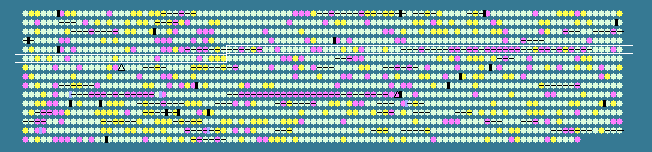

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.14 STD DEV: 3.74
Helicobacter pylori G27, complete genome - 1..1652982
1493 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
435	 38.70	0	481576..483813	+	745	208434411	-	HPG27_447	-	hypothetical protein
436	 36.13	0	483810..484667	+	285	208434412	-	HPG27_448	-	hypothetical protein
437	 31.79	-1	484688..484882	+	64	208434413	-	HPG27_449	-	hypothetical protein
438	 40.77	0	485047..486189	-	380	208434414	-	HPG27_450	-	putative potassium channel protein
439	 43.92	+1	486334..486522	-	62	208434415	-	HPG27_451	-	ribosomal protein L28
440	 35.60	0	486621..487457	-	278	208434416	hpaA	HPG27_452	-	neuraminyllactose-binding hemagglutinin
441	 41.18	0	487562..488644	+	360	208434417	-	HPG27_453	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
442	 36.41	0	488646..489914	+	422	208434418	-	HPG27_454	-	UDP-N-acetylmuramoylalanine-D-glutamate ligase
443	 33.33	-1	489911..490114	-	67	208434419	-	HPG27_455	-	hypothetical protein
444	 39.55	0	490161..490562	-	133	208434420	-	HPG27_456	-	hypothetical protein
445	 38.22	0	490792..492120	+	442	208434421	-	HPG27_457	-	sodium-and chloride-dependent transporter
446	 37.85	0	492133..493461	+	442	208434422	-	HPG27_458	-	sodium-and chloride-dependent transporter
447	 36.44	0	494599..495723	+	374	208434423	dnaN	HPG27_460	-	DNA polymerase III beta-subunit
448	 40.65	0	495736..498057	+	773	208434424	gyrB	HPG27_461	-	DNA gyrase subunit B
449	 33.64	-1	498103..499095	+	330	208434425	-	HPG27_462	-	hypothetical protein
450	 30.14	-2	499157..499720	+	187	208434426	-	HPG27_463	-	hypothetical protein
451	 39.60	0	499929..501140	+	403	208434427	-	HPG27_464	-	putative outer membrane protein
452	 35.89	0	501140..501766	+	208	208434428	-	HPG27_465	-	hypothetical protein
453	 37.41	0	501777..503126	+	449	208434429	-	HPG27_466	-	plasminogen binding protein
454	 43.04	+1	503128..504507	+	459	208434430	glcD	HPG27_467	-	glycolate oxidase subunit
455	 42.35	0	504530..505294	+	254	208434431	dapB	HPG27_468	-	dihydro dipicolinate reductase
456	 42.69	0	505725..505895	+	56	208434432	-	HPG27_469	-	urease-enhancing factor
457	 30.86	-2	505924..506085	+	53	208434433	-	HPG27_470	-	hypothetical protein
458	 42.39	0	506148..507593	-	481	208434434	glnA	HPG27_471	-	glutamine synthetase
459	 35.69	0	507816..508112	+	98	208434435	-	HPG27_472	-	hypothetical protein
460	 39.33	0	508582..509031	+	149	208434436	rplI	HPG27_473	-	ribosomal protein L9
461	 43.28	+1	509035..509577	+	180	208434437	-	HPG27_474	-	heat shock protein
462	 38.21	0	509577..510908	+	443	208434438	-	HPG27_475	-	heatshock protein, ATP-bindingsubunit
463	 37.53	0	510908..511813	+	301	208434439	-	HPG27_476	-	GTP-binding protein era-like protein
464	 38.17	0	511810..512802	+	330	208434440	-	HPG27_477	-	conserved hypothetical secreted protein
465	 36.17	0	512885..513766	-	293	208434441	-	HPG27_478	-	hypothetical protein
466	 36.49	0	513910..514257	+	115	208434442	cag1	HPG27_479	-	cag pathogenicity island protein 1
467	 30.16	-2	514464..514715	+	83	208434443	-	HPG27_480	-	hypothetical protein
468	 38.87	0	514715..516160	+	481	208434444	cag3	HPG27_481	-	cag pathogenicity island protein 3
469	 36.67	0	516165..516674	+	169	208434445	cag4	HPG27_482	-	cag pathogenicity island protein 4
470	 37.96	0	516793..519039	-	748	208434446	cag5	HPG27_483	-	cag pathogenicity island protein 5
471	 36.76	0	519048..520040	-	330	208434447	-	HPG27_484	-	virB11-like cag pathogenicity islandencoded protein / ATPase protein
472	 33.33	-1	520045..520644	-	199	208434448	cagZ	HPG27_485	-	cag pathogenicity island protein Z
473	 34.48	-1	526506..528071	-	521	208434449	cagX	HPG27_487	-	cag pathogenicity island protein X
474	 36.50	0	528123..529730	-	535	208434450	cagW	HPG27_488	-	cag pathogenicity island protein W
475	 34.52	-1	529735..530493	-	252	208434451	cagV	HPG27_489	-	cag pathogenicity island protein V
476	 34.56	-1	530890..531540	+	216	208434452	cagU	HPG27_490	-	cag pathogenicity island protein U
477	 37.01	0	531553..532395	+	280	208434453	cagT	HPG27_491	-	cag pathogenicity island protein T
478	 33.67	-1	532592..533191	-	199	208434454	cagS	HPG27_492	-	cag pathogenicity island protein S
479	 34.97	-1	535518..535823	-	101	208434455	cagQ	HPG27_493	-	cag pathogenicity island protein Q
480	 33.89	-1	535835..536014	-	59	208434456	-	HPG27_494	-	hypothetical protein
481	 34.31	-1	537100..538230	+	376	208434457	cagM	HPG27_495	-	cag pathogenicity island protein M
482	 34.85	-1	538245..539165	+	306	208434458	cagN	HPG27_496	-	cag pathogenicity island protein N
483	 35.01	-1	539247..539960	-	237	208434459	cagL	HPG27_497	-	cag pathogenicity island protein L
484	 39.37	0	539957..541033	-	358	208434460	cagI	HPG27_498	-	cag pathogenicity island protein I
485	 39.66	0	541113..542045	-	310	208434462	cagH	HPG27_499	-	cag pathogenicity island protein H
486	 42.79	0	542044..542244	+	66	208434461	-	HPG27_500	-	hypothetical protein
487	 35.20	-1	542241..542669	-	142	208434463	cagG	HPG27_501	-	cag pathogenicity island protein G
488	 30.86	-2	542724..543530	-	268	208434464	cagF	HPG27_502	-	cag pathogenicity island protein F
489	 36.38	0	543532..546483	-	983	208434465	cagE	HPG27_503	-	cag pathogenicity island protein E
490	 31.73	-1	546492..547115	-	207	208434466	cagD	HPG27_504	-	cag pathogenicity island protein D
491	 42.82	0	547117..547464	-	115	208434467	cagC	HPG27_505	-	cag pathogenicity island protein C
492	 34.21	-1	547609..547836	-	75	208434468	cagB	HPG27_506	-	cag pathogenicity island protein B
493	 38.18	0	548263..551955	+	1230	208434469	cagA	HPG27_507	-	cytotoxin-associated protein A
494	 35.64	0	552282..552584	+	100	208434470	-	HPG27_508	-	hypothetical protein
495	 40.10	0	552642..553409	-	255	208434471	-	HPG27_509	-	glutamate racemase
496	 42.52	0	553446..554762	-	438	208434472	-	HPG27_510	-	transcription termination factor Rho
497	 40.20	0	555028..555231	+	67	208434473	-	HPG27_511	-	ribosomal protein L31
498	 38.66	0	556157..556813	+	218	208434474	-	HPG27_513	-	23S rRNA methyltransferase
499	 34.06	-1	556826..557791	+	321	208434475	-	HPG27_514	-	hypothetical protein
500	 37.65	0	557869..558609	+	246	208434476	-	HPG27_515	-	hypothetical protein
501	 36.53	0	558678..559115	-	145	208434477	-	HPG27_516	-	hypothetical protein
502	 39.94	0	559583..560521	-	312	208434478	-	HPG27_517	-	acetyl-coenzyme A carboxylase
503	 45.51	+1	560544..561758	-	404	208434479	-	HPG27_518	-	beta ketoacyl-acyl carrier protein synthase II
504	 42.19	0	562089..562325	-	78	208434480	-	HPG27_519	-	acyl carrier protein
505	 43.11	+1	562555..563301	-	248	208434481	-	HPG27_520	-	3-ketoacyl-acyl carrier protein reductase
506	 38.50	0	563340..563552	-	70	208434482	-	HPG27_521	-	ribosomal protein S21
507	 38.45	0	563653..564903	-	416	208434483	-	HPG27_522	-	hypothetical protein
508	 33.74	-1	565075..565320	+	81	208434484	-	HPG27_523	-	hypothetical protein
509	 41.82	0	565343..565990	-	215	208434485	-	HPG27_524	-	hypothetical protein
510	 38.58	0	566097..566915	-	272	208434486	-	HPG27_525	-	diaminopimelate epimerase
511	 35.82	0	567031..568077	+	348	208434487	-	HPG27_526	-	membrane protein
512	 37.34	0	568209..569081	-	290	208434488	-	HPG27_527	-	hypothetical protein
513	 41.05	0	569120..570220	-	366	208434489	-	HPG27_528	-	GTP-binding protein
514	 40.64	0	570222..571712	-	496	208434490	-	HPG27_529	-	amino peptidase a/I
515	 41.45	0	571760..572338	-	192	208434491	-	HPG27_530	-	hypothetical protein
516	 43.15	+1	572353..572892	-	179	208434492	-	HPG27_531	-	adenine phosphoribosyl transferase
517	 37.54	0	572950..573282	-	110	208434493	-	HPG27_532	-	hypothetical protein
518	 41.34	0	573327..573788	-	153	208434494	-	HPG27_533	-	ribose 5-phosphate isomerase
519	 42.35	0	573809..574507	-	232	208434495	-	HPG27_534	-	hypothetical protein
520	 39.40	0	574516..575388	-	290	208434496	lepB	HPG27_535	-	signal peptidase I
521	 42.61	0	575388..576260	-	290	208434497	-	HPG27_536	-	methylene-tetra hydrofolate dehydrogenase
522	 37.05	0	576339..578384	-	681	208434498	-	HPG27_537	-	hypothetical protein
523	 35.14	-1	578390..578944	-	184	208434499	-	HPG27_538	-	hypothetical protein
524	 38.81	0	578951..580027	-	358	208434500	-	HPG27_539	-	hypothetical protein
525	 39.41	0	580045..581064	-	339	208434501	-	HPG27_540	-	dihydroorotase
526	 37.12	0	582017..582913	-	298	208434502	-	HPG27_542	-	hypothetical protein
527	 36.83	0	582910..583281	-	123	208434503	fliY-2	HPG27_543	-	flagellar switch protein
528	 40.49	0	583363..584019	-	218	208434504	-	HPG27_544	-	endonuclease III
529	 39.83	0	584016..584246	-	76	208434505	-	HPG27_545	-	hypothetical protein
530	 35.04	-1	584248..587181	-	977	208434506	-	HPG27_546	-	hypothetical protein
531	 39.58	0	587225..588088	+	287	208434507	-	HPG27_547	-	amino deoxy chorismate lyase
532	 45.03	+1	588273..588614	+	113	208434508	-	HPG27_548	-	2-oxoglutarate oxidoreductase OorD subunit
533	 44.50	+1	588614..589741	+	375	208434509	korA	HPG27_549	-	2-oxoglutarate oxidoreductase OorA subunit
534	 44.16	+1	589744..590565	+	273	208434510	korB	HPG27_550	-	2-oxoglutarate oxidoreductase OorB subunit
39.14	MEAN

3.74	STD DEV
