IslandPath Analysis: Helicobacter pylori G27

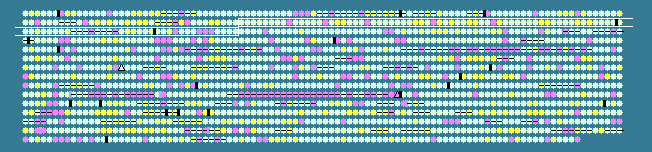

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.14 STD DEV: 3.74
Helicobacter pylori G27, complete genome - 1..1652982
1493 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
137	 40.23	0	162742..163698	+	318	208434113	-	HPG27_145	-	hypothetical protein
138	 36.14	0	163695..164798	-	367	208434114	rfaJ-1	HPG27_146	-	lipopolysaccharide1,2-glycosyltransferase
139	 40.93	0	164950..165870	+	306	208434115	-	HPG27_147	-	cysteine-rich protein D
140	 41.77	0	166658..167380	-	240	208434116	-	HPG27_148	-	hypothetical protein
141	 39.61	0	167381..168352	-	323	208434117	-	HPG27_149	-	delta-amino levulinicacid dehydratase
142	 35.86	0	168362..169708	-	448	208434118	-	HPG27_150	-	putative histidine kinase sensor protein
143	 38.35	0	169732..170409	-	225	208434119	-	HPG27_151	-	response regulator
144	 38.93	0	170644..171072	-	142	208434120	-	HPG27_152	-	hypothetical protein
145	 33.71	-1	171111..171374	-	87	208434121	-	HPG27_153	-	hypothetical protein
146	 42.47	0	171408..172688	-	426	208434122	-	HPG27_154	-	collagenase
147	 40.85	0	172691..173422	-	243	208434123	-	HPG27_155	-	hypothetical protein
148	 41.76	0	173493..174584	-	363	208434124	-	HPG27_156	-	peptide chain release factor RF-2
149	 37.67	0	174645..175820	-	391	208434125	-	HPG27_157	-	molybdopterin biosynthesis protein
150	 41.15	0	175830..176597	-	255	208434126	fliR	HPG27_158	-	flagellar biosynthetic protein
151	 32.92	-1	176591..177319	-	242	208434127	-	HPG27_159	-	hypothetical protein
152	 38.22	0	177806..178705	+	299	208434128	-	HPG27_160	-	peptidyl-prolylcis-transisomerase C
153	 42.86	0	178723..179646	+	307	208434129	-	HPG27_161	-	fructose-bisphosphate aldolase
154	 45.04	+1	179668..180231	+	187	208434130	-	HPG27_162	-	translation elongation factor EF-P
155	 40.27	0	180871..181893	-	340	208434131	-	HPG27_163	-	sialic acid synthase
156	 41.28	0	181896..182537	-	213	208434132	-	HPG27_164	-	ABC transporter
157	 37.72	0	182534..183811	-	425	208434133	-	HPG27_165	-	apolipoprotein N-acyltransferase
158	 34.55	-1	183880..184044	+	54	208434134	-	HPG27_166	-	hypothetical protein
159	 38.60	0	184048..184749	+	233	208434135	-	HPG27_167	-	hypothetical protein
160	 40.11	0	184759..186264	+	501	208434136	-	HPG27_168	-	lysyl-tRNA synthetase
161	 40.69	0	186264..187514	+	416	208434137	-	HPG27_169	-	serine hydroxy methyltransferase
162	 40.88	0	187525..188067	+	180	208434138	-	HPG27_170	-	hypothetical protein
163	 39.88	0	188090..188899	+	269	208434139	-	HPG27_171	-	hypothetical protein
164	 41.20	0	191141..191674	+	177	208434140	-	HPG27_173	-	hypothetical protein
165	 38.17	0	191680..193188	-	502	208434141	-	HPG27_174	-	phospholipase D-family protein
166	 45.67	+1	193210..193914	-	234	208434142	frdB	HPG27_175	-	fumarate reductase, iron-sulfur subunit
167	 45.83	+1	193940..196084	-	714	208434143	frdA	HPG27_176	-	fumarate reductase. flavo protein subunit
168	 40.62	0	196094..196861	-	255	208434144	frdC	HPG27_177	-	fumarate reductase, cytochrome b subunit
169	 35.46	0	197079..197783	+	234	208434145	-	HPG27_178	-	triose phosphate isomerase
170	 43.00	+1	197793..198620	+	275	208434146	-	HPG27_179	-	enoyl-(acyl-carrier-protein) reductase
171	 42.53	0	198630..199640	+	336	208434147	-	HPG27_180	-	UDP-3-0-(3-hydroxymyristoyl) glucosamine N-acyltransferase
172	 44.39	+1	199705..200862	+	385	208434148	-	HPG27_181	-	S-adenosyl methionine synthetase
173	 42.51	0	200929..201342	+	137	208434149	-	HPG27_182	-	nucleoside diphosphate kinase
174	 39.78	0	201367..201723	+	118	208434150	-	HPG27_183	-	hypothetical protein
175	 43.43	+1	201963..202982	+	339	208434151	-	HPG27_184	-	fatty acid/phospholipid synthesis protein
176	 42.90	+1	203007..203999	+	330	208434152	-	HPG27_185	-	beta-ketoacyl-acylcarrier protein synthase III
177	 36.92	0	204127..204321	+	64	208434153	-	HPG27_186	-	hypothetical protein
178	 39.06	0	204785..205168	-	127	208434154	-	HPG27_187	-	hypothetical protein
179	 31.80	-1	205242..208370	-	1042	208434155	-	HPG27_188	-	hypothetical protein
180	 43.90	+1	208467..209573	+	368	208434156	-	HPG27_189	-	ATP-binding protein
181	 37.34	0	209588..210610	-	340	208434157	rfaJ-2	HPG27_190	-	lipopolysaccharide 1,2-glycosyltransferase
182	 39.86	0	210843..212267	+	474	208434158	hofA	HPG27_191	-	outer membrane protein
183	 38.00	0	212370..214235	+	621	208434159	-	HPG27_192	-	chaperone and heatshock protein 90
184	 40.24	0	214433..215185	-	250	208434160	-	HPG27_193	-	cysteine-rich protein A
185	 40.96	0	215266..216432	-	388	208434161	-	HPG27_194	-	succinyl-diaminopimelate desuccinylase
186	 41.96	0	216443..218308	-	621	208434162	-	HPG27_195	-	glucose inhibited division protein A
187	 43.16	+1	218404..220062	+	552	208434163	-	HPG27_196	-	sodium-dependent transporter
188	 44.69	+1	220075..220875	+	266	208434164	-	HPG27_197	-	CDP-diacylglycerol synthetase
189	 40.87	0	220876..221976	+	366	208434165	-	HPG27_198	-	1-deoxy-D-xylulose5-phosphate reducto isomerase
190	 42.39	0	222157..222708	-	183	208434166	-	HPG27_199	-	phospholipid-binding protein
191	 38.96	0	222854..223315	+	153	208434167	-	HPG27_200	-	hypothetical protein
192	 41.95	0	223328..224650	+	440	208434168	-	HPG27_201	-	cysteine desulfurase
193	 44.24	+1	224672..225652	+	326	208434169	-	HPG27_202	-	nifU-like protein
194	 36.32	0	225808..226041	+	77	208434170	-	HPG27_203	-	hypothetical protein
195	 43.36	+1	226154..227500	+	448	208434171	-	HPG27_204	-	DNA repair protein
196	 40.09	0	227624..228703	+	359	208434172	-	HPG27_205	-	bifunctional methioninesulfoxide reductaseA/B protein
197	 42.45	0	229070..229903	-	277	208434173	-	HPG27_206	-	hypothetical protein
198	 42.51	0	230115..232196	-	693	208434174	-	HPG27_207	-	outer membrane protein
199	 41.45	0	232431..233588	+	385	208434175	-	HPG27_208	-	putative sulfate permease
200	 42.30	0	233816..235276	-	486	208434176	hopA	HPG27_209	-	outer membrane protein
201	 39.21	0	235470..236201	-	243	208434177	-	HPG27_210	-	3-deoxy-manno-octulosonate cytidylyl transferase
202	 39.85	0	236309..237106	+	265	208434178	-	HPG27_211	-	disulphide isomerase
203	 45.93	+1	237122..237772	+	216	208434179	-	HPG27_212	-	motility protein
204	 39.81	0	237796..238968	+	390	208434180	-	HPG27_213	-	glutathione spermidine synthetase
205	 39.92	0	238968..239498	+	176	208434181	-	HPG27_214	-	hypothetical protein
206	 41.20	0	240264..241331	-	355	208434182	-	HPG27_215	-	cysteine-rich protein E
207	 37.37	0	241424..241795	-	123	208434183	-	HPG27_216	-	hypothetical protein
208	 42.67	0	241795..242715	-	306	208434184	-	HPG27_217	-	porphobilinogen deaminase
209	 41.12	0	242726..244459	-	577	208434185	-	HPG27_218	-	prolyl-tRNA synthetase
210	 37.70	0	244463..245812	-	449	208434186	-	HPG27_219	-	glutamyl-tRNA reductase
211	 36.26	0	245812..246735	-	307	208434187	-	HPG27_220	-	putative octaprenyl-diphosphate synthase
212	 33.87	-1	246745..247116	-	123	208434188	-	HPG27_221	-	hypothetical protein
213	 36.14	0	247133..247417	-	94	208434189	-	HPG27_222	-	hypothetical protein
214	 37.70	0	247438..247872	-	144	208434190	-	HPG27_223	-	neutrophil activating protein
215	 37.00	0	248079..249224	-	381	208434191	-	HPG27_224	-	histidine kinase sensor protein
216	 35.53	0	249221..249538	-	105	208434192	-	HPG27_225	-	hypothetical protein
217	 41.59	0	249535..250563	-	342	208434193	flgI	HPG27_226	-	flagellar basal-body P-ring protein
218	 42.73	0	250762..252240	+	492	208434194	-	HPG27_227	-	ATP-dependent RNA helicase
219	 44.17	+1	252261..253349	+	362	208434195	-	HPG27_228	-	hypothetical protein
220	 37.41	0	253356..253895	+	179	208434196	-	HPG27_229	-	hypothetical protein
221	 40.62	0	253978..255528	-	516	208434197	-	HPG27_230	-	oligopeptide permease ATPase protein
222	 43.79	+1	255538..256560	-	340	208434198	-	HPG27_231	-	oligopeptide permease integral membrane protein
223	 41.37	0	256896..258326	+	476	208434199	hopF	HPG27_232	-	outer membrane protein
224	 42.04	0	258339..259751	+	470	208434200	hopG-1	HPG27_233	-	outer membrane protein
225	 43.69	+1	259850..261085	+	411	208434201	-	HPG27_234	-	adenylosuccinate synthetase
226	 34.73	-1	261082..261510	+	142	208434202	-	HPG27_235	-	hypothetical protein
227	 38.34	0	261521..262159	+	212	208434203	-	HPG27_236	-	conserved hypothetical secreted protein
228	 40.74	0	262159..263211	+	350	208434204	-	HPG27_237	-	hypothetical protein
229	 40.78	0	263224..264486	+	420	208434205	-	HPG27_238	-	exonuclease VII, large subunit
230	 31.43	-2	264505..265659	-	384	208434206	-	HPG27_239	-	type III adenine methyltransferase
231	 31.06	-2	265670..266284	-	204	208434207	-	HPG27_240	-	hypothetical protein
232	 34.96	-1	266397..267134	+	245	208434208	-	HPG27_241	-	type II DNA modification enzyme
233	 38.68	0	267131..267916	+	261	208434209	-	HPG27_242	-	typeII DNA modification enzyme
234	 41.19	0	267988..270558	+	856	208434210	clpB	HPG27_243	-	ATP-dependent protease binding subunit / heatshock protein
235	 40.56	0	270616..271335	+	239	208434211	-	HPG27_244	-	cytochrome c biogenesis protein
236	 37.99	0	271345..272481	+	378	208434212	pyrC	HPG27_245	-	dihydroorotase
39.14	MEAN

3.74	STD DEV
