IslandPath Analysis: Helicobacter pylori G27

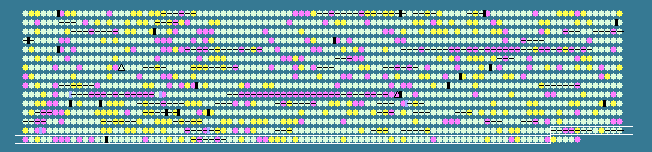

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.14 STD DEV: 3.74
Helicobacter pylori G27, complete genome - 1..1652982
1493 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1389	 38.15	0	1533635..1534195	+	186	208435365	-	HPG27_1420	-	peptidyl-tRNA hydrolase
1390	 38.20	0	1534205..1535272	+	355	208435366	-	HPG27_1421	-	hypothetical protein
1391	 31.24	-2	1535329..1536330	+	333	208435367	-	HPG27_1422	-	type II methylase
1392	 27.67	-2	1536327..1537226	+	299	208435368	-	HPG27_1423	-	type II adenine specific DNA methyltransferase
1393	 43.32	+1	1538902..1540032	-	376	208435369	hopK-3	HPG27_1425	-	outer membrane protein
1394	 36.99	0	1540247..1540684	+	145	208435370	-	HPG27_1426	-	hypothetical protein
1395	 38.45	0	1543057..1543584	-	175	208435371	-	HPG27_1428	-	hypothetical protein
1396	 39.71	0	1543755..1544789	-	344	208435372	-	HPG27_1429	-	riboflavin biosynthesis protein
1397	 43.36	+1	1544793..1546019	-	408	208435373	gltS	HPG27_1430	-	sodium/glutamate symport carrier protein/glutamate permease
1398	 40.94	0	1546162..1547304	+	380	208435374	-	HPG27_1431	-	hypothetical protein
1399	 41.68	0	1547314..1548690	-	458	208435375	-	HPG27_1432	-	ferrodoxin-like protein
1400	 40.26	0	1548766..1549458	+	230	208435376	-	HPG27_1433	-	hypothetical protein
1401	 35.31	-1	1549455..1549808	+	117	208435377	-	HPG27_1434	-	dihydroneopterin aldolase
1402	 39.58	0	1549831..1550118	+	95	208435378	-	HPG27_1435	-	FrpB-like protein
1403	 45.08	+1	1550272..1552911	+	879	208435379	-	HPG27_1436	-	iron-regulated outer membrane protein
1404	 38.16	0	1553139..1554299	+	386	208435380	-	HPG27_1437	-	seleno cysteine synthase
1405	 40.15	0	1554401..1555588	+	395	208435381	-	HPG27_1438	-	transcription termination factor
1406	 29.40	-2	1555810..1556520	-	236	208435382	-	HPG27_1439	-	hypothetical protein
1407	 33.11	-1	1556561..1556998	-	145	208435383	-	HPG27_1440	-	hypothetical protein
1408	 33.25	-1	1557796..1561350	-	1184	208435384	-	HPG27_1441	-	type II S restriction-modification protein
1409	 38.78	0	1564374..1564961	-	195	208435385	-	HPG27_1443	-	type III R-M system modification enzyme
1410	 32.97	-1	1564966..1566351	-	461	208435386	-	HPG27_1444	-	type III R-M system modification enzyme
1411	 37.50	0	1566402..1568273	-	623	208435387	recG	HPG27_1445	-	DNA recombinase
1412	 31.92	-1	1568355..1568708	+	117	208435388	-	HPG27_1446	-	hypothetical protein
1413	 40.64	0	1568813..1569346	+	177	208435389	-	HPG27_1447	-	hypothetical protein
1414	 38.38	0	1569343..1570095	-	250	208435390	-	HPG27_1448	-	exodeoxyribonuclease
1415	 39.58	0	1570275..1571714	-	479	208435391	comH	HPG27_1449	-	periplasmic competence protein
1416	 39.55	0	1571935..1573302	-	455	208435392	dnaA	HPG27_1450	-	chromosomal replication initiator protein
1417	 37.38	0	1573454..1573996	+	180	208435393	-	HPG27_1451	-	purine nucleoside phosphorylase
1418	 35.83	0	1574032..1574271	+	79	208435394	-	HPG27_1452	-	hypothetical protein
1419	 40.80	0	1574272..1576065	+	597	208435395	-	HPG27_1453	-	glutamine fructose-6-phosphate aminotransferase
1420	 39.39	0	1576089..1576715	+	208	208435396	-	HPG27_1454	-	thymidylate synthase
1421	 32.55	-1	1576971..1577609	-	212	208435397	-	HPG27_1455	-	typeI R-M system specificity subunit
1422	 38.12	0	1577620..1580064	-	814	208435398	-	HPG27_1456	-	typeI restriction enzyme M protein
1423	 36.42	0	1580134..1583109	+	991	208435399	-	HPG27_1457	-	typeI restriction enzyme R protein
1424	 37.01	0	1583109..1583816	+	235	208435400	-	HPG27_1458	-	hypothetical protein
1425	 46.24	+1	1583885..1586410	-	841	208435401	-	HPG27_1459	-	iron (III) dicitrate transport protein
1426	 39.32	0	1586762..1587730	-	322	208435402	rocF	HPG27_1460	-	arginase
1427	 45.14	+1	1587935..1589077	+	380	208435403	-	HPG27_1461	-	alanine dehydrogenase
1428	 35.83	0	1589200..1590921	+	573	208435404	-	HPG27_1462	-	hypothetical protein
1429	 42.66	0	1590932..1591660	-	242	208435405	horL	HPG27_1463	-	outer membrane protein
1430	 20.24	-2	1591657..1591824	-	55	208435406	-	HPG27_1464	-	hypothetical protein
1431	 41.17	0	1591846..1592700	+	284	208435407	-	HPG27_1465	-	inorganic polyphosphate/ATP-NAD kinase
1432	 40.06	0	1592714..1594288	+	524	208435408	recN	HPG27_1466	-	DNA repair protein
1433	 33.03	-1	1594285..1595592	+	435	208435409	-	HPG27_1467	-	fibronectin/fibrinogen-binding protein
1434	 41.75	0	1595612..1595908	+	98	208435410	-	HPG27_1468	-	hypothetical protein
1435	 35.77	0	1596046..1597029	+	327	208435411	-	HPG27_1469	-	cysteine-rich protein C
1436	 39.75	0	1597068..1597862	-	264	208435412	polC	HPG27_1470	-	DNA polymerase III epsilon subunit
1437	 43.27	+1	1597909..1598562	-	217	208435413	-	HPG27_1471	-	D-ribulose-5-phosphate 3 epimerase
1438	 37.57	0	1598633..1599505	+	290	208435414	-	HPG27_1472	-	fructose-1,6-bisphosphatase
1439	 39.71	0	1599505..1599708	+	67	208435415	-	HPG27_1473	-	hypothetical protein
1440	 35.23	-1	1599721..1600617	+	298	208435416	-	HPG27_1474	-	putative type II methylase protein
1441	 34.31	-1	1600622..1601341	+	239	208435417	-	HPG27_1475	-	hypothetical protein
1442	 43.82	+1	1601463..1602320	-	285	208435418	-	HPG27_1476	-	ubiquinol cytochrome c oxidoreductase, cytochrome c1
1443	 42.94	+1	1602317..1603555	-	412	208435419	-	HPG27_1477	-	ubiquinol cytochrome c oxidoreductase,cytochrome b subunit
1444	 46.03	+1	1603566..1604069	-	167	208435420	-	HPG27_1478	-	ubiquinol cytochrome c oxidoreductase, Rieske 2Fe-2S subunit
1445	 39.67	0	1604193..1607192	-	999	208435421	-	HPG27_1479	-	transcription-repair coupling factor
1446	 45.40	+1	1607196..1607510	-	104	208435422	-	HPG27_1480	-	hypothetical protein
1447	 40.79	0	1607525..1608463	-	312	208435423	-	HPG27_1481	-	toxR-activated protein
1448	 39.37	0	1608472..1609398	-	308	208435424	-	HPG27_1482	-	toxR-activated protein
1449	 38.08	0	1609398..1610429	-	343	208435425	folC	HPG27_1483	-	folylpoly glutamate synthase
1450	 39.18	0	1610557..1611069	-	170	208435426	-	HPG27_1484	-	hypothetical protein
1451	 40.40	0	1611066..1613486	-	806	208435427	-	HPG27_1485	-	leucyl-tRNA synthetase
1452	 42.48	0	1613497..1613835	-	112	208435428	-	HPG27_1486	-	hypothetical protein
1453	 40.43	0	1613845..1614816	-	323	208435429	-	HPG27_1487	-	protein-export membrane protein
1454	 43.39	+1	1614825..1616336	-	503	208435430	-	HPG27_1488	-	protein-export membrane protein
1455	 37.91	0	1616389..1616781	-	130	208435431	-	HPG27_1489	-	conserved hypothetical secreted protein
1456	 41.91	0	1616829..1618145	-	438	208435432	nhaA	HPG27_1490	-	Na+/H+ antiporter
1457	 37.34	0	1618169..1621060	-	963	208435433	-	HPG27_1491	-	ATP-dependent nuclease
1458	 38.55	0	1621341..1622126	+	261	208435434	rpsB	HPG27_1492	-	ribosomal protein S2
1459	 40.54	0	1622126..1623193	+	355	208435435	-	HPG27_1493	-	translation elongation factor EF-Ts
1460	 39.61	0	1623638..1625485	-	615	208435436	-	HPG27_1494	-	cell division protein
1461	 42.12	0	1625641..1625970	-	109	208435437	fliE	HPG27_1495	-	flagellar basal-body protein
1462	 45.68	+1	1626100..1626585	-	161	208435438	flgC	HPG27_1496	-	flagellar basal-body rod protein
1463	 38.77	0	1626598..1627020	-	140	208435439	flgB	HPG27_1497	-	flagellar basal-body rod protein
1464	 44.56	+1	1627224..1628390	+	388	208435440	-	HPG27_1498	-	cell division protein
1465	 39.12	0	1628410..1629411	-	333	208435441	-	HPG27_1499	-	iron (III) ABC transporter, periplasmic iron-bindin gprotein
1466	 41.04	0	1629651..1630247	+	198	208435442	-	HPG27_1500	-	alkylhydroperoxide reductase
1467	 38.65	0	1630282..1631202	+	306	208435443	-	HPG27_1501	-	putative outer membrane lipoprotein
1468	 41.31	0	1631701..1633443	-	580	208435444	-	HPG27_1502	-	penicillin-binding protein 2
1469	 31.98	-1	1633448..1633891	-	147	208435445	-	HPG27_1503	-	hypothetical protein
1470	 38.28	0	1633903..1634529	-	208	208435446	-	HPG27_1504	-	conserved hypothetical GTP-binding protein
1471	 40.50	0	1634526..1635083	-	185	208435447	-	HPG27_1505	-	hypothetical protein
1472	 36.07	0	1635083..1635631	-	182	208435448	-	HPG27_1506	-	hypothetical protein
1473	 42.22	0	1635651..1636145	-	164	208435449	-	HPG27_1507	-	ABC transporter system inner membrane protein
1474	 41.46	0	1636142..1637089	-	315	208435450	rlpA	HPG27_1508	-	rare lipoprotein A
1475	 39.26	0	1637089..1638201	-	370	208435451	-	HPG27_1509	-	regulatory protein DniR
1476	 39.87	0	1638295..1639059	-	254	208435452	-	HPG27_1510	-	DNAse
1477	 39.94	0	1639134..1639754	+	206	208435453	-	HPG27_1511	-	riboflavin synthase alpha subunit
1478	 44.32	+1	1639755..1640027	+	90	208435454	-	HPG27_1512	-	FlhB-related flagellar biosynthesis protein
1479	 40.14	0	1640049..1641032	+	327	208435455	-	HPG27_1513	-	ABC transporter, ATP-binding protein
1480	 40.90	0	1641034..1641681	+	215	208435456	-	HPG27_1514	-	ABC transporter, permease protein
1481	 37.09	0	1641713..1642831	-	372	208435457	-	HPG27_1515	-	putative lipopolysaccharide biosynthesis protein
1482	 34.50	-1	1642880..1643308	-	142	208435458	-	HPG27_1516	-	hypothetical protein
1483	 47.91	+2	1643318..1643914	-	198	208435459	-	HPG27_1517	-	hypothetical protein
1484	 40.12	0	1643911..1644912	-	333	208435460	-	HPG27_1518	-	undecaprenylphosphate N-acetylglucosaminyl transferase
1485	 38.02	0	1645057..1645845	+	262	208435461	-	HPG27_1519	-	pyridoxal phosphate biosynthetic protein J
1486	 41.88	0	1645847..1646770	+	307	208435462	-	HPG27_1520	-	pyridoxal phosphate biosynthetic protein A
1487	 40.27	0	1646834..1647856	+	340	208435463	-	HPG27_1521	-	sialoglycoprotease
1488	 27.78	-2	1648464..1648661	+	65	208435464	-	HPG27_1522	-	hypothetical protein
39.14	MEAN

3.74	STD DEV
