IslandPath Analysis: Helicobacter pylori G27

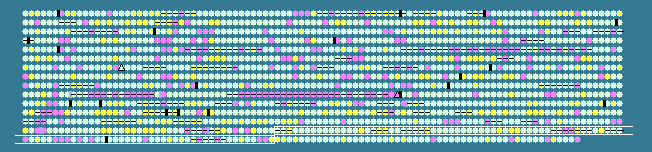

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.14 STD DEV: 3.74
Helicobacter pylori G27, complete genome - 1..1652982
1493 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1343	 41.99	0	1485406..1487658	+	750	208435319	homD	HPG27_1374	-	outer membrane protein
1344	 38.97	0	1487675..1487869	-	64	208435320	-	HPG27_1375	-	hypothetical protein
1345	 46.30	+1	1487928..1488089	-	53	208435321	-	HPG27_1376	-	hypothetical protein
1346	 39.25	0	1488480..1489391	-	303	208435322	-	HPG27_1377	-	hypothetical protein
1347	 41.45	0	1489400..1489744	-	114	208435323	-	HPG27_1378	-	hypothetical protein
1348	 39.77	0	1489752..1490279	-	175	208435324	-	HPG27_1379	-	membrane-associated lipoprotein
1349	 42.02	0	1490303..1490935	-	210	208435325	-	HPG27_1380	-	hypothetical protein
1350	 40.95	0	1491352..1491666	-	104	208435326	-	HPG27_1381	-	thioredoxin
1351	 41.73	0	1491721..1492494	-	257	208435327	-	HPG27_1382	-	ribosomal large subunit pseudouridinesynthase B
1352	 41.94	0	1492491..1496126	-	1211	208435328	-	HPG27_1383	-	DNA polymerase III alpha-subunit
1353	 41.79	0	1496274..1497326	+	350	208435329	-	HPG27_1384	-	cytochrome c551 peroxidase
1354	 36.90	0	1497506..1498093	-	195	208435330	-	HPG27_1385	-	putative secreted motility protein
1355	 40.56	0	1498112..1498789	-	225	208435331	-	HPG27_1386	-	hypothetical protein
1356	 40.30	0	1498792..1499595	-	267	208435332	-	HPG27_1387	-	ABC transport system substrate binding protein
1357	 43.00	+1	1499592..1500377	-	261	208435333	-	HPG27_1388	-	ABC transporter ATP-binding protein
1358	 40.48	0	1500377..1501510	-	377	208435334	-	HPG27_1389	-	ABC transport system permease
1359	 40.37	0	1501644..1502339	+	231	208435335	-	HPG27_1390	-	outer membrane protein
1360	 45.65	+1	1502344..1503366	-	340	208435336	-	HPG27_1391	-	branched-chain-amino-acid aminotransferase
1361	 42.84	0	1503418..1504164	-	248	208435337	horJ	HPG27_1392	-	outer membrane protein
1362	 39.18	0	1504279..1506996	-	905	208435338	polA	HPG27_1393	-	DNA polymerase I
1363	 37.02	0	1507062..1508282	-	406	208435339	-	HPG27_1394	-	type II restriction enzyme
1364	 38.04	0	1508279..1510318	-	679	208435340	-	HPG27_1395	-	restriction enzyme BcgI alpha chain-like protein
1365	 41.76	0	1510351..1510908	-	185	208435341	-	HPG27_1396	-	hypothetical protein
1366	 39.76	0	1510914..1511489	-	191	208435342	-	HPG27_1397	-	thymidylate kinase
1367	 40.93	0	1511491..1511964	-	157	208435343	-	HPG27_1398	-	lipopolysaccharide core biosynthesis protein
1368	 44.86	+1	1511964..1512527	-	187	208435344	-	HPG27_1399	-	aromatic acid decarboxylase
1369	 38.66	0	1512537..1513193	-	218	208435345	-	HPG27_1400	-	hypothetical protein
1370	 39.97	0	1513190..1515238	-	682	208435346	uvrD	HPG27_1401	-	DNA helicase II
1371	 39.80	0	1515235..1517769	-	844	208435347	-	HPG27_1402	-	hypothetical protein
1372	 41.59	0	1517779..1519026	-	415	208435348	-	HPG27_1403	-	seryl-tRNA synthetase
1373	 41.10	0	1519027..1519824	-	265	208435349	-	HPG27_1404	-	hypothetical protein
1374	 37.55	0	1519828..1520088	-	86	208435350	-	HPG27_1405	-	exodeoxyribonuclease VII small subunit
1375	 39.14	0	1520098..1520838	-	246	208435351	-	HPG27_1406	-	methyl transferase
1376	 38.48	0	1520865..1521311	-	148	208435352	-	HPG27_1407	-	hypothetical protein
1377	 40.28	0	1521322..1521825	-	167	208435353	-	HPG27_1408	-	hypothetical protein
1378	 39.17	0	1521881..1523011	-	376	208435354	-	HPG27_1409	-	hypothetical protein
1379	 39.53	0	1523008..1524105	-	365	208435355	-	HPG27_1410	-	hypothetical protein
1380	 44.34	+1	1524117..1525106	-	329	208435356	-	HPG27_1411	-	conserved hypothetical secreted protein
1381	 40.44	0	1525117..1526649	-	510	208435357	-	HPG27_1412	-	lipase-like protein
1382	 42.70	0	1526646..1527947	-	433	208435358	-	HPG27_1413	-	putative integral membrane protein with a TlyC-like hemolysin domain
1383	 43.01	+1	1528099..1529700	-	533	208435359	-	HPG27_1414	-	phosphate permease
1384	 38.52	0	1529841..1530110	+	89	208435360	-	HPG27_1415	-	conserved hypothetical nifU-like protein
1385	 36.44	0	1530122..1530733	+	203	208435361	-	HPG27_1416	-	hypothetical protein
1386	 37.87	0	1530737..1532080	+	447	208435362	-	HPG27_1417	-	UDP-MurNac-tripeptide synthetase
1387	 37.96	0	1532084..1533034	+	316	208435363	-	HPG27_1418	-	transaldolase
1388	 38.55	0	1533089..1533625	+	178	208435364	rplY	HPG27_1419	-	ribosomal protein L25
1389	 38.15	0	1533635..1534195	+	186	208435365	-	HPG27_1420	-	peptidyl-tRNA hydrolase
1390	 38.20	0	1534205..1535272	+	355	208435366	-	HPG27_1421	-	hypothetical protein
1391	 31.24	-2	1535329..1536330	+	333	208435367	-	HPG27_1422	-	type II methylase
1392	 27.67	-2	1536327..1537226	+	299	208435368	-	HPG27_1423	-	type II adenine specific DNA methyltransferase
1393	 43.32	+1	1538902..1540032	-	376	208435369	hopK-3	HPG27_1425	-	outer membrane protein
1394	 36.99	0	1540247..1540684	+	145	208435370	-	HPG27_1426	-	hypothetical protein
1395	 38.45	0	1543057..1543584	-	175	208435371	-	HPG27_1428	-	hypothetical protein
1396	 39.71	0	1543755..1544789	-	344	208435372	-	HPG27_1429	-	riboflavin biosynthesis protein
1397	 43.36	+1	1544793..1546019	-	408	208435373	gltS	HPG27_1430	-	sodium/glutamate symport carrier protein/glutamate permease
1398	 40.94	0	1546162..1547304	+	380	208435374	-	HPG27_1431	-	hypothetical protein
1399	 41.68	0	1547314..1548690	-	458	208435375	-	HPG27_1432	-	ferrodoxin-like protein
1400	 40.26	0	1548766..1549458	+	230	208435376	-	HPG27_1433	-	hypothetical protein
1401	 35.31	-1	1549455..1549808	+	117	208435377	-	HPG27_1434	-	dihydroneopterin aldolase
1402	 39.58	0	1549831..1550118	+	95	208435378	-	HPG27_1435	-	FrpB-like protein
1403	 45.08	+1	1550272..1552911	+	879	208435379	-	HPG27_1436	-	iron-regulated outer membrane protein
1404	 38.16	0	1553139..1554299	+	386	208435380	-	HPG27_1437	-	seleno cysteine synthase
1405	 40.15	0	1554401..1555588	+	395	208435381	-	HPG27_1438	-	transcription termination factor
1406	 29.40	-2	1555810..1556520	-	236	208435382	-	HPG27_1439	-	hypothetical protein
1407	 33.11	-1	1556561..1556998	-	145	208435383	-	HPG27_1440	-	hypothetical protein
1408	 33.25	-1	1557796..1561350	-	1184	208435384	-	HPG27_1441	-	type II S restriction-modification protein
1409	 38.78	0	1564374..1564961	-	195	208435385	-	HPG27_1443	-	type III R-M system modification enzyme
1410	 32.97	-1	1564966..1566351	-	461	208435386	-	HPG27_1444	-	type III R-M system modification enzyme
1411	 37.50	0	1566402..1568273	-	623	208435387	recG	HPG27_1445	-	DNA recombinase
1412	 31.92	-1	1568355..1568708	+	117	208435388	-	HPG27_1446	-	hypothetical protein
1413	 40.64	0	1568813..1569346	+	177	208435389	-	HPG27_1447	-	hypothetical protein
1414	 38.38	0	1569343..1570095	-	250	208435390	-	HPG27_1448	-	exodeoxyribonuclease
1415	 39.58	0	1570275..1571714	-	479	208435391	comH	HPG27_1449	-	periplasmic competence protein
1416	 39.55	0	1571935..1573302	-	455	208435392	dnaA	HPG27_1450	-	chromosomal replication initiator protein
1417	 37.38	0	1573454..1573996	+	180	208435393	-	HPG27_1451	-	purine nucleoside phosphorylase
1418	 35.83	0	1574032..1574271	+	79	208435394	-	HPG27_1452	-	hypothetical protein
1419	 40.80	0	1574272..1576065	+	597	208435395	-	HPG27_1453	-	glutamine fructose-6-phosphate aminotransferase
1420	 39.39	0	1576089..1576715	+	208	208435396	-	HPG27_1454	-	thymidylate synthase
1421	 32.55	-1	1576971..1577609	-	212	208435397	-	HPG27_1455	-	typeI R-M system specificity subunit
1422	 38.12	0	1577620..1580064	-	814	208435398	-	HPG27_1456	-	typeI restriction enzyme M protein
1423	 36.42	0	1580134..1583109	+	991	208435399	-	HPG27_1457	-	typeI restriction enzyme R protein
1424	 37.01	0	1583109..1583816	+	235	208435400	-	HPG27_1458	-	hypothetical protein
1425	 46.24	+1	1583885..1586410	-	841	208435401	-	HPG27_1459	-	iron (III) dicitrate transport protein
1426	 39.32	0	1586762..1587730	-	322	208435402	rocF	HPG27_1460	-	arginase
1427	 45.14	+1	1587935..1589077	+	380	208435403	-	HPG27_1461	-	alanine dehydrogenase
1428	 35.83	0	1589200..1590921	+	573	208435404	-	HPG27_1462	-	hypothetical protein
1429	 42.66	0	1590932..1591660	-	242	208435405	horL	HPG27_1463	-	outer membrane protein
1430	 20.24	-2	1591657..1591824	-	55	208435406	-	HPG27_1464	-	hypothetical protein
1431	 41.17	0	1591846..1592700	+	284	208435407	-	HPG27_1465	-	inorganic polyphosphate/ATP-NAD kinase
1432	 40.06	0	1592714..1594288	+	524	208435408	recN	HPG27_1466	-	DNA repair protein
1433	 33.03	-1	1594285..1595592	+	435	208435409	-	HPG27_1467	-	fibronectin/fibrinogen-binding protein
1434	 41.75	0	1595612..1595908	+	98	208435410	-	HPG27_1468	-	hypothetical protein
1435	 35.77	0	1596046..1597029	+	327	208435411	-	HPG27_1469	-	cysteine-rich protein C
1436	 39.75	0	1597068..1597862	-	264	208435412	polC	HPG27_1470	-	DNA polymerase III epsilon subunit
1437	 43.27	+1	1597909..1598562	-	217	208435413	-	HPG27_1471	-	D-ribulose-5-phosphate 3 epimerase
1438	 37.57	0	1598633..1599505	+	290	208435414	-	HPG27_1472	-	fructose-1,6-bisphosphatase
1439	 39.71	0	1599505..1599708	+	67	208435415	-	HPG27_1473	-	hypothetical protein
1440	 35.23	-1	1599721..1600617	+	298	208435416	-	HPG27_1474	-	putative type II methylase protein
1441	 34.31	-1	1600622..1601341	+	239	208435417	-	HPG27_1475	-	hypothetical protein
1442	 43.82	+1	1601463..1602320	-	285	208435418	-	HPG27_1476	-	ubiquinol cytochrome c oxidoreductase, cytochrome c1
39.14	MEAN

3.74	STD DEV
