IslandPath Analysis: Helicobacter pylori G27

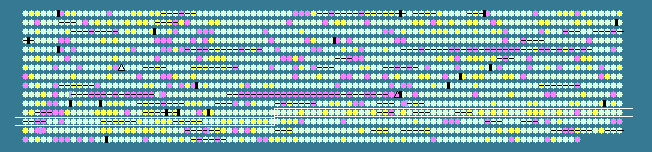

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.14 STD DEV: 3.74
Helicobacter pylori G27, complete genome - 1..1652982
1493 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1143	 39.44	0	1289181..1289573	+	130	208435119	-	HPG27_1169	-	crcB integral membrane protein
1144	 38.63	0	1289620..1290657	-	345	208435120	-	HPG27_1170	-	oxygen-independent coproporphyrinogen III oxidase
1145	 40.21	0	1290754..1291044	+	96	208435121	-	HPG27_1171	-	cytochrome c 553
1146	 41.24	0	1291205..1291672	+	155	208435122	-	HPG27_1172	-	diadenosine polyphosphate hydrolase
1147	 44.83	+1	1291674..1292891	+	405	208435123	-	HPG27_1173	-	aspartokinase
1148	 39.23	0	1292888..1293430	+	180	208435124	-	HPG27_1174	-	hypothetical protein
1149	 37.29	0	1293427..1294083	+	218	208435125	-	HPG27_1175	-	DNApolymerase III delta prime subunit
1150	 39.98	0	1294080..1295222	+	380	208435126	-	HPG27_1176	-	dihydropteroate synthase
1151	 43.07	+1	1295244..1295705	-	153	208435127	-	HPG27_1177	-	hypothetical protein
1152	 41.25	0	1296100..1296996	+	298	208435128	-	HPG27_1178	-	hypothetical protein
1153	 38.30	0	1297000..1298247	+	415	208435129	-	HPG27_1179	-	hypothetical protein
1154	 36.05	0	1298327..1298878	+	183	208435130	-	HPG27_1180	-	hypothetical protein
1155	 43.26	+1	1298878..1300005	+	375	208435131	-	HPG27_1181	-	carbamoyl-phosphate synthetase
1156	 45.77	+1	1300170..1301174	+	334	208435132	-	HPG27_1182	-	formamidase
1157	 38.37	0	1301253..1301510	-	85	208435133	-	HPG27_1183	-	hypothetical protein
1158	 41.19	0	1301625..1302197	-	190	208435134	-	HPG27_1184	-	maf protein
1159	 42.67	0	1302199..1304652	-	817	208435135	-	HPG27_1185	-	alanyl-tRNA synthetase
1160	 35.93	0	1304861..1305091	+	76	208435136	-	HPG27_1186	-	hypothetical protein
1161	 44.09	+1	1305877..1307847	-	656	208435137	-	HPG27_1187	-	outer membrane protein
1162	 30.39	-2	1307962..1308165	+	67	208435138	-	HPG27_1188	-	hypothetical protein
1163	 41.47	0	1308521..1308778	-	85	208435139	rpsR	HPG27_1189	-	ribosomal protein S18
1164	 42.67	0	1308801..1309346	-	181	208435140	-	HPG27_1190	-	single-strand DNA-binding protein
1165	 38.46	0	1309356..1309784	-	142	208435141	rpsF	HPG27_1191	-	ribosomal protein S6
1166	 36.90	0	1309937..1310944	-	335	208435142	-	HPG27_1192	-	DNA polymerase III holoenzyme delta subunit
1167	 37.93	0	1310949..1312883	-	644	208435143	-	HPG27_1193	-	3'-5'exoribonuclease R
1168	 42.05	0	1312883..1313674	-	263	208435144	-	HPG27_1194	-	shikimate 5-dehydrogenase
1169	 40.10	0	1313682..1314272	-	196	208435145	-	HPG27_1195	-	hypothetical protein
1170	 41.45	0	1314281..1315327	-	348	208435146	-	HPG27_1196	-	oligopeptide ABC transporter, permease protein
1171	 40.16	0	1317107..1318087	-	326	208435147	-	HPG27_1198	-	tryptophanyl-tRNA synthetase
1172	 36.24	0	1318158..1318880	-	240	208435148	-	HPG27_1199	-	biotin synthesis protein
1173	 42.09	0	1319004..1319597	+	197	208435149	-	HPG27_1200	-	protein translocation protein
1174	 40.68	0	1319597..1320154	+	185	208435150	-	HPG27_1201	-	ribosome releasing factor
1175	 43.56	+1	1320158..1320763	+	201	208435151	-	HPG27_1202	-	orotate phosphoribosyl transferase
1176	 39.44	0	1320825..1321217	+	130	208435152	-	HPG27_1203	-	hypothetical protein
1177	 43.48	+1	1321214..1321903	+	229	208435153	-	HPG27_1204	-	NAD-dependent deacetylase
1178	 38.06	0	1322011..1322412	+	133	208435154	-	HPG27_1205	-	NADH-ubiquinone oxidoreductase chain A
1179	 46.67	+2	1322412..1322891	+	159	208435155	nuoB	HPG27_1206	-	NADH-ubiquinone oxidoreductase chain B
1180	 41.23	0	1322891..1323688	+	265	208435156	nuoC	HPG27_1207	-	NADH-ubiquinone oxidoreductase chain C
1181	 43.66	+1	1323690..1324919	+	409	208435157	nuoD	HPG27_1208	-	NADH-ubiquinone oxidoreductase chain D
1182	 38.53	0	1324916..1325146	+	76	208435158	-	HPG27_1209	-	NADH-ubiquinone oxidoreductase chain E
1183	 37.18	0	1325149..1326135	+	328	208435159	-	HPG27_1210	-	NADH-ubiquinone oxidoreductase chain F
1184	 41.56	0	1326132..1328696	+	854	208435160	-	HPG27_1211	-	NADH-ubiquinone oxidoreductase chain G
1185	 43.23	+1	1328693..1329682	+	329	208435161	-	HPG27_1212	-	NADH-ubiquinone oxidoreductase chain H
1186	 44.95	+1	1329693..1330355	+	220	208435162	-	HPG27_1213	-	NADH-ubiquinone oxidoreductase chain I
1187	 43.71	+1	1330396..1330896	+	166	208435163	nuoJ	HPG27_1214	-	NADH-ubiquinone oxidoreductase chain J
1188	 39.93	0	1330893..1331195	+	100	208435164	nuoK	HPG27_1215	-	NADH-ubiquinone oxidoreductase chain K
1189	 42.41	0	1331198..1333036	+	612	208435165	nuoL	HPG27_1216	-	NADH-ubiquinone oxidoreductase chain L
1190	 42.99	+1	1334628..1336046	+	472	208435166	nuoN2	HPG27_1218	-	NADH-ubiquinone oxidoreductase chain N
1191	 38.55	0	1336066..1338441	+	791	208435167	-	HPG27_1219	-	paralysed flagella protein
1192	 40.58	0	1338443..1339822	+	459	208435168	-	HPG27_1220	-	phosphomannomutase
1193	 34.10	-1	1339999..1340259	+	86	208435169	-	HPG27_1221	-	hypothetical protein
1194	 36.00	0	1340612..1340836	-	74	208435170	-	HPG27_1222	-	hypothetical protein
1195	 41.44	0	1341065..1341853	-	262	208435171	-	HPG27_1223	-	tryptophansynthase, alpha subunit
1196	 43.49	+1	1341850..1343031	-	393	208435172	-	HPG27_1224	-	tryptophansynthase, beta subunit
1197	 36.81	0	1343033..1344382	-	449	208435173	-	HPG27_1225	-	N-(5'-phospho-ribosyl) anthranilate isomerase
1198	 40.97	0	1344384..1345391	-	335	208435174	-	HPG27_1226	-	anthranilate phosphoribosyl transferase
1199	 38.63	0	1345388..1345972	-	194	208435175	-	HPG27_1227	-	anthranilate synthasecomponent II. glutamineamido-transferase
1200	 40.13	0	1345969..1347528	-	519	208435176	-	HPG27_1228	-	anthranilate synthase component I
1201	 41.27	0	1347703..1347954	-	83	208435177	-	HPG27_1229	-	hypothetical protein
1202	 37.69	0	1348125..1349387	+	420	208435178	-	HPG27_1230	-	hypothetical protein
1203	 34.11	-1	1349606..1350511	-	301	208435179	-	HPG27_1231	-	type II adenine specific DNA methyltransferase
1204	 31.24	-2	1350836..1351360	-	174	208435180	-	HPG27_1232	-	hypothetical protein
1205	 41.07	0	1351455..1351622	-	55	208435181	-	HPG27_1233	-	adenine-specific DNA methylase
1206	 41.01	0	1351624..1352001	-	125	208435182	-	HPG27_1234	-	adenine-specific DNA methylase
1207	 35.60	0	1352064..1353521	-	485	208435183	-	HPG27_1235	-	hypothetical protein
1208	 39.39	0	1353618..1354658	-	346	208435184	-	HPG27_1236	-	hypothetical protein
1209	 38.38	0	1354726..1355418	-	230	208435185	-	HPG27_1237	-	acid phosphatase lipoprotein
1210	 39.71	0	1355587..1356135	+	182	208435186	-	HPG27_1238	-	conserved hypothetical secreted protein
1211	 36.83	0	1356723..1357379	+	218	208435187	-	HPG27_1239	-	putative transcriptional regulator
1212	 36.65	0	1357501..1358163	+	220	208435188	-	HPG27_1240	-	nicotinamide mononucleotide transporter
1213	 37.79	0	1358160..1358765	+	201	208435189	-	HPG27_1241	-	hypothetical protein
1214	 45.58	+1	1359473..1359823	-	116	208435190	rplQ	HPG27_1242	-	ribosomal protein L17
1215	 41.15	0	1359846..1360856	-	336	208435191	rpoA	HPG27_1243	-	DNA-directed RNA polymerase, alpha subunit
1216	 43.86	+1	1360868..1361494	-	208	208435192	rpsD	HPG27_1244	-	ribosomal protein S4
1217	 46.21	+1	1361504..1361899	-	131	208435193	rpsK	HPG27_1245	-	ribosomal protein S11
1218	 40.77	0	1361922..1362284	-	120	208435194	rpsM	HPG27_1246	-	ribosomal protein S13
1219	 42.01	0	1362479..1362697	-	72	208435195	-	HPG27_1247	-	translation initiation factor EF-1
1220	 44.88	+1	1362697..1363458	-	253	208435196	-	HPG27_1248	-	methionine amino peptidase
1221	 42.52	0	1363458..1364720	-	420	208435197	-	HPG27_1249	-	preprotein translocase subunit
1222	 39.80	0	1364760..1365161	-	133	208435198	rplO	HPG27_1250	-	ribosomal protein L15
1223	 45.05	+1	1365179..1365622	-	147	208435199	rpsE	HPG27_1251	-	ribosomal protein S5
1224	 43.42	+1	1365637..1365993	-	118	208435200	rplR	HPG27_1252	-	ribosomal protein L18
1225	 44.88	+1	1366007..1366543	-	178	208435201	rplF	HPG27_1253	-	ribosomal protein L6
1226	 37.63	0	1366554..1366949	-	131	208435202	rpsH	HPG27_1254	-	ribosomal protein S8
1227	 43.55	+1	1366959..1367144	-	61	208435203	-	HPG27_1255	-	ribosomal protein S14
1228	 39.93	0	1367154..1367699	-	181	208435204	rplE	HPG27_1256	-	ribosomal protein L5
1229	 43.08	+1	1367712..1367906	-	64	208435205	rplX	HPG27_1257	-	ribosomal protein L24
1230	 44.17	+1	1367934..1368302	-	122	208435206	rplN	HPG27_1258	-	ribosomal protein L14
1231	 37.93	0	1368305..1368565	-	86	208435207	rpsQ	HPG27_1259	-	ribosomal protein S17
1232	 38.17	0	1368579..1368764	-	61	208435208	rpmC	HPG27_1260	-	ribosomal protein L29
1233	 42.25	0	1368766..1369191	-	141	208435209	rplP	HPG27_1261	-	ribosomal protein L16
1234	 44.54	+1	1369194..1369898	-	234	208435210	rpsC	HPG27_1262	-	ribosomal protein S3
1235	 44.44	+1	1369902..1370270	-	122	208435211	rplV	HPG27_1263	-	ribosomal protein L22
1236	 39.01	0	1370280..1370561	-	93	208435212	rpsS	HPG27_1264	-	ribosomal protein S19
1237	 47.05	+2	1370572..1371402	-	276	208435213	rplB	HPG27_1265	-	ribosomal protein L2
1238	 39.01	0	1371418..1371699	-	93	208435214	rplW	HPG27_1266	-	ribosomal protein L23
1239	 43.06	+1	1371703..1372350	-	215	208435215	rplD	HPG27_1267	-	ribosomal protein L4
1240	 45.83	+1	1372385..1372960	-	191	208435216	rplC	HPG27_1268	-	ribosomal protein L3
1241	 45.08	+1	1372997..1373311	-	104	208435217	rpsJ	HPG27_1269	-	ribosomal protein S10
1242	 38.20	0	1373521..1374609	+	362	208435218	-	HPG27_1270	-	conserved hypothetical ATP-binding protein
39.14	MEAN

3.74	STD DEV
