IslandPath Analysis: Helicobacter pylori Shi470

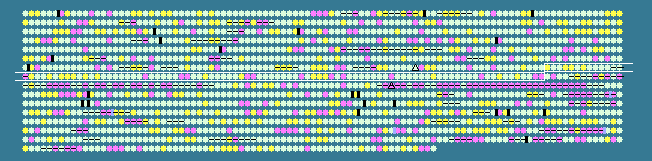

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.76 STD DEV: 4.11
Helicobacter pylori Shi470, complete genome - 1..1608548
1569 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
688	 44.05	+1	692629..692712	+	27	188527500	-	HPSH_03600	-	hypothetical protein
689	 37.72	0	692721..693905	+	394	188527501	-	HPSH_03605	-	alpha-(1,3)-fucosyltransferase
690	 38.34	0	693914..694492	-	192	188527502	-	HPSH_03610	-	hypothetical protein
691	 43.00	+1	694549..695955	-	468	188527503	aspA	HPSH_03615	-	aspartate ammonia-lyase
692	 44.92	+1	696010..697278	-	422	188527504	-	HPSH_03620	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
693	 37.25	0	697281..697688	-	135	188527505	-	HPSH_03625	-	hypothetical protein
694	 42.70	0	697700..698521	-	273	188527506	-	HPSH_03630	-	UDP-glucose pyrophosphorylase (galU)
695	 37.85	0	698518..700200	-	560	188527507	-	HPSH_03635	-	soluble lytic murein transglycosylase
696	 39.80	0	700209..700502	-	97	188527508	-	HPSH_03640	-	hypothetical protein
697	 36.82	0	700499..701818	-	439	188527509	-	HPSH_03645	-	glutamyl-tRNA synthetase
698	 37.88	0	702712..702843	-	43	188527510	-	HPSH_03660	-	hypothetical protein
699	 36.42	0	702902..704068	-	388	188527511	-	HPSH_03665	-	poly(A) polymerase
700	 38.91	0	704130..704810	+	226	188527512	-	HPSH_03670	-	ExsB trans-regulatory protein
701	 34.33	-1	704856..705155	-	99	188527513	-	HPSH_03675	-	outer membrane protein HopH
702	 42.38	0	705979..706431	+	150	188527514	-	HPSH_03680	-	hypothetical protein
703	 35.51	0	706546..706959	+	137	188527515	-	HPSH_03685	-	hypothetical protein
704	 37.49	0	706964..708502	-	512	188527516	-	HPSH_03690	-	hypothetical protein
705	 42.64	0	708504..709040	-	178	188527517	-	HPSH_03695	-	Hydrogenase expression/formation protein
706	 40.15	0	709037..709711	-	224	188527518	-	HPSH_03700	-	quinone-reactive Ni/Fe hydrogenase, cytochrome b subunit (hydC)
707	 43.18	+1	709724..711460	-	578	188527519	-	HPSH_03705	-	quinone-reactive Ni/Fe hydrogenase HydB
708	 45.63	+1	711477..712631	-	384	188527520	-	HPSH_03710	-	Hydrogenase, small subunit
709	 44.27	+1	712766..713350	+	194	188527521	-	HPSH_03715	-	modulator of drug activity
710	 39.88	0	713397..715442	-	681	188527522	-	HPSH_03720	-	hypothetical protein
711	 44.38	+1	715567..716625	-	352	188527523	-	HPSH_03725	-	cysteine-rich protein F
712	 40.88	0	716637..717842	-	401	188527524	-	HPSH_03730	-	tetrahydrodipicolinate N-succinyltransferase (dapD)
713	 42.50	0	717845..718924	-	359	188527525	ispG	HPSH_03735	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
714	 39.72	0	719044..720171	+	375	188527526	-	HPSH_03740	-	hypothetical protein
715	 38.30	0	720164..721513	+	449	188527527	murC	HPSH_03745	-	UDP-N-acetylmuramate--L-alanine ligase
716	 36.89	0	721513..721878	+	121	188527528	-	HPSH_03750	-	hypothetical protein
717	 37.96	0	721885..724134	+	749	188527529	-	HPSH_03755	-	recombination and DNA strand exchange inhibitor protein
718	 40.42	0	724282..724803	-	173	188527530	-	HPSH_03760	-	inorganic pyrophosphatase
719	 36.11	0	724859..725614	-	251	188527531	-	HPSH_03765	-	putative lipopolysaccharide biosynthesis protein
720	 36.87	0	725560..726210	-	216	188527532	-	HPSH_03770	-	putative lipopolysaccharide biosynthesis protein
721	 34.93	0	726217..727215	-	332	188527533	-	HPSH_03775	-	putative lipopolysaccharide biosynthesis protein
722	 40.62	0	727240..727815	-	191	188527534	adk	HPSH_03780	-	adenylate kinase
723	 40.60	0	727832..729565	-	577	188527535	aspS	HPSH_03785	-	aspartyl-tRNA synthetase
724	 38.85	0	729600..730541	-	313	188527536	-	HPSH_03790	-	chemotaxis protein
725	 39.62	0	730619..732589	+	656	188527537	ligA	HPSH_03795	-	NAD-dependent DNA ligase LigA
726	 38.14	0	732690..733022	+	110	188527538	-	HPSH_03800	-	hypothetical protein
727	 30.72	-1	733594..734052	+	152	188527539	-	HPSH_03805	-	putative abc transporter, ATP-binding protein
728	 31.33	-1	734052..734801	+	249	188527540	-	HPSH_03810	-	hypothetical protein
729	 39.30	0	734861..744430	-	3189	188527541	-	HPSH_03815	-	putative vacuolating cytotoxin (VacA)-like protein
730	 39.82	0	744569..745138	-	189	188527542	-	HPSH_03820	-	hypothetical protein
731	 42.92	+1	745135..748221	-	1028	188527543	-	HPSH_03825	-	cytoplasmic pump protein of the hefABC efflux system HefC
732	 40.85	0	748234..748938	-	234	188527544	-	HPSH_03830	-	membrane fusion protein of the hefABC efflux system HefB
733	 39.19	0	748948..750381	-	477	188527545	-	HPSH_03835	-	outer-membrane protein of the hefABC efflux system HefA
734	 40.20	0	750392..751411	-	339	188527546	hemE	HPSH_03840	-	uroporphyrinogen decarboxylase
735	 38.60	0	751477..752046	-	189	188527547	-	HPSH_03845	-	hypothetical protein
736	 35.31	0	752091..752747	-	218	188527548	-	HPSH_03850	-	endonuclease III
737	 44.16	+1	752865..754397	-	510	188527549	-	HPSH_03855	-	flagellin A
738	 32.81	-1	754561..755325	+	254	188527550	-	HPSH_03860	-	putative secretion/efflux abc transporter, ATP-binding protein
739	 31.65	-1	755395..756342	+	315	188527551	-	HPSH_03865	-	multidrug resistance protein (spaB)
740	 39.78	0	756414..757715	+	433	188527552	-	HPSH_03870	-	methyl-accepting chemotaxis protein (MCP)
741	 38.41	0	757738..758859	+	373	188527553	-	HPSH_03875	-	8-amino-7-oxononanoate synthase (bioF)
742	 40.35	0	758859..760838	+	659	188527554	-	HPSH_03880	-	penicillin-binding protein 1A (PBP-1A)
743	 39.03	0	760841..761419	-	192	188527555	-	HPSH_03885	-	tumor necrosis factor alpha-inducing protein
744	 38.33	0	761578..761697	+	39	188527556	-	HPSH_03890	-	hypothetical protein
745	 39.65	0	761895..763367	-	490	188527557	-	HPSH_03895	-	DsbB-like protein
746	 38.18	0	763376..763540	-	54	188527558	-	HPSH_03900	-	hypothetical protein
747	 29.62	-2	763680..765458	-	592	188527559	-	HPSH_03905	-	hypothetical protein
748	 41.80	0	765566..766120	-	184	188527560	oorC	HPSH_03910	-	2-oxoglutarate-acceptor oxidoreductase subunit OorC
749	 43.19	+1	766120..766941	-	273	188527561	oorB	HPSH_03915	-	2-oxoglutarate-acceptor oxidoreductase subunit OorB
750	 44.77	+1	766943..768070	-	375	188527562	oorA	HPSH_03920	-	2-oxoglutarate-acceptor oxidoreductase subunit OorA
751	 44.74	+1	768070..768411	-	113	188527563	oorD	HPSH_03925	-	2-oxoglutarate-acceptor oxidoreductase subunit OorD
752	 32.26	-1	768399..768491	-	30	188527564	-	HPSH_03930	-	hypothetical protein
753	 38.37	0	768587..769519	-	310	188527565	-	HPSH_03935	-	aminodeoxychorismate lyase (pabC)
754	 35.21	0	769500..772433	+	977	188527566	-	HPSH_03940	-	hypothetical protein
755	 40.69	0	772435..772665	+	76	188527567	-	HPSH_03945	-	hypothetical protein
756	 41.25	0	772662..773318	+	218	188527568	-	HPSH_03950	-	endonuclease III (nth)
757	 36.56	0	773400..773771	+	123	188527569	-	HPSH_03955	-	flagellar motor switch protein
758	 35.99	0	773783..774649	+	288	188527570	-	HPSH_03960	-	hypothetical protein
759	 39.14	0	774633..775580	+	315	188527571	-	HPSH_03965	-	hypothetical protein
760	 40.39	0	775584..776603	+	339	188527572	-	HPSH_03970	-	dihydroorotase
761	 38.34	0	776579..777697	+	372	188527573	-	HPSH_03975	-	hypothetical protein
762	 35.14	0	777704..778258	+	184	188527574	-	HPSH_03980	-	hypothetical protein
763	 36.59	0	778264..780291	+	675	188527575	-	HPSH_03985	-	hypothetical protein
764	 42.15	0	780368..781240	+	290	188527576	-	HPSH_03990	-	methylene-tetrahydrofolate dehydrogenase
765	 39.98	0	781241..782113	+	290	188527577	-	HPSH_03995	-	signal peptidase I (lepB)
766	 40.92	0	782122..782820	+	232	188527578	-	HPSH_04000	-	hypothetical protein
767	 41.23	0	782841..783296	+	151	188527579	-	HPSH_04005	-	ribose-5-phosphate isomerase B
768	 36.94	0	783349..783681	+	110	188527580	-	HPSH_04010	-	hypothetical protein
769	 43.15	+1	783739..784278	+	179	188527581	-	HPSH_04015	-	adenine phosphoribosyltransferase
770	 41.11	0	784293..784871	+	192	188527582	-	HPSH_04020	-	hypothetical protein
771	 40.64	0	784933..786423	+	496	188527583	-	HPSH_04025	-	leucyl aminopeptidase
772	 41.42	0	786425..787525	+	366	188527584	-	HPSH_04030	-	translation-associated GTPase
773	 37.46	0	787559..788431	+	290	188527585	-	HPSH_04035	-	hypothetical protein
774	 37.15	0	788507..789553	-	348	188527586	-	HPSH_04040	-	membrane protein
775	 39.05	0	789668..790489	+	273	188527587	dapF	HPSH_04045	-	diaminopimelate epimerase
776	 41.05	0	790596..791243	+	215	188527588	-	HPSH_04050	-	hypothetical protein
777	 32.51	-1	791267..791509	-	80	188527589	-	HPSH_04055	-	hypothetical protein
778	 38.85	0	791682..792932	+	416	188527590	-	HPSH_04060	-	hypothetical protein
779	 38.50	0	793034..793246	+	70	188527591	rpsU	HPSH_04065	-	30S ribosomal protein S21
780	 43.15	+1	793283..794026	+	247	188527592	fabG	HPSH_04070	-	3-ketoacyl-(acyl-carrier-protein) reductase
781	 41.77	0	794256..794492	+	78	188527593	-	HPSH_04075	-	acyl carrier protein
782	 37.96	0	794682..794789	+	35	188527594	-	HPSH_04080	-	hypothetical protein
783	 44.96	+1	794805..796043	+	412	188527595	-	HPSH_04085	-	3-oxoacyl-(acyl carrier protein) synthase II
784	 40.68	0	796066..797004	+	312	188527596	-	HPSH_04090	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
785	 35.56	0	797117..797206	+	29	188527597	-	HPSH_04095	-	hypothetical protein
786	 26.98	-2	797193..797255	-	20	188527598	-	HPSH_04100	-	hypothetical protein
787	 33.84	-1	797415..797612	+	65	188527599	-	HPSH_04105	-	hypothetical protein
38.76	MEAN

4.11	STD DEV
