IslandPath Analysis: Helicobacter pylori Shi470

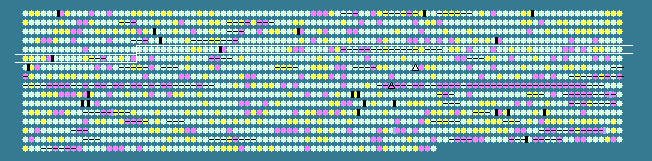

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.76 STD DEV: 4.11
Helicobacter pylori Shi470, complete genome - 1..1608548
1569 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
420	 39.22	0	415942..416808	-	288	188527232	-	HPSH_02195	-	co-chaperone-curved DNA binding protein A
421	 40.21	0	416976..418226	+	416	188527233	-	HPSH_02200	-	hypothetical protein
422	 37.71	0	418248..419024	-	258	188527234	-	HPSH_02205	-	hypothetical protein
423	 38.80	0	419350..420246	-	298	188527235	-	HPSH_02210	-	response regulator
424	 41.36	0	420278..421498	-	406	188527236	ispDF	HPSH_02215	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
425	 40.39	0	421520..422950	-	476	188527237	-	HPSH_02220	-	protease DO
426	 41.86	0	422995..424437	-	480	188527238	-	HPSH_02225	-	amino acid permease
427	 36.11	0	424632..425171	-	179	188527239	-	HPSH_02230	-	phosphatidylglycerophosphate synthase
428	 38.26	0	425168..425776	-	202	188527240	-	HPSH_02235	-	hypothetical protein
429	 43.22	+1	425786..426574	-	262	188527241	-	HPSH_02240	-	7-alpha-hydroxysteroid dehydrogenase
430	 42.30	0	426571..427473	-	300	188527242	-	HPSH_02245	-	dihydrodipicolinate synthase
431	 40.60	0	427488..428822	-	444	188527243	-	HPSH_02250	-	putative zinc protease
432	 38.64	0	428819..429874	-	351	188527244	-	HPSH_02255	-	dihydroorotate dehydrogenase 2
433	 39.69	0	429911..431938	-	675	188527245	-	HPSH_02260	-	polyphosphate kinase
434	 31.09	-1	432577..433692	-	371	188527246	-	HPSH_02265	-	hypothetical protein
435	 37.25	0	433685..435316	-	543	188527247	-	HPSH_02270	-	type I restriction enzyme M protein
436	 36.33	0	435309..438410	-	1033	188527248	-	HPSH_02275	-	type I restriction enzyme R protein (hsdR)
437	 35.92	0	438458..440353	-	631	188527249	-	HPSH_02280	-	hypothetical protein
438	 35.68	0	440379..441146	-	255	188527250	-	HPSH_02285	-	hypothetical protein
439	 37.46	0	441156..441470	-	104	188527251	-	HPSH_02290	-	hypothetical protein
440	 36.83	0	441472..442959	-	495	188527252	-	HPSH_02295	-	hypothetical protein
441	 38.85	0	442971..443459	-	162	188527253	-	HPSH_02300	-	hypothetical protein
442	 38.63	0	443444..445180	-	578	188527254	-	HPSH_02305	-	oligoendopeptidase F (pepF)
443	 36.61	0	445277..446527	-	416	188527255	-	HPSH_02310	-	glutathione-regulated potassium-efflux system protein (kefB)
444	 35.42	0	446680..446871	-	63	188527256	-	HPSH_02315	-	hypothetical protein
445	 42.78	0	446855..447415	-	186	188527257	-	HPSH_02320	-	outer membrane protein (omp11)
446	 24.18	-2	447459..447611	-	50	188527258	-	HPSH_02325	-	hypothetical protein
447	 35.09	0	447639..448379	+	246	188527259	-	HPSH_02330	-	molybdenum ABC transporter ModA
448	 36.89	0	448401..449075	+	224	188527260	-	HPSH_02335	-	molybdenum ABC transporter ModB
449	 37.09	0	449072..449869	+	265	188527261	-	HPSH_02340	-	molybdenum ABC transporter ModD
450	 39.37	0	449951..451342	-	463	188527262	gltX	HPSH_02345	-	glutamyl-tRNA synthetase
451	 36.41	0	451461..452564	+	367	188527263	-	HPSH_02350	-	outer membrane protein (omp22)
452	 32.84	-1	452573..455023	+	816	188527264	-	HPSH_02355	-	type II adenine specific methyltransferase
453	 43.33	+1	455069..456868	+	599	188527265	-	HPSH_02360	-	hypothetical protein
454	 34.52	-1	456884..457813	+	309	188527266	-	HPSH_02365	-	type II adenine specific DNA methyltransferase
455	 35.42	0	457816..458439	+	207	188527267	-	HPSH_02370	-	type II restriction endonuclease
456	 36.87	0	458530..459576	+	348	188527268	-	HPSH_02375	-	type II DNA modification enzyme (methyltransferase)
457	 27.27	-2	459579..459842	+	87	188527269	-	HPSH_02380	-	hypothetical protein
458	 34.25	-1	459889..460326	+	145	188527270	-	HPSH_02385	-	hypothetical protein
459	 37.50	0	460342..460509	-	55	188527271	-	HPSH_02390	-	hypothetical protein
460	 39.68	0	460559..461503	-	314	188527272	-	HPSH_02395	-	catalase-like protein
461	 44.23	+1	461787..463373	+	528	188527273	-	HPSH_02400	-	outer membrane protein HofC
462	 39.48	0	463443..464840	+	465	188527274	-	HPSH_02405	-	putative Outer membrane protein
463	 40.10	0	465292..465498	-	68	188527275	-	HPSH_02410	-	hypothetical protein
464	 37.50	0	465596..466195	+	199	188527276	-	HPSH_02415	-	hypothetical protein
465	 37.74	0	466552..467277	-	241	188527277	-	HPSH_02420	-	hypothetical protein
466	 43.25	+1	467410..467883	+	157	188527278	ruvC	HPSH_02425	-	Holliday junction resolvase
467	 43.90	+1	467884..470259	-	791	188527279	-	HPSH_02430	-	iron-regulated outer membrane protein (frpB)
468	 41.39	0	470584..472110	+	508	188527280	-	HPSH_02435	-	catalase
469	 40.18	0	472261..473136	+	291	188527281	-	HPSH_02440	-	hypothetical protein
470	 37.04	0	473217..473432	+	71	188527282	-	HPSH_02445	-	hypothetical protein
471	 38.48	0	473490..473819	-	109	188527283	-	HPSH_02450	-	alkylphosphonate uptake protein
472	 42.99	+1	474171..474905	+	244	188527284	-	HPSH_02455	-	CDP-diacylglycerol pyrophosphatase
473	 45.76	+1	475109..477265	+	718	188527285	flgE	HPSH_02460	-	flagellar hook protein FlgE
474	 39.83	0	477323..477676	+	117	188527286	hypA	HPSH_02465	-	hydrogenase nickel incorporation protein
475	 33.12	-1	477683..478144	+	153	188527287	-	HPSH_02470	-	hypothetical protein
476	 38.69	0	478144..479226	+	360	188527288	lpxB	HPSH_02475	-	lipid-A-disaccharide synthase
477	 38.18	0	479267..479761	+	164	188527289	greA	HPSH_02480	-	transcription elongation factor GreA
478	 41.78	0	479751..480188	+	145	188527290	dut	HPSH_02485	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
479	 34.86	0	480185..480841	+	218	188527291	-	HPSH_02490	-	hypothetical protein
480	 37.88	0	480846..482540	+	564	188527292	-	HPSH_02495	-	hypothetical protein
481	 39.43	0	482545..483216	+	223	188527293	-	HPSH_02500	-	pantothenate kinase
482	 42.82	0	483207..483944	+	245	188527294	-	HPSH_02505	-	hypothetical protein
483	 36.57	0	483931..484455	+	174	188527295	-	HPSH_02510	-	hypothetical protein
484	 38.17	0	484464..485456	+	330	188527296	-	HPSH_02515	-	ADP-L-glycero-D-mannoheptose-6-epimerase (rfaD)
485	 42.31	0	485453..486844	+	463	188527297	-	HPSH_02520	-	ADP-heptose synthase
486	 40.76	0	486837..487415	+	192	188527298	-	HPSH_02525	-	phosphoheptose isomerase
487	 40.39	0	487592..488569	-	325	188527299	-	HPSH_02530	-	guanosine 5'-monophosphate oxidoreductase
488	 41.70	0	488818..490419	+	533	188527300	-	HPSH_02535	-	ABC transporter, ATP-binding protein
489	 38.02	0	490416..491333	+	305	188527301	-	HPSH_02540	-	hypothetical protein
490	 42.04	0	491371..492048	-	225	188527302	-	HPSH_02545	-	hypothetical protein
491	 31.66	-1	492215..493168	-	317	188527303	-	HPSH_02550	-	type II restriction endonuclease
492	 34.86	0	493165..494148	-	327	188527304	-	HPSH_02555	-	site-specific DNA methyltransferase
493	 40.63	0	494332..495921	+	529	188527305	-	HPSH_02560	-	type I restriction enzyme M protein (hsdM)
494	 34.59	-1	495914..497182	+	422	188527306	-	HPSH_02565	-	anti-codon nuclease masking agent (prrB)
495	 36.30	0	497186..500185	+	999	188527307	-	HPSH_02570	-	type I restriction enzyme R protein
496	 42.82	0	500272..501051	+	259	188527308	-	HPSH_02575	-	hydroxyethylthiazole kinase
497	 44.07	+1	501048..501857	+	269	188527309	-	HPSH_02580	-	thiamine biosynthesis protein (thi)
498	 41.97	0	501850..502509	+	219	188527310	-	HPSH_02585	-	thiamine phosphate pyrophosphorylase
499	 37.40	0	502564..503301	-	245	188527311	-	HPSH_02590	-	hypothetical protein
500	 40.77	0	503301..504578	-	425	188527312	-	HPSH_02595	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
501	 44.00	+1	504575..505558	-	327	188527313	-	HPSH_02600	-	UDP-GlcNAc C6 dehydratase
502	 44.16	+1	505562..507325	-	587	188527314	-	HPSH_02605	-	outer membrane protein P1
503	 37.22	0	507322..507939	-	205	188527315	-	HPSH_02610	-	hypothetical protein
504	 46.20	+1	507958..508563	-	201	188527316	-	HPSH_02615	-	hypothetical protein
505	 20.00	-2	508903..509007	-	34	188527317	-	HPSH_02620	-	hypothetical protein
506	 40.35	0	509236..509520	-	94	188527318	-	HPSH_02625	-	dna-binding protein hu
507	 39.54	0	509662..511047	-	461	188527319	engA	HPSH_02630	-	GTP-binding protein EngA
508	 36.27	0	511124..512008	+	294	188527320	-	HPSH_02635	-	hypothetical protein
509	 36.38	0	512093..512881	+	262	188527321	speE	HPSH_02640	-	spermidine synthase
510	 37.23	0	512883..513473	+	196	188527322	coaE	HPSH_02645	-	dephospho-CoA kinase
511	 42.95	+1	513532..514893	+	453	188527323	gatA	HPSH_02650	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
512	 43.78	+1	514903..516348	+	481	188527324	-	HPSH_02655	-	inositol-5-monophosphate dehydrogenase
513	 40.97	0	516470..517150	+	226	188527325	-	HPSH_02660	-	F0F1 ATP synthase subunit A
514	 29.17	-2	517147..517242	-	31	188527326	-	HPSH_02665	-	hypothetical protein
515	 36.55	0	517470..517718	+	82	188527327	-	HPSH_02670	-	RNA binding protein
516	 38.44	0	517921..518742	-	273	188527328	-	HPSH_02675	-	lipooligosaccharide 5G8 epitope biosynthesis-associated protein (lex2B)
517	 44.34	+1	518909..519844	-	311	188527329	-	HPSH_02680	-	thioredoxin reductase
518	 39.56	0	519850..520170	-	106	188527330	-	HPSH_02685	-	thioredoxin
519	 34.78	0	520259..520603	-	114	188527331	-	HPSH_02690	-	hypothetical protein
38.76	MEAN

4.11	STD DEV
