IslandPath Analysis: Helicobacter pylori Shi470

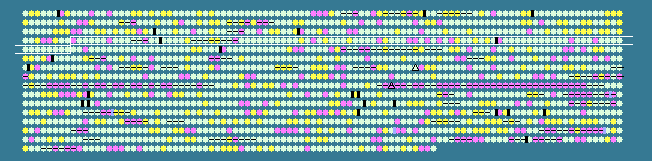

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.76 STD DEV: 4.11
Helicobacter pylori Shi470, complete genome - 1..1608548
1569 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
309	 27.16	-2	317180..317260	+	26	188527121	-	HPSH_01640	-	hypothetical protein
310	 40.61	0	317346..318101	-	251	188527122	-	HPSH_01645	-	hypothetical protein
311	 38.25	0	318162..319787	-	541	188527123	argS	HPSH_01650	-	arginyl-tRNA synthetase
312	 38.75	0	319790..320029	-	79	188527124	-	HPSH_01655	-	sec-independent protein translocase protein
313	 38.33	0	320099..320719	-	206	188527125	gmk	HPSH_01660	-	guanylate kinase
314	 39.16	0	320712..322187	-	491	188527126	-	HPSH_01665	-	poly E-rich protein
315	 23.81	-2	322200..322325	-	41	188527127	-	HPSH_01670	-	hypothetical protein
316	 38.12	0	322329..322871	+	180	188527128	-	HPSH_01675	-	membrane bound endonuclease (nuc)
317	 39.57	0	322878..323615	-	245	188527129	-	HPSH_01680	-	outer membrane protein HorC
318	 41.46	0	323745..324458	+	237	188527130	flgH	HPSH_01685	-	flagellar basal body L-ring protein
319	 37.87	0	324476..325159	+	227	188527131	-	HPSH_01690	-	CMP-N-acetylneuraminic acid synthetase
320	 35.85	0	325150..326022	+	290	188527132	-	HPSH_01695	-	CMP-N-acetylneuraminic acid synthetase (neuA)
321	 32.41	-1	326019..326561	+	180	188527133	-	HPSH_01700	-	flagellar biosynthesis protein G
322	 38.13	0	326494..327432	-	312	188527134	lpxK	HPSH_01705	-	tetraacyldisaccharide 4'-kinase
323	 38.83	0	327429..328211	-	260	188527135	-	HPSH_01710	-	NH(3)-dependent NAD+ synthetase (nadE)
324	 41.59	0	328458..329450	+	330	188527136	-	HPSH_01715	-	ketol-acid reductoisomerase
325	 42.13	0	329469..330275	+	268	188527137	-	HPSH_01720	-	cell division inhibitor (minD)
326	 36.32	0	330272..330505	+	77	188527138	minE	HPSH_01725	-	cell division topological specificity factor MinE
327	 41.82	0	330517..331317	+	266	188527139	-	HPSH_01730	-	hypothetical protein
328	 44.20	+1	331314..331718	+	134	188527140	-	HPSH_01735	-	Holliday junction resolvase-like protein
329	 40.00	0	331775..331849	+	24	188527141	-	HPSH_01740	-	hypothetical protein
330	 36.73	0	331849..332319	+	156	188527142	-	HPSH_01745	-	cysteine-rich protein H
331	 37.76	0	332509..332847	+	112	188527143	-	HPSH_01750	-	hypothetical protein
332	 42.68	0	332831..333397	+	188	188527144	-	HPSH_01755	-	hypothetical protein
333	 44.18	+1	333409..333657	+	82	188527145	-	HPSH_01760	-	hypothetical protein
334	 39.68	0	333663..334040	+	125	188527146	-	HPSH_01765	-	hypothetical protein
335	 40.83	0	334131..334250	+	39	188527147	-	HPSH_01770	-	hypothetical protein
336	 30.67	-1	334247..334321	+	24	188527148	-	HPSH_01775	-	hypothetical protein
337	 38.96	0	334312..334773	+	153	188527149	-	HPSH_01780	-	hypothetical protein
338	 40.46	0	334789..335574	+	261	188527150	-	HPSH_01785	-	hypothetical protein
339	 36.47	0	335564..336646	+	360	188527151	-	HPSH_01790	-	hypothetical protein
340	 41.72	0	336702..337583	-	293	188527152	-	HPSH_01795	-	hypothetical protein
341	 40.43	0	337583..339133	-	516	188527153	-	HPSH_01800	-	single-stranded-DNA specific exonuclease
342	 42.18	0	339142..340758	-	538	188527154	-	HPSH_01805	-	CTP synthetase
343	 38.16	0	341014..341676	+	220	188527155	-	HPSH_01810	-	hypothetical protein
344	 39.44	0	341720..343423	+	567	188527156	fliF	HPSH_01815	-	flagellar MS-ring protein
345	 41.57	0	343442..344473	+	343	188527157	fliG	HPSH_01820	-	flagellar motor switch protein G
346	 37.22	0	344466..345236	+	256	188527158	fliH	HPSH_01825	-	flagellar assembly protein H
347	 43.06	+1	345239..347089	+	616	188527159	-	HPSH_01830	-	1-deoxy-D-xylulose-5-phosphate synthase
348	 42.18	0	347086..348894	+	602	188527160	-	HPSH_01835	-	GTP-binding protein LepA
349	 33.55	-1	348903..349832	+	309	188527161	-	HPSH_01840	-	DNA-cytosine methyltransferase
350	 40.34	0	349825..350295	+	156	188527162	-	HPSH_01845	-	hypothetical protein
351	 42.84	0	350770..351579	-	269	188527163	-	HPSH_01850	-	flagellar basal-body rod protein (flgG)
352	 40.48	0	351634..352920	-	428	188527164	-	HPSH_01855	-	alpha-ketoglutarate permease
353	 39.77	0	353083..355722	-	879	188527165	-	HPSH_01860	-	cell division protein
354	 35.56	0	355719..358055	-	778	188527166	-	HPSH_01865	-	hypothetical protein
355	 44.76	+1	358052..359977	-	641	188527167	-	HPSH_01870	-	transketolase
356	 36.65	0	360024..360866	-	280	188527168	-	HPSH_01875	-	bifunctional riboflavin kinase/FMN adenylyltransferase
357	 36.30	0	360832..361539	-	235	188527169	-	HPSH_01880	-	hemolysin
358	 38.63	0	361539..362048	-	169	188527170	-	HPSH_01885	-	hypothetical protein
359	 41.34	0	362121..363044	+	307	188527171	pyrB	HPSH_01890	-	aspartate carbamoyltransferase catalytic subunit
360	 25.93	-2	363054..363134	-	26	188527172	-	HPSH_01895	-	hypothetical protein
361	 42.64	0	363339..364778	+	479	188527173	-	HPSH_01900	-	hypothetical protein
362	 38.89	0	364870..366525	+	551	188527174	-	HPSH_01905	-	multidrug resistance protein (msbA)
363	 37.34	0	366519..367142	+	207	188527175	-	HPSH_01910	-	hypothetical protein
364	 39.12	0	367146..367715	+	189	188527176	-	HPSH_01915	-	hypothetical protein
365	 32.33	-1	367826..369016	+	396	188527177	-	HPSH_01920	-	hypothetical protein
366	 28.36	-2	369009..369671	+	220	188527178	-	HPSH_01925	-	hypothetical protein
367	 42.02	0	369752..370741	+	329	188527179	-	HPSH_01930	-	high affinity nickel transport protein
368	 34.88	0	370745..371260	-	171	188527180	-	HPSH_01935	-	hypothetical protein
369	 40.24	0	371393..372709	+	438	188527181	-	HPSH_01940	-	hypothetical protein
370	 30.43	-2	373057..373194	+	45	188527182	-	HPSH_01945	-	hypothetical protein
371	 37.88	0	373184..373249	+	21	188527183	-	HPSH_01950	-	hypothetical protein
372	 31.01	-1	373334..373462	+	42	188527184	-	HPSH_01955	-	hypothetical protein
373	 42.65	0	373835..374038	-	67	188527185	-	HPSH_01960	-	copper ion binding protein (copP)
374	 39.98	0	374039..376264	-	741	188527186	-	HPSH_01965	-	copper-transporting ATPase
375	 40.34	0	376261..376974	-	237	188527187	-	HPSH_01970	-	phosphatidylserine synthase
376	 43.23	+1	377220..379118	-	632	188527188	-	HPSH_01975	-	cell division protein (ftsH)
377	 37.68	0	379127..380116	-	329	188527189	prmA	HPSH_01980	-	ribosomal protein L11 methyltransferase
378	 42.40	0	380117..380491	-	124	188527190	-	HPSH_01985	-	response regulator
379	 36.15	0	380783..381385	+	200	188527191	-	HPSH_01990	-	outer membrane protein HorD
380	 33.58	-1	381517..381924	-	135	188527192	-	HPSH_01995	-	hypothetical protein
381	 38.53	0	381927..382157	-	76	188527193	-	HPSH_02000	-	hypothetical protein
382	 35.94	0	382151..382687	-	178	188527194	gidB	HPSH_02005	-	glucose-inhibited division protein B
383	 38.25	0	382684..383721	-	345	188527195	queA	HPSH_02010	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
384	 39.63	0	383722..384483	-	253	188527196	-	HPSH_02015	-	hypothetical protein
385	 37.06	0	384476..384958	-	160	188527197	-	HPSH_02020	-	sec-independent translocase
386	 42.04	0	385026..386036	-	336	188527198	ruvB	HPSH_02025	-	Holliday junction DNA helicase B
387	 41.33	0	386037..386849	-	270	188527199	panB	HPSH_02030	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
388	 37.90	0	386997..387719	+	240	188527200	-	HPSH_02035	-	hypothetical protein
389	 35.44	0	387709..388563	+	284	188527201	-	HPSH_02040	-	hypothetical protein
390	 36.94	0	388575..389516	+	313	188527202	-	HPSH_02045	-	hypothetical protein
391	 36.81	0	389526..390848	+	440	188527203	-	HPSH_02050	-	hypothetical protein
392	 34.18	-1	390851..391438	+	195	188527204	minC	HPSH_02055	-	septum formation inhibitor
393	 40.88	0	391435..392322	+	295	188527205	lpxC	HPSH_02060	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
394	 38.82	0	392343..392816	+	157	188527206	-	HPSH_02065	-	hypothetical protein
395	 42.06	0	392871..393752	+	293	188527207	-	HPSH_02070	-	homoserine kinase
396	 34.90	0	393739..393993	+	84	188527208	-	HPSH_02075	-	hypothetical protein
397	 41.24	0	393990..396836	+	948	188527209	infB	HPSH_02080	-	translation initiation factor IF-2
398	 38.99	0	396836..397171	+	111	188527210	rbfA	HPSH_02085	-	ribosome-binding factor A
399	 37.64	0	397164..397604	+	146	188527211	-	HPSH_02090	-	hypothetical protein
400	 37.65	0	397774..398886	+	370	188527212	-	HPSH_02095	-	hypothetical protein
401	 41.07	0	399227..399898	+	223	188527213	-	HPSH_02100	-	putative transcriptional regulator
402	 37.15	0	400230..401276	-	348	188527214	-	HPSH_02105	-	hypothetical protein
403	 41.55	0	401304..403505	-	733	188527215	flhA	HPSH_02110	-	flagellar biosynthesis protein FlhA
404	 38.46	0	403643..403915	+	90	188527216	rpsO	HPSH_02115	-	30S ribosomal protein S15
405	 36.43	0	403945..405234	+	429	188527217	-	HPSH_02120	-	hypothetical protein
406	 41.07	0	405363..405866	+	167	188527218	-	HPSH_02125	-	3-dehydroquinate dehydratase
407	 41.90	0	405880..406953	+	357	188527219	-	HPSH_02130	-	hypothetical protein
408	 35.38	0	406953..407441	+	162	188527220	-	HPSH_02135	-	7, 8-dihydro-6-hydroxymethylpterin-pyrophosphokinase (folK)
38.76	MEAN

4.11	STD DEV
