IslandPath Analysis: Helicobacter pylori Shi470

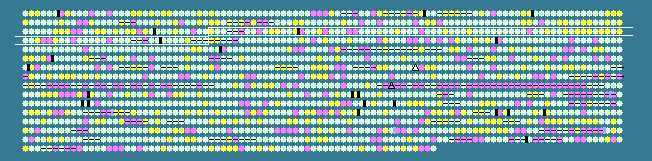

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.76 STD DEV: 4.11
Helicobacter pylori Shi470, complete genome - 1..1608548
1569 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
232	 44.63	+1	231380..232300	-	306	188527044	hemC	HPSH_01235	-	porphobilinogen deaminase
233	 40.60	0	232311..234044	-	577	188527045	-	HPSH_01240	-	prolyl-tRNA synthetase
234	 38.22	0	234048..235397	-	449	188527046	hemA	HPSH_01245	-	glutamyl-tRNA reductase
235	 36.15	0	235397..236320	-	307	188527047	-	HPSH_01250	-	putative octaprenyl-diphosphate synthase
236	 35.35	0	236330..236725	-	131	188527048	-	HPSH_01255	-	hypothetical protein
237	 35.09	0	236718..237002	-	94	188527049	-	HPSH_01260	-	hypothetical protein
238	 37.93	0	237023..237457	-	144	188527050	-	HPSH_01265	-	neutrophil activating protein (napA) (bacterioferritin)
239	 36.39	0	237662..238807	-	381	188527051	-	HPSH_01270	-	histidine kinase sensor protein
240	 34.91	0	238804..239121	-	105	188527052	-	HPSH_01275	-	hypothetical protein
241	 40.98	0	239118..240137	-	339	188527053	flgI	HPSH_01280	-	flagellar basal body P-ring protein
242	 43.07	+1	240335..241813	+	492	188527054	-	HPSH_01285	-	ATP-dependent RNA helicase
243	 43.99	+1	241834..242922	+	362	188527055	-	HPSH_01290	-	hypothetical protein
244	 36.30	0	242929..243468	+	179	188527056	-	HPSH_01295	-	hypothetical protein
245	 40.81	0	243532..245082	-	516	188527057	-	HPSH_01300	-	oligopeptide permease ATPase protein
246	 43.40	+1	245092..246114	-	340	188527058	-	HPSH_01305	-	oligopeptide permease integral membrane protein
247	 26.26	-2	246400..246498	+	32	188527059	-	HPSH_01310	-	hypothetical protein
248	 41.70	0	246479..247900	+	473	188527060	-	HPSH_01315	-	outer membrane protein (omp7)
249	 41.59	0	247952..249331	+	459	188527061	-	HPSH_01320	-	outer membrane protein HopG
250	 44.50	+1	249430..250665	+	411	188527062	-	HPSH_01325	-	adenylosuccinate synthetase
251	 34.27	-1	250662..251090	+	142	188527063	-	HPSH_01330	-	hypothetical protein
252	 39.85	0	251083..251742	+	219	188527064	-	HPSH_01335	-	conserved hypothetical secreted protein
253	 40.91	0	251739..252794	+	351	188527065	-	HPSH_01340	-	hypothetical protein
254	 41.01	0	252807..254069	+	420	188527066	xseA	HPSH_01345	-	exodeoxyribonuclease VII large subunit
255	 30.26	-2	254088..255260	-	390	188527067	-	HPSH_01350	-	type II DNA modification enzyme (methyltransferase)
256	 32.76	-1	256055..256750	+	231	188527068	-	HPSH_01365	-	Endonuclease MjaVIP
257	 38.87	0	256747..257505	+	252	188527069	-	HPSH_01370	-	adenine specific DNA methyltransferase (hpaim)
258	 41.31	0	257578..260148	+	856	188527070	-	HPSH_01375	-	ATP-dependent protease binding subunit (clpB)
259	 40.28	0	260205..260924	+	239	188527071	-	HPSH_01380	-	cytochrome c biogenesis protein
260	 38.17	0	260934..262070	+	378	188527072	-	HPSH_01385	-	dihydroorotase (pyrC)
261	 39.76	0	262055..263284	+	409	188527073	-	HPSH_01390	-	chlorohydrolase
262	 36.21	0	263345..263587	+	80	188527074	-	HPSH_01395	-	hypothetical protein
263	 43.09	+1	263630..264910	+	426	188527075	-	HPSH_01400	-	conserved hypothetical ATP-binding protein
264	 41.44	0	264950..265603	+	217	188527076	-	HPSH_01405	-	hypothetical protein
265	 35.78	0	265596..266576	+	326	188527077	-	HPSH_01410	-	hypothetical protein
266	 35.73	0	266557..267099	+	180	188527078	-	HPSH_01415	-	hypothetical protein
267	 35.19	0	267096..267635	+	179	188527079	-	HPSH_01420	-	hypothetical protein
268	 36.59	0	267651..268049	+	132	188527080	-	HPSH_01425	-	hypothetical protein
269	 36.81	0	268086..269378	+	430	188527081	-	HPSH_01430	-	ATP-dependent nuclease
270	 39.07	0	269366..269923	+	185	188527082	-	HPSH_01435	-	hypothetical protein
271	 42.35	0	269980..270234	+	84	188527083	-	HPSH_01440	-	ferredoxin
272	 41.58	0	270244..271698	+	484	188527084	-	HPSH_01445	-	guanosine-5'-triphosphate,3'-diphosphate pyrophosphatase
273	 37.78	0	271695..272705	+	336	188527085	-	HPSH_01450	-	lipopolysaccharide heptosyltransferase-1
274	 39.61	0	272702..273688	+	328	188527086	-	HPSH_01455	-	lipid A biosynthesis lauroyl acyltransferase
275	 43.73	+1	273744..274859	-	371	188527087	tgt	HPSH_01460	-	queuine tRNA-ribosyltransferase
276	 37.37	0	274916..276352	+	478	188527088	-	HPSH_01465	-	hypothetical protein
277	 37.79	0	276357..277388	+	343	188527089	aroB	HPSH_01470	-	3-dehydroquinate synthase
278	 37.04	0	277379..278944	+	521	188527090	-	HPSH_01475	-	hypothetical protein
279	 39.22	0	278941..280197	+	418	188527091	-	HPSH_01480	-	hypothetical protein
280	 38.96	0	280184..281836	+	550	188527092	-	HPSH_01485	-	cell division protein (ftsH)
281	 36.61	0	281839..282357	+	172	188527093	-	HPSH_01490	-	hypothetical protein
282	 39.66	0	282370..282843	+	157	188527094	-	HPSH_01495	-	hypothetical protein
283	 41.18	0	282908..291607	+	2899	188527095	-	HPSH_01500	-	toxin-like outer membrane protein
284	 41.05	0	291655..292872	+	405	188527096	-	HPSH_01505	-	diaminopimelate decarboxylase
285	 32.65	-1	292877..293167	+	96	188527097	-	HPSH_01510	-	hypothetical protein
286	 36.20	0	293180..294052	+	290	188527098	-	HPSH_01515	-	hypothetical protein
287	 36.55	0	294053..295732	+	559	188527099	-	HPSH_01520	-	para-aminobenzoate synthetase (pabB)
288	 44.80	+1	295918..296937	+	339	188527100	amiE	HPSH_01525	-	acylamide amidohydrolase
289	 39.77	0	297020..299506	-	828	188527101	flgL	HPSH_01530	-	flagellar hook-associated protein FlgL
290	 40.63	0	299726..300040	+	104	188527102	rplU	HPSH_01535	-	50S ribosomal protein L21
291	 46.07	+1	300055..300321	+	88	188527103	rpmA	HPSH_01540	-	50S ribosomal protein L27
292	 41.15	0	300438..302087	+	549	188527104	-	HPSH_01545	-	periplasmic dipeptide-binding protein
293	 44.38	+1	302098..303102	+	334	188527105	-	HPSH_01550	-	dipeptide permease protein
294	 45.22	+1	303102..303959	+	285	188527106	-	HPSH_01555	-	dipeptide permease protein
295	 42.82	0	303971..304834	+	287	188527107	-	HPSH_01560	-	dipeptide ABC transporter, ATP-binding protein (dppD)
296	 42.13	0	304831..305637	+	268	188527108	-	HPSH_01565	-	dipeptide transport system atp-binding protein
297	 43.86	+1	305657..306739	+	360	188527109	obgE	HPSH_01570	-	GTPase ObgE
298	 42.47	0	306781..307776	+	331	188527110	-	HPSH_01575	-	hypothetical protein
299	 38.20	0	308024..308578	+	184	188527111	-	HPSH_01580	-	hypothetical protein
300	 43.46	+1	308588..309880	+	430	188527112	-	HPSH_01585	-	glutamate-1-semialdehyde aminotransferase
301	 39.15	0	309885..310142	+	85	188527113	-	HPSH_01590	-	hypothetical protein
302	 37.04	0	310158..310562	+	134	188527114	-	HPSH_01595	-	hypothetical protein
303	 42.26	0	310646..311530	+	294	188527115	-	HPSH_01600	-	hypothetical protein
304	 32.76	-1	312479..313171	-	230	188527116	-	HPSH_01615	-	type II restriction enzyme
305	 35.05	0	313182..314291	-	369	188527117	-	HPSH_01620	-	DNA methylase
306	 43.14	+1	314387..314743	+	118	188527118	-	HPSH_01625	-	hypothetical protein
307	 41.02	0	314743..315705	+	320	188527119	-	HPSH_01630	-	conserved hypothetical ATP-binding protein
308	 39.70	0	315711..316856	-	381	188527120	-	HPSH_01635	-	nitrite extrusion protein (narK)
309	 27.16	-2	317180..317260	+	26	188527121	-	HPSH_01640	-	hypothetical protein
310	 40.61	0	317346..318101	-	251	188527122	-	HPSH_01645	-	hypothetical protein
311	 38.25	0	318162..319787	-	541	188527123	argS	HPSH_01650	-	arginyl-tRNA synthetase
312	 38.75	0	319790..320029	-	79	188527124	-	HPSH_01655	-	sec-independent protein translocase protein
313	 38.33	0	320099..320719	-	206	188527125	gmk	HPSH_01660	-	guanylate kinase
314	 39.16	0	320712..322187	-	491	188527126	-	HPSH_01665	-	poly E-rich protein
315	 23.81	-2	322200..322325	-	41	188527127	-	HPSH_01670	-	hypothetical protein
316	 38.12	0	322329..322871	+	180	188527128	-	HPSH_01675	-	membrane bound endonuclease (nuc)
317	 39.57	0	322878..323615	-	245	188527129	-	HPSH_01680	-	outer membrane protein HorC
318	 41.46	0	323745..324458	+	237	188527130	flgH	HPSH_01685	-	flagellar basal body L-ring protein
319	 37.87	0	324476..325159	+	227	188527131	-	HPSH_01690	-	CMP-N-acetylneuraminic acid synthetase
320	 35.85	0	325150..326022	+	290	188527132	-	HPSH_01695	-	CMP-N-acetylneuraminic acid synthetase (neuA)
321	 32.41	-1	326019..326561	+	180	188527133	-	HPSH_01700	-	flagellar biosynthesis protein G
322	 38.13	0	326494..327432	-	312	188527134	lpxK	HPSH_01705	-	tetraacyldisaccharide 4'-kinase
323	 38.83	0	327429..328211	-	260	188527135	-	HPSH_01710	-	NH(3)-dependent NAD+ synthetase (nadE)
324	 41.59	0	328458..329450	+	330	188527136	-	HPSH_01715	-	ketol-acid reductoisomerase
325	 42.13	0	329469..330275	+	268	188527137	-	HPSH_01720	-	cell division inhibitor (minD)
326	 36.32	0	330272..330505	+	77	188527138	minE	HPSH_01725	-	cell division topological specificity factor MinE
327	 41.82	0	330517..331317	+	266	188527139	-	HPSH_01730	-	hypothetical protein
328	 44.20	+1	331314..331718	+	134	188527140	-	HPSH_01735	-	Holliday junction resolvase-like protein
329	 40.00	0	331775..331849	+	24	188527141	-	HPSH_01740	-	hypothetical protein
330	 36.73	0	331849..332319	+	156	188527142	-	HPSH_01745	-	cysteine-rich protein H
331	 37.76	0	332509..332847	+	112	188527143	-	HPSH_01750	-	hypothetical protein
38.76	MEAN

4.11	STD DEV
