IslandPathversion 1.0

IslandPath Analysis: Helicobacter pylori Shi470

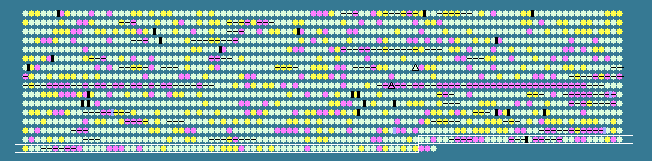

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.76 STD DEV: 4.11
Helicobacter pylori Shi470, complete genome - 1..1608548
1569 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1467	 41.25	0	1500914..1502290	-	458	188528278	-	HPSH_07740	-	ferrodoxin-like protein
1468	 38.78	0	1502270..1503058	+	262	188528279	-	HPSH_07745	-	hypothetical protein
1469	 34.75	0	1503055..1503408	+	117	188528280	-	HPSH_07750	-	dihydroneopterin aldolase
1470	 38.23	0	1503392..1503718	+	108	188528281	-	HPSH_07755	-	FrpB-like protein
1471	 37.38	0	1506690..1507850	+	386	188528282	-	HPSH_07770	-	selenocysteine synthase
1472	 39.48	0	1507938..1509125	+	395	188528283	nusA	HPSH_07775	-	transcription elongation factor NusA
1473	 30.39	-2	1509259..1509360	+	33	188528284	-	HPSH_07780	-	hypothetical protein
1474	 27.54	-2	1509357..1510115	-	252	188528285	-	HPSH_07785	-	hypothetical protein
1475	 33.33	-1	1510105..1510542	-	145	188528286	-	HPSH_07790	-	Uncharacterized phage-associated protein
1476	 30.12	-2	1510751..1512370	-	539	188528287	-	HPSH_07795	-	hypothetical protein
1477	 27.05	-2	1512387..1512911	-	174	188528288	-	HPSH_07800	-	hypothetical protein
1478	 36.38	0	1512912..1516751	-	1279	188528289	-	HPSH_07805	-	putative type II DNA modification enzyme (methyltransferase)
1479	 36.04	0	1516857..1519772	-	971	188528290	-	HPSH_07810	-	type III restriction enzyme
1480	 36.33	0	1519775..1521676	-	633	188528291	-	HPSH_07815	-	type III DNA modification enzyme (methyltransferase)
1481	 37.71	0	1521719..1523590	-	623	188528292	-	HPSH_07820	-	DNA recombinase (recG)
1482	 33.91	-1	1523672..1524016	+	114	188528293	-	HPSH_07825	-	hypothetical protein
1483	 37.58	0	1524020..1524655	+	211	188528294	-	HPSH_07830	-	hypothetical protein
1484	 36.92	0	1524652..1525404	-	250	188528295	-	HPSH_07835	-	exodeoxyribonuclease
1485	 39.58	0	1525582..1527021	-	479	188528296	-	HPSH_07840	-	periplasmic competence protein
1486	 19.23	-2	1527020..1527097	+	25	188528297	-	HPSH_07845	-	hypothetical protein
1487	 34.67	0	1527148..1527222	+	24	188528298	-	HPSH_07850	-	hypothetical protein
1488	 40.06	0	1527250..1528617	-	455	188528299	dnaA	HPSH_07855	-	chromosomal replication initiation protein
1489	 37.07	0	1528725..1529312	+	195	188528300	-	HPSH_07860	-	purine nucleoside phosphorylase
1490	 35.00	0	1529348..1529587	+	79	188528301	-	HPSH_07865	-	hypothetical protein
1491	 40.86	0	1529588..1531381	+	597	188528302	-	HPSH_07870	-	D-fructose-6-phosphate amidotransferase
1492	 40.03	0	1531402..1532028	+	208	188528303	thyX	HPSH_07875	-	FAD-dependent thymidylate synthase
1493	 22.58	-2	1532451..1532543	+	30	188528304	-	HPSH_07880	-	hypothetical protein
1494	 32.18	-1	1532623..1533750	-	375	188528305	-	HPSH_07885	-	type I R-M system specificity subunit
1495	 38.00	0	1533747..1536209	-	820	188528306	-	HPSH_07890	-	type I restriction enzyme M protein (hsdM)
1496	 36.02	0	1536280..1539255	+	991	188528307	-	HPSH_07895	-	type I restriction enzyme R protein (hsdR)
1497	 36.16	0	1539255..1539962	+	235	188528308	-	HPSH_07900	-	hypothetical protein
1498	 45.65	+1	1540052..1542577	-	841	188528309	-	HPSH_07905	-	iron(III) dicitrate transport protein (fecA)
1499	 29.56	-2	1542938..1543096	+	52	188528310	-	HPSH_07910	-	hypothetical protein
1500	 40.17	0	1543152..1544087	-	311	188528311	-	HPSH_07915	-	arginase (rocF)
1501	 45.49	+1	1544291..1545433	+	380	188528312	-	HPSH_07920	-	alanine dehydrogenase
1502	 36.75	0	1545551..1547248	+	565	188528313	-	HPSH_07925	-	hypothetical protein
1503	 41.43	0	1547259..1547987	-	242	188528314	-	HPSH_07930	-	putative outer membrane protein
1504	 40.23	0	1548173..1549027	+	284	188528315	-	HPSH_07935	-	inorganic polyphosphate/ATP-NAD kinase
1505	 39.30	0	1549040..1550614	+	524	188528316	-	HPSH_07940	-	DNA repair protein
1506	 32.19	-1	1550611..1551918	+	435	188528317	-	HPSH_07945	-	fibronectin/fibrinogen-binding protein
1507	 41.08	0	1551937..1552233	+	98	188528318	-	HPSH_07950	-	hypothetical protein
1508	 35.20	0	1552564..1552884	+	106	188528319	-	HPSH_07955	-	hypothetical protein
1509	 33.94	-1	1552923..1553252	+	109	188528320	-	HPSH_07960	-	hypothetical protein
1510	 29.29	-2	1553351..1553548	+	65	188528321	-	HPSH_07965	-	hypothetical protein
1511	 40.28	0	1553522..1554385	-	287	188528322	-	HPSH_07970	-	DNA polymerase III subunit epsilon
1512	 42.05	0	1554363..1555016	-	217	188528323	-	HPSH_07975	-	ribulose-phosphate 3-epimerase
1513	 38.49	0	1555087..1555959	+	290	188528324	-	HPSH_07980	-	fructose-1,6-bisphosphatase
1514	 40.20	0	1555959..1556162	+	67	188528325	-	HPSH_07985	-	hypothetical protein
1515	 35.23	0	1556175..1557071	+	298	188528326	-	HPSH_07990	-	putative type II methylase protein
1516	 34.02	-1	1557064..1557795	+	243	188528327	-	HPSH_07995	-	hypothetical protein
1517	 33.33	-1	1557885..1558337	-	150	188528328	-	HPSH_08000	-	hypothetical protein
1518	 40.17	0	1558389..1559456	-	355	188528329	tsf	HPSH_08005	-	elongation factor Ts
1519	 38.99	0	1559456..1560250	-	264	188528330	rpsB	HPSH_08010	-	30S ribosomal protein S2
1520	 32.18	-1	1560343..1560429	+	28	188528331	-	HPSH_08015	-	hypothetical protein
1521	 38.63	0	1560501..1563350	+	949	188528332	-	HPSH_08020	-	helicase
1522	 41.63	0	1563341..1564690	+	449	188528333	-	HPSH_08025	-	Na+/H+ antiporter
1523	 40.14	0	1564738..1565031	+	97	188528334	yajC	HPSH_08030	-	preprotein translocase subunit YajC
1524	 43.35	+1	1565031..1566608	+	525	188528335	secD	HPSH_08035	-	preprotein translocase subunit SecD
1525	 39.71	0	1566617..1567588	+	323	188528336	secF	HPSH_08040	-	preprotein translocase subunit SecF
1526	 41.00	0	1567598..1567936	+	112	188528337	-	HPSH_08045	-	hypothetical protein
1527	 40.19	0	1567946..1570366	+	806	188528338	leuS	HPSH_08050	-	leucyl-tRNA synthetase
1528	 39.77	0	1570363..1570875	+	170	188528339	-	HPSH_08055	-	hypothetical protein
1529	 37.44	0	1570865..1572034	+	389	188528340	-	HPSH_08060	-	folylpolyglutamate synthase
1530	 39.16	0	1572034..1572960	+	308	209406224	-	HPSH_08065	-	tox-R activated gene
1531	 40.92	0	1572969..1573904	+	311	188528341	-	HPSH_08075	-	toxR-activated gene (tagE)
1532	 44.13	+1	1573919..1574233	+	104	188528342	-	HPSH_08080	-	hypothetical protein
1533	 39.53	0	1574237..1577236	+	999	188528343	-	HPSH_08085	-	transcription-repair coupling factor
1534	 45.04	+1	1577361..1577864	+	167	188528344	-	HPSH_08090	-	ubiquinol cytochrome c oxidoreductase, Rieske 2Fe-2S subunit (fbcF)
1535	 43.26	+1	1577875..1579113	+	412	188528345	-	HPSH_08095	-	ubiquinol cytochrome c oxidoreductase, cytochrome b subunit (fbcH)
1536	 43.01	+1	1579110..1579967	+	285	188528346	-	HPSH_08100	-	ubiquinol cytochrome c oxidoreductase, cytochrome c1
1537	 33.33	-1	1580172..1580507	-	111	188528347	-	HPSH_08105	-	hypothetical protein
1538	 39.56	0	1580949..1582796	-	615	188528348	-	HPSH_08110	-	cell division protein
1539	 41.21	0	1582952..1583281	-	109	188528349	fliE	HPSH_08115	-	flagellar hook-basal body protein FliE
1540	 45.47	+1	1583409..1583894	-	161	188528350	flgC	HPSH_08120	-	flagellar basal body rod protein FlgC
1541	 38.30	0	1583907..1584329	-	140	188528351	flgB	HPSH_08125	-	flagellar basal body rod protein FlgB
1542	 44.64	+1	1584538..1585704	+	388	188528352	-	HPSH_08130	-	putative rod shape-determining protein
1543	 39.22	0	1585728..1586729	-	333	188528353	-	HPSH_08135	-	hypothetical protein
1544	 40.28	0	1586928..1587935	-	335	188528354	-	HPSH_08140	-	iron(III) ABC transporter, periplasmic iron-binding protein (ceuE)
1545	 40.37	0	1588174..1588770	+	198	188528355	-	HPSH_08145	-	putative peroxidase
1546	 40.93	0	1588915..1589730	+	271	188528356	-	HPSH_08150	-	outer membrane protein
1547	 41.05	0	1589798..1591573	-	591	188528357	-	HPSH_08155	-	penicillin-binding protein 2 (pbp2)
1548	 32.43	-1	1591554..1591997	-	147	188528358	-	HPSH_08160	-	hypothetical protein
1549	 39.39	0	1592010..1592636	-	208	188528359	engB	HPSH_08165	-	GTPase EngB
1550	 40.50	0	1592633..1593190	-	185	188528360	-	HPSH_08170	-	hypothetical protein
1551	 36.87	0	1593190..1593783	-	197	188528361	-	HPSH_08175	-	hypothetical protein
1552	 41.01	0	1593758..1594252	-	164	188528362	-	HPSH_08180	-	hypothetical protein
1553	 42.19	0	1594249..1595196	-	315	188528363	-	HPSH_08185	-	rare lipoprotein A (rlpA)
1554	 39.17	0	1595196..1596308	-	370	188528364	-	HPSH_08190	-	putative regulatory protein
1555	 39.48	0	1596409..1597173	-	254	188528365	-	HPSH_08195	-	DNAse
1556	 40.10	0	1597248..1597868	+	206	188528366	-	HPSH_08200	-	riboflavin synthase subunit alpha
1557	 45.05	+1	1597869..1598141	+	90	188528367	-	HPSH_08205	-	FlhB-related flagellar biosynthesis protein
1558	 39.43	0	1598163..1599146	+	327	188528368	-	HPSH_08210	-	ABC transporter, ATP-binding protein
1559	 41.05	0	1599148..1599795	+	215	188528369	-	HPSH_08215	-	ABC transporter, permease protein
1560	 33.56	-1	1599984..1600415	-	143	188528370	-	HPSH_08220	-	hypothetical protein
1561	 47.40	+2	1600425..1601021	-	198	188528371	-	HPSH_08225	-	hypothetical protein
1562	 39.74	0	1601021..1602019	-	332	188528372	-	HPSH_08230	-	undecaprenyl phosphate N-acetylglucosaminyltransferase
1563	 38.53	0	1602164..1602952	+	262	188528373	-	HPSH_08235	-	pyridoxal phosphate biosynthetic protein PdxJ
1564	 42.75	0	1602954..1603877	+	307	188528374	pdxA	HPSH_08240	-	4-hydroxythreonine-4-phosphate dehydrogenase
1565	 40.86	0	1603941..1604963	+	340	188528375	-	HPSH_08245	-	O-sialoglycoprotein endopeptidase
1566	 47.02	+2	1605142..1605930	+	262	188528376	flgG	HPSH_08250	-	flagellar basal body rod protein FlgG
38.76	MEAN

4.11	STD DEV
