IslandPath Analysis: Helicobacter pylori Shi470

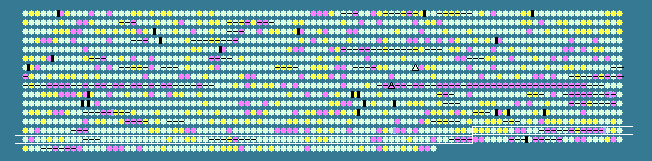

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.76 STD DEV: 4.11
Helicobacter pylori Shi470, complete genome - 1..1608548
1569 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1376	 42.64	0	1416253..1416510	-	85	188528188	-	HPSH_07260	-	hypothetical protein
1377	 42.67	0	1416612..1417232	+	206	188528189	-	HPSH_07265	-	hypothetical protein
1378	 47.06	+2	1417498..1417752	-	84	188528190	-	HPSH_07270	-	hypothetical protein
1379	 38.18	0	1417939..1419012	-	357	188528191	-	HPSH_07275	-	hypothetical protein
1380	 43.43	+1	1419009..1419998	-	329	188528192	-	HPSH_07280	-	polysialic acid capsule expression protein (kpsF)
1381	 42.88	+1	1419982..1422075	-	697	188528193	-	HPSH_07285	-	conserved hypothetical ATP-binding protein
1382	 38.36	0	1422109..1422924	-	271	188528194	ksgA	HPSH_07290	-	dimethyladenosine transferase
1383	 23.66	-2	1423717..1423809	+	30	188528195	-	HPSH_07295	-	hypothetical protein
1384	 32.43	-1	1423889..1424998	-	369	188528196	-	HPSH_07300	-	type I R-M system specificity subunit
1385	 39.00	0	1425011..1425892	-	293	188528197	-	HPSH_07305	-	formyltetrahydrofolate hydrolase (purU)
1386	 41.30	0	1425895..1426773	-	292	188528198	-	HPSH_07310	-	protease IV (PspA)
1387	 38.83	0	1426844..1427116	+	90	188528199	-	HPSH_07315	-	hypothetical protein
1388	 29.09	-2	1427160..1427324	-	54	188528200	-	HPSH_07320	-	hypothetical protein
1389	 34.67	0	1427349..1428023	+	224	188528201	-	HPSH_07325	-	hypothetical protein
1390	 41.32	0	1428032..1428319	+	95	188528202	-	HPSH_07330	-	hypothetical protein
1391	 35.80	0	1428309..1428470	+	53	188528203	-	HPSH_07335	-	hypothetical protein
1392	 27.22	-2	1428489..1428962	-	157	188528204	-	HPSH_07340	-	hypothetical protein
1393	 42.62	0	1428967..1429149	+	60	188528205	-	HPSH_07345	-	hypothetical protein
1394	 31.35	-1	1429495..1429797	+	100	188528206	-	HPSH_07350	-	hypothetical protein
1395	 34.82	0	1429816..1430352	+	178	188528207	-	HPSH_07355	-	hypothetical protein
1396	 35.19	0	1430336..1430443	+	35	188528208	-	HPSH_07360	-	hypothetical protein
1397	 25.00	-2	1430830..1430925	-	31	188528209	-	HPSH_07365	-	hypothetical protein
1398	 38.72	0	1432988..1433767	-	259	188528210	-	HPSH_07370	-	hypothetical protein
1399	 44.38	+1	1433891..1434379	+	162	188528211	-	HPSH_07375	-	peptidyl-prolyl cis-trans isomerase B, cyclosporin-type rotamase (ppi)
1400	 41.99	0	1434397..1434627	+	76	188528212	-	HPSH_07380	-	carbon storage regulator
1401	 40.05	0	1434627..1435430	+	267	188528213	-	HPSH_07385	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
1402	 32.90	-1	1435427..1435885	+	152	188528214	smpB	HPSH_07390	-	SsrA-binding protein
1403	 41.50	0	1435888..1436340	+	150	188528215	-	HPSH_07395	-	biopolymer transport protein
1404	 35.57	0	1436351..1436752	+	133	188528216	-	HPSH_07400	-	biopolymer transport protein
1405	 45.93	+1	1436826..1436960	+	44	188528217	rpmH	HPSH_07405	-	50S ribosomal protein L34
1406	 37.45	0	1436920..1437405	+	161	188528218	-	HPSH_07410	-	ribonuclease P, protein component (rnpA)
1407	 42.30	0	1437392..1437748	+	118	188528219	-	HPSH_07415	-	hypothetical protein
1408	 40.59	0	1437754..1439394	+	546	188528220	-	HPSH_07420	-	putative inner membrane protein translocase component YidC
1409	 36.97	0	1439394..1440191	+	265	188528221	-	HPSH_07425	-	hypothetical protein
1410	 38.95	0	1440184..1441536	+	450	188528222	trmE	HPSH_07430	-	tRNA modification GTPase TrmE
1411	 42.06	0	1441740..1443962	+	740	188528223	-	HPSH_07435	-	putative Outer membrane protein
1412	 39.58	0	1443959..1444102	-	47	188528224	-	HPSH_07440	-	hypothetical protein
1413	 38.16	0	1444482..1445393	-	303	188528225	-	HPSH_07445	-	hypothetical protein
1414	 40.35	0	1445403..1445744	-	113	188528226	-	HPSH_07450	-	hypothetical protein
1415	 39.02	0	1445752..1446279	-	175	188528227	-	HPSH_07455	-	membrane-associated lipoprotein
1416	 41.39	0	1446303..1446935	-	210	188528228	-	HPSH_07460	-	hypothetical protein
1417	 41.27	0	1447292..1447606	-	104	188528229	-	HPSH_07465	-	thioredoxin
1418	 40.83	0	1447661..1448434	-	257	188528230	-	HPSH_07470	-	hypothetical protein
1419	 41.47	0	1448431..1452066	-	1211	188528231	dnaE	HPSH_07475	-	DNA polymerase III subunit alpha
1420	 41.60	0	1452214..1453266	+	350	188528232	-	HPSH_07480	-	cytochrome c551 peroxidase
1421	 37.78	0	1453269..1453358	-	29	188528233	-	HPSH_07485	-	hypothetical protein
1422	 37.07	0	1453443..1454030	-	195	188528234	-	HPSH_07490	-	putative secreted motility protein
1423	 40.71	0	1454049..1454726	-	225	188528235	-	HPSH_07495	-	hypothetical protein
1424	 39.34	0	1454729..1455544	-	271	188528236	-	HPSH_07500	-	ABC transport system substrate binding protein
1425	 43.35	+1	1455529..1456317	-	262	188528237	-	HPSH_07505	-	ABC transporter ATP-binding protein
1426	 40.30	0	1456314..1457447	-	377	188528238	-	HPSH_07510	-	hypothetical protein
1427	 39.51	0	1457581..1458276	+	231	188528239	-	HPSH_07515	-	outer membrane protein
1428	 46.04	+1	1458281..1459303	-	340	188528240	-	HPSH_07520	-	branched-chain amino acid aminotransferase
1429	 42.84	0	1459354..1460100	-	248	188528241	-	HPSH_07525	-	outer membrane protein (omp31)
1430	 38.55	0	1460215..1462896	-	893	188528242	-	HPSH_07530	-	DNA polymerase I (polA)
1431	 37.78	0	1463549..1466224	-	891	209406225	-	HPSH_07540	-	type II restriction modification enzyme methyltransferase
1432	 41.67	0	1466257..1466832	-	191	188528243	-	HPSH_07545	-	hypothetical protein
1433	 40.80	0	1466820..1467395	-	191	188528244	tdk	HPSH_07550	-	thymidylate kinase
1434	 40.93	0	1467397..1467870	-	157	188528245	coaD	HPSH_07555	-	phosphopantetheine adenylyltransferase
1435	 45.74	+1	1467870..1468433	-	187	188528246	-	HPSH_07560	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1436	 31.43	-1	1468414..1468518	+	34	188528247	-	HPSH_07565	-	hypothetical protein
1437	 38.66	0	1468443..1469099	-	218	188528248	flgA	HPSH_07570	-	flagellar basal body P-ring biosynthesis protein FlgA
1438	 39.88	0	1469096..1471141	-	681	188528249	-	HPSH_07575	-	DNA helicase II
1439	 39.41	0	1471141..1473675	-	844	188528250	-	HPSH_07580	-	hypothetical protein
1440	 41.11	0	1473685..1474932	-	415	188528251	-	HPSH_07585	-	seryl-tRNA synthetase
1441	 41.73	0	1474933..1475730	-	265	188528252	-	HPSH_07590	-	hypothetical protein
1442	 38.70	0	1475734..1475994	-	86	188528253	-	HPSH_07595	-	hypothetical protein
1443	 39.00	0	1476004..1476744	-	246	188528254	ubiE	HPSH_07600	-	ubiquinone/menaquinone biosynthesis methyltransferase
1444	 39.37	0	1476754..1477200	-	148	188528255	-	HPSH_07605	-	hypothetical protein
1445	 40.31	0	1477211..1477783	-	190	188528256	-	HPSH_07610	-	hypothetical protein
1446	 39.88	0	1477770..1478900	-	376	188528257	-	HPSH_07615	-	hypothetical protein
1447	 40.40	0	1478897..1479985	-	362	188528258	-	HPSH_07620	-	hypothetical protein
1448	 43.74	+1	1480006..1480995	-	329	188528259	-	HPSH_07625	-	conserved hypothetical secreted protein
1449	 40.97	0	1481007..1482539	-	510	188528260	-	HPSH_07630	-	lipase-like protein
1450	 42.74	0	1482536..1483885	-	449	188528261	-	HPSH_07635	-	hypothetical protein
1451	 43.26	+1	1483984..1485585	-	533	188528262	-	HPSH_07640	-	phosphate permease
1452	 37.78	0	1485725..1485994	+	89	188528263	-	HPSH_07645	-	conserved hypothetical nifU-like protein
1453	 35.95	0	1486007..1486618	+	203	188528264	-	HPSH_07650	-	hypothetical protein
1454	 37.72	0	1486622..1487965	+	447	188528265	murE	HPSH_07655	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1455	 38.38	0	1487969..1488919	+	316	188528266	-	HPSH_07660	-	transaldolase
1456	 38.18	0	1488974..1489510	+	178	188528267	-	HPSH_07665	-	50S ribosomal protein L25/general stress protein Ctc
1457	 37.08	0	1489520..1490080	+	186	188528268	-	HPSH_07670	-	peptidyl-tRNA hydrolase
1458	 37.36	0	1490135..1491202	+	355	188528269	-	HPSH_07675	-	hypothetical protein
1459	 31.61	-1	1492300..1492473	+	57	188528270	-	HPSH_07690	-	restriction endonuclease
1460	 27.78	-2	1493654..1493761	-	35	188528271	-	HPSH_07705	-	hypothetical protein
1461	 36.99	0	1493868..1494305	+	145	188528272	-	HPSH_07710	-	hypothetical protein
1462	 39.20	0	1494302..1496638	-	778	188528273	-	HPSH_07715	-	putative cation transporting P-type ATPase
1463	 38.63	0	1496664..1497380	-	238	188528274	-	HPSH_07720	-	hypothetical protein
1464	 40.58	0	1497362..1498396	-	344	188528275	-	HPSH_07725	-	riboflavin biosynthesis protein (ribG)
1465	 43.68	+1	1498393..1499619	-	408	188528276	-	HPSH_07730	-	sodium/glutamate symport carrier protein/glutamate permease
1466	 41.93	0	1499753..1500904	+	383	188528277	-	HPSH_07735	-	conserved hypothetical ATP-binding protein
1467	 41.25	0	1500914..1502290	-	458	188528278	-	HPSH_07740	-	ferrodoxin-like protein
1468	 38.78	0	1502270..1503058	+	262	188528279	-	HPSH_07745	-	hypothetical protein
1469	 34.75	0	1503055..1503408	+	117	188528280	-	HPSH_07750	-	dihydroneopterin aldolase
1470	 38.23	0	1503392..1503718	+	108	188528281	-	HPSH_07755	-	FrpB-like protein
1471	 37.38	0	1506690..1507850	+	386	188528282	-	HPSH_07770	-	selenocysteine synthase
1472	 39.48	0	1507938..1509125	+	395	188528283	nusA	HPSH_07775	-	transcription elongation factor NusA
1473	 30.39	-2	1509259..1509360	+	33	188528284	-	HPSH_07780	-	hypothetical protein
1474	 27.54	-2	1509357..1510115	-	252	188528285	-	HPSH_07785	-	hypothetical protein
1475	 33.33	-1	1510105..1510542	-	145	188528286	-	HPSH_07790	-	Uncharacterized phage-associated protein
38.76	MEAN

4.11	STD DEV
