IslandPathversion 1.0

IslandPath Analysis: Helicobacter pylori Shi470

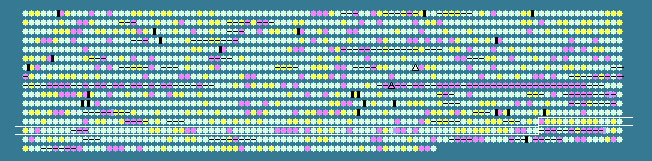

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.76 STD DEV: 4.11
Helicobacter pylori Shi470, complete genome - 1..1608548
1569 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1287	 34.83	0	1323101..1323301	-	66	188528099	-	HPSH_06780	-	50S ribosomal protein L29
1288	 42.96	+1	1323288..1323713	-	141	188528100	rplP	HPSH_06785	-	50S ribosomal protein L16
1289	 44.40	+1	1323716..1324420	-	234	188528101	rpsC	HPSH_06790	-	30S ribosomal protein S3
1290	 43.63	+1	1324424..1324792	-	122	188528102	rplV	HPSH_06795	-	50S ribosomal protein L22
1291	 39.36	0	1324802..1325083	-	93	188528103	rpsS	HPSH_06800	-	30S ribosomal protein S19
1292	 46.83	+1	1325087..1325923	-	278	188528104	rplB	HPSH_06805	-	50S ribosomal protein L2
1293	 39.36	0	1325939..1326220	-	93	188528105	rplW	HPSH_06810	-	50S ribosomal protein L23
1294	 43.36	+1	1326224..1326871	-	215	188528106	rplD	HPSH_06815	-	50S ribosomal protein L4
1295	 45.83	+1	1326906..1327481	-	191	188528107	rplC	HPSH_06820	-	50S ribosomal protein L3
1296	 44.13	+1	1327518..1327832	-	104	188528108	rpsJ	HPSH_06825	-	30S ribosomal protein S10
1297	 37.57	0	1327987..1329120	+	377	188528109	-	HPSH_06830	-	conserved hypothetical ATP-binding protein
1298	 38.83	0	1329340..1329921	+	193	188528110	-	HPSH_06835	-	hypothetical protein
1299	 42.93	+1	1329895..1330509	-	204	188528111	-	HPSH_06840	-	ribonuclease HII
1300	 37.23	0	1330540..1330770	-	76	188528112	-	HPSH_06845	-	hypothetical protein
1301	 43.61	+1	1330793..1332184	-	463	188528113	fumC	HPSH_06850	-	fumarate hydratase
1302	 41.01	0	1332359..1332736	+	125	188528114	-	HPSH_06855	-	hypothetical protein
1303	 34.34	-1	1332792..1333979	+	395	188528115	-	HPSH_06860	-	hypothetical protein
1304	 38.89	0	1333976..1334983	+	335	188528116	-	HPSH_06865	-	cation efflux system protein (czcA)
1305	 41.81	0	1334984..1338097	+	1037	188528117	-	HPSH_06870	-	cation efflux system protein (czcA)
1306	 36.21	0	1338094..1338441	-	115	188528118	-	HPSH_06875	-	hypothetical protein
1307	 39.74	0	1338435..1339121	-	228	188528119	-	HPSH_06880	-	branched-chain amino acid transport protein
1308	 41.35	0	1339132..1340241	-	369	188528120	-	HPSH_06885	-	co-chaperone and heat shock protein
1309	 39.37	0	1340420..1341496	+	358	188528121	-	HPSH_06890	-	hypothetical protein
1310	 29.82	-2	1341698..1341811	+	37	188528122	-	HPSH_06895	-	hypothetical protein
1311	 33.33	-1	1342021..1342386	+	121	188528123	-	HPSH_06900	-	hypothetical protein
1312	 39.84	0	1342447..1343475	-	342	188528124	trmU	HPSH_06905	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1313	 38.98	0	1343616..1344377	+	253	188528125	-	HPSH_06910	-	hypothetical protein
1314	 40.31	0	1344374..1344889	-	171	188528126	-	HPSH_06915	-	hypothetical protein
1315	 40.72	0	1344882..1345328	-	148	188528127	-	HPSH_06920	-	nickel responsive regulator
1316	 38.81	0	1345665..1346102	+	145	188528128	-	HPSH_06925	-	biopolymer transport protein (exbB)
1317	 37.44	0	1346099..1346488	+	129	188528129	-	HPSH_06930	-	biopolymer transport protein
1318	 41.64	0	1346454..1347308	+	284	188528130	-	HPSH_06935	-	siderophore-mediated iron transport protein (tonB)
1319	 37.17	0	1347973..1348701	-	242	188528131	-	HPSH_06950	-	hypothetical protein
1320	 37.72	0	1348708..1349664	-	318	188528132	-	HPSH_06955	-	magnesium and cobalt transport protein
1321	 41.36	0	1349680..1350888	-	402	188528133	pgk	HPSH_06960	-	phosphoglycerate kinase
1322	 42.40	0	1350904..1351896	-	330	188528134	-	HPSH_06965	-	glyceraldehyde-3-phosphate dehydrogenase
1323	 42.59	0	1351985..1352686	-	233	188528135	-	HPSH_06970	-	uracil-DNA glycosylase
1324	 40.53	0	1352683..1353405	-	240	188528136	-	HPSH_06975	-	1-acyl-glycerol-3-phosphate acyltransferase (plsC)
1325	 36.43	0	1353392..1354555	-	387	188528137	-	HPSH_06980	-	hypothetical protein
1326	 42.56	0	1354562..1355926	-	454	188528138	-	HPSH_06985	-	protease
1327	 42.31	0	1356037..1356270	-	77	188528139	-	HPSH_06990	-	adenine specific DNA methyltransferase
1328	 30.76	-1	1356335..1357228	-	297	188528140	-	HPSH_06995	-	hypothetical protein
1329	 32.96	-1	1357228..1358307	-	359	188528141	-	HPSH_07000	-	adenine specific DNA methyltransferase (HINFIM)
1330	 41.23	0	1358427..1358654	-	75	188528142	-	HPSH_07005	-	adenine specific DNA methyltransferase
1331	 37.44	0	1358699..1361935	-	1078	188528143	-	HPSH_07010	-	hypothetical protein
1332	 41.24	0	1361959..1362780	-	273	188528144	-	HPSH_07015	-	nicotinate-nucleotide pyrophosphorylase
1333	 39.47	0	1362780..1363790	-	336	188528145	-	HPSH_07020	-	quinolinate synthetase
1334	 40.05	0	1363780..1364583	-	267	188528146	-	HPSH_07025	-	phosphatidylserine decarboxylase
1335	 35.12	0	1364580..1365083	-	167	188528147	-	HPSH_07030	-	hypothetical protein
1336	 38.38	0	1365096..1365590	-	164	188528148	-	HPSH_07035	-	hypothetical protein
1337	 40.90	0	1365583..1366467	-	294	188528149	ubiA	HPSH_07040	-	prenyltransferase
1338	 37.21	0	1366496..1367809	-	437	188528150	-	HPSH_07045	-	competence locus E
1339	 40.63	0	1367806..1369272	-	488	188528151	-	HPSH_07050	-	replicative DNA helicase
1340	 41.36	0	1369283..1370677	-	464	188528152	-	HPSH_07055	-	hypothetical protein
1341	 38.01	0	1370680..1371813	-	377	188528153	-	HPSH_07060	-	signal-transducing protein, histidine kinase
1342	 38.16	0	1371848..1372489	-	213	188528154	-	HPSH_07065	-	putative transcriptional regulator
1343	 29.93	-2	1372577..1373635	-	352	188528155	-	HPSH_07070	-	type IIS restriction enzyme R protein (MBOIIR)
1344	 30.13	-2	1373810..1374652	+	280	188528156	-	HPSH_07075	-	type II restriction endonuclease
1345	 33.45	-1	1374652..1375545	+	297	188528157	-	HPSH_07080	-	adenine-specific DNA metylase
1346	 33.82	-1	1375517..1376959	+	480	188528158	-	HPSH_07085	-	Adenine-specific DNA methylase
1347	 36.68	0	1376917..1377993	+	358	188528159	-	HPSH_07090	-	adenine-specific DNA methylase
1348	 35.19	0	1378003..1380915	+	970	188528160	-	HPSH_07095	-	type III restriction enzyme R protein
1349	 37.22	0	1380965..1381711	-	248	188528161	-	HPSH_07100	-	rod shape-determining protein
1350	 46.07	+1	1381715..1382758	-	347	188528162	-	HPSH_07105	-	rod shape-determining protein
1351	 40.98	0	1382801..1384147	-	448	188528163	clpX	HPSH_07110	-	ATP-dependent protease ATP-binding subunit
1352	 42.44	0	1384149..1384961	-	270	188528164	-	HPSH_07115	-	UDP-N-acetylglucosamine acyltransferase
1353	 41.46	0	1384964..1385443	-	159	188528165	fabZ	HPSH_07120	-	(3R)-hydroxymyristoyl-ACP dehydratase
1354	 37.95	0	1385626..1386015	-	129	188528166	-	HPSH_07125	-	flagellar assembly protein FliW
1355	 33.33	-1	1386232..1386378	+	48	188528167	-	HPSH_07130	-	hypothetical protein
1356	 37.10	0	1386421..1387083	+	220	188528168	-	HPSH_07135	-	competence lipoprotein
1357	 41.19	0	1387124..1389592	+	822	188528169	-	HPSH_07140	-	ATP-dependent protease
1358	 42.03	0	1389601..1390428	+	275	188528170	-	HPSH_07145	-	prephenate dehydrogenase
1359	 36.40	0	1390714..1391562	-	282	188528171	-	HPSH_07150	-	putative endonuclease
1360	 32.52	-1	1391687..1393405	-	572	188528172	-	HPSH_07155	-	putative type III restriction enzyme M protein
1361	 43.46	+1	1396155..1397003	+	282	188528173	-	HPSH_07170	-	biotin synthase
1362	 36.97	0	1397003..1397881	+	292	188528174	-	HPSH_07175	-	putative ribonuclease N
1363	 27.34	-2	1402463..1402729	-	88	188528175	-	HPSH_07180	-	hypothetical protein
1364	 31.47	-1	1403060..1404400	-	446	188528176	-	HPSH_07185	-	hypothetical protein
1365	 37.47	0	1404416..1404778	-	120	188528177	-	HPSH_07190	-	hypothetical protein
1366	 33.91	-1	1404799..1405491	-	230	188528178	-	HPSH_07195	-	hypothetical protein
1367	 39.91	0	1405754..1406194	-	146	188528179	-	HPSH_07200	-	7-cyano-7-deazaguanine reductase
1368	 38.01	0	1406253..1406594	+	113	188528180	-	HPSH_07205	-	hypothetical protein
1369	 38.51	0	1406665..1407495	+	276	188528181	miaA	HPSH_07210	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1370	 38.68	0	1407500..1408603	+	367	188528182	-	HPSH_07215	-	lipopolysaccharide 1,2-glucosyltransferase
1371	 40.64	0	1410160..1410939	-	259	188528183	murB	HPSH_07235	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1372	 38.49	0	1410943..1411194	-	83	188528184	fliQ	HPSH_07240	-	flagellar biosynthesis protein FliQ
1373	 45.29	+1	1411220..1412524	-	434	188528185	fliI	HPSH_07245	-	flagellum-specific ATP synthase
1374	 42.40	0	1412525..1413439	-	304	188528186	-	HPSH_07250	-	type IV secretion system ATPase
1375	 40.79	0	1413456..1416218	-	920	188528187	ileS	HPSH_07255	-	isoleucyl-tRNA synthetase
1376	 42.64	0	1416253..1416510	-	85	188528188	-	HPSH_07260	-	hypothetical protein
1377	 42.67	0	1416612..1417232	+	206	188528189	-	HPSH_07265	-	hypothetical protein
1378	 47.06	+2	1417498..1417752	-	84	188528190	-	HPSH_07270	-	hypothetical protein
1379	 38.18	0	1417939..1419012	-	357	188528191	-	HPSH_07275	-	hypothetical protein
1380	 43.43	+1	1419009..1419998	-	329	188528192	-	HPSH_07280	-	polysialic acid capsule expression protein (kpsF)
1381	 42.88	+1	1419982..1422075	-	697	188528193	-	HPSH_07285	-	conserved hypothetical ATP-binding protein
1382	 38.36	0	1422109..1422924	-	271	188528194	ksgA	HPSH_07290	-	dimethyladenosine transferase
1383	 23.66	-2	1423717..1423809	+	30	188528195	-	HPSH_07295	-	hypothetical protein
1384	 32.43	-1	1423889..1424998	-	369	188528196	-	HPSH_07300	-	type I R-M system specificity subunit
1385	 39.00	0	1425011..1425892	-	293	188528197	-	HPSH_07305	-	formyltetrahydrofolate hydrolase (purU)
1386	 41.30	0	1425895..1426773	-	292	188528198	-	HPSH_07310	-	protease IV (PspA)
38.76	MEAN

4.11	STD DEV
