IslandPath Analysis: Helicobacter pylori HPAG1

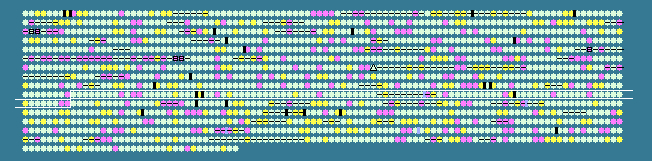

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
909	 39.65	0	956134..957114	+	326	108563333	-	HPAG1_0908	-	heat shock protein HtpX
910	 37.94	0	957115..957657	+	180	108563334	folE	HPAG1_0909	-	GTP cyclohydrolase I
911	 37.17	0	957673..958584	+	303	108563335	-	HPAG1_0910	-	geranyltranstransferase
912	 41.29	0	958581..959384	+	267	108563336	surE	HPAG1_0911	-	stationary phase survival protein SurE
913	 40.61	0	959381..960040	+	219	108563337	-	HPAG1_0912	-	hypothetical protein
914	 40.26	0	960041..960646	+	201	108563338	-	HPAG1_0913	-	hypothetical protein
915	 36.51	0	960643..961398	+	251	108563339	-	HPAG1_0914	-	hypothetical protein
916	 41.77	0	961409..961894	+	161	108563340	-	HPAG1_0915	-	hypothetical protein
917	 35.74	0	961898..962230	+	110	108563341	-	HPAG1_0916	-	putative outer membrane protein
918	 39.15	0	962417..963586	-	389	108563342	-	HPAG1_0917	-	proline and betaine transporter
919	 31.22	-2	964057..964860	-	267	108563343	-	HPAG1_0918	-	hypothetical protein
920	 34.03	-1	964836..964979	-	47	108563344	-	HPAG1_0919	-	hypothetical protein
921	 37.68	0	965033..965377	-	114	108563345	-	HPAG1_0920	-	hypothetical protein
922	 36.67	0	965355..965744	-	129	108563346	-	HPAG1_0921	-	hypothetical protein
923	 41.04	0	965813..966526	-	237	108563347	-	HPAG1_0922	-	amino acid ABC transporter, permease protein
924	 40.99	0	966510..967280	-	256	108563348	-	HPAG1_0923	-	amino acid ABC transporter, periplasmic binding protein
925	 41.27	0	967351..968484	-	377	108563349	-	HPAG1_0924	-	alanine racemase, biosynthetic
926	 43.02	+1	968491..969843	-	450	108563350	-	HPAG1_0925	-	D-alanine glycine permease
927	 40.47	0	969884..971116	-	410	108563351	-	HPAG1_0926	-	D-amino acid dehydrogenase
928	 41.27	0	971138..971515	-	125	108563352	-	HPAG1_0927	-	hypothetical protein
929	 38.50	0	971693..971905	-	70	108563353	-	HPAG1_0928	-	hypothetical protein
930	 45.67	+1	971936..972235	+	99	108563354	-	HPAG1_0929	-	protein tRNA-associated locus protein
931	 40.58	0	972795..974285	+	496	108563355	-	HPAG1_0930	-	hypothetical protein
932	 39.67	0	974602..974964	+	120	108563356	-	HPAG1_0931	-	hypothetical protein
933	 35.40	-1	975377..976390	-	337	108563357	-	HPAG1_0932	-	hypothetical protein
934	 36.64	0	976400..976852	-	150	108563358	-	HPAG1_0933	-	SPOUT methyltransferase superfamily protein
935	 42.76	0	976866..977735	-	289	108563359	-	HPAG1_0934	-	acetyl-CoA carboxylase subunit beta
936	 38.86	0	977816..978430	+	204	108563360	-	HPAG1_0935	-	hypothetical protein
937	 39.57	0	978441..979097	+	218	108563361	-	HPAG1_0936	-	hypothetical protein
938	 39.68	0	979100..979666	-	188	108563362	-	HPAG1_0937	-	hypothetical protein
939	 40.92	0	979731..980363	-	210	108563363	-	HPAG1_0938	-	oxygen-insensitive NADPH nitroreductase
940	 39.88	0	980374..981213	-	279	108563364	-	HPAG1_0939	-	prolipoprotein diacylglyceryl transferase
941	 38.82	0	981223..981951	-	242	108563365	-	HPAG1_0940	-	hypothetical protein
942	 39.00	0	981970..983151	-	393	108563366	-	HPAG1_0941	-	3-deoxy-D-manno-octulosonic-acid transferase
943	 37.39	0	983152..983916	-	254	108563367	-	HPAG1_0942	-	hypothetical protein
944	 38.66	0	983926..984657	-	243	108563368	-	HPAG1_0943	-	hypothetical protein
945	 42.03	0	984659..985555	-	298	108563369	glyQ	HPAG1_0944	-	glycyl-tRNA synthetase subunit alpha
946	 45.05	+1	985569..986507	-	312	108563370	gpsA	HPAG1_0945	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
947	 37.82	0	986648..988231	-	527	108563371	-	HPAG1_0946	-	hypothetical protein
948	 39.20	0	988228..990564	-	778	108563372	-	HPAG1_0947	-	hypothetical protein
949	 37.52	0	990561..992087	-	508	108563373	-	HPAG1_0948	-	hypothetical protein
950	 34.04	-1	992653..992934	-	93	108563374	-	HPAG1_0949	-	hypothetical protein
951	 41.90	0	992950..996009	-	1019	108563375	-	HPAG1_0950	-	cobalt-zinc-cadmium resistance protein
952	 40.09	0	996009..997088	-	359	108563376	-	HPAG1_0951	-	cobalt-zinc-cadmium resistance protein
953	 39.12	0	997085..998380	-	431	108563377	-	HPAG1_0952	-	hypothetical protein
954	 38.03	0	998370..1000475	-	701	108563378	glyS	HPAG1_0953	-	glycyl-tRNA synthetase subunit beta
955	 39.69	0	1000587..1001672	+	361	108563379	-	HPAG1_0954	-	hypothetical protein
956	 42.07	0	1001685..1003160	+	491	108563380	-	HPAG1_0955	-	phosphoglyceromutase
957	 39.01	0	1003175..1003456	+	93	108563381	gatC	HPAG1_0956	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
958	 39.21	0	1003576..1004886	-	436	108563382	-	HPAG1_0957	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
959	 36.95	0	1005016..1006479	+	487	108563383	-	HPAG1_0958	-	peptidyl-prolyl cis-trans isomerase D
960	 42.33	0	1006495..1007973	+	492	108563384	-	HPAG1_0959	-	cell division protein
961	 43.87	+1	1008104..1009261	+	385	108563385	-	HPAG1_0960	-	cell division protein FtsZ
962	 40.95	0	1009714..1009818	-	34	108563386	-	HPAG1_0961	-	hypothetical protein
963	 37.57	0	1009929..1010117	-	62	108563387	-	HPAG1_0962	-	hypothetical protein
964	 38.06	0	1010280..1011104	-	274	108563388	-	HPAG1_0963	-	hypothetical protein
965	 41.15	0	1011239..1011430	-	63	108563389	-	HPAG1_0964	-	hypothetical protein
966	 38.98	0	1012207..1012578	-	123	108563390	-	HPAG1_0965	-	hypothetical protein
967	 38.94	0	1012641..1012961	-	106	108563391	-	HPAG1_0966	-	hypothetical protein
968	 29.59	-2	1017340..1017606	+	88	108563392	-	HPAG1_0967	-	hypothetical protein
969	 42.86	+1	1017993..1018433	+	146	108563393	-	HPAG1_0968	-	hypothetical protein
970	 37.16	0	1018474..1020303	+	609	108563394	-	HPAG1_0969	-	hypothetical protein
971	 35.37	-1	1020454..1020699	+	81	108563395	-	HPAG1_0970	-	hypothetical protein
972	 39.97	0	1020701..1021363	+	220	108563396	-	HPAG1_0971	-	hypothetical protein
973	 40.21	0	1021469..1023316	-	615	108563397	-	HPAG1_0972	-	arginine decarboxylase
974	 38.03	0	1023331..1024500	-	389	108563398	-	HPAG1_0973	-	type 1 capsular polysaccharide biosynthesis protein J
975	 38.46	0	1024505..1024933	-	142	108563399	-	HPAG1_0974	-	hypothetical protein
976	 37.53	0	1024950..1025735	-	261	108563400	-	HPAG1_0975	-	hypothetical protein
977	 36.18	0	1025739..1026758	-	339	108563401	-	HPAG1_0976	-	hypothetical protein
978	 38.35	0	1026759..1028690	-	643	108563402	-	HPAG1_0977	-	methionyl-tRNA synthetase
979	 41.45	0	1028860..1030029	+	389	108563403	-	HPAG1_0978	-	cyclopropane fatty acid synthase
980	 37.66	0	1030032..1031903	-	623	108563404	-	HPAG1_0979	-	hypothetical protein
981	 31.31	-2	1032378..1032476	-	32	108563405	-	HPAG1_0980	-	hypothetical protein
982	 51.47	+2	1032502..1032705	+	67	108563406	-	HPAG1_0981	-	hypothetical protein
983	 37.33	0	1033136..1033885	-	249	108563407	-	HPAG1_0982	-	putative neuraminyllactose-binding hemagglutinin-like protein
984	 41.58	0	1033970..1035496	-	508	108563408	guaA	HPAG1_0983	-	bifunctional GMP synthase/glutamine amidotransferase protein
985	 36.20	0	1035507..1035995	-	162	108563409	-	HPAG1_0984	-	hypothetical protein
986	 41.49	0	1036156..1038546	-	796	108563410	-	HPAG1_0985	-	biotin sulfoxide reductase
987	 37.73	0	1038650..1039240	-	196	108563411	-	HPAG1_0986	-	hypothetical protein
988	 41.50	0	1039266..1040588	-	440	108563412	-	HPAG1_0987	-	nifS-like protein
989	 35.56	-1	1040607..1040921	-	104	108563413	-	HPAG1_0988	-	ADP hydrolase
990	 41.03	0	1041003..1041989	+	328	108563414	pheS	HPAG1_0989	-	phenylalanyl-tRNA synthetase subunit alpha
991	 39.39	0	1041989..1044283	+	764	108563415	pheT	HPAG1_0990	-	phenylalanyl-tRNA synthetase subunit beta
992	 39.53	0	1044287..1045576	+	429	108563416	-	HPAG1_0991	-	3-phosphoshikimate 1-carboxyvinyltransferase
993	 39.52	0	1045566..1046390	+	274	108563417	ispH	HPAG1_0992	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
994	 40.45	0	1046511..1048181	+	556	108563418	rpsA	HPAG1_0993	-	30S ribosomal protein S1
995	 35.34	-1	1048210..1048758	+	182	108563419	-	HPAG1_0994	-	hypothetical protein
996	 40.63	0	1048774..1050348	+	524	108563420	-	HPAG1_0995	-	D-3-phosphoglycerate dehydrogenase
997	 40.41	0	1050358..1052208	+	616	108563421	-	HPAG1_0996	-	hypothetical protein
998	 38.12	0	1052232..1052900	+	222	108563422	-	HPAG1_0997	-	hypothetical protein
999	 36.36	0	1052902..1053660	+	252	108563423	-	HPAG1_0998	-	hypothetical protein
1000	 38.78	0	1053664..1054599	+	311	108563424	-	HPAG1_0999	-	CheA-MCP interaction modulator
1001	 43.21	+1	1054656..1057064	+	802	108563425	-	HPAG1_1000	-	autophosphorylating histidine kinase
1002	 38.15	0	1057061..1057558	+	165	108563426	-	HPAG1_1001	-	CheA-MCP coupling protein
1003	 41.72	0	1057818..1058318	-	166	108563427	-	HPAG1_1002	-	adhesin-thiol peroxidase
1004	 38.94	0	1058541..1059182	+	213	108563428	-	HPAG1_1003	-	iron-dependent superoxide dismutase
1005	 38.61	0	1059235..1059954	+	239	108563429	-	HPAG1_1004	-	hypothetical protein
1006	 38.49	0	1059987..1061846	-	619	108563430	-	HPAG1_1005	-	primosome assembly protein PriA
1007	 34.18	-1	1061831..1062067	-	78	108563431	-	HPAG1_1006	-	hypothetical protein
1008	 32.89	-1	1062080..1062307	-	75	108563432	-	HPAG1_1007	-	hypothetical protein
39.24	MEAN

3.61	STD DEV
