IslandPath Analysis: Helicobacter pylori HPAG1

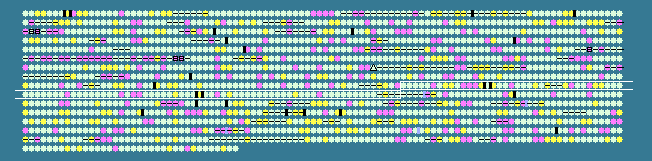

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
864	 39.67	0	898513..899064	-	183	108563288	ruvA	HPAG1_0863	-	Holliday junction DNA helicase motor protein
865	 37.07	0	899090..900934	-	614	108563289	-	HPAG1_0864	-	hypothetical protein
866	 38.32	0	901105..902487	+	460	108563290	-	HPAG1_0865	-	virulence factor mviN protein
867	 38.84	0	902488..903885	+	465	108563291	cysS	HPAG1_0866	-	cysteinyl-tRNA synthetase
868	 41.87	0	904115..908005	+	1296	108563292	-	HPAG1_0867	-	vacuolating cytotoxin
869	 34.41	-1	908125..909150	-	341	108563293	-	HPAG1_0868	-	lipopolysaccharide 1,2-glycosyltransferase
870	 39.58	0	909309..910076	-	255	108563294	-	HPAG1_0869	-	iron(III) dicitrate ABC transporter, ATP-binding protein
871	 46.18	+1	910076..911056	-	326	108563295	-	HPAG1_0870	-	iron(III) dicitrate ABC transporter, permease protein
872	 42.92	+1	911049..911903	-	284	108563296	-	HPAG1_0871	-	hypothetical protein
873	 42.29	0	912043..912567	+	174	108563297	-	HPAG1_0872	-	hypothetical protein
874	 32.96	-1	912673..912939	-	88	108563298	-	HPAG1_0873	-	hypothetical protein
875	 34.66	-1	912920..913297	-	125	108563299	-	HPAG1_0874	-	hypothetical protein
876	 29.95	-2	913376..913582	+	68	108563300	-	HPAG1_0875	-	hypothetical protein
877	 45.37	+1	913627..915861	-	744	108563301	-	HPAG1_0876	-	outer membrane protein BabA
878	 38.89	0	916338..917003	+	221	108563302	-	HPAG1_0877	-	hypothetical protein
879	 44.29	+1	916954..918066	-	370	108563303	-	HPAG1_0878	-	hydrogenase expression/formation protein HypD
880	 41.35	0	918084..918320	-	78	108563304	-	HPAG1_0879	-	hydrogenase expression/formation protein HypC
881	 41.29	0	918320..919048	-	242	108563305	-	HPAG1_0880	-	hydrogenase expression/formation protein HypB
882	 31.22	-2	919128..919316	+	62	108563306	-	HPAG1_0881	-	hypothetical protein
883	 40.00	0	919291..919590	-	99	108563307	-	HPAG1_0882	-	hypothetical protein
884	 39.33	0	919787..920053	-	88	108563308	-	HPAG1_0883	-	acetate kinase
885	 41.19	0	920149..920670	-	173	108563309	-	HPAG1_0884	-	acetate kinase
886	 44.81	+1	920685..921224	-	179	108563310	-	HPAG1_0885	-	phosphotransacetylase
887	 40.12	0	921268..922122	-	284	108563311	-	HPAG1_0886	-	phosphotransacetylase
888	 42.86	+1	922109..922234	-	41	108563312	-	HPAG1_0887	-	phosphotransacetylase
889	 41.65	0	922483..924057	+	524	108563313	-	HPAG1_0888	-	hypothetical protein
890	 41.26	0	924108..925091	+	327	108563314	flgD	HPAG1_0889	-	flagellar basal body rod modification protein
891	 42.79	0	925088..926905	+	605	108563315	flgE	HPAG1_0890	-	flagellar hook protein FlgE
892	 33.16	-1	926957..927544	+	195	108563316	-	HPAG1_0891	-	hypothetical protein
893	 37.41	0	927554..928705	+	383	108563317	-	HPAG1_0892	-	adenine specific DNA methyltransferase
894	 39.94	0	928709..930736	+	675	108563318	-	HPAG1_0893	-	rep helicase, single-stranded DNA-dependent ATPase
895	 29.63	-2	931282..931470	-	62	108563319	-	HPAG1_0894	-	hypothetical protein
896	 45.69	+1	931575..933128	+	517	108563320	-	HPAG1_0895	-	outer membrane protein HopC
897	 43.52	+1	933150..934739	+	529	108563321	-	HPAG1_0896	-	outer membrane protein HopB
898	 40.78	0	935447..936991	-	514	108563322	-	HPAG1_0897	-	outer membrane protein HopG
899	 41.97	0	937238..939679	-	813	108563323	-	HPAG1_0898	-	iron-regulated outer membrane protein
900	 41.44	0	939938..940369	-	143	108563324	-	HPAG1_0899	-	hypothetical protein
901	 42.17	0	940374..943631	-	1085	108563325	carB	HPAG1_0900	-	carbamoyl phosphate synthase large subunit
902	 40.12	0	943729..944421	-	230	108563326	-	HPAG1_0901	-	hypothetical protein
903	 40.26	0	944565..945560	+	331	108563327	-	HPAG1_0902	-	glyceraldehyde-3-phosphate dehydrogenase
904	 38.57	0	945641..952894	+	2417	108563328	-	HPAG1_0903	-	vacuolating cytotoxin (VacA)-like protein
905	 37.40	0	952945..954051	+	368	108563329	-	HPAG1_0904	-	outer membrane protein HopK
906	 37.68	0	954119..954325	-	68	108563330	-	HPAG1_0905	-	4-oxalocrotonate tautomerase
907	 37.80	0	954472..955053	+	193	108563331	recR	HPAG1_0906	-	recombination protein RecR
908	 35.34	-1	955050..956195	+	381	108563332	truD	HPAG1_0907	-	tRNA pseudouridine synthase D
909	 39.65	0	956134..957114	+	326	108563333	-	HPAG1_0908	-	heat shock protein HtpX
910	 37.94	0	957115..957657	+	180	108563334	folE	HPAG1_0909	-	GTP cyclohydrolase I
911	 37.17	0	957673..958584	+	303	108563335	-	HPAG1_0910	-	geranyltranstransferase
912	 41.29	0	958581..959384	+	267	108563336	surE	HPAG1_0911	-	stationary phase survival protein SurE
913	 40.61	0	959381..960040	+	219	108563337	-	HPAG1_0912	-	hypothetical protein
914	 40.26	0	960041..960646	+	201	108563338	-	HPAG1_0913	-	hypothetical protein
915	 36.51	0	960643..961398	+	251	108563339	-	HPAG1_0914	-	hypothetical protein
916	 41.77	0	961409..961894	+	161	108563340	-	HPAG1_0915	-	hypothetical protein
917	 35.74	0	961898..962230	+	110	108563341	-	HPAG1_0916	-	putative outer membrane protein
918	 39.15	0	962417..963586	-	389	108563342	-	HPAG1_0917	-	proline and betaine transporter
919	 31.22	-2	964057..964860	-	267	108563343	-	HPAG1_0918	-	hypothetical protein
920	 34.03	-1	964836..964979	-	47	108563344	-	HPAG1_0919	-	hypothetical protein
921	 37.68	0	965033..965377	-	114	108563345	-	HPAG1_0920	-	hypothetical protein
922	 36.67	0	965355..965744	-	129	108563346	-	HPAG1_0921	-	hypothetical protein
923	 41.04	0	965813..966526	-	237	108563347	-	HPAG1_0922	-	amino acid ABC transporter, permease protein
924	 40.99	0	966510..967280	-	256	108563348	-	HPAG1_0923	-	amino acid ABC transporter, periplasmic binding protein
925	 41.27	0	967351..968484	-	377	108563349	-	HPAG1_0924	-	alanine racemase, biosynthetic
926	 43.02	+1	968491..969843	-	450	108563350	-	HPAG1_0925	-	D-alanine glycine permease
927	 40.47	0	969884..971116	-	410	108563351	-	HPAG1_0926	-	D-amino acid dehydrogenase
928	 41.27	0	971138..971515	-	125	108563352	-	HPAG1_0927	-	hypothetical protein
929	 38.50	0	971693..971905	-	70	108563353	-	HPAG1_0928	-	hypothetical protein
930	 45.67	+1	971936..972235	+	99	108563354	-	HPAG1_0929	-	protein tRNA-associated locus protein
931	 40.58	0	972795..974285	+	496	108563355	-	HPAG1_0930	-	hypothetical protein
932	 39.67	0	974602..974964	+	120	108563356	-	HPAG1_0931	-	hypothetical protein
933	 35.40	-1	975377..976390	-	337	108563357	-	HPAG1_0932	-	hypothetical protein
934	 36.64	0	976400..976852	-	150	108563358	-	HPAG1_0933	-	SPOUT methyltransferase superfamily protein
935	 42.76	0	976866..977735	-	289	108563359	-	HPAG1_0934	-	acetyl-CoA carboxylase subunit beta
936	 38.86	0	977816..978430	+	204	108563360	-	HPAG1_0935	-	hypothetical protein
937	 39.57	0	978441..979097	+	218	108563361	-	HPAG1_0936	-	hypothetical protein
938	 39.68	0	979100..979666	-	188	108563362	-	HPAG1_0937	-	hypothetical protein
939	 40.92	0	979731..980363	-	210	108563363	-	HPAG1_0938	-	oxygen-insensitive NADPH nitroreductase
940	 39.88	0	980374..981213	-	279	108563364	-	HPAG1_0939	-	prolipoprotein diacylglyceryl transferase
941	 38.82	0	981223..981951	-	242	108563365	-	HPAG1_0940	-	hypothetical protein
942	 39.00	0	981970..983151	-	393	108563366	-	HPAG1_0941	-	3-deoxy-D-manno-octulosonic-acid transferase
943	 37.39	0	983152..983916	-	254	108563367	-	HPAG1_0942	-	hypothetical protein
944	 38.66	0	983926..984657	-	243	108563368	-	HPAG1_0943	-	hypothetical protein
945	 42.03	0	984659..985555	-	298	108563369	glyQ	HPAG1_0944	-	glycyl-tRNA synthetase subunit alpha
946	 45.05	+1	985569..986507	-	312	108563370	gpsA	HPAG1_0945	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
947	 37.82	0	986648..988231	-	527	108563371	-	HPAG1_0946	-	hypothetical protein
948	 39.20	0	988228..990564	-	778	108563372	-	HPAG1_0947	-	hypothetical protein
949	 37.52	0	990561..992087	-	508	108563373	-	HPAG1_0948	-	hypothetical protein
950	 34.04	-1	992653..992934	-	93	108563374	-	HPAG1_0949	-	hypothetical protein
951	 41.90	0	992950..996009	-	1019	108563375	-	HPAG1_0950	-	cobalt-zinc-cadmium resistance protein
952	 40.09	0	996009..997088	-	359	108563376	-	HPAG1_0951	-	cobalt-zinc-cadmium resistance protein
953	 39.12	0	997085..998380	-	431	108563377	-	HPAG1_0952	-	hypothetical protein
954	 38.03	0	998370..1000475	-	701	108563378	glyS	HPAG1_0953	-	glycyl-tRNA synthetase subunit beta
955	 39.69	0	1000587..1001672	+	361	108563379	-	HPAG1_0954	-	hypothetical protein
956	 42.07	0	1001685..1003160	+	491	108563380	-	HPAG1_0955	-	phosphoglyceromutase
957	 39.01	0	1003175..1003456	+	93	108563381	gatC	HPAG1_0956	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
958	 39.21	0	1003576..1004886	-	436	108563382	-	HPAG1_0957	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
959	 36.95	0	1005016..1006479	+	487	108563383	-	HPAG1_0958	-	peptidyl-prolyl cis-trans isomerase D
960	 42.33	0	1006495..1007973	+	492	108563384	-	HPAG1_0959	-	cell division protein
961	 43.87	+1	1008104..1009261	+	385	108563385	-	HPAG1_0960	-	cell division protein FtsZ
962	 40.95	0	1009714..1009818	-	34	108563386	-	HPAG1_0961	-	hypothetical protein
963	 37.57	0	1009929..1010117	-	62	108563387	-	HPAG1_0962	-	hypothetical protein
39.24	MEAN

3.61	STD DEV
