IslandPath Analysis: Helicobacter pylori HPAG1

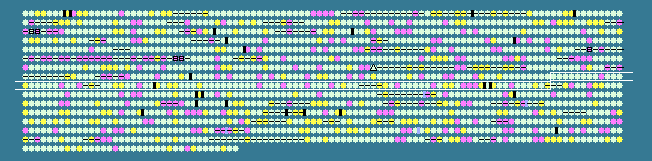

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
789	 38.10	0	825304..826143	-	279	108563213	-	HPAG1_0788	-	hypothetical protein
790	 41.16	0	826230..827264	-	344	108563214	-	HPAG1_0789	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
791	 36.16	0	827458..828342	-	294	108563215	-	HPAG1_0790	-	lipooligosaccharide 5G8 epitope biosynthesis-associated protein
792	 37.04	0	828391..829011	+	206	108563216	-	HPAG1_0791	-	hypothetical protein
793	 42.16	0	829014..831392	-	792	108563217	-	HPAG1_0792	-	iron(III) dicitrate transport protein
794	 39.72	0	831590..831949	-	119	108563218	acpS	HPAG1_0793	-	4'-phosphopantetheinyl transferase
795	 38.41	0	831956..832507	-	183	108563219	fliL	HPAG1_0794	-	flagellar basal body-associated protein FliL
796	 36.65	0	832516..833118	-	200	108563220	-	HPAG1_0795	-	hypothetical protein
797	 34.25	-1	833097..833423	-	108	108563221	-	HPAG1_0796	-	hypothetical protein
798	 38.18	0	833888..834898	-	336	108563222	-	HPAG1_0797	-	hypothetical protein
799	 39.00	0	835032..835649	+	205	108563223	-	HPAG1_0798	-	hypothetical protein
800	 41.02	0	835650..836417	+	255	108563224	-	HPAG1_0799	-	thiamine biosynthesis protein
801	 43.80	+1	836433..837206	+	257	108563225	-	HPAG1_0800	-	flagellar motor protein MotA
802	 41.34	0	837209..837982	+	257	108563226	motB	HPAG1_0801	-	flagellar motor protein MotB
803	 41.83	0	837979..838425	+	148	108563227	-	HPAG1_0802	-	hypothetical protein
804	 36.36	0	838485..838616	+	43	108563228	-	HPAG1_0803	-	osmoprotection protein
805	 40.42	0	838618..840156	+	512	108563229	-	HPAG1_0804	-	osmoprotection protein
806	 38.94	0	840158..840799	+	213	108563230	-	HPAG1_0805	-	osmoprotection protein
807	 35.28	-1	840982..841443	+	153	108563231	-	HPAG1_0806	-	hypothetical protein
808	 37.87	0	841444..843228	+	594	108563232	uvrC	HPAG1_0807	-	excinuclease ABC subunit C
809	 41.07	0	843239..844504	+	421	108563233	-	HPAG1_0808	-	homoserine dehydrogenase
810	 34.78	-1	844504..844848	+	114	108563234	-	HPAG1_0809	-	hypothetical protein
811	 38.63	0	844937..845257	+	106	108563235	-	HPAG1_0810	-	thioredoxin
812	 44.66	+1	845262..846197	+	311	108563236	-	HPAG1_0811	-	thioredoxin reductase
813	 39.42	0	846407..847228	+	273	108563237	-	HPAG1_0812	-	beta-1,4-galactosyltransferase
814	 37.75	0	847431..847679	-	82	108563238	-	HPAG1_0813	-	RNA binding protein
815	 41.26	0	848002..848682	-	226	108563239	-	HPAG1_0814	-	F0F1 ATP synthase subunit A
816	 44.26	+1	848804..850249	-	481	108563240	-	HPAG1_0815	-	inositol-5-monophosphate dehydrogenase
817	 43.32	+1	850259..851620	-	453	108563241	gatA	HPAG1_0816	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
818	 38.41	0	851680..852270	-	196	108563242	coaE	HPAG1_0817	-	dephospho-CoA kinase
819	 35.99	0	852272..853060	-	262	108563243	speE	HPAG1_0818	-	spermidine synthase
820	 34.58	-1	853152..854036	-	294	108563244	-	HPAG1_0819	-	hypothetical protein
821	 39.97	0	854113..855498	+	461	108563245	engA	HPAG1_0820	-	GTP-binding protein EngA
822	 41.40	0	855640..855924	+	94	108563246	-	HPAG1_0821	-	DNA-binding protein HU
823	 46.24	+1	856513..857124	+	203	108563247	-	HPAG1_0822	-	hypothetical protein
824	 38.03	0	857144..857761	+	205	108563248	-	HPAG1_0823	-	hypothetical protein
825	 44.67	+1	857758..859521	+	587	108563249	-	HPAG1_0824	-	outer membrane protein P1
826	 43.19	+1	859527..860510	+	327	108563250	-	HPAG1_0825	-	UDP-GlcNAc C6 dehydratase
827	 39.36	0	860507..861784	+	425	108563251	-	HPAG1_0826	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
828	 37.80	0	861784..862521	+	245	108563252	-	HPAG1_0827	-	hypothetical protein
829	 42.27	0	862576..863235	-	219	108563253	-	HPAG1_0828	-	thiamine phosphate pyrophosphorylase
830	 43.09	+1	863228..864037	-	269	108563254	-	HPAG1_0829	-	thiamine biosynthesis protein
831	 42.66	0	864034..864816	-	260	108563255	-	HPAG1_0830	-	hydroxyethylthiazole kinase
832	 37.25	0	864901..867912	-	1003	108563256	-	HPAG1_0831	-	type I restriction enzyme R protein
833	 37.29	0	868049..869287	-	412	108563257	-	HPAG1_0832	-	HP0790-like protein
834	 41.01	0	869298..870821	-	507	108563258	-	HPAG1_0833	-	type I restriction enzyme M protein
835	 41.63	0	871053..871739	+	228	108563259	-	HPAG1_0834	-	hypothetical protein
836	 38.85	0	871762..872160	-	132	108563260	-	HPAG1_0835	-	hypothetical protein
837	 37.41	0	872157..872696	-	179	108563261	-	HPAG1_0836	-	hypothetical protein
838	 41.64	0	872693..874294	-	533	108563262	-	HPAG1_0837	-	ABC transporter, ATP-binding protein
839	 41.92	0	874492..875469	+	325	108563263	-	HPAG1_0838	-	guanosine 5'-monophosphate oxidoreductase
840	 30.81	-2	875466..875663	-	65	108563264	-	HPAG1_0839	-	hypothetical protein
841	 41.11	0	875635..876213	-	192	108563265	-	HPAG1_0840	-	phosphoheptose isomerase
842	 41.31	0	876206..877597	-	463	108563266	-	HPAG1_0841	-	ADP-heptose synthase
843	 38.67	0	877594..878586	-	330	108563267	-	HPAG1_0842	-	ADP-L-glycero-D-mannoheptose-6-epimerase
844	 35.63	0	878595..879116	-	173	108563268	-	HPAG1_0843	-	hypothetical protein
845	 41.57	0	879106..879846	-	246	108563269	-	HPAG1_0844	-	hypothetical protein
846	 39.43	0	879837..880508	-	223	108563270	-	HPAG1_0845	-	pantothenate kinase
847	 37.45	0	880513..882189	-	558	108563271	-	HPAG1_0846	-	hypothetical protein
848	 35.01	-1	882191..882847	-	218	108563272	-	HPAG1_0847	-	hypothetical protein
849	 42.69	0	882844..883281	-	145	108563273	dut	HPAG1_0848	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
850	 38.79	0	883271..883765	-	164	108563274	greA	HPAG1_0849	-	transcription elongation factor GreA
851	 38.69	0	883806..884888	-	360	108563275	lpxB	HPAG1_0850	-	lipid-A-disaccharide synthase
852	 34.20	-1	884888..885349	-	153	108563276	-	HPAG1_0851	-	hypothetical protein
853	 39.55	0	885353..885706	-	117	108563277	hypA	HPAG1_0852	-	hydrogenase nickel incorporation protein
854	 45.85	+1	885765..887921	-	718	108563278	flgE	HPAG1_0853	-	flagellar hook protein FlgE
855	 41.77	0	888140..888874	-	244	108563279	-	HPAG1_0854	-	CDP-diacylglycerol pyrophosphatase
856	 36.97	0	889234..889563	+	109	108563280	-	HPAG1_0855	-	alkylphosphonate uptake protein
857	 36.11	0	889615..889830	-	71	108563281	-	HPAG1_0856	-	hypothetical protein
858	 40.18	0	889912..890787	-	291	108563282	-	HPAG1_0857	-	hypothetical protein
859	 42.23	0	890932..892449	-	505	108563283	-	HPAG1_0858	-	catalase
860	 44.36	+1	892772..895147	+	791	108563284	-	HPAG1_0859	-	iron-regulated outer membrane protein
861	 43.04	+1	895148..895621	-	157	108563285	ruvC	HPAG1_0860	-	Holliday junction resolvase
862	 38.39	0	895752..896483	+	243	108563286	-	HPAG1_0861	-	hypothetical protein
863	 35.06	-1	897594..898460	-	288	108563287	-	HPAG1_0862	-	hypothetical protein
864	 39.67	0	898513..899064	-	183	108563288	ruvA	HPAG1_0863	-	Holliday junction DNA helicase motor protein
865	 37.07	0	899090..900934	-	614	108563289	-	HPAG1_0864	-	hypothetical protein
866	 38.32	0	901105..902487	+	460	108563290	-	HPAG1_0865	-	virulence factor mviN protein
867	 38.84	0	902488..903885	+	465	108563291	cysS	HPAG1_0866	-	cysteinyl-tRNA synthetase
868	 41.87	0	904115..908005	+	1296	108563292	-	HPAG1_0867	-	vacuolating cytotoxin
869	 34.41	-1	908125..909150	-	341	108563293	-	HPAG1_0868	-	lipopolysaccharide 1,2-glycosyltransferase
870	 39.58	0	909309..910076	-	255	108563294	-	HPAG1_0869	-	iron(III) dicitrate ABC transporter, ATP-binding protein
871	 46.18	+1	910076..911056	-	326	108563295	-	HPAG1_0870	-	iron(III) dicitrate ABC transporter, permease protein
872	 42.92	+1	911049..911903	-	284	108563296	-	HPAG1_0871	-	hypothetical protein
873	 42.29	0	912043..912567	+	174	108563297	-	HPAG1_0872	-	hypothetical protein
874	 32.96	-1	912673..912939	-	88	108563298	-	HPAG1_0873	-	hypothetical protein
875	 34.66	-1	912920..913297	-	125	108563299	-	HPAG1_0874	-	hypothetical protein
876	 29.95	-2	913376..913582	+	68	108563300	-	HPAG1_0875	-	hypothetical protein
877	 45.37	+1	913627..915861	-	744	108563301	-	HPAG1_0876	-	outer membrane protein BabA
878	 38.89	0	916338..917003	+	221	108563302	-	HPAG1_0877	-	hypothetical protein
879	 44.29	+1	916954..918066	-	370	108563303	-	HPAG1_0878	-	hydrogenase expression/formation protein HypD
880	 41.35	0	918084..918320	-	78	108563304	-	HPAG1_0879	-	hydrogenase expression/formation protein HypC
881	 41.29	0	918320..919048	-	242	108563305	-	HPAG1_0880	-	hydrogenase expression/formation protein HypB
882	 31.22	-2	919128..919316	+	62	108563306	-	HPAG1_0881	-	hypothetical protein
883	 40.00	0	919291..919590	-	99	108563307	-	HPAG1_0882	-	hypothetical protein
884	 39.33	0	919787..920053	-	88	108563308	-	HPAG1_0883	-	acetate kinase
885	 41.19	0	920149..920670	-	173	108563309	-	HPAG1_0884	-	acetate kinase
886	 44.81	+1	920685..921224	-	179	108563310	-	HPAG1_0885	-	phosphotransacetylase
887	 40.12	0	921268..922122	-	284	108563311	-	HPAG1_0886	-	phosphotransacetylase
888	 42.86	+1	922109..922234	-	41	108563312	-	HPAG1_0887	-	phosphotransacetylase
39.24	MEAN

3.61	STD DEV
