IslandPathversion 1.0

IslandPath Analysis: Helicobacter pylori HPAG1

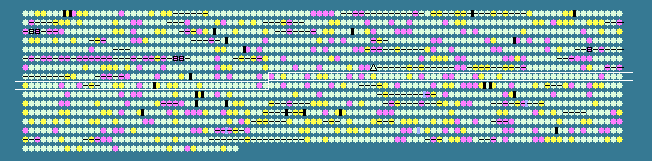

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
742	 32.84	-1	777468..777671	+	67	108563166	-	HPAG1_0741	-	hypothetical protein
743	 41.64	0	777675..778553	+	292	108563167	-	HPAG1_0742	-	carbon-nitrogen hydrolase
744	 43.15	+1	778680..779993	+	437	108563168	-	HPAG1_0743	-	hypothetical protein
745	 38.84	0	780056..781309	+	417	108563169	-	HPAG1_0744	-	hypothetical protein
746	 42.39	0	781310..782899	-	529	108563170	-	HPAG1_0745	-	phosphodiesterase
747	 39.35	0	782799..783446	-	215	108563171	-	HPAG1_0746	-	hypothetical protein
748	 35.48	-1	783571..784128	+	185	108563172	-	HPAG1_0747	-	hypothetical protein
749	 41.38	0	784134..785015	+	293	108563173	-	HPAG1_0748	-	signal recognition particle receptor
750	 42.86	+1	785024..785338	-	104	108563174	-	HPAG1_0749	-	hypothetical protein
751	 43.32	+1	785397..786377	-	326	108563175	-	HPAG1_0750	-	hypothetical protein
752	 42.59	0	786417..786632	-	71	108563176	-	HPAG1_0751	-	hypothetical protein
753	 42.55	0	786690..788240	-	516	108563177	-	HPAG1_0752	-	hypothetical protein
754	 35.82	0	788461..789426	-	321	108563178	moaA	HPAG1_0753	-	molybdenum cofactor biosynthesis protein A
755	 35.31	-1	789513..790118	+	201	108563179	-	HPAG1_0754	-	molybdopterin-guanine dinucleotide biosynthesis protein A
756	 38.44	0	790111..791187	+	358	108563180	flhB	HPAG1_0755	-	flagellar biosynthesis protein FlhB
757	 35.23	-1	791274..792011	-	245	108563181	-	HPAG1_0756	-	hypothetical protein
758	 39.18	0	792030..793328	-	432	108563182	-	HPAG1_0757	-	N-acetylmuramoyl-L-alanine amidase
759	 43.68	+1	793335..794426	-	363	108563183	-	HPAG1_0758	-	hypothetical protein
760	 40.03	0	794443..795651	-	402	108563184	-	HPAG1_0759	-	tyrosyl-tRNA synthetase
761	 38.83	0	795675..798002	-	775	108563185	-	HPAG1_0760	-	penta-phosphate guanosine-3'-pyrophosphohydrolase
762	 38.22	0	797989..798213	-	74	108563186	-	HPAG1_0761	-	DNA-directed RNA polymerase subunit omega
763	 41.08	0	798256..798978	-	240	108563187	pyrH	HPAG1_0762	-	uridylate kinase
764	 37.43	0	799087..799770	-	227	108563188	-	HPAG1_0763	-	hypothetical protein
765	 45.55	+1	799898..802459	+	853	108563189	-	HPAG1_0764	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
766	 38.52	0	802537..802806	+	89	108563190	-	HPAG1_0765	-	hypothetical protein
767	 35.48	-1	802875..803060	+	61	108563191	-	HPAG1_0766	-	hypothetical protein
768	 37.52	0	803088..804377	+	429	108563192	-	HPAG1_0767	-	hypothetical protein
769	 40.86	0	804470..805837	+	455	108563193	-	HPAG1_0768	-	outer membrane protein HofE
770	 40.53	0	805844..806371	-	175	108563194	-	HPAG1_0769	-	hypothetical protein
771	 34.85	-1	806710..806841	+	43	108563195	-	HPAG1_0770	-	hypothetical protein
772	 35.14	-1	806856..807410	-	184	108563196	lolA	HPAG1_0771	-	outer-membrane lipoprotein carrier protein
773	 39.65	0	807558..810155	+	865	108563197	secA	HPAG1_0772	-	preprotein translocase subunit SecA
774	 39.82	0	810145..811377	+	410	108563198	-	HPAG1_0773	-	hypothetical protein
775	 42.53	0	811657..813156	+	499	108563199	-	HPAG1_0774	-	outer membrane protein HofF
776	 35.51	-1	813528..814862	-	444	108563200	-	HPAG1_0775	-	putative type I restriction-modification enzyme specificity subunit S
777	 43.23	+1	814903..816963	-	686	108563201	-	HPAG1_0776	-	cadmium-transporting ATPase
778	 41.16	0	816988..818508	-	506	108563202	-	HPAG1_0777	-	DNA transformation competence protein
779	 40.00	0	818514..819038	-	174	108563203	def	HPAG1_0778	-	peptide deformylase
780	 43.82	+1	819043..819633	-	196	108563204	clpP	HPAG1_0779	-	ATP-dependent Clp protease proteolytic subunit
781	 37.91	0	819651..821006	-	451	108563205	tig	HPAG1_0780	-	trigger factor
782	 38.24	0	821118..821912	-	264	108563206	-	HPAG1_0781	-	outer membrane protein HorG
783	 38.19	0	821979..822761	-	260	108563207	-	HPAG1_0782	-	flagellar sheath adhesin
784	 40.67	0	822874..823350	-	158	108563208	moaC	HPAG1_0783	-	molybdenum cofactor biosynthesis protein C
785	 39.92	0	823359..823889	-	176	108563209	mogA	HPAG1_0784	-	molybdenum cofactor biosynthesis protein
786	 37.90	0	823902..824339	-	145	108563210	-	HPAG1_0785	-	molybdopterin converting factor, subunit 2
787	 37.90	0	824340..824558	-	72	108563211	-	HPAG1_0786	-	molybdopterin converting factor, subunit 1
788	 40.59	0	824637..825215	-	192	108563212	ribA	HPAG1_0787	-	GTP cyclohydrolase II
789	 38.10	0	825304..826143	-	279	108563213	-	HPAG1_0788	-	hypothetical protein
790	 41.16	0	826230..827264	-	344	108563214	-	HPAG1_0789	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
791	 36.16	0	827458..828342	-	294	108563215	-	HPAG1_0790	-	lipooligosaccharide 5G8 epitope biosynthesis-associated protein
792	 37.04	0	828391..829011	+	206	108563216	-	HPAG1_0791	-	hypothetical protein
793	 42.16	0	829014..831392	-	792	108563217	-	HPAG1_0792	-	iron(III) dicitrate transport protein
794	 39.72	0	831590..831949	-	119	108563218	acpS	HPAG1_0793	-	4'-phosphopantetheinyl transferase
795	 38.41	0	831956..832507	-	183	108563219	fliL	HPAG1_0794	-	flagellar basal body-associated protein FliL
796	 36.65	0	832516..833118	-	200	108563220	-	HPAG1_0795	-	hypothetical protein
797	 34.25	-1	833097..833423	-	108	108563221	-	HPAG1_0796	-	hypothetical protein
798	 38.18	0	833888..834898	-	336	108563222	-	HPAG1_0797	-	hypothetical protein
799	 39.00	0	835032..835649	+	205	108563223	-	HPAG1_0798	-	hypothetical protein
800	 41.02	0	835650..836417	+	255	108563224	-	HPAG1_0799	-	thiamine biosynthesis protein
801	 43.80	+1	836433..837206	+	257	108563225	-	HPAG1_0800	-	flagellar motor protein MotA
802	 41.34	0	837209..837982	+	257	108563226	motB	HPAG1_0801	-	flagellar motor protein MotB
803	 41.83	0	837979..838425	+	148	108563227	-	HPAG1_0802	-	hypothetical protein
804	 36.36	0	838485..838616	+	43	108563228	-	HPAG1_0803	-	osmoprotection protein
805	 40.42	0	838618..840156	+	512	108563229	-	HPAG1_0804	-	osmoprotection protein
806	 38.94	0	840158..840799	+	213	108563230	-	HPAG1_0805	-	osmoprotection protein
807	 35.28	-1	840982..841443	+	153	108563231	-	HPAG1_0806	-	hypothetical protein
808	 37.87	0	841444..843228	+	594	108563232	uvrC	HPAG1_0807	-	excinuclease ABC subunit C
809	 41.07	0	843239..844504	+	421	108563233	-	HPAG1_0808	-	homoserine dehydrogenase
810	 34.78	-1	844504..844848	+	114	108563234	-	HPAG1_0809	-	hypothetical protein
811	 38.63	0	844937..845257	+	106	108563235	-	HPAG1_0810	-	thioredoxin
812	 44.66	+1	845262..846197	+	311	108563236	-	HPAG1_0811	-	thioredoxin reductase
813	 39.42	0	846407..847228	+	273	108563237	-	HPAG1_0812	-	beta-1,4-galactosyltransferase
814	 37.75	0	847431..847679	-	82	108563238	-	HPAG1_0813	-	RNA binding protein
815	 41.26	0	848002..848682	-	226	108563239	-	HPAG1_0814	-	F0F1 ATP synthase subunit A
816	 44.26	+1	848804..850249	-	481	108563240	-	HPAG1_0815	-	inositol-5-monophosphate dehydrogenase
817	 43.32	+1	850259..851620	-	453	108563241	gatA	HPAG1_0816	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
818	 38.41	0	851680..852270	-	196	108563242	coaE	HPAG1_0817	-	dephospho-CoA kinase
819	 35.99	0	852272..853060	-	262	108563243	speE	HPAG1_0818	-	spermidine synthase
820	 34.58	-1	853152..854036	-	294	108563244	-	HPAG1_0819	-	hypothetical protein
821	 39.97	0	854113..855498	+	461	108563245	engA	HPAG1_0820	-	GTP-binding protein EngA
822	 41.40	0	855640..855924	+	94	108563246	-	HPAG1_0821	-	DNA-binding protein HU
823	 46.24	+1	856513..857124	+	203	108563247	-	HPAG1_0822	-	hypothetical protein
824	 38.03	0	857144..857761	+	205	108563248	-	HPAG1_0823	-	hypothetical protein
825	 44.67	+1	857758..859521	+	587	108563249	-	HPAG1_0824	-	outer membrane protein P1
826	 43.19	+1	859527..860510	+	327	108563250	-	HPAG1_0825	-	UDP-GlcNAc C6 dehydratase
827	 39.36	0	860507..861784	+	425	108563251	-	HPAG1_0826	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
828	 37.80	0	861784..862521	+	245	108563252	-	HPAG1_0827	-	hypothetical protein
829	 42.27	0	862576..863235	-	219	108563253	-	HPAG1_0828	-	thiamine phosphate pyrophosphorylase
830	 43.09	+1	863228..864037	-	269	108563254	-	HPAG1_0829	-	thiamine biosynthesis protein
831	 42.66	0	864034..864816	-	260	108563255	-	HPAG1_0830	-	hydroxyethylthiazole kinase
832	 37.25	0	864901..867912	-	1003	108563256	-	HPAG1_0831	-	type I restriction enzyme R protein
833	 37.29	0	868049..869287	-	412	108563257	-	HPAG1_0832	-	HP0790-like protein
834	 41.01	0	869298..870821	-	507	108563258	-	HPAG1_0833	-	type I restriction enzyme M protein
835	 41.63	0	871053..871739	+	228	108563259	-	HPAG1_0834	-	hypothetical protein
836	 38.85	0	871762..872160	-	132	108563260	-	HPAG1_0835	-	hypothetical protein
837	 37.41	0	872157..872696	-	179	108563261	-	HPAG1_0836	-	hypothetical protein
838	 41.64	0	872693..874294	-	533	108563262	-	HPAG1_0837	-	ABC transporter, ATP-binding protein
839	 41.92	0	874492..875469	+	325	108563263	-	HPAG1_0838	-	guanosine 5'-monophosphate oxidoreductase
840	 30.81	-2	875466..875663	-	65	108563264	-	HPAG1_0839	-	hypothetical protein
841	 41.11	0	875635..876213	-	192	108563265	-	HPAG1_0840	-	phosphoheptose isomerase
39.24	MEAN

3.61	STD DEV
