IslandPath Analysis: Helicobacter pylori HPAG1

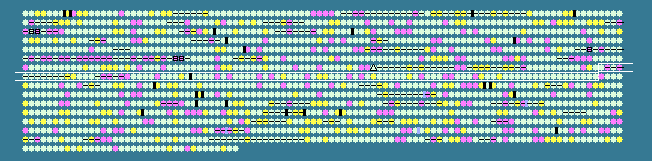

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
697	 39.39	0	733504..734724	+	406	108563121	-	HPAG1_0696	-	hypothetical protein
698	 32.13	-1	734724..734972	+	82	108563122	-	HPAG1_0697	-	hypothetical protein
699	 35.78	0	734978..735427	+	149	108563123	-	HPAG1_0698	-	hypothetical protein
700	 35.66	0	735439..736683	-	414	108563124	-	HPAG1_0699	-	RNA polymerase factor sigma-54
701	 41.91	0	736686..737408	-	240	108563125	-	HPAG1_0700	-	ABC transporter, ATP-binding protein
702	 39.05	0	737421..737822	-	133	108563126	-	HPAG1_0701	-	hypothetical protein
703	 38.45	0	737819..739537	-	572	108563127	-	HPAG1_0702	-	DNA polymerase III subunits gamma and tau
704	 38.23	0	739606..740238	-	210	108563128	-	HPAG1_0703	-	hypothetical protein
705	 40.95	0	740445..740930	+	161	108563129	-	HPAG1_0704	-	hypothetical protein
706	 39.61	0	740958..741419	+	153	108563130	-	HPAG1_0705	-	hypothetical protein
707	 40.67	0	741785..743638	+	617	108563131	-	HPAG1_0706	-	outer membrane protein SabB
708	 44.97	+1	743705..745036	-	443	108563132	-	HPAG1_0707	-	anaerobic C4-dicarboxylate transporter
709	 45.85	+1	745165..746163	+	332	108563133	-	HPAG1_0708	-	L-asparaginase II
710	 41.56	0	746303..748258	-	651	108563134	-	HPAG1_0709	-	outer membrane protein SabA
711	 40.85	0	748468..749385	-	305	108563135	-	HPAG1_0710	-	outer membrane protein
712	 40.73	0	749355..750341	-	328	108563136	-	HPAG1_0711	-	transcriptional regulator
713	 37.66	0	750435..751451	-	338	108563137	-	HPAG1_0712	-	hypothetical protein
714	 33.99	-1	751487..752554	-	355	108563138	-	HPAG1_0713	-	hypothetical protein
715	 34.64	-1	752563..752868	-	101	108563139	-	HPAG1_0714	-	hypothetical protein
716	 37.11	0	752960..754678	-	572	108563140	-	HPAG1_0715	-	hypothetical protein
717	 32.94	-1	754675..755430	-	251	108563141	-	HPAG1_0716	-	hypothetical protein
718	 34.56	-1	755492..756550	-	352	108563142	-	HPAG1_0717	-	hypothetical protein
719	 41.52	0	756637..757956	-	439	108563143	-	HPAG1_0718	-	hypothetical protein
720	 38.96	0	757958..758419	-	153	108563144	-	HPAG1_0719	-	xanthine guanine phosphoribosyl transferase
721	 42.61	0	758428..759537	-	369	108563145	-	HPAG1_0720	-	phosphoserine aminotransferase
722	 40.04	0	759687..760163	+	158	108563146	-	HPAG1_0721	-	phosphatidylglycerophosphatase A
723	 35.06	-1	760241..761284	+	347	108563147	ddl	HPAG1_0722	-	D-alanyl-alanine synthetase A
724	 36.64	0	761284..762009	+	241	108563148	-	HPAG1_0723	-	2-hydroxy-6-oxohepta-2,4-dienoate hydrolase
725	 38.60	0	761996..763477	+	493	108563149	-	HPAG1_0724	-	UDP-MurNac-pentapeptide presynthetase
726	 39.51	0	763487..763972	+	161	108563150	-	HPAG1_0725	-	histidine triad (HIT) family protein
727	 44.83	+1	764037..764993	+	318	108563151	-	HPAG1_0726	-	ribose-phosphate pyrophosphokinase
728	 40.31	0	765054..766199	-	381	108563152	-	HPAG1_0727	-	rod shape-determining protein
729	 42.03	0	766222..766842	-	206	108563153	-	HPAG1_0728	-	hypothetical protein
730	 37.06	0	766980..767435	-	151	108563154	-	HPAG1_0729	-	hypothetical protein
731	 38.52	0	767571..768554	+	327	108563155	-	HPAG1_0730	-	hypothetical protein
732	 40.71	0	768505..769764	+	419	108563156	-	HPAG1_0731	-	hypothetical protein
733	 34.69	-1	769775..770956	+	393	108563157	trmB	HPAG1_0732	-	tRNA (guanine-N(7))-methyltransferase
734	 40.62	0	770953..771624	+	223	108563158	-	HPAG1_0733	-	cell division protein
735	 34.57	-1	771611..772417	+	268	108563159	-	HPAG1_0734	-	cell division membrane protein
736	 38.07	0	772410..773612	+	400	108563160	-	HPAG1_0735	-	hypothetical protein
737	 40.83	0	773705..774064	+	119	108563161	-	HPAG1_0736	-	flagellar protein FlaG
738	 42.27	0	774081..776138	+	685	108563162	fliD	HPAG1_0737	-	flagellar capping protein
739	 39.37	0	776178..776558	+	126	108563163	fliS	HPAG1_0738	-	flagellar protein FliS
740	 31.25	-2	776545..776784	+	79	108563164	-	HPAG1_0739	-	hypothetical protein
741	 39.85	0	776837..777496	+	219	108563165	-	HPAG1_0740	-	molybdopterin biosynthesis protein
742	 32.84	-1	777468..777671	+	67	108563166	-	HPAG1_0741	-	hypothetical protein
743	 41.64	0	777675..778553	+	292	108563167	-	HPAG1_0742	-	carbon-nitrogen hydrolase
744	 43.15	+1	778680..779993	+	437	108563168	-	HPAG1_0743	-	hypothetical protein
745	 38.84	0	780056..781309	+	417	108563169	-	HPAG1_0744	-	hypothetical protein
746	 42.39	0	781310..782899	-	529	108563170	-	HPAG1_0745	-	phosphodiesterase
747	 39.35	0	782799..783446	-	215	108563171	-	HPAG1_0746	-	hypothetical protein
748	 35.48	-1	783571..784128	+	185	108563172	-	HPAG1_0747	-	hypothetical protein
749	 41.38	0	784134..785015	+	293	108563173	-	HPAG1_0748	-	signal recognition particle receptor
750	 42.86	+1	785024..785338	-	104	108563174	-	HPAG1_0749	-	hypothetical protein
751	 43.32	+1	785397..786377	-	326	108563175	-	HPAG1_0750	-	hypothetical protein
752	 42.59	0	786417..786632	-	71	108563176	-	HPAG1_0751	-	hypothetical protein
753	 42.55	0	786690..788240	-	516	108563177	-	HPAG1_0752	-	hypothetical protein
754	 35.82	0	788461..789426	-	321	108563178	moaA	HPAG1_0753	-	molybdenum cofactor biosynthesis protein A
755	 35.31	-1	789513..790118	+	201	108563179	-	HPAG1_0754	-	molybdopterin-guanine dinucleotide biosynthesis protein A
756	 38.44	0	790111..791187	+	358	108563180	flhB	HPAG1_0755	-	flagellar biosynthesis protein FlhB
757	 35.23	-1	791274..792011	-	245	108563181	-	HPAG1_0756	-	hypothetical protein
758	 39.18	0	792030..793328	-	432	108563182	-	HPAG1_0757	-	N-acetylmuramoyl-L-alanine amidase
759	 43.68	+1	793335..794426	-	363	108563183	-	HPAG1_0758	-	hypothetical protein
760	 40.03	0	794443..795651	-	402	108563184	-	HPAG1_0759	-	tyrosyl-tRNA synthetase
761	 38.83	0	795675..798002	-	775	108563185	-	HPAG1_0760	-	penta-phosphate guanosine-3'-pyrophosphohydrolase
762	 38.22	0	797989..798213	-	74	108563186	-	HPAG1_0761	-	DNA-directed RNA polymerase subunit omega
763	 41.08	0	798256..798978	-	240	108563187	pyrH	HPAG1_0762	-	uridylate kinase
764	 37.43	0	799087..799770	-	227	108563188	-	HPAG1_0763	-	hypothetical protein
765	 45.55	+1	799898..802459	+	853	108563189	-	HPAG1_0764	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
766	 38.52	0	802537..802806	+	89	108563190	-	HPAG1_0765	-	hypothetical protein
767	 35.48	-1	802875..803060	+	61	108563191	-	HPAG1_0766	-	hypothetical protein
768	 37.52	0	803088..804377	+	429	108563192	-	HPAG1_0767	-	hypothetical protein
769	 40.86	0	804470..805837	+	455	108563193	-	HPAG1_0768	-	outer membrane protein HofE
770	 40.53	0	805844..806371	-	175	108563194	-	HPAG1_0769	-	hypothetical protein
771	 34.85	-1	806710..806841	+	43	108563195	-	HPAG1_0770	-	hypothetical protein
772	 35.14	-1	806856..807410	-	184	108563196	lolA	HPAG1_0771	-	outer-membrane lipoprotein carrier protein
773	 39.65	0	807558..810155	+	865	108563197	secA	HPAG1_0772	-	preprotein translocase subunit SecA
774	 39.82	0	810145..811377	+	410	108563198	-	HPAG1_0773	-	hypothetical protein
775	 42.53	0	811657..813156	+	499	108563199	-	HPAG1_0774	-	outer membrane protein HofF
776	 35.51	-1	813528..814862	-	444	108563200	-	HPAG1_0775	-	putative type I restriction-modification enzyme specificity subunit S
777	 43.23	+1	814903..816963	-	686	108563201	-	HPAG1_0776	-	cadmium-transporting ATPase
778	 41.16	0	816988..818508	-	506	108563202	-	HPAG1_0777	-	DNA transformation competence protein
779	 40.00	0	818514..819038	-	174	108563203	def	HPAG1_0778	-	peptide deformylase
780	 43.82	+1	819043..819633	-	196	108563204	clpP	HPAG1_0779	-	ATP-dependent Clp protease proteolytic subunit
781	 37.91	0	819651..821006	-	451	108563205	tig	HPAG1_0780	-	trigger factor
782	 38.24	0	821118..821912	-	264	108563206	-	HPAG1_0781	-	outer membrane protein HorG
783	 38.19	0	821979..822761	-	260	108563207	-	HPAG1_0782	-	flagellar sheath adhesin
784	 40.67	0	822874..823350	-	158	108563208	moaC	HPAG1_0783	-	molybdenum cofactor biosynthesis protein C
785	 39.92	0	823359..823889	-	176	108563209	mogA	HPAG1_0784	-	molybdenum cofactor biosynthesis protein
786	 37.90	0	823902..824339	-	145	108563210	-	HPAG1_0785	-	molybdopterin converting factor, subunit 2
787	 37.90	0	824340..824558	-	72	108563211	-	HPAG1_0786	-	molybdopterin converting factor, subunit 1
788	 40.59	0	824637..825215	-	192	108563212	ribA	HPAG1_0787	-	GTP cyclohydrolase II
789	 38.10	0	825304..826143	-	279	108563213	-	HPAG1_0788	-	hypothetical protein
790	 41.16	0	826230..827264	-	344	108563214	-	HPAG1_0789	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
791	 36.16	0	827458..828342	-	294	108563215	-	HPAG1_0790	-	lipooligosaccharide 5G8 epitope biosynthesis-associated protein
792	 37.04	0	828391..829011	+	206	108563216	-	HPAG1_0791	-	hypothetical protein
793	 42.16	0	829014..831392	-	792	108563217	-	HPAG1_0792	-	iron(III) dicitrate transport protein
794	 39.72	0	831590..831949	-	119	108563218	acpS	HPAG1_0793	-	4'-phosphopantetheinyl transferase
795	 38.41	0	831956..832507	-	183	108563219	fliL	HPAG1_0794	-	flagellar basal body-associated protein FliL
796	 36.65	0	832516..833118	-	200	108563220	-	HPAG1_0795	-	hypothetical protein
39.24	MEAN

3.61	STD DEV
