IslandPath Analysis: Helicobacter pylori HPAG1

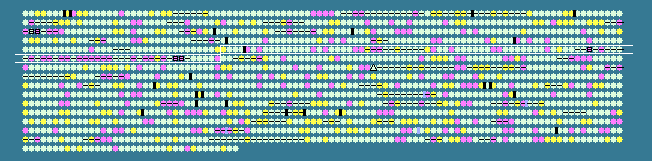

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
434	 43.08	+1	441485..442387	-	300	108562858	-	HPAG1_0433	-	dihydrodipicolinate synthase
435	 40.52	0	442402..443736	-	444	108562859	-	HPAG1_0434	-	putative zinc protease
436	 39.58	0	443733..444788	-	351	108562860	-	HPAG1_0435	-	dihydroorotate dehydrogenase 2
437	 39.05	0	444826..446853	-	675	108562861	-	HPAG1_0436	-	polyphosphate kinase
438	 31.98	-2	447285..448544	-	419	108562862	-	HPAG1_0437	-	type I restriction enzyme S protein
439	 37.32	0	448537..450168	-	543	108562863	-	HPAG1_0438	-	type I restriction enzyme M protein
440	 35.59	-1	450161..452467	-	768	108562864	-	HPAG1_0439	-	type I restriction enzyme R protein
441	 38.52	0	452561..453292	-	243	108562865	-	HPAG1_0440	-	type I restriction enzyme R protein
442	 36.39	0	453340..455235	-	631	108562866	-	HPAG1_0441	-	hypothetical protein
443	 36.46	0	455261..456028	-	255	108562867	-	HPAG1_0442	-	hypothetical protein
444	 36.47	0	456038..456388	-	116	108562868	-	HPAG1_0443	-	hypothetical protein
445	 37.50	0	456354..457841	-	495	108562869	-	HPAG1_0444	-	hypothetical protein
446	 38.65	0	457853..458341	-	162	108562870	-	HPAG1_0445	-	hypothetical protein
447	 38.11	0	458326..460062	-	578	108562871	-	HPAG1_0446	-	oligoendopeptidase F
448	 36.93	0	460159..461409	-	416	108562872	-	HPAG1_0447	-	glutathione-regulated potassium-efflux system protein
449	 31.77	-2	461563..461754	-	63	108562873	-	HPAG1_0448	-	hypothetical protein
450	 42.42	0	461729..462289	-	186	108562874	-	HPAG1_0449	-	outer membrane protein HorE
451	 34.14	-1	462512..463252	+	246	108562875	-	HPAG1_0450	-	molybdenum ABC transporter ModA
452	 36.59	0	463274..463948	+	224	108562876	-	HPAG1_0451	-	molybdenum ABC transporter ModB
453	 37.09	0	463945..464742	+	265	108562877	-	HPAG1_0452	-	molybdenum ABC transporter ModD
454	 38.94	0	464858..466249	-	463	108562878	gltX	HPAG1_0453	-	glutamyl-tRNA synthetase
455	 37.40	0	466367..467473	+	368	108562879	-	HPAG1_0454	-	outer membrane protein HopJ
456	 33.46	-1	467482..469119	+	545	108562880	-	HPAG1_0455	-	type II adenine specific methyltransferase
457	 32.74	-1	469085..469927	+	280	108562881	-	HPAG1_0456	-	hypothetical protein
458	 42.83	0	469973..471772	+	599	108562882	-	HPAG1_0457	-	GTP-binding protein
459	 35.48	-1	471788..472717	+	309	108562883	-	HPAG1_0458	-	type II adenine specific DNA methyltransferase
460	 35.56	-1	472719..473303	+	194	108562884	-	HPAG1_0459	-	hypothetical protein
461	 36.44	0	473435..473917	+	160	108562885	-	HPAG1_0460	-	type II DNA modification enzyme
462	 39.89	0	473986..474930	-	314	108562886	-	HPAG1_0461	-	catalase like protein
463	 44.68	+1	475216..476802	+	528	108562887	-	HPAG1_0462	-	outer membrane protein HofC
464	 39.99	0	476860..478272	+	470	108562888	-	HPAG1_0463	-	outer membrane protein HofD
465	 37.14	0	478414..481407	+	997	108562889	-	HPAG1_0464	-	hypothetical protein
466	 36.89	0	481409..482335	+	308	108562890	-	HPAG1_0465	-	hypothetical protein
467	 40.46	0	482709..483845	-	378	108562891	-	HPAG1_0466	-	putative potassium channel protein
468	 44.97	+1	483995..484183	-	62	108562892	rpmB	HPAG1_0467	-	50S ribosomal protein L28
469	 35.36	-1	484283..485119	-	278	108562893	-	HPAG1_0468	-	neuraminyllactose-binding hemagglutinin
470	 41.34	0	485246..486307	+	353	108562894	mraY	HPAG1_0469	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
471	 36.88	0	486309..487577	+	422	108562895	murD	HPAG1_0470	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
472	 34.48	-1	487574..487834	-	86	108562896	-	HPAG1_0471	-	hypothetical protein
473	 39.55	0	487824..488225	-	133	108562897	-	HPAG1_0472	-	hypothetical protein
474	 37.55	0	488456..489784	+	442	108562898	-	HPAG1_0473	-	sodium- and chloride-dependent transporter
475	 38.00	0	489795..491123	+	442	108562899	-	HPAG1_0474	-	sodium- and chloride-dependent transporter
476	 40.17	0	491138..492205	+	355	108562900	-	HPAG1_0475	-	phospholipase A1
477	 35.91	0	492262..493386	+	374	108562901	-	HPAG1_0476	-	DNA polymerase III subunit beta
478	 40.57	0	493399..495720	+	773	108562902	gyrB	HPAG1_0477	-	DNA gyrase subunit B
479	 34.34	-1	495766..496758	+	330	108562903	-	HPAG1_0478	-	hypothetical protein
480	 30.16	-2	496745..497500	+	251	108562904	-	HPAG1_0479	-	hypothetical protein
481	 38.78	0	497716..498927	+	403	108562905	-	HPAG1_0480	-	putative outer membrane protein
482	 37.00	0	498927..499553	+	208	108562906	-	HPAG1_0481	-	hypothetical protein
483	 37.58	0	499594..500913	+	439	108562907	-	HPAG1_0482	-	hypothetical protein
484	 42.39	0	500915..502294	+	459	108562908	-	HPAG1_0483	-	glycolate oxidase subunit
485	 41.70	0	502317..503081	+	254	108562909	-	HPAG1_0484	-	dihydrodipicolinate reductase
486	 38.46	0	503415..503531	+	38	108562910	-	HPAG1_0485	-	urease-enhancing factor
487	 42.39	0	503801..505246	-	481	108562911	-	HPAG1_0486	-	glutamine synthetase
488	 34.10	-1	505385..507481	+	698	108562912	-	HPAG1_0487	-	hypothetical protein
489	 40.22	0	507547..507996	+	149	108562913	rplI	HPAG1_0488	-	50S ribosomal protein L9
490	 44.01	+1	508000..508542	+	180	108562914	-	HPAG1_0489	-	ATP-dependent protease peptidase subunit
491	 38.74	0	508542..509873	+	443	108562915	hslU	HPAG1_0490	-	ATP-dependent protease ATP-binding subunit
492	 37.42	0	509873..510778	+	301	108562916	era	HPAG1_0491	-	GTP-binding protein Era
493	 38.27	0	510775..511767	+	330	108562917	-	HPAG1_0492	-	hypothetical protein
494	 35.79	0	511846..512700	-	284	108562918	-	HPAG1_0493	-	hypothetical protein
495	 32.92	-1	512719..512958	+	79	108562919	-	HPAG1_0494	-	IS606 transposase
496	 36.78	0	513044..513391	+	115	108562920	-	HPAG1_0495	-	cag pathogenicity island protein 1
497	 33.73	-1	513407..514165	+	252	108562921	-	HPAG1_0496	-	HP0521B-like protein
498	 39.00	0	514158..515603	+	481	108562922	-	HPAG1_0497	-	cag pathogenicity island protein 3
499	 37.65	0	515613..516122	+	169	108562923	-	HPAG1_0498	-	cag pathogenicity island protein 4
500	 37.61	0	516241..518487	-	748	108562924	-	HPAG1_0499	-	cag pathogenicity island protein 5
501	 36.86	0	518496..519488	-	330	108562925	-	HPAG1_0500	-	cag pathogenicity island encoded protein/ATPase protein
502	 34.00	-1	519493..520092	-	199	108562926	-	HPAG1_0501	-	cag pathogenicity island protein Z
503	 38.19	0	520227..524114	-	1295	108562927	-	HPAG1_0502	-	cag pathogenicity island protein Y
504	 35.24	-1	524173..526161	-	662	108562928	-	HPAG1_0503	-	cag pathogenicity island protein Y
505	 34.29	-1	526176..527747	-	523	108562929	-	HPAG1_0504	-	cag pathogenicity island protein X
506	 36.13	0	527797..529404	-	535	108562930	-	HPAG1_0505	-	cag pathogenicity island protein W
507	 34.39	-1	529409..530167	-	252	108562931	-	HPAG1_0506	-	cag pathogenicity island protein V
508	 34.56	-1	530565..531215	+	216	108562932	-	HPAG1_0507	-	cag pathogenicity island protein U
509	 36.77	0	531228..532070	+	280	108562933	-	HPAG1_0508	-	cag pathogenicity island protein T
510	 30.00	-2	532188..532277	-	29	108562934	-	HPAG1_0509	-	hypothetical protein
511	 32.50	-1	532270..532869	-	199	108562935	-	HPAG1_0510	-	cag pathogenicity island protein S
512	 34.65	-1	533301..533681	-	126	108562936	-	HPAG1_0511	-	cag pathogenicity island protein Q
513	 34.31	-1	534882..536012	+	376	108562937	-	HPAG1_0512	-	cag pathogenicity island protein M
514	 34.31	-1	536027..536947	+	306	108562938	-	HPAG1_0513	-	cag pathogenicity island protein N
515	 35.01	-1	537029..537742	-	237	108562939	-	HPAG1_0514	-	cag pathogenicity island protein L
516	 38.66	0	537739..538884	-	381	108562940	-	HPAG1_0515	-	cag pathogenicity island protein I
517	 40.52	0	538895..540007	-	370	108562941	-	HPAG1_0516	-	cag pathogenicity island protein H
518	 36.13	0	540024..540452	-	142	108562942	-	HPAG1_0517	-	cag pathogenicity island protein G
519	 31.35	-2	540507..541313	-	268	108562943	-	HPAG1_0518	-	cag pathogenicity island protein F
520	 38.27	0	541315..542631	-	438	108562944	-	HPAG1_0519	-	cag pathogenicity island protein E
521	 34.14	-1	542661..544265	-	534	108562945	-	HPAG1_0520	-	cag pathogenicity island protein E
522	 32.26	-1	544274..544924	-	216	108562946	-	HPAG1_0521	-	cag pathogenicity island protein D
523	 43.10	+1	544899..545246	-	115	108562947	-	HPAG1_0522	-	cag pathogenicity island protein C
524	 33.77	-1	545391..545618	-	75	108562948	-	HPAG1_0523	-	cag pathogenicity island protein B
525	 37.41	0	546049..549651	+	1200	108562949	-	HPAG1_0524	-	cytotoxin-associated protein A
526	 35.33	-1	549714..549863	-	49	108562950	-	HPAG1_0525	-	transposase B-like protein
527	 35.26	-1	549878..550033	-	51	108562951	-	HPAG1_0526	-	transposase B-like protein
528	 40.89	0	550135..550902	-	255	108562952	-	HPAG1_0527	-	glutamate racemase
529	 42.67	0	550939..552255	-	438	108562953	rho	HPAG1_0528	-	transcription termination factor Rho
530	 39.71	0	552519..552722	+	67	108562954	rpmE	HPAG1_0529	-	50S ribosomal protein L31
531	 41.44	0	552747..553610	+	287	108562955	-	HPAG1_0530	-	hypothetical protein
532	 39.91	0	553623..554306	+	227	108562956	-	HPAG1_0531	-	hypothetical protein
533	 33.85	-1	554319..555284	+	321	108562957	-	HPAG1_0532	-	hypothetical protein
39.24	MEAN

3.61	STD DEV
