IslandPath Analysis: Helicobacter pylori HPAG1

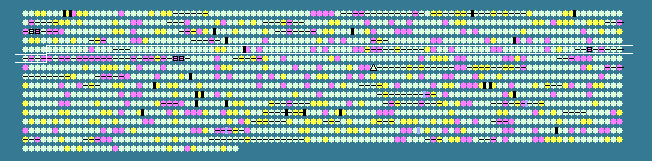

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
405	 40.48	0	413988..414659	+	223	108562829	-	HPAG1_0404	-	putative transcriptional regulator
406	 37.06	0	415172..416218	-	348	108562830	-	HPAG1_0405	-	hypothetical protein
407	 42.05	0	416246..418447	-	733	108562831	flhA	HPAG1_0406	-	flagellar biosynthesis protein FlhA
408	 38.83	0	418585..418857	+	90	108562832	rpsO	HPAG1_0407	-	30S ribosomal protein S15
409	 37.98	0	418888..420177	+	429	108562833	-	HPAG1_0408	-	hypothetical protein
410	 40.48	0	420308..420811	+	167	108562834	-	HPAG1_0409	-	3-dehydroquinate dehydratase
411	 41.53	0	420825..421898	+	357	108562835	-	HPAG1_0410	-	proline peptidase
412	 34.15	-1	421895..422386	+	163	108562836	-	HPAG1_0411	-	7,8-dihydro-6-hydroxymethylpterin-pyrophosphokinase
413	 40.00	0	422380..423759	+	459	108562837	flhF	HPAG1_0412	-	flagellar biosynthesis regulator FlhF
414	 38.76	0	423756..424640	+	294	108562838	-	HPAG1_0413	-	ATP-binding protein
415	 36.59	0	424653..424928	-	91	108562839	-	HPAG1_0414	-	hypothetical protein
416	 39.32	0	424937..425704	+	255	108562840	fliA	HPAG1_0415	-	flagellar biosynthesis sigma factor
417	 40.75	0	425697..426761	+	354	108562841	fliM	HPAG1_0416	-	flagellar motor switch protein FliM
418	 39.12	0	426765..427628	+	287	108562842	-	HPAG1_0417	-	flagellar motor switch protein FliY
419	 38.55	0	427657..428193	+	178	108562843	-	HPAG1_0418	-	hypothetical protein
420	 36.55	0	428190..428687	+	165	108562844	-	HPAG1_0419	-	hypothetical protein
421	 37.31	0	428707..429159	-	150	108562845	-	HPAG1_0420	-	ferric uptake regulation protein
422	 41.07	0	429319..430494	-	391	108562846	-	HPAG1_0421	-	recombination factor protein RarA
423	 38.98	0	430491..430862	-	123	108562847	-	HPAG1_0422	-	putative heat shock protein
424	 39.45	0	430872..431738	-	288	108562848	-	HPAG1_0423	-	co-chaperone-curved DNA binding protein A
425	 40.21	0	431906..433156	+	416	108562849	-	HPAG1_0424	-	hypothetical protein
426	 37.87	0	433164..434000	-	278	108562850	-	HPAG1_0425	-	hypothetical protein
427	 38.24	0	434256..435152	-	298	108562851	-	HPAG1_0426	-	response regulator
428	 40.54	0	435174..436394	-	406	108562852	ispDF	HPAG1_0427	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
429	 40.32	0	436416..437846	-	476	108562853	-	HPAG1_0428	-	protease DO
430	 41.51	0	437890..439332	-	480	108562854	-	HPAG1_0429	-	amino acid permease
431	 37.81	0	439546..440148	-	200	108562855	-	HPAG1_0430	-	phosphatidylglycerophosphate synthase
432	 36.78	0	440082..440690	-	202	108562856	-	HPAG1_0431	-	hypothetical protein
433	 43.60	+1	440700..441488	-	262	108562857	-	HPAG1_0432	-	7-alpha-hydroxysteroid dehydrogenase
434	 43.08	+1	441485..442387	-	300	108562858	-	HPAG1_0433	-	dihydrodipicolinate synthase
435	 40.52	0	442402..443736	-	444	108562859	-	HPAG1_0434	-	putative zinc protease
436	 39.58	0	443733..444788	-	351	108562860	-	HPAG1_0435	-	dihydroorotate dehydrogenase 2
437	 39.05	0	444826..446853	-	675	108562861	-	HPAG1_0436	-	polyphosphate kinase
438	 31.98	-2	447285..448544	-	419	108562862	-	HPAG1_0437	-	type I restriction enzyme S protein
439	 37.32	0	448537..450168	-	543	108562863	-	HPAG1_0438	-	type I restriction enzyme M protein
440	 35.59	-1	450161..452467	-	768	108562864	-	HPAG1_0439	-	type I restriction enzyme R protein
441	 38.52	0	452561..453292	-	243	108562865	-	HPAG1_0440	-	type I restriction enzyme R protein
442	 36.39	0	453340..455235	-	631	108562866	-	HPAG1_0441	-	hypothetical protein
443	 36.46	0	455261..456028	-	255	108562867	-	HPAG1_0442	-	hypothetical protein
444	 36.47	0	456038..456388	-	116	108562868	-	HPAG1_0443	-	hypothetical protein
445	 37.50	0	456354..457841	-	495	108562869	-	HPAG1_0444	-	hypothetical protein
446	 38.65	0	457853..458341	-	162	108562870	-	HPAG1_0445	-	hypothetical protein
447	 38.11	0	458326..460062	-	578	108562871	-	HPAG1_0446	-	oligoendopeptidase F
448	 36.93	0	460159..461409	-	416	108562872	-	HPAG1_0447	-	glutathione-regulated potassium-efflux system protein
449	 31.77	-2	461563..461754	-	63	108562873	-	HPAG1_0448	-	hypothetical protein
450	 42.42	0	461729..462289	-	186	108562874	-	HPAG1_0449	-	outer membrane protein HorE
451	 34.14	-1	462512..463252	+	246	108562875	-	HPAG1_0450	-	molybdenum ABC transporter ModA
452	 36.59	0	463274..463948	+	224	108562876	-	HPAG1_0451	-	molybdenum ABC transporter ModB
453	 37.09	0	463945..464742	+	265	108562877	-	HPAG1_0452	-	molybdenum ABC transporter ModD
454	 38.94	0	464858..466249	-	463	108562878	gltX	HPAG1_0453	-	glutamyl-tRNA synthetase
455	 37.40	0	466367..467473	+	368	108562879	-	HPAG1_0454	-	outer membrane protein HopJ
456	 33.46	-1	467482..469119	+	545	108562880	-	HPAG1_0455	-	type II adenine specific methyltransferase
457	 32.74	-1	469085..469927	+	280	108562881	-	HPAG1_0456	-	hypothetical protein
458	 42.83	0	469973..471772	+	599	108562882	-	HPAG1_0457	-	GTP-binding protein
459	 35.48	-1	471788..472717	+	309	108562883	-	HPAG1_0458	-	type II adenine specific DNA methyltransferase
460	 35.56	-1	472719..473303	+	194	108562884	-	HPAG1_0459	-	hypothetical protein
461	 36.44	0	473435..473917	+	160	108562885	-	HPAG1_0460	-	type II DNA modification enzyme
462	 39.89	0	473986..474930	-	314	108562886	-	HPAG1_0461	-	catalase like protein
463	 44.68	+1	475216..476802	+	528	108562887	-	HPAG1_0462	-	outer membrane protein HofC
464	 39.99	0	476860..478272	+	470	108562888	-	HPAG1_0463	-	outer membrane protein HofD
465	 37.14	0	478414..481407	+	997	108562889	-	HPAG1_0464	-	hypothetical protein
466	 36.89	0	481409..482335	+	308	108562890	-	HPAG1_0465	-	hypothetical protein
467	 40.46	0	482709..483845	-	378	108562891	-	HPAG1_0466	-	putative potassium channel protein
468	 44.97	+1	483995..484183	-	62	108562892	rpmB	HPAG1_0467	-	50S ribosomal protein L28
469	 35.36	-1	484283..485119	-	278	108562893	-	HPAG1_0468	-	neuraminyllactose-binding hemagglutinin
470	 41.34	0	485246..486307	+	353	108562894	mraY	HPAG1_0469	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
471	 36.88	0	486309..487577	+	422	108562895	murD	HPAG1_0470	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
472	 34.48	-1	487574..487834	-	86	108562896	-	HPAG1_0471	-	hypothetical protein
473	 39.55	0	487824..488225	-	133	108562897	-	HPAG1_0472	-	hypothetical protein
474	 37.55	0	488456..489784	+	442	108562898	-	HPAG1_0473	-	sodium- and chloride-dependent transporter
475	 38.00	0	489795..491123	+	442	108562899	-	HPAG1_0474	-	sodium- and chloride-dependent transporter
476	 40.17	0	491138..492205	+	355	108562900	-	HPAG1_0475	-	phospholipase A1
477	 35.91	0	492262..493386	+	374	108562901	-	HPAG1_0476	-	DNA polymerase III subunit beta
478	 40.57	0	493399..495720	+	773	108562902	gyrB	HPAG1_0477	-	DNA gyrase subunit B
479	 34.34	-1	495766..496758	+	330	108562903	-	HPAG1_0478	-	hypothetical protein
480	 30.16	-2	496745..497500	+	251	108562904	-	HPAG1_0479	-	hypothetical protein
481	 38.78	0	497716..498927	+	403	108562905	-	HPAG1_0480	-	putative outer membrane protein
482	 37.00	0	498927..499553	+	208	108562906	-	HPAG1_0481	-	hypothetical protein
483	 37.58	0	499594..500913	+	439	108562907	-	HPAG1_0482	-	hypothetical protein
484	 42.39	0	500915..502294	+	459	108562908	-	HPAG1_0483	-	glycolate oxidase subunit
485	 41.70	0	502317..503081	+	254	108562909	-	HPAG1_0484	-	dihydrodipicolinate reductase
486	 38.46	0	503415..503531	+	38	108562910	-	HPAG1_0485	-	urease-enhancing factor
487	 42.39	0	503801..505246	-	481	108562911	-	HPAG1_0486	-	glutamine synthetase
488	 34.10	-1	505385..507481	+	698	108562912	-	HPAG1_0487	-	hypothetical protein
489	 40.22	0	507547..507996	+	149	108562913	rplI	HPAG1_0488	-	50S ribosomal protein L9
490	 44.01	+1	508000..508542	+	180	108562914	-	HPAG1_0489	-	ATP-dependent protease peptidase subunit
491	 38.74	0	508542..509873	+	443	108562915	hslU	HPAG1_0490	-	ATP-dependent protease ATP-binding subunit
492	 37.42	0	509873..510778	+	301	108562916	era	HPAG1_0491	-	GTP-binding protein Era
493	 38.27	0	510775..511767	+	330	108562917	-	HPAG1_0492	-	hypothetical protein
494	 35.79	0	511846..512700	-	284	108562918	-	HPAG1_0493	-	hypothetical protein
495	 32.92	-1	512719..512958	+	79	108562919	-	HPAG1_0494	-	IS606 transposase
496	 36.78	0	513044..513391	+	115	108562920	-	HPAG1_0495	-	cag pathogenicity island protein 1
497	 33.73	-1	513407..514165	+	252	108562921	-	HPAG1_0496	-	HP0521B-like protein
498	 39.00	0	514158..515603	+	481	108562922	-	HPAG1_0497	-	cag pathogenicity island protein 3
499	 37.65	0	515613..516122	+	169	108562923	-	HPAG1_0498	-	cag pathogenicity island protein 4
500	 37.61	0	516241..518487	-	748	108562924	-	HPAG1_0499	-	cag pathogenicity island protein 5
501	 36.86	0	518496..519488	-	330	108562925	-	HPAG1_0500	-	cag pathogenicity island encoded protein/ATPase protein
502	 34.00	-1	519493..520092	-	199	108562926	-	HPAG1_0501	-	cag pathogenicity island protein Z
503	 38.19	0	520227..524114	-	1295	108562927	-	HPAG1_0502	-	cag pathogenicity island protein Y
504	 35.24	-1	524173..526161	-	662	108562928	-	HPAG1_0503	-	cag pathogenicity island protein Y
39.24	MEAN

3.61	STD DEV
