IslandPath Analysis: Helicobacter pylori HPAG1

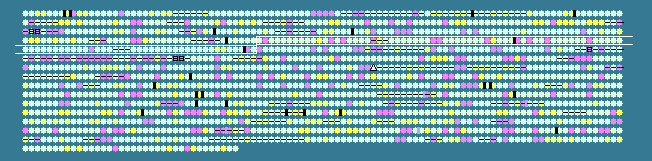

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
340	 36.72	0	348318..348908	+	196	108562764	-	HPAG1_0339	-	cysteine-rich protein H
341	 31.56	-2	349095..349433	+	112	108562765	-	HPAG1_0340	-	hypothetical protein
342	 36.01	0	349417..349977	+	186	108562766	-	HPAG1_0341	-	hypothetical protein
343	 41.50	0	350080..350961	-	293	108562767	-	HPAG1_0342	-	hypothetical protein
344	 40.55	0	350961..352511	-	516	108562768	-	HPAG1_0343	-	single-stranded-DNA specific exonuclease
345	 42.12	0	352521..354137	-	538	108562769	-	HPAG1_0344	-	CTP synthetase
346	 38.01	0	354395..355057	+	220	108562770	-	HPAG1_0345	-	hypothetical protein
347	 39.38	0	355101..356804	+	567	108562771	fliF	HPAG1_0346	-	flagellar MS-ring protein
348	 40.89	0	356822..357853	+	343	108562772	fliG	HPAG1_0347	-	flagellar motor switch protein G
349	 37.07	0	357840..358616	+	258	108562773	fliH	HPAG1_0348	-	flagellar assembly protein H
350	 43.46	+1	358613..360469	+	618	108562774	-	HPAG1_0349	-	1-deoxy-D-xylulose-5-phosphate synthase
351	 42.18	0	360466..362274	+	602	108562775	-	HPAG1_0350	-	GTP-binding protein LepA
352	 34.93	-1	362289..362978	+	229	108562776	-	HPAG1_0351	-	hypothetical protein
353	 39.06	0	362989..363285	+	98	108562777	-	HPAG1_0352	-	hypothetical protein
354	 29.33	-2	363326..363400	-	24	108562778	-	HPAG1_0353	-	hypothetical protein
355	 37.09	0	363538..363750	+	70	108562779	-	HPAG1_0354	-	hypothetical protein
356	 42.10	0	363968..364777	-	269	108562780	-	HPAG1_0355	-	flagellar basal-body rod protein
357	 40.05	0	364832..366112	-	426	108562781	-	HPAG1_0356	-	alpha-ketoglutarate permease
358	 40.68	0	366295..368907	-	870	108562782	-	HPAG1_0357	-	cell division protein
359	 35.39	-1	368877..371210	-	777	108562783	-	HPAG1_0358	-	hypothetical protein
360	 44.43	+1	371207..373135	-	642	108562784	-	HPAG1_0359	-	transketolase
361	 37.60	0	373179..374021	-	280	108562785	-	HPAG1_0360	-	bifunctional riboflavin kinase/FMN adenylyltransferase
362	 36.72	0	373987..374694	-	235	108562786	-	HPAG1_0361	-	hemolysin
363	 38.18	0	374694..375209	-	171	108562787	-	HPAG1_0362	-	hypothetical protein
364	 42.10	0	375276..376199	+	307	108562788	pyrB	HPAG1_0363	-	aspartate carbamoyltransferase catalytic subunit
365	 42.22	0	376496..377935	+	479	108562789	-	HPAG1_0364	-	outer membrane protein HofB
366	 38.89	0	378026..379681	+	551	108562790	-	HPAG1_0365	-	multidrug resistance protein
367	 37.66	0	379675..380298	+	207	108562791	-	HPAG1_0366	-	hypothetical protein
368	 38.42	0	380302..380871	+	189	108562792	-	HPAG1_0367	-	hypothetical protein
369	 30.64	-2	381004..382116	+	370	108562793	-	HPAG1_0368	-	hypothetical protein
370	 25.73	-2	382139..382822	+	227	108562794	-	HPAG1_0369	-	hypothetical protein
371	 41.57	0	382880..383875	+	331	108562795	-	HPAG1_0370	-	high affinity nickel transport protein
372	 36.21	0	383879..384400	-	173	108562796	-	HPAG1_0371	-	hypothetical protein
373	 40.02	0	384536..385852	+	438	108562797	-	HPAG1_0372	-	hypothetical protein
374	 36.48	0	386024..386404	-	126	108562798	-	HPAG1_0373	-	hypothetical protein
375	 40.30	0	386503..386703	-	66	108562799	-	HPAG1_0374	-	copper ion binding protein
376	 39.77	0	386704..388941	-	745	108562800	-	HPAG1_0375	-	copper-transporting ATPase
377	 39.78	0	388938..389651	-	237	108562801	-	HPAG1_0376	-	phosphatidylserine synthase
378	 29.02	-2	389641..389895	-	84	108562802	-	HPAG1_0377	-	hypothetical protein
379	 43.65	+1	389898..391796	-	632	108562803	-	HPAG1_0378	-	cell division protein
380	 37.37	0	391805..392794	-	329	108562804	prmA	HPAG1_0379	-	ribosomal protein L11 methyltransferase
381	 41.07	0	392795..393169	-	124	108562805	-	HPAG1_0380	-	chemotaxis protein
382	 36.82	0	393464..394066	+	200	108562806	-	HPAG1_0381	-	outer membrane protein HorD
383	 35.29	-1	394198..394605	-	135	108562807	-	HPAG1_0382	-	hypothetical protein
384	 40.69	0	394608..394838	-	76	108562808	-	HPAG1_0383	-	hypothetical protein
385	 35.20	-1	394832..395368	-	178	108562809	gidB	HPAG1_0384	-	glucose-inhibited division protein B
386	 38.44	0	395365..396402	-	345	108562810	queA	HPAG1_0385	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
387	 40.11	0	396403..397125	-	240	108562811	-	HPAG1_0386	-	hypothetical protein
388	 35.61	-1	397118..397600	-	160	108562812	-	HPAG1_0387	-	sec-independent translocase
389	 41.84	0	397668..398678	-	336	108562813	ruvB	HPAG1_0388	-	Holliday junction DNA helicase B
390	 41.82	0	398679..399491	-	270	108562814	panB	HPAG1_0389	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
391	 38.73	0	399640..400362	+	240	108562815	-	HPAG1_0390	-	hypothetical protein
392	 36.55	0	400340..401209	+	289	108562816	-	HPAG1_0391	-	hypothetical protein
393	 36.36	0	401239..402162	+	307	108562817	-	HPAG1_0392	-	hypothetical protein
394	 37.11	0	402172..403494	+	440	108562818	-	HPAG1_0393	-	hypothetical protein
395	 35.17	-1	403431..404084	+	217	108562819	minC	HPAG1_0394	-	septum formation inhibitor
396	 41.33	0	404081..404968	+	295	108562820	lpxC	HPAG1_0395	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
397	 37.34	0	404990..405463	+	157	108562821	-	HPAG1_0396	-	hypothetical protein
398	 41.27	0	405517..406398	+	293	108562822	-	HPAG1_0397	-	homoserine kinase
399	 35.93	0	406370..406639	+	89	108562823	-	HPAG1_0398	-	hypothetical protein
400	 41.66	0	406636..409470	+	944	108562824	infB	HPAG1_0399	-	translation initiation factor IF-2
401	 39.58	0	409470..409805	+	111	108562825	rbfA	HPAG1_0400	-	ribosome-binding factor A
402	 37.87	0	409798..410238	+	146	108562826	-	HPAG1_0401	-	hypothetical protein
403	 41.63	0	410346..412334	-	662	108562827	-	HPAG1_0402	-	acetyl-CoA synthetase
404	 37.65	0	412537..413649	+	370	108562828	-	HPAG1_0403	-	hypothetical protein
405	 40.48	0	413988..414659	+	223	108562829	-	HPAG1_0404	-	putative transcriptional regulator
406	 37.06	0	415172..416218	-	348	108562830	-	HPAG1_0405	-	hypothetical protein
407	 42.05	0	416246..418447	-	733	108562831	flhA	HPAG1_0406	-	flagellar biosynthesis protein FlhA
408	 38.83	0	418585..418857	+	90	108562832	rpsO	HPAG1_0407	-	30S ribosomal protein S15
409	 37.98	0	418888..420177	+	429	108562833	-	HPAG1_0408	-	hypothetical protein
410	 40.48	0	420308..420811	+	167	108562834	-	HPAG1_0409	-	3-dehydroquinate dehydratase
411	 41.53	0	420825..421898	+	357	108562835	-	HPAG1_0410	-	proline peptidase
412	 34.15	-1	421895..422386	+	163	108562836	-	HPAG1_0411	-	7,8-dihydro-6-hydroxymethylpterin-pyrophosphokinase
413	 40.00	0	422380..423759	+	459	108562837	flhF	HPAG1_0412	-	flagellar biosynthesis regulator FlhF
414	 38.76	0	423756..424640	+	294	108562838	-	HPAG1_0413	-	ATP-binding protein
415	 36.59	0	424653..424928	-	91	108562839	-	HPAG1_0414	-	hypothetical protein
416	 39.32	0	424937..425704	+	255	108562840	fliA	HPAG1_0415	-	flagellar biosynthesis sigma factor
417	 40.75	0	425697..426761	+	354	108562841	fliM	HPAG1_0416	-	flagellar motor switch protein FliM
418	 39.12	0	426765..427628	+	287	108562842	-	HPAG1_0417	-	flagellar motor switch protein FliY
419	 38.55	0	427657..428193	+	178	108562843	-	HPAG1_0418	-	hypothetical protein
420	 36.55	0	428190..428687	+	165	108562844	-	HPAG1_0419	-	hypothetical protein
421	 37.31	0	428707..429159	-	150	108562845	-	HPAG1_0420	-	ferric uptake regulation protein
422	 41.07	0	429319..430494	-	391	108562846	-	HPAG1_0421	-	recombination factor protein RarA
423	 38.98	0	430491..430862	-	123	108562847	-	HPAG1_0422	-	putative heat shock protein
424	 39.45	0	430872..431738	-	288	108562848	-	HPAG1_0423	-	co-chaperone-curved DNA binding protein A
425	 40.21	0	431906..433156	+	416	108562849	-	HPAG1_0424	-	hypothetical protein
426	 37.87	0	433164..434000	-	278	108562850	-	HPAG1_0425	-	hypothetical protein
427	 38.24	0	434256..435152	-	298	108562851	-	HPAG1_0426	-	response regulator
428	 40.54	0	435174..436394	-	406	108562852	ispDF	HPAG1_0427	-	bifunctional 2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase/2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase protein
429	 40.32	0	436416..437846	-	476	108562853	-	HPAG1_0428	-	protease DO
430	 41.51	0	437890..439332	-	480	108562854	-	HPAG1_0429	-	amino acid permease
431	 37.81	0	439546..440148	-	200	108562855	-	HPAG1_0430	-	phosphatidylglycerophosphate synthase
432	 36.78	0	440082..440690	-	202	108562856	-	HPAG1_0431	-	hypothetical protein
433	 43.60	+1	440700..441488	-	262	108562857	-	HPAG1_0432	-	7-alpha-hydroxysteroid dehydrogenase
434	 43.08	+1	441485..442387	-	300	108562858	-	HPAG1_0433	-	dihydrodipicolinate synthase
435	 40.52	0	442402..443736	-	444	108562859	-	HPAG1_0434	-	putative zinc protease
436	 39.58	0	443733..444788	-	351	108562860	-	HPAG1_0435	-	dihydroorotate dehydrogenase 2
437	 39.05	0	444826..446853	-	675	108562861	-	HPAG1_0436	-	polyphosphate kinase
438	 31.98	-2	447285..448544	-	419	108562862	-	HPAG1_0437	-	type I restriction enzyme S protein
439	 37.32	0	448537..450168	-	543	108562863	-	HPAG1_0438	-	type I restriction enzyme M protein
39.24	MEAN

3.61	STD DEV
