IslandPath Analysis: Helicobacter pylori HPAG1

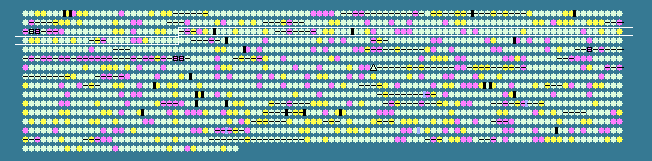

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
227	 40.37	0	229886..230965	+	359	108562651	-	HPAG1_0226	-	bifunctional methionine sulfoxide reductase A/B protein
228	 34.78	-1	231156..231362	+	68	108562652	-	HPAG1_0227	-	hypothetical protein
229	 43.88	+1	231339..232172	-	277	108562653	-	HPAG1_0228	-	hypothetical protein
230	 34.85	-1	232385..232450	-	21	108562654	-	HPAG1_0229	-	remnant of HopM
231	 44.01	+1	232492..234468	-	658	108562655	-	HPAG1_0230	-	outer membrane protein HopM
232	 41.62	0	234724..235881	+	385	108562656	-	HPAG1_0231	-	hypothetical protein
233	 41.68	0	236130..237590	-	486	108562657	-	HPAG1_0232	-	outer membrane protein HopA
234	 39.62	0	237786..238517	-	243	108562658	-	HPAG1_0233	-	3-deoxy-manno-octulosonate cytidylyltransferase
235	 39.97	0	238630..239427	+	265	108562659	-	HPAG1_0234	-	hypothetical protein
236	 46.54	+2	239443..240093	+	216	108562660	-	HPAG1_0235	-	hypothetical protein
237	 39.98	0	240115..241287	+	390	108562661	-	HPAG1_0236	-	hypothetical protein
238	 39.74	0	241287..241817	+	176	108562662	-	HPAG1_0237	-	hypothetical protein
239	 41.01	0	242589..243656	-	355	108562663	-	HPAG1_0238	-	cysteine-rich protein E
240	 37.98	0	243750..244115	-	121	108562664	-	HPAG1_0239	-	hypothetical protein
241	 42.89	+1	244115..245035	-	306	108562665	hemC	HPAG1_0240	-	porphobilinogen deaminase
242	 40.54	0	245046..246779	-	577	108562666	-	HPAG1_0241	-	prolyl-tRNA synthetase
243	 38.15	0	246783..248132	-	449	108562667	hemA	HPAG1_0242	-	glutamyl-tRNA reductase
244	 36.36	0	248132..249055	-	307	108562668	-	HPAG1_0243	-	putative octaprenyl-diphosphate synthase
245	 34.83	-1	249065..249466	-	133	108562669	-	HPAG1_0244	-	hypothetical protein
246	 37.84	0	249453..249785	-	110	108562670	-	HPAG1_0245	-	hypothetical protein
247	 37.90	0	249758..250195	-	145	108562671	-	HPAG1_0246	-	neutrophil activating protein
248	 36.47	0	250398..251543	-	381	108562672	-	HPAG1_0247	-	histidine kinase sensor protein
249	 35.22	-1	251540..251857	-	105	108562673	-	HPAG1_0248	-	hypothetical protein
250	 41.98	0	251854..252882	-	342	108562674	flgI	HPAG1_0249	-	flagellar basal body P-ring protein
251	 43.41	+1	253067..254545	+	492	108562675	-	HPAG1_0250	-	ATP-dependent RNA helicase
252	 44.17	+1	254566..255654	+	362	108562676	-	HPAG1_0251	-	hypothetical protein
253	 36.67	0	255661..256200	+	179	108562677	-	HPAG1_0252	-	hypothetical protein
254	 40.43	0	256252..257802	-	516	108562678	-	HPAG1_0253	-	oligopeptide permease ATPase protein
255	 42.72	0	257812..258834	-	340	108562679	-	HPAG1_0254	-	oligopeptide permease integral membrane protein
256	 42.11	0	259164..260621	+	485	108562680	-	HPAG1_0255	-	outer membrane protein HopF
257	 41.77	0	260631..262052	+	473	108562681	-	HPAG1_0256	-	outer membrane protein HopG
258	 44.50	+1	262151..263386	+	411	108562682	-	HPAG1_0257	-	adenylosuccinate synthetase
259	 35.43	-1	263383..263811	+	142	108562683	-	HPAG1_0258	-	hypothetical protein
260	 39.88	0	263804..264475	+	223	108562684	-	HPAG1_0259	-	hypothetical protein
261	 40.25	0	264472..265527	+	351	108562685	-	HPAG1_0260	-	hypothetical protein
262	 40.30	0	265540..266802	+	420	108562686	xseA	HPAG1_0261	-	exodeoxyribonuclease VII large subunit
263	 30.69	-2	266821..267993	-	390	108562687	-	HPAG1_0262	-	type III adenine methyltransferase
264	 30.94	-2	267986..268444	-	152	108562688	-	HPAG1_0263	-	hypothetical protein
265	 34.17	-1	268586..269185	+	199	108562689	-	HPAG1_0264	-	hypothetical protein
266	 39.53	0	269297..270055	+	252	108562690	-	HPAG1_0265	-	type II DNA modification enzyme
267	 40.88	0	270128..272698	+	856	108562691	-	HPAG1_0266	-	ATP-dependent protease binding subunit/heat shock protein
268	 39.28	0	272753..273475	+	240	108562692	-	HPAG1_0267	-	cytochrome c biogenesis protein
269	 37.99	0	273485..274621	+	378	108562693	-	HPAG1_0268	-	dihydroorotase
270	 39.84	0	274606..275835	+	409	108562694	-	HPAG1_0269	-	chlorohydrolase
271	 37.45	0	275896..276138	+	80	108562695	-	HPAG1_0270	-	hypothetical protein
272	 42.54	0	276148..277461	+	437	108562696	-	HPAG1_0271	-	putative ATP-binding protein
273	 41.90	0	277500..278153	+	217	108562697	-	HPAG1_0272	-	hypothetical protein
274	 35.57	-1	278146..279129	+	327	108562698	-	HPAG1_0273	-	hypothetical protein
275	 36.52	0	279119..279652	+	177	108562699	-	HPAG1_0274	-	hypothetical protein
276	 35.56	-1	279649..280188	+	179	108562700	-	HPAG1_0275	-	hypothetical protein
277	 38.06	0	280201..280602	+	133	108562701	-	HPAG1_0276	-	hypothetical protein
278	 37.28	0	280639..281931	+	430	108562702	-	HPAG1_0277	-	ATP-dependent nuclease
279	 38.10	0	281919..282464	+	181	108562703	-	HPAG1_0278	-	hypothetical protein
280	 42.06	0	282535..282786	+	83	108562704	-	HPAG1_0279	-	ferrodoxin
281	 41.72	0	282796..284250	+	484	108562705	-	HPAG1_0280	-	guanosine pentaphosphate phosphohydrolase
282	 37.15	0	284247..285269	+	340	108562706	-	HPAG1_0281	-	lipopolysaccharide heptosyltransferase-1
283	 39.82	0	285266..286252	+	328	108562707	-	HPAG1_0282	-	lipid A biosynthesis lauroyl acyltransferase
284	 43.82	+1	286351..287466	-	371	108562708	tgt	HPAG1_0283	-	queuine tRNA-ribosyltransferase
285	 37.56	0	287517..288959	+	480	108562709	-	HPAG1_0284	-	hypothetical protein
286	 37.21	0	288964..289995	+	343	108562710	aroB	HPAG1_0285	-	3-dehydroquinate synthase
287	 36.77	0	289986..291557	+	523	108562711	-	HPAG1_0286	-	hypothetical protein
288	 39.30	0	291554..292810	+	418	108562712	-	HPAG1_0287	-	hypothetical protein
289	 39.14	0	292797..294449	+	550	108562713	-	HPAG1_0288	-	cell division protein
290	 35.84	0	294452..294970	+	172	108562714	-	HPAG1_0289	-	hypothetical protein
291	 41.35	0	294983..295456	+	157	108562715	-	HPAG1_0290	-	hypothetical protein
292	 41.16	0	295524..304220	+	2898	108562716	-	HPAG1_0291	-	putative vacuolating cytotoxin (VacA)-like protein
293	 41.54	0	304268..305485	+	405	108562717	-	HPAG1_0292	-	diaminopimelate decarboxylase
294	 32.30	-1	305490..305780	+	96	108562718	-	HPAG1_0293	-	hypothetical protein
295	 36.08	0	305793..306665	+	290	108562719	-	HPAG1_0294	-	hypothetical protein
296	 36.67	0	306666..308345	+	559	108562720	-	HPAG1_0295	-	para-aminobenzoate synthetase
297	 44.90	+1	308534..309553	+	339	108562721	amiE	HPAG1_0296	-	acylamide amidohydrolase
298	 39.61	0	309635..312121	-	828	108562722	flgL	HPAG1_0297	-	flagellar hook-associated protein FlgL
299	 40.95	0	312354..312668	+	104	108562723	rplU	HPAG1_0298	-	50S ribosomal protein L21
300	 44.57	+1	312683..312949	+	88	108562724	rpmA	HPAG1_0299	-	50S ribosomal protein L27
301	 41.58	0	313066..314715	+	549	108562725	-	HPAG1_0300	-	periplasmic dipeptide-binding protein
302	 44.98	+1	314726..315730	+	334	108562726	-	HPAG1_0301	-	dipeptide permease protein
303	 46.50	+2	315730..316587	+	285	108562727	-	HPAG1_0302	-	dipeptide permease protein
304	 42.36	0	316599..317462	+	287	108562728	-	HPAG1_0303	-	dipeptide ABC transporter
305	 42.13	0	317459..318265	+	268	108562729	-	HPAG1_0304	-	dipeptide ABC transporter
306	 44.41	+1	318284..319366	+	360	108562730	obgE	HPAG1_0305	-	GTPase ObgE
307	 41.97	0	319408..320403	+	331	108562731	-	HPAG1_0306	-	hypothetical protein
308	 38.38	0	320649..321203	+	184	108562732	-	HPAG1_0307	-	hypothetical protein
309	 43.70	+1	321213..322505	+	430	108562733	-	HPAG1_0308	-	glutamate-1-semialdehyde aminotransferase
310	 37.12	0	322510..322773	+	87	108562734	-	HPAG1_0309	-	hypothetical protein
311	 36.54	0	322789..323193	+	134	108562735	-	HPAG1_0310	-	hypothetical protein
312	 41.52	0	323277..324155	+	292	108562736	-	HPAG1_0311	-	hypothetical protein
313	 45.12	+1	324168..325049	+	293	108562737	-	HPAG1_0312	-	hypothetical protein
314	 31.89	-2	325103..325795	-	230	108562738	-	HPAG1_0313	-	type II restriction enzyme
315	 35.86	0	325806..326915	-	369	108562739	-	HPAG1_0314	-	DNA methylase
316	 42.12	0	327010..327396	+	128	108562740	-	HPAG1_0315	-	hypothetical protein
317	 41.72	0	327396..328361	+	321	108562741	-	HPAG1_0316	-	ATP/GTP binding protein
318	 41.10	0	328367..329512	-	381	108562742	-	HPAG1_0317	-	nitrite extrusion protein
319	 31.78	-2	330274..330531	-	85	108562743	-	HPAG1_0318	-	hypothetical protein
320	 31.78	-2	330524..330652	-	42	108562744	-	HPAG1_0319	-	hypothetical protein
321	 43.31	+1	331459..333582	-	707	108562745	-	HPAG1_0320	-	outer membrane protein
322	 40.48	0	333867..334622	-	251	108562746	-	HPAG1_0321	-	hypothetical protein
323	 38.07	0	334685..336310	-	541	108562747	argS	HPAG1_0322	-	arginyl-tRNA synthetase
324	 39.58	0	336313..336552	-	79	108562748	-	HPAG1_0323	-	sec-independent protein translocase protein
325	 38.33	0	336623..337243	-	206	108562749	gmk	HPAG1_0324	-	guanylate kinase
326	 38.18	0	337236..338660	-	474	108562750	-	HPAG1_0325	-	poly E-rich protein
39.24	MEAN

3.61	STD DEV
