IslandPath Analysis: Helicobacter pylori HPAG1

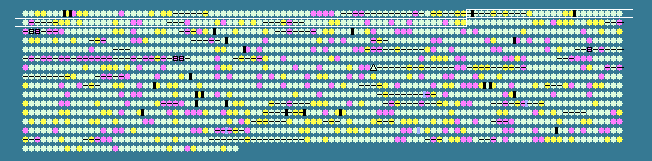

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
75	 41.84	0	74918..75634	-	238	108562499	-	HPAG1_0074	-	bifunctional urease subunit gamma/beta
76	 36.92	0	75980..76453	-	157	108562500	lspA	HPAG1_0075	-	lipoprotein signal peptidase
77	 41.33	0	76447..77784	-	445	108562501	-	HPAG1_0076	-	phosphoglucosamine mutase
78	 38.52	0	77874..78143	+	89	108562502	rpsT	HPAG1_0077	-	30S ribosomal protein S20
79	 43.06	+1	78268..79326	+	352	108562503	prfA	HPAG1_0078	-	peptide chain release factor 1
80	 41.47	0	79739..79996	+	85	108562504	-	HPAG1_0079	-	reminiscent outer membrane protein HorA
81	 43.02	+1	80008..81711	+	567	108562505	-	HPAG1_0080	-	outer membrane protein HorA
82	 41.91	0	81957..83693	+	578	108562506	-	HPAG1_0081	-	hypothetical protein
83	 36.04	0	83867..83977	+	36	108562507	-	HPAG1_0082	-	hypothetical protein
84	 39.07	0	84115..86136	-	673	108562508	-	HPAG1_0083	-	methyl-accepting chemotaxis protein
85	 42.82	0	86288..86677	-	129	108562509	rpsI	HPAG1_0084	-	30S ribosomal protein S9
86	 42.02	0	86674..87099	-	141	108562510	rplM	HPAG1_0085	-	50S ribosomal protein L13
87	 36.51	0	87403..87591	-	62	108562511	-	HPAG1_0086	-	hypothetical protein
88	 41.02	0	87598..88950	-	450	108562512	-	HPAG1_0087	-	hypothetical protein
89	 40.10	0	89004..90377	-	457	108562513	-	HPAG1_0088	-	hypothetical protein
90	 38.72	0	90398..92476	-	692	108562514	-	HPAG1_0089	-	RNA polymerase sigma factor RpoD
91	 42.82	0	92666..93361	-	231	108562515	-	HPAG1_0090	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
92	 43.01	+1	93372..94301	-	309	108562516	-	HPAG1_0091	-	acyl-carrier-protein S-malonyltransferase
93	 36.64	0	94738..95736	+	332	108562517	-	HPAG1_0092	-	HrgA protein
94	 39.66	0	95740..96561	+	273	108562518	-	HPAG1_0093	-	type II adenine methyltransferase
95	 40.29	0	96584..97489	-	301	108562519	-	HPAG1_0094	-	alpha-1,2-fucosyltransferase
96	 36.72	0	97585..98115	-	176	108562520	-	HPAG1_0095	-	hypothetical protein
97	 40.00	0	98188..99132	+	314	108562521	-	HPAG1_0096	-	2-hydroxyacid dehydrogenase
98	 40.90	0	99279..99992	-	237	108562522	-	HPAG1_0097	-	hypothetical protein
99	 41.27	0	100097..101557	-	486	108562523	-	HPAG1_0098	-	threonine synthase
100	 39.79	0	101761..103788	+	675	108562524	-	HPAG1_0099	-	methyl-accepting chemotaxis transmembrane sensory protein
101	 38.66	0	103788..104894	+	368	108562525	-	HPAG1_0100	-	hypothetical protein
102	 35.56	-1	105008..105769	+	253	108562526	-	HPAG1_0101	-	hypothetical protein
103	 38.72	0	105752..106531	-	259	108562527	-	HPAG1_0102	-	hypothetical protein
104	 41.46	0	106562..108259	-	565	108562528	-	HPAG1_0103	-	methyl-accepting chemotaxis protein
105	 39.75	0	108461..110206	-	581	108562529	-	HPAG1_0104	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase
106	 44.44	+1	110374..110841	-	155	108562530	-	HPAG1_0105	-	S-ribosylhomocysteinase
107	 46.63	+2	110879..112021	-	380	108562531	-	HPAG1_0106	-	cystathionine gamma-synthase/cystathionine beta-lyase
108	 46.80	+2	112042..112962	-	306	108562532	-	HPAG1_0107	-	cysteine synthetase
109	 40.04	0	113121..113642	+	173	108562533	-	HPAG1_0108	-	hypothetical protein
110	 43.21	+1	113876..115738	-	620	108562534	-	HPAG1_0109	-	molecular chaperone DnaK
111	 41.15	0	115769..116344	-	191	108562535	-	HPAG1_0110	-	co-chaperone and heat shock protein 24
112	 38.75	0	116344..117174	-	276	108562536	-	HPAG1_0111	-	heat-inducible transcription repressor
113	 40.69	0	117385..118023	+	212	108562537	-	HPAG1_0112	-	hypothetical protein
114	 40.74	0	118044..118340	+	98	108562538	-	HPAG1_0113	-	hypothetical protein
115	 37.31	0	118350..120236	-	628	108562539	-	HPAG1_0114	-	hypothetical protein
116	 46.54	+2	120296..121840	-	514	108562540	-	HPAG1_0115	-	flagellin B
117	 39.76	0	122006..124216	+	736	108562541	-	HPAG1_0116	-	DNA topoisomerase I
118	 39.81	0	124209..125135	+	308	108562542	-	HPAG1_0117	-	hypothetical protein
119	 33.33	-1	125275..126492	-	405	108562543	-	HPAG1_0118	-	hypothetical protein
120	 34.47	-1	126777..128009	-	410	108562544	-	HPAG1_0119	-	hypothetical protein
121	 42.15	0	128097..130535	-	812	108562545	-	HPAG1_0120	-	phosphoenolpyruvate synthase
122	 39.86	0	130715..130852	+	45	108562546	-	HPAG1_0121	-	hypothetical protein
123	 41.44	0	130909..132747	+	612	108562547	thrS	HPAG1_0122	-	threonyl-tRNA synthetase
124	 37.75	0	132744..133355	+	203	108562548	infC	HPAG1_0123	-	translation initiation factor IF-3
125	 41.54	0	133336..133530	+	64	108562549	rpmI	HPAG1_0124	-	50S ribosomal protein L35
126	 41.88	0	133624..133974	+	116	108562550	rplT	HPAG1_0125	-	50S ribosomal protein L20
127	 42.16	0	134174..135034	+	286	108562551	-	HPAG1_0126	-	outer membrane protein HorB
128	 33.33	-1	135086..135211	+	41	108562552	-	HPAG1_0127	-	hypothetical protein
129	 36.81	0	135378..135809	+	143	108562553	-	HPAG1_0128	-	hypothetical protein
130	 39.14	0	136221..137081	+	286	108562554	-	HPAG1_0129	-	hypothetical protein
131	 42.62	0	137683..139050	-	455	108562555	-	HPAG1_0130	-	L-serine deaminase
132	 39.05	0	139050..140291	-	413	108562556	-	HPAG1_0131	-	L-serine transporter
133	 44.30	+1	140473..141822	+	449	108562557	-	HPAG1_0132	-	tyrosine-regulated 3-deoxy-D-arabino-heptulosonate 7-phosphate synthase
134	 34.81	-1	142115..142249	+	44	108562558	-	HPAG1_0133	-	hypothetical protein
135	 40.96	0	142480..142938	-	152	108562559	-	HPAG1_0134	-	bacterioferritin comigratory protein
136	 38.99	0	142948..143583	-	211	108562560	-	HPAG1_0135	-	hypothetical protein
137	 42.88	+1	143576..145021	-	481	108562561	-	HPAG1_0136	-	putative iron-sulfur protein
138	 40.19	0	145051..145779	-	242	108562562	-	HPAG1_0137	-	hypothetical protein
139	 43.70	+1	145999..147648	+	549	108562563	-	HPAG1_0138	-	L-lactate permease
140	 42.51	0	147698..149353	+	551	108562564	-	HPAG1_0139	-	L-lactate permease
141	 36.88	0	149377..150363	-	328	108562565	-	HPAG1_0140	-	A/G-specific adenine glycosylase
142	 42.51	0	150364..151812	-	482	108562566	-	HPAG1_0141	-	C(4)-dicarboxylates and tricarboxylates/succinate antiporter
143	 42.06	0	151982..153448	+	488	108562567	-	HPAG1_0142	-	cytochrome c oxidase heme b and copper-binding subunit
144	 43.35	+1	153461..154159	+	232	108562568	-	HPAG1_0143	-	cytochrome c oxidase monoheme subunit
145	 34.68	-1	154167..154388	+	73	108562569	-	HPAG1_0144	-	cytochrome c oxidase subunit Q
146	 41.75	0	154390..155268	+	292	108562570	-	HPAG1_0145	-	cytochrome c oxidase diheme subunit
147	 36.23	0	155279..155485	+	68	108562571	-	HPAG1_0146	-	hypothetical protein
148	 38.12	0	155586..156170	+	194	108562572	-	HPAG1_0147	-	hypothetical protein
149	 37.23	0	156183..156773	+	196	108562573	-	HPAG1_0148	-	hypothetical protein
150	 36.46	0	156854..157621	+	255	108562574	-	HPAG1_0149	-	hypothetical protein
151	 38.89	0	157618..158481	-	287	108562575	-	HPAG1_0150	-	hypothetical protein
152	 43.87	+1	158580..159623	+	347	108562576	recA	HPAG1_0151	-	recombinase A
153	 43.72	+1	159636..160916	+	426	108562577	eno	HPAG1_0152	-	phosphopyruvate hydratase
154	 38.41	0	160909..161184	+	91	108562578	-	HPAG1_0153	-	hypothetical protein
155	 37.81	0	161196..161798	+	200	108562579	-	HPAG1_0154	-	hypothetical protein
156	 38.85	0	161803..162291	+	162	108562580	aroK	HPAG1_0155	-	shikimate kinase
157	 40.75	0	162312..163268	+	318	108562581	-	HPAG1_0156	-	hypothetical protein
158	 35.66	0	163265..164383	-	372	108562582	-	HPAG1_0157	-	lipopolysaccharide 1,2-glycosyltransferase
159	 41.69	0	164535..165455	+	306	108562583	-	HPAG1_0158	-	cysteine-rich protein D
160	 41.22	0	165996..166718	-	240	108562584	-	HPAG1_0159	-	hypothetical protein
161	 39.40	0	166719..167690	-	323	108562585	-	HPAG1_0160	-	delta-aminolevulinic acid dehydratase
162	 35.28	-1	167762..169045	-	427	108562586	-	HPAG1_0161	-	putative histidine kinase sensor protein
163	 38.50	0	169071..169748	-	225	108562587	-	HPAG1_0162	-	response regulator
164	 38.16	0	169980..170456	-	158	108562588	-	HPAG1_0163	-	hypothetical protein
165	 33.33	-1	170435..170698	-	87	108562589	-	HPAG1_0164	-	hypothetical protein
166	 42.00	0	170745..172013	-	422	108562590	-	HPAG1_0165	-	collagenase
167	 41.67	0	172016..172747	-	243	108562591	-	HPAG1_0166	-	hypothetical protein
168	 42.03	0	172822..173913	-	363	108562592	prfB	HPAG1_0167	-	peptide chain release factor 2
169	 38.18	0	173974..175149	-	391	108562593	-	HPAG1_0168	-	molybdopterin biosynthesis protein
170	 41.80	0	175159..175926	-	255	108562594	fliR	HPAG1_0169	-	flagellar biosynthesis protein FliR
171	 31.55	-2	175920..176648	-	242	108562595	-	HPAG1_0170	-	hypothetical protein
172	 39.44	0	177121..178020	+	299	108562596	-	HPAG1_0171	-	peptidyl-prolyl cis-trans isomerase C
173	 43.29	+1	178037..178960	+	307	108562597	-	HPAG1_0172	-	fructose-bisphosphate aldolase
174	 44.86	+1	178982..179545	+	187	108562598	-	HPAG1_0173	-	elongation factor P
39.24	MEAN

3.61	STD DEV
