IslandPath Analysis: Helicobacter pylori HPAG1

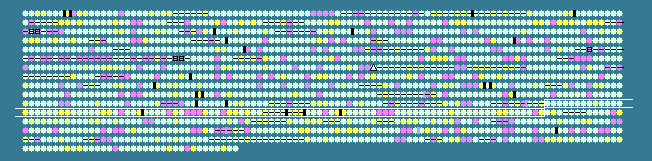

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1088	 38.70	0	1142326..1143015	-	229	108563512	trmD	HPAG1_1087	-	tRNA (guanine-N(1)-)-methyltransferase
1089	 37.48	0	1143016..1143570	-	184	108563513	-	HPAG1_1088	-	hypothetical protein
1090	 40.12	0	1143571..1143894	-	107	108563514	-	HPAG1_1089	-	hypothetical protein
1091	 41.99	0	1143911..1144141	-	76	108563515	rpsP	HPAG1_1090	-	30S ribosomal protein S16
1092	 41.65	0	1144215..1145561	-	448	108563516	-	HPAG1_1091	-	signal recognition particle protein
1093	 39.70	0	1145576..1148200	-	874	108563517	valS	HPAG1_1092	-	valyl-tRNA synthetase
1094	 37.01	0	1148331..1148738	+	135	108563518	-	HPAG1_1093	-	flagellar assembly protein FliW
1095	 41.34	0	1148750..1149811	+	353	108563519	murG	HPAG1_1094	-	N-acetylglucosaminyl transferase
1096	 42.80	0	1149919..1152009	+	696	108563520	-	HPAG1_1095	-	outer membrane protein HopI
1097	 42.25	0	1152032..1155754	+	1240	108563521	-	HPAG1_1096	-	outer membrane protein HopL
1098	 41.34	0	1155770..1156543	+	257	108563522	-	HPAG1_1097	-	pyrroline-5-carboxylate reductase
1099	 36.89	0	1156571..1157104	+	177	108563523	-	HPAG1_1098	-	cell filamentation protein
1100	 41.84	0	1157351..1157773	-	140	108563524	-	HPAG1_1099	-	putative metalloprotease
1101	 42.83	0	1157827..1158321	-	164	108563525	-	HPAG1_1100	-	flavodoxin FldA
1102	 37.97	0	1158413..1158994	-	193	108563526	-	HPAG1_1101	-	hypothetical protein
1103	 39.06	0	1159117..1159308	+	63	108563527	-	HPAG1_1102	-	cation transport subunit for cbb3-type oxidase
1104	 41.64	0	1159334..1160308	+	324	108563528	-	HPAG1_1103	-	thioredoxin reductase
1105	 38.42	0	1160315..1161475	-	386	108563529	-	HPAG1_1104	-	tetracycline resistance protein tetA(P)
1106	 40.66	0	1161539..1163176	+	545	108563530	-	HPAG1_1105	-	glucose-6-phosphate isomerase
1107	 43.29	+1	1163482..1164897	+	471	108563531	-	HPAG1_1106	-	outer membrane protein HofH
1108	 44.38	+1	1165190..1167253	-	687	108563532	-	HPAG1_1107	-	carbon starvation protein
1109	 39.14	0	1167463..1168116	+	217	108563533	-	HPAG1_1108	-	glutamine ABC transporter, permease protein
1110	 39.29	0	1168119..1168790	+	223	108563534	-	HPAG1_1109	-	glutamine ABC transporter, permease protein
1111	 38.42	0	1168792..1169538	+	248	108563535	-	HPAG1_1110	-	glutamine ABC transporter, ATP-binding protein
1112	 37.53	0	1169587..1170420	+	277	108563536	-	HPAG1_1111	-	glutamine ABC transporter, periplasmic glutamine-binding protein
1113	 39.31	0	1170542..1171093	+	183	108563537	-	HPAG1_1112	-	hypothetical protein
1114	 43.30	+1	1171316..1172539	-	407	108563538	-	HPAG1_1113	-	glucose/galactose transporter
1115	 44.34	+1	1172668..1173975	-	435	108563539	-	HPAG1_1114	-	hypothetical protein
1116	 40.24	0	1174427..1176352	-	641	108563540	-	HPAG1_1115	-	outer membrane protein HopQ
1117	 35.48	-1	1176598..1176690	+	30	108563541	-	HPAG1_1116	-	hypothetical protein
1118	 41.88	0	1176813..1177514	-	233	108563542	-	HPAG1_1117	-	purine-nucleoside phosphorylase
1119	 39.05	0	1177511..1178752	-	413	108563543	-	HPAG1_1118	-	phosphopentomutase
1120	 45.19	+1	1178764..1180020	-	418	108563544	-	HPAG1_1119	-	pyrimidine nucleoside transport protein
1121	 41.14	0	1180333..1181664	+	443	108563545	-	HPAG1_1120	-	multidrug-efflux transporter
1122	 42.13	0	1181684..1182445	+	253	108563546	-	HPAG1_1121	-	hypothetical protein
1123	 38.19	0	1182454..1183605	-	383	108563547	-	HPAG1_1122	-	Na+/H+ antiporter
1124	 39.57	0	1183631..1185010	-	459	108563549	-	HPAG1_1123	-	hypothetical protein
1125	 29.35	-2	1184984..1185184	+	66	108563548	-	HPAG1_1124	-	hypothetical protein
1126	 43.62	+1	1185171..1186346	-	391	108563550	-	HPAG1_1125	-	sugar efflux transporter
1127	 42.07	0	1186622..1187365	+	247	108563551	-	HPAG1_1126	-	alpha-carbonic anhydrase
1128	 35.14	-1	1187586..1188635	-	349	108563552	-	HPAG1_1127	-	hypothetical protein
1129	 33.51	-1	1188900..1190063	-	387	108563553	-	HPAG1_1128	-	hypothetical protein
1130	 34.36	-1	1190348..1191415	-	355	108563554	-	HPAG1_1129	-	hypothetical protein
1131	 42.84	0	1191843..1192883	-	346	108563555	-	HPAG1_1130	-	aspartate-semialdehyde dehydrogenase
1132	 38.45	0	1192870..1194198	-	442	108563556	hisS	HPAG1_1131	-	histidyl-tRNA synthetase
1133	 40.38	0	1194260..1195309	+	349	108563557	-	HPAG1_1132	-	ADP-heptose-LPS heptosyltransferase II
1134	 35.38	-1	1195501..1195890	-	129	108563558	-	HPAG1_1133	-	hypothetical protein
1135	 45.31	+1	1196244..1198322	-	692	108563559	-	HPAG1_1134	-	elongation factor G
1136	 44.23	+1	1198334..1198801	-	155	108563560	-	HPAG1_1135	-	30S ribosomal protein S7
1137	 42.16	0	1198817..1199224	-	135	108563561	rpsL	HPAG1_1136	-	30S ribosomal protein S12
1138	 43.48	+1	1199313..1207985	-	2890	108563562	-	HPAG1_1137	-	DNA-directed RNA polymerase subunit beta/beta'
1139	 42.06	0	1208215..1208592	-	125	108563563	rplL	HPAG1_1138	-	50S ribosomal protein L7/L12
1140	 39.80	0	1208638..1209132	-	164	108563564	rplJ	HPAG1_1139	-	50S ribosomal protein L10
1141	 44.11	+1	1209241..1209945	-	234	108563565	rplA	HPAG1_1140	-	50S ribosomal protein L1
1142	 42.49	0	1209990..1210415	-	141	108563566	rplK	HPAG1_1141	-	50S ribosomal protein L11
1143	 39.92	0	1210433..1210963	-	176	108563567	nusG	HPAG1_1142	-	transcription antitermination protein NusG
1144	 37.22	0	1210990..1211169	-	59	108563568	secE	HPAG1_1143	-	preprotein translocase subunit SecE
1145	 35.85	0	1211427..1211585	-	52	108563569	rpmG	HPAG1_1144	-	50S ribosomal protein L33
1146	 44.94	+1	1211619..1212152	-	177	108563570	-	HPAG1_1145	-	translation elongation factor EF-Tu
1147	 43.66	+1	1212092..1212817	-	241	108563571	-	HPAG1_1146	-	translation elongation factor EF-Tu
1148	 37.82	0	1213514..1215250	+	578	108563572	-	HPAG1_1147	-	ABC transporter ATPase
1149	 37.67	0	1215259..1215927	-	222	108563573	-	HPAG1_1148	-	hypothetical protein
1150	 36.87	0	1216030..1217019	-	329	108563574	-	HPAG1_1149	-	type II adenine specific DNA methyltransferase
1151	 34.14	-1	1217028..1217276	-	82	108563575	-	HPAG1_1150	-	iceA1
1152	 36.47	0	1217269..1217715	-	148	108563576	-	HPAG1_1151	-	iceA1
1153	 50.78	+2	1217800..1218315	-	171	108563577	-	HPAG1_1152	-	serine acetyltransferase
1154	 45.60	+1	1218908..1219225	-	105	108563578	-	HPAG1_1153	-	F0F1 ATP synthase subunit C
1155	 41.22	0	1219358..1221424	-	688	108563579	-	HPAG1_1154	-	polynucleotide phosphorylase/polyadenylase
1156	 38.12	0	1221427..1222137	-	236	108563580	-	HPAG1_1155	-	hypothetical protein
1157	 37.75	0	1222146..1224407	-	753	108563581	-	HPAG1_1156	-	organic solvent tolerance protein
1158	 36.04	0	1224410..1224889	-	159	108563582	-	HPAG1_1157	-	hypothetical protein
1159	 39.06	0	1224938..1226212	-	424	108563583	-	HPAG1_1158	-	glycinamide ribonucleotide synthetase
1160	 32.84	-1	1226332..1226532	+	66	108563584	-	HPAG1_1159	-	hypothetical protein
1161	 30.18	-2	1226595..1226975	-	126	108563585	-	HPAG1_1160	-	hypothetical protein
1162	 26.23	-2	1227138..1227461	-	107	108563586	-	HPAG1_1161	-	hypothetical protein
1163	 38.14	0	1227855..1228541	-	228	108563587	-	HPAG1_1162	-	ABC transporter, ATP-binding protein
1164	 37.16	0	1228535..1229239	-	234	108563588	-	HPAG1_1163	-	hypothetical protein
1165	 39.81	0	1229280..1232120	-	946	108563589	-	HPAG1_1164	-	D-lactate dehydrogenase
1166	 39.34	0	1232192..1232524	+	110	108563590	-	HPAG1_1165	-	hypothetical protein
1167	 37.74	0	1232527..1233207	+	226	108563591	hemD	HPAG1_1166	-	uroporphyrinogen-III synthase
1168	 39.95	0	1233255..1233647	+	130	108563592	-	HPAG1_1167	-	hypothetical protein
1169	 37.49	0	1233698..1234756	-	352	108563593	-	HPAG1_1168	-	coproporphyrinogen III oxidase
1170	 40.55	0	1234832..1235122	+	96	108563594	-	HPAG1_1169	-	hypothetical protein
1171	 42.31	0	1235283..1235750	+	155	108563595	-	HPAG1_1170	-	dinucleoside polyphosphate hydrolase
1172	 45.48	+1	1235752..1236969	+	405	108563596	-	HPAG1_1171	-	aspartate kinase
1173	 39.96	0	1236966..1237508	+	180	108563597	-	HPAG1_1172	-	hypothetical protein
1174	 36.83	0	1237505..1238161	+	218	108563598	-	HPAG1_1173	-	DNA polymerase III subunit delta'
1175	 40.07	0	1238158..1239300	+	380	108563599	-	HPAG1_1174	-	dihydropteroate synthase
1176	 40.91	0	1239388..1239849	-	153	108563600	-	HPAG1_1175	-	hypothetical protein
1177	 40.81	0	1240239..1241147	+	302	108563601	-	HPAG1_1176	-	hypothetical protein
1178	 38.54	0	1241138..1242385	+	415	108563602	-	HPAG1_1177	-	hypothetical protein
1179	 36.41	0	1242464..1243015	+	183	108563603	-	HPAG1_1178	-	hypothetical protein
1180	 42.82	0	1243015..1244142	+	375	108563604	-	HPAG1_1179	-	carbamoyl phosphate synthase small subunit
1181	 45.17	+1	1244308..1245312	+	334	108563605	amiF	HPAG1_1180	-	formamidase
1182	 42.22	0	1245559..1245648	-	29	108563606	-	HPAG1_1181	-	hypothetical protein
1183	 41.88	0	1245751..1246323	-	190	108563607	-	HPAG1_1182	-	Maf-like protein
1184	 42.53	0	1246325..1248868	-	847	108563608	alaS	HPAG1_1183	-	alanyl-tRNA synthetase
1185	 35.93	0	1248987..1249217	+	76	108563609	-	HPAG1_1184	-	hypothetical protein
1186	 33.33	-1	1249607..1249855	-	82	108563610	-	HPAG1_1185	-	hypothetical protein
1187	 44.84	+1	1250171..1252387	-	738	108563611	-	HPAG1_1186	-	outer membrane protein HopU
39.24	MEAN

3.61	STD DEV
