IslandPath Analysis: Helicobacter pylori HPAG1

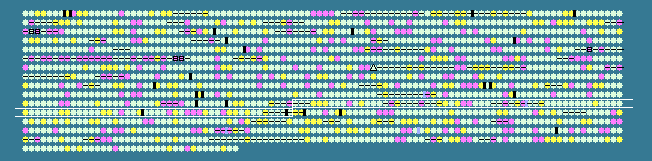

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1046	 39.76	0	1100986..1102293	+	435	108563470	-	HPAG1_1045	-	hypothetical protein
1047	 39.97	0	1102300..1102992	-	230	108563471	-	HPAG1_1046	-	outer membrane protein HorH
1048	 40.82	0	1103242..1103802	+	186	108563472	-	HPAG1_1047	-	pyruvate flavodoxin oxidoreductase subunit gamma
1049	 43.26	+1	1103818..1104210	+	130	108563473	porD	HPAG1_1048	-	pyruvate flavodoxin oxidoreductase subunit delta
1050	 45.10	+1	1104220..1105443	+	407	108563474	porA	HPAG1_1049	-	pyruvate flavodoxin oxidoreductase subunit alpha
1051	 43.28	+1	1105456..1106400	+	314	108563475	-	HPAG1_1050	-	ferrodoxin oxidoreductase beta subunit
1052	 42.03	0	1106510..1107832	+	440	108563476	-	HPAG1_1051	-	adenylosuccinate lyase
1053	 38.37	0	1107897..1108730	+	277	108563477	-	HPAG1_1052	-	outer membrane protein Horl
1054	 40.47	0	1108727..1110703	-	658	108563478	-	HPAG1_1053	-	excinuclease ABC subunit B
1055	 35.54	-1	1110773..1111816	-	347	108563479	-	HPAG1_1054	-	hypothetical protein
1056	 38.00	0	1112089..1112859	-	256	108563480	-	HPAG1_1055	-	cysteine-rich protein X
1057	 43.54	+1	1113126..1114829	-	567	108563481	-	HPAG1_1056	-	gamma-glutamyltranspeptidase
1058	 39.43	0	1115029..1116849	-	606	108563482	flgK	HPAG1_1057	-	flagellar hook-associated protein FlgK
1059	 36.09	0	1116851..1117285	-	144	108563483	-	HPAG1_1058	-	hypothetical protein
1060	 36.20	0	1117411..1118352	-	313	108563484	-	HPAG1_1059	-	type II DNA modification enzyme
1061	 35.93	0	1118514..1118744	-	76	108563485	-	HPAG1_1060	-	hypothetical protein
1062	 30.43	-2	1118781..1118987	-	68	108563486	-	HPAG1_1061	-	hypothetical protein
1063	 43.73	+1	1119019..1119576	-	185	108563487	-	HPAG1_1062	-	peptidyl-prolyl cis-trans isomerase
1064	 37.55	0	1119563..1120558	-	331	108563488	-	HPAG1_1063	-	hypothetical protein
1065	 39.63	0	1120566..1121105	-	179	108563489	-	HPAG1_1064	-	peptidoglycan-associated lipoprotein precursor
1066	 37.24	0	1121172..1122425	-	417	108563490	tolB	HPAG1_1065	-	translocation protein TolB
1067	 34.30	-1	1122422..1123246	-	274	108563491	-	HPAG1_1066	-	hypothetical protein
1068	 36.07	0	1123265..1123666	-	133	108563492	-	HPAG1_1067	-	biopolymer transport protein
1069	 37.72	0	1123719..1124288	-	189	108563493	-	HPAG1_1068	-	biopolymer transport protein
1070	 44.09	+1	1124299..1124670	-	123	108563494	atpC	HPAG1_1069	-	F0F1 ATP synthase subunit epsilon
1071	 45.11	+1	1124681..1126090	-	469	108563495	-	HPAG1_1070	-	F0F1 ATP synthase subunit beta
1072	 37.09	0	1126114..1127019	-	301	108563496	-	HPAG1_1071	-	F0F1 ATP synthase subunit gamma
1073	 44.18	+1	1127034..1128545	-	503	108563497	-	HPAG1_1072	-	F0F1 ATP synthase subunit alpha
1074	 33.70	-1	1128568..1129110	-	180	108563498	-	HPAG1_1073	-	F0F1 ATP synthase subunit delta
1075	 33.33	-1	1129111..1129626	-	171	108563499	-	HPAG1_1074	-	F0F1 ATP synthase subunit B
1076	 41.38	0	1129630..1130064	-	144	108563500	-	HPAG1_1075	-	F0F1 ATP synthase subunit B'
1077	 38.03	0	1130175..1131047	-	290	108563501	-	HPAG1_1076	-	plasmid replication-partition related protein
1078	 39.87	0	1131051..1131845	-	264	108563502	-	HPAG1_1077	-	spoOJ regulator
1079	 39.59	0	1131848..1132486	-	212	108563503	-	HPAG1_1078	-	biotin--protein ligase
1080	 39.54	0	1132483..1133400	-	305	108563504	fmt	HPAG1_1079	-	methionyl-tRNA formyltransferase
1081	 29.78	-2	1133402..1135849	-	815	108563505	-	HPAG1_1080	-	hypothetical protein
1082	 40.42	0	1135910..1137208	-	432	108563506	-	HPAG1_1081	-	hypothetical protein
1083	 43.75	+1	1137467..1137562	+	31	108563507	-	HPAG1_1082	-	hypothetical protein
1084	 29.23	-2	1137948..1138142	-	64	108563508	-	HPAG1_1083	-	hypothetical protein
1085	 42.22	0	1140747..1141106	-	119	108563509	-	HPAG1_1084	-	hypothetical protein
1086	 36.71	0	1141099..1141335	-	78	108563510	-	HPAG1_1085	-	hypothetical protein
1087	 45.66	+1	1141947..1142303	-	118	108563511	rplS	HPAG1_1086	-	50S ribosomal protein L19
1088	 38.70	0	1142326..1143015	-	229	108563512	trmD	HPAG1_1087	-	tRNA (guanine-N(1)-)-methyltransferase
1089	 37.48	0	1143016..1143570	-	184	108563513	-	HPAG1_1088	-	hypothetical protein
1090	 40.12	0	1143571..1143894	-	107	108563514	-	HPAG1_1089	-	hypothetical protein
1091	 41.99	0	1143911..1144141	-	76	108563515	rpsP	HPAG1_1090	-	30S ribosomal protein S16
1092	 41.65	0	1144215..1145561	-	448	108563516	-	HPAG1_1091	-	signal recognition particle protein
1093	 39.70	0	1145576..1148200	-	874	108563517	valS	HPAG1_1092	-	valyl-tRNA synthetase
1094	 37.01	0	1148331..1148738	+	135	108563518	-	HPAG1_1093	-	flagellar assembly protein FliW
1095	 41.34	0	1148750..1149811	+	353	108563519	murG	HPAG1_1094	-	N-acetylglucosaminyl transferase
1096	 42.80	0	1149919..1152009	+	696	108563520	-	HPAG1_1095	-	outer membrane protein HopI
1097	 42.25	0	1152032..1155754	+	1240	108563521	-	HPAG1_1096	-	outer membrane protein HopL
1098	 41.34	0	1155770..1156543	+	257	108563522	-	HPAG1_1097	-	pyrroline-5-carboxylate reductase
1099	 36.89	0	1156571..1157104	+	177	108563523	-	HPAG1_1098	-	cell filamentation protein
1100	 41.84	0	1157351..1157773	-	140	108563524	-	HPAG1_1099	-	putative metalloprotease
1101	 42.83	0	1157827..1158321	-	164	108563525	-	HPAG1_1100	-	flavodoxin FldA
1102	 37.97	0	1158413..1158994	-	193	108563526	-	HPAG1_1101	-	hypothetical protein
1103	 39.06	0	1159117..1159308	+	63	108563527	-	HPAG1_1102	-	cation transport subunit for cbb3-type oxidase
1104	 41.64	0	1159334..1160308	+	324	108563528	-	HPAG1_1103	-	thioredoxin reductase
1105	 38.42	0	1160315..1161475	-	386	108563529	-	HPAG1_1104	-	tetracycline resistance protein tetA(P)
1106	 40.66	0	1161539..1163176	+	545	108563530	-	HPAG1_1105	-	glucose-6-phosphate isomerase
1107	 43.29	+1	1163482..1164897	+	471	108563531	-	HPAG1_1106	-	outer membrane protein HofH
1108	 44.38	+1	1165190..1167253	-	687	108563532	-	HPAG1_1107	-	carbon starvation protein
1109	 39.14	0	1167463..1168116	+	217	108563533	-	HPAG1_1108	-	glutamine ABC transporter, permease protein
1110	 39.29	0	1168119..1168790	+	223	108563534	-	HPAG1_1109	-	glutamine ABC transporter, permease protein
1111	 38.42	0	1168792..1169538	+	248	108563535	-	HPAG1_1110	-	glutamine ABC transporter, ATP-binding protein
1112	 37.53	0	1169587..1170420	+	277	108563536	-	HPAG1_1111	-	glutamine ABC transporter, periplasmic glutamine-binding protein
1113	 39.31	0	1170542..1171093	+	183	108563537	-	HPAG1_1112	-	hypothetical protein
1114	 43.30	+1	1171316..1172539	-	407	108563538	-	HPAG1_1113	-	glucose/galactose transporter
1115	 44.34	+1	1172668..1173975	-	435	108563539	-	HPAG1_1114	-	hypothetical protein
1116	 40.24	0	1174427..1176352	-	641	108563540	-	HPAG1_1115	-	outer membrane protein HopQ
1117	 35.48	-1	1176598..1176690	+	30	108563541	-	HPAG1_1116	-	hypothetical protein
1118	 41.88	0	1176813..1177514	-	233	108563542	-	HPAG1_1117	-	purine-nucleoside phosphorylase
1119	 39.05	0	1177511..1178752	-	413	108563543	-	HPAG1_1118	-	phosphopentomutase
1120	 45.19	+1	1178764..1180020	-	418	108563544	-	HPAG1_1119	-	pyrimidine nucleoside transport protein
1121	 41.14	0	1180333..1181664	+	443	108563545	-	HPAG1_1120	-	multidrug-efflux transporter
1122	 42.13	0	1181684..1182445	+	253	108563546	-	HPAG1_1121	-	hypothetical protein
1123	 38.19	0	1182454..1183605	-	383	108563547	-	HPAG1_1122	-	Na+/H+ antiporter
1124	 39.57	0	1183631..1185010	-	459	108563549	-	HPAG1_1123	-	hypothetical protein
1125	 29.35	-2	1184984..1185184	+	66	108563548	-	HPAG1_1124	-	hypothetical protein
1126	 43.62	+1	1185171..1186346	-	391	108563550	-	HPAG1_1125	-	sugar efflux transporter
1127	 42.07	0	1186622..1187365	+	247	108563551	-	HPAG1_1126	-	alpha-carbonic anhydrase
1128	 35.14	-1	1187586..1188635	-	349	108563552	-	HPAG1_1127	-	hypothetical protein
1129	 33.51	-1	1188900..1190063	-	387	108563553	-	HPAG1_1128	-	hypothetical protein
1130	 34.36	-1	1190348..1191415	-	355	108563554	-	HPAG1_1129	-	hypothetical protein
1131	 42.84	0	1191843..1192883	-	346	108563555	-	HPAG1_1130	-	aspartate-semialdehyde dehydrogenase
1132	 38.45	0	1192870..1194198	-	442	108563556	hisS	HPAG1_1131	-	histidyl-tRNA synthetase
1133	 40.38	0	1194260..1195309	+	349	108563557	-	HPAG1_1132	-	ADP-heptose-LPS heptosyltransferase II
1134	 35.38	-1	1195501..1195890	-	129	108563558	-	HPAG1_1133	-	hypothetical protein
1135	 45.31	+1	1196244..1198322	-	692	108563559	-	HPAG1_1134	-	elongation factor G
1136	 44.23	+1	1198334..1198801	-	155	108563560	-	HPAG1_1135	-	30S ribosomal protein S7
1137	 42.16	0	1198817..1199224	-	135	108563561	rpsL	HPAG1_1136	-	30S ribosomal protein S12
1138	 43.48	+1	1199313..1207985	-	2890	108563562	-	HPAG1_1137	-	DNA-directed RNA polymerase subunit beta/beta'
1139	 42.06	0	1208215..1208592	-	125	108563563	rplL	HPAG1_1138	-	50S ribosomal protein L7/L12
1140	 39.80	0	1208638..1209132	-	164	108563564	rplJ	HPAG1_1139	-	50S ribosomal protein L10
1141	 44.11	+1	1209241..1209945	-	234	108563565	rplA	HPAG1_1140	-	50S ribosomal protein L1
1142	 42.49	0	1209990..1210415	-	141	108563566	rplK	HPAG1_1141	-	50S ribosomal protein L11
1143	 39.92	0	1210433..1210963	-	176	108563567	nusG	HPAG1_1142	-	transcription antitermination protein NusG
1144	 37.22	0	1210990..1211169	-	59	108563568	secE	HPAG1_1143	-	preprotein translocase subunit SecE
1145	 35.85	0	1211427..1211585	-	52	108563569	rpmG	HPAG1_1144	-	50S ribosomal protein L33
39.24	MEAN

3.61	STD DEV
