IslandPath Analysis: Helicobacter pylori HPAG1

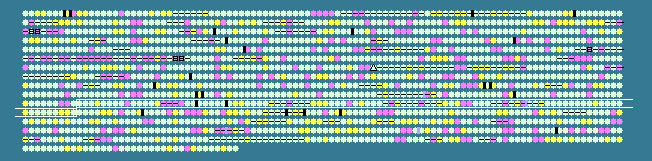

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.24 STD DEV: 3.61
Helicobacter pylori HPAG1, complete genome - 1..1596366
1536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1010	 37.48	0	1063243..1063773	-	176	108563434	-	HPAG1_1009	-	hypothetical protein
1011	 39.54	0	1063947..1065170	+	407	108563435	-	HPAG1_1010	-	zinc-metalloprotease
1012	 39.03	0	1065167..1065991	+	274	108563436	-	HPAG1_1011	-	S-adenosylmethionine-dependent methyltransferase
1013	 44.25	+1	1066063..1067409	+	448	108563437	-	HPAG1_1012	-	glutamate dehydrogenase
1014	 37.11	0	1067423..1068799	-	458	108563438	-	HPAG1_1013	-	alpha 1,3-fucosyltransferase
1015	 40.55	0	1068809..1071619	-	936	108563439	-	HPAG1_1014	-	cytochrome c-type biogenesis protein
1016	 36.24	0	1071606..1072292	-	228	108563440	-	HPAG1_1015	-	thiol:disulfide interchange protein
1017	 37.30	0	1072366..1073373	-	335	108563441	hemH	HPAG1_1016	-	ferrochelatase
1018	 35.42	-1	1073429..1073860	+	143	108563442	-	HPAG1_1017	-	hypothetical protein
1019	 39.35	0	1073861..1074541	+	226	108563443	-	HPAG1_1018	-	hypothetical protein
1020	 38.99	0	1074565..1076667	-	700	108563444	-	HPAG1_1019	-	outer membrane protein
1021	 41.71	0	1076827..1077399	-	190	108563445	dcd	HPAG1_1020	-	deoxycytidine triphosphate deaminase
1022	 42.24	0	1077517..1077999	+	160	108563446	-	HPAG1_1021	-	biotin carboxyl carrier protein
1023	 43.72	+1	1078005..1079381	+	458	108563447	-	HPAG1_1022	-	biotin carboxylase
1024	 34.06	-1	1079474..1080295	+	273	108563448	-	HPAG1_1023	-	putative type II DNA modification enzyme
1025	 30.41	-2	1080265..1080435	+	56	108563449	-	HPAG1_1024	-	putative type II DNA modification enzyme
1026	 32.69	-1	1080435..1080743	+	102	108563450	-	HPAG1_1025	-	hypothetical protein
1027	 28.27	-2	1080748..1080984	+	78	108563451	-	HPAG1_1026	-	hypothetical protein
1028	 38.05	0	1081077..1081670	+	197	108563452	-	HPAG1_1027	-	hypothetical protein
1029	 38.08	0	1081667..1082803	+	378	108563453	-	HPAG1_1028	-	spore coat polysaccharide biosynthesis protein C
1030	 39.08	0	1083113..1084138	+	341	108563454	nrdF	HPAG1_1029	-	ribonucleotide-diphosphate reductase subunit beta
1031	 42.54	0	1084148..1084777	+	209	108563455	pcm	HPAG1_1030	-	protein-L-isoaspartate O-methyltransferase
1032	 36.90	0	1084788..1085825	+	345	108563456	-	HPAG1_1031	-	hypothetical protein
1033	 41.56	0	1085826..1086554	+	242	108563457	truA	HPAG1_1032	-	tRNA pseudouridine synthase A
1034	 39.42	0	1086548..1087582	-	344	108563458	-	HPAG1_1033	-	UDP-glucose 4-epimerase
1035	 37.37	0	1088114..1089649	+	511	108563459	-	HPAG1_1034	-	putative outer membrane protein
1036	 43.03	+1	1089671..1090423	+	250	108563460	-	HPAG1_1035	-	short chain alcohol dehydrogenase
1037	 42.84	0	1090636..1091508	-	290	108563461	-	HPAG1_1036	-	cysteine-rich protein C
1038	 41.79	0	1091578..1092204	-	208	108563462	-	HPAG1_1037	-	2-keto-3-deoxy-6-phosphogluconate aldolase
1039	 42.69	0	1092223..1094049	-	608	108563463	-	HPAG1_1038	-	phosphogluconate dehydratase
1040	 37.17	0	1094115..1095392	+	425	108563464	-	HPAG1_1039	-	glucose-6-phosphate 1-dehydrogenase
1041	 39.04	0	1095403..1096086	+	227	108563465	-	HPAG1_1040	-	glucose-6-phosphate 1-dehydrogenase
1042	 46.49	+2	1096073..1097083	+	336	108563466	glk	HPAG1_1041	-	glucokinase
1043	 41.74	0	1097253..1098299	+	348	108563467	-	HPAG1_1042	-	mannitol dehydrogenase
1044	 36.42	0	1098311..1099477	-	388	108563468	-	HPAG1_1043	-	putative lipopolysaccharide biosynthesis protein
1045	 35.51	-1	1099615..1100811	-	398	108563469	-	HPAG1_1044	-	putative lipopolysaccharide biosynthesis protein
1046	 39.76	0	1100986..1102293	+	435	108563470	-	HPAG1_1045	-	hypothetical protein
1047	 39.97	0	1102300..1102992	-	230	108563471	-	HPAG1_1046	-	outer membrane protein HorH
1048	 40.82	0	1103242..1103802	+	186	108563472	-	HPAG1_1047	-	pyruvate flavodoxin oxidoreductase subunit gamma
1049	 43.26	+1	1103818..1104210	+	130	108563473	porD	HPAG1_1048	-	pyruvate flavodoxin oxidoreductase subunit delta
1050	 45.10	+1	1104220..1105443	+	407	108563474	porA	HPAG1_1049	-	pyruvate flavodoxin oxidoreductase subunit alpha
1051	 43.28	+1	1105456..1106400	+	314	108563475	-	HPAG1_1050	-	ferrodoxin oxidoreductase beta subunit
1052	 42.03	0	1106510..1107832	+	440	108563476	-	HPAG1_1051	-	adenylosuccinate lyase
1053	 38.37	0	1107897..1108730	+	277	108563477	-	HPAG1_1052	-	outer membrane protein Horl
1054	 40.47	0	1108727..1110703	-	658	108563478	-	HPAG1_1053	-	excinuclease ABC subunit B
1055	 35.54	-1	1110773..1111816	-	347	108563479	-	HPAG1_1054	-	hypothetical protein
1056	 38.00	0	1112089..1112859	-	256	108563480	-	HPAG1_1055	-	cysteine-rich protein X
1057	 43.54	+1	1113126..1114829	-	567	108563481	-	HPAG1_1056	-	gamma-glutamyltranspeptidase
1058	 39.43	0	1115029..1116849	-	606	108563482	flgK	HPAG1_1057	-	flagellar hook-associated protein FlgK
1059	 36.09	0	1116851..1117285	-	144	108563483	-	HPAG1_1058	-	hypothetical protein
1060	 36.20	0	1117411..1118352	-	313	108563484	-	HPAG1_1059	-	type II DNA modification enzyme
1061	 35.93	0	1118514..1118744	-	76	108563485	-	HPAG1_1060	-	hypothetical protein
1062	 30.43	-2	1118781..1118987	-	68	108563486	-	HPAG1_1061	-	hypothetical protein
1063	 43.73	+1	1119019..1119576	-	185	108563487	-	HPAG1_1062	-	peptidyl-prolyl cis-trans isomerase
1064	 37.55	0	1119563..1120558	-	331	108563488	-	HPAG1_1063	-	hypothetical protein
1065	 39.63	0	1120566..1121105	-	179	108563489	-	HPAG1_1064	-	peptidoglycan-associated lipoprotein precursor
1066	 37.24	0	1121172..1122425	-	417	108563490	tolB	HPAG1_1065	-	translocation protein TolB
1067	 34.30	-1	1122422..1123246	-	274	108563491	-	HPAG1_1066	-	hypothetical protein
1068	 36.07	0	1123265..1123666	-	133	108563492	-	HPAG1_1067	-	biopolymer transport protein
1069	 37.72	0	1123719..1124288	-	189	108563493	-	HPAG1_1068	-	biopolymer transport protein
1070	 44.09	+1	1124299..1124670	-	123	108563494	atpC	HPAG1_1069	-	F0F1 ATP synthase subunit epsilon
1071	 45.11	+1	1124681..1126090	-	469	108563495	-	HPAG1_1070	-	F0F1 ATP synthase subunit beta
1072	 37.09	0	1126114..1127019	-	301	108563496	-	HPAG1_1071	-	F0F1 ATP synthase subunit gamma
1073	 44.18	+1	1127034..1128545	-	503	108563497	-	HPAG1_1072	-	F0F1 ATP synthase subunit alpha
1074	 33.70	-1	1128568..1129110	-	180	108563498	-	HPAG1_1073	-	F0F1 ATP synthase subunit delta
1075	 33.33	-1	1129111..1129626	-	171	108563499	-	HPAG1_1074	-	F0F1 ATP synthase subunit B
1076	 41.38	0	1129630..1130064	-	144	108563500	-	HPAG1_1075	-	F0F1 ATP synthase subunit B'
1077	 38.03	0	1130175..1131047	-	290	108563501	-	HPAG1_1076	-	plasmid replication-partition related protein
1078	 39.87	0	1131051..1131845	-	264	108563502	-	HPAG1_1077	-	spoOJ regulator
1079	 39.59	0	1131848..1132486	-	212	108563503	-	HPAG1_1078	-	biotin--protein ligase
1080	 39.54	0	1132483..1133400	-	305	108563504	fmt	HPAG1_1079	-	methionyl-tRNA formyltransferase
1081	 29.78	-2	1133402..1135849	-	815	108563505	-	HPAG1_1080	-	hypothetical protein
1082	 40.42	0	1135910..1137208	-	432	108563506	-	HPAG1_1081	-	hypothetical protein
1083	 43.75	+1	1137467..1137562	+	31	108563507	-	HPAG1_1082	-	hypothetical protein
1084	 29.23	-2	1137948..1138142	-	64	108563508	-	HPAG1_1083	-	hypothetical protein
1085	 42.22	0	1140747..1141106	-	119	108563509	-	HPAG1_1084	-	hypothetical protein
1086	 36.71	0	1141099..1141335	-	78	108563510	-	HPAG1_1085	-	hypothetical protein
1087	 45.66	+1	1141947..1142303	-	118	108563511	rplS	HPAG1_1086	-	50S ribosomal protein L19
1088	 38.70	0	1142326..1143015	-	229	108563512	trmD	HPAG1_1087	-	tRNA (guanine-N(1)-)-methyltransferase
1089	 37.48	0	1143016..1143570	-	184	108563513	-	HPAG1_1088	-	hypothetical protein
1090	 40.12	0	1143571..1143894	-	107	108563514	-	HPAG1_1089	-	hypothetical protein
1091	 41.99	0	1143911..1144141	-	76	108563515	rpsP	HPAG1_1090	-	30S ribosomal protein S16
1092	 41.65	0	1144215..1145561	-	448	108563516	-	HPAG1_1091	-	signal recognition particle protein
1093	 39.70	0	1145576..1148200	-	874	108563517	valS	HPAG1_1092	-	valyl-tRNA synthetase
1094	 37.01	0	1148331..1148738	+	135	108563518	-	HPAG1_1093	-	flagellar assembly protein FliW
1095	 41.34	0	1148750..1149811	+	353	108563519	murG	HPAG1_1094	-	N-acetylglucosaminyl transferase
1096	 42.80	0	1149919..1152009	+	696	108563520	-	HPAG1_1095	-	outer membrane protein HopI
1097	 42.25	0	1152032..1155754	+	1240	108563521	-	HPAG1_1096	-	outer membrane protein HopL
1098	 41.34	0	1155770..1156543	+	257	108563522	-	HPAG1_1097	-	pyrroline-5-carboxylate reductase
1099	 36.89	0	1156571..1157104	+	177	108563523	-	HPAG1_1098	-	cell filamentation protein
1100	 41.84	0	1157351..1157773	-	140	108563524	-	HPAG1_1099	-	putative metalloprotease
1101	 42.83	0	1157827..1158321	-	164	108563525	-	HPAG1_1100	-	flavodoxin FldA
1102	 37.97	0	1158413..1158994	-	193	108563526	-	HPAG1_1101	-	hypothetical protein
1103	 39.06	0	1159117..1159308	+	63	108563527	-	HPAG1_1102	-	cation transport subunit for cbb3-type oxidase
1104	 41.64	0	1159334..1160308	+	324	108563528	-	HPAG1_1103	-	thioredoxin reductase
1105	 38.42	0	1160315..1161475	-	386	108563529	-	HPAG1_1104	-	tetracycline resistance protein tetA(P)
1106	 40.66	0	1161539..1163176	+	545	108563530	-	HPAG1_1105	-	glucose-6-phosphate isomerase
1107	 43.29	+1	1163482..1164897	+	471	108563531	-	HPAG1_1106	-	outer membrane protein HofH
1108	 44.38	+1	1165190..1167253	-	687	108563532	-	HPAG1_1107	-	carbon starvation protein
1109	 39.14	0	1167463..1168116	+	217	108563533	-	HPAG1_1108	-	glutamine ABC transporter, permease protein
39.24	MEAN

3.61	STD DEV
