IslandPath Analysis: Helicobacter hepaticus ATCC 51449

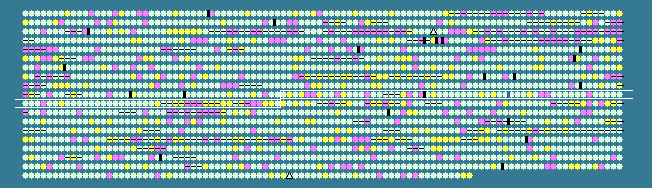

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.80   STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
944	 36.73	0	917096..918154	-	352	32266443	-	HH0944	-	hypothetical protein
945	 39.62	+1	918155..918631	-	158	32266444	-	HH0945	-	3-dehydroquinate dehydratase
946	 35.79	0	918751..920421	-	556	32266445	-	HH0946	-	hypothetical protein
947	 39.67	+1	920427..921578	-	383	32266446	-	HH0947	-	hypothetical protein
948	 30.80	-1	921637..921912	-	91	32266447	-	HH0948	-	hypothetical protein
949	 32.11	-1	922013..922258	+	81	32266448	-	HH0949	-	hypothetical protein
950	 41.46	+1	922405..924891	-	828	32266449	bisC	HH0950	-	biotin sulfoxide reductase BisC
951	 37.88	0	924891..925484	-	197	32266450	-	HH0951	-	hypothetical protein
952	 38.13	0	925592..926404	-	270	32266451	-	HH0952	-	hypothetical protein
953	 31.70	-1	926401..926829	-	142	32266452	-	HH0953	-	hypothetical protein
954	 41.35	+1	926836..928083	-	415	32266453	purA	HH0954	-	adenylosuccinate synthetase
955	 36.30	0	928113..928955	-	280	32266454	hisZ	HH0955	-	ATP phosphoribosyltransferase regulatory subunit
956	 38.54	0	929079..930116	+	345	32266455	trmU	HH0956	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
957	 35.90	0	930235..930624	+	129	32266456	-	HH0957	-	hypothetical protein
958	 24.49	-2	930633..930779	-	48	32266457	-	HH0958	-	hypothetical protein
959	 32.58	0	930886..931284	+	132	32266458	-	HH0959	-	hypothetical protein
960	 33.79	0	931337..931993	+	218	32266459	-	HH0960	-	hypothetical protein
961	 33.33	0	932075..932242	+	55	32266460	-	HH0961	-	hypothetical protein
962	 35.27	0	933061..933525	-	154	32266461	-	HH0962	-	hypothetical protein
963	 38.39	0	933509..933943	-	144	32266462	-	HH0963	-	hypothetical protein
964	 40.83	+1	933946..935253	-	435	32266463	hemL	HH0964	-	glutamate-1-semialdehyde aminotransferase
965	 30.11	-1	935277..935369	+	30	32266464	-	HH0965	-	hypothetical protein
966	 35.83	0	935462..936022	+	186	32266465	-	HH0966	-	hypothetical protein
967	 32.23	0	936181..937902	+	573	32266466	-	HH0967	-	hypothetical protein
968	 34.64	0	938005..938538	-	177	32266467	-	HH0968	-	hypothetical protein
969	 39.75	+1	938727..939926	+	399	32266468	argD	HH0969	-	acetylornithine aminotransferase
970	 34.88	0	939907..941004	+	365	32266469	-	HH0970	-	hypothetical protein
971	 34.74	0	941085..943076	+	663	32266470	-	HH0971	-	hypothetical protein
972	 36.11	0	943104..944147	-	347	32266471	-	HH0972	-	hypothetical protein
973	 37.40	0	944229..945089	-	286	32266472	-	HH0973	-	hypothetical protein
974	 39.28	0	945230..946540	-	436	32266473	-	HH0974	-	hypothetical protein
975	 36.93	0	946550..947938	-	462	32266474	hemN_1	HH0975	-	coproporphyrinogen III oxidase
976	 32.87	0	947953..948384	-	143	32266475	-	HH0976	-	hypothetical protein
977	 40.51	+1	948388..949377	-	329	32266476	argF	HH0977	-	ornithine carbamoyltransferase
978	 36.65	0	949453..950025	-	190	32266477	-	HH0978	-	hypothetical protein
979	 39.77	+1	950049..950747	-	232	32266478	-	HH0979	-	hypothetical protein
980	 33.60	0	951092..951847	-	251	32266479	-	HH0980	-	hypothetical protein
981	 32.34	0	951837..952838	-	333	32266480	-	HH0981	-	hypothetical protein
982	 36.19	0	958823..959767	-	314	32266481	-	HH0982	-	lipid A biosynthesis lauroyl acyltransferase
983	 35.34	0	959767..960861	-	364	32266482	-	HH0983	-	lipopolysaccharide heptosyltransferase
984	 36.66	0	960885..962357	-	490	32266483	ppx	HH0984	-	exopolyphosphatase
985	 41.27	+1	962357..962608	-	83	32266484	fdxB	HH0985	-	ferredoxin
986	 39.17	0	962680..963330	-	216	32266485	-	HH0986	-	hypothetical protein
987	 29.63	-1	963348..963455	-	35	32266486	-	HH0987	-	hypothetical protein
988	 23.81	-2	963965..964069	-	34	32266487	-	HH0988	-	hypothetical protein
989	 35.89	0	964113..965051	+	312	32266488	-	HH0989	-	hypothetical protein
990	 37.77	0	965008..966270	-	420	32266489	-	HH0990	-	hypothetical protein
991	 39.24	0	966321..967421	-	366	32266490	-	HH0991	-	hypothetical protein
992	 37.27	0	967445..969682	-	745	32266491	-	HH0992	-	outer membrane protein
993	 38.28	0	969751..970599	-	282	32266492	tyrA	HH0993	-	prephenate dehydrogenase
994	 34.74	0	970627..971337	-	236	32266493	-	HH0994	-	hypothetical protein
995	 31.24	-1	971338..971766	-	142	32266494	-	HH0995	-	hypothetical protein
996	 35.90	0	971883..972818	+	311	32266495	hemH	HH0996	-	ferrochelatase
997	 32.85	0	972844..973464	+	206	32266496	-	HH0997	-	hypothetical protein
998	 37.28	0	973476..976286	+	936	32266497	-	HH0998	-	cytochrome c biogenesis protein
999	 34.56	0	976341..978386	+	681	32266498	-	HH0999	-	hypothetical protein
1000	 34.03	0	978924..979496	-	190	32266499	-	HH1000	-	hypothetical protein
1001	 37.52	0	979529..980221	-	230	32266500	ybbA	HH1001	-	ABC transporter
1002	 36.52	0	980385..980918	+	177	32266501	-	HH1002	-	hypothetical protein
1003	 35.98	0	980432..980923	-	163	32266502	-	HH1003	-	hypothetical protein
1004	 22.81	-2	981080..981193	-	37	32266503	-	HH1004	-	hypothetical protein
1005	 38.75	0	981360..982226	-	288	32266504	-	HH1005	-	hypothetical protein
1006	 37.72	0	982465..983694	-	409	32266505	-	HH1006	-	ubiquinol cytochrome c oxidoreductase
1007	 46.08	+2	983704..984213	-	169	32266506	-	HH1007	-	ubiquinol cytochrome C oxidoreductase
1008	 35.76	0	984364..985188	+	274	32266507	nadE	HH1008	-	NH(3)-dependent NAD(+) synthetase NadE
1009	 38.54	0	985198..986100	+	300	32266508	lpxK	HH1009	-	tetraacyldisaccharide 4'-kinase
1010	 36.82	0	986130..986588	+	152	32266509	bcp	HH1010	-	bacterioferritin comigratory protein Bcp
1011	 38.20	0	986623..989271	-	882	32266510	infB	HH1011	-	translation initiation factor IF-2
1012	 34.92	0	989259..989510	-	83	32266511	-	HH1012	-	hypothetical protein
1013	 37.33	0	989530..990429	-	299	32266512	thrB	HH1013	-	homoserine kinase
1014	 35.80	0	990546..991031	-	161	32266513	-	HH1014	-	hypothetical protein
1015	 37.22	0	991065..991964	-	299	32266514	lpxC	HH1015	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1016	 37.35	0	991961..992557	-	198	32266515	minC	HH1016	-	septum formation inhibitor
1017	 35.43	0	992571..993956	-	461	32266516	-	HH1017	-	hypothetical protein
1018	 35.46	0	994014..995141	-	375	32266517	flhB	HH1018	-	flagellar biosynthesis protein FlhB
1019	 37.02	0	995145..995714	-	189	32266518	mobA	HH1019	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1020	 36.94	0	995808..996806	+	332	32266519	moaA	HH1020	-	molybdenum cofactor biosynthesis protein A
1021	 37.48	0	996902..997987	+	361	32266520	-	HH1021	-	hypothetical protein
1022	 36.39	0	998096..1000483	+	795	32266521	-	HH1022	-	cation-transporting ATPase
1023	 41.04	+1	1000593..1001708	+	371	32266522	-	HH1023	-	hypothetical protein
1024	 34.31	0	1001785..1001988	-	67	32266523	-	HH1024	-	hypothetical protein
1025	 36.36	0	1002152..1004662	+	836	32266524	-	HH1025	-	hypothetical protein
1026	 39.61	+1	1004715..1005527	-	270	32266525	-	HH1026	-	hypothetical protein
1027	 42.15	+1	1005984..1006652	+	222	32266526	-	HH1027	-	hypothetical protein
1028	 30.51	-1	1007202..1007378	+	58	32266527	-	HH1028	-	hypothetical protein
1029	 27.93	-2	1007349..1009586	-	745	32266528	-	HH1029	-	hypothetical protein
1030	 29.17	-1	1009583..1011262	-	559	32266529	-	HH1030	-	hypothetical protein
1031	 43.25	+2	1011450..1011923	-	157	32266530	-	HH1031	-	flavodoxin
1032	 41.60	+1	1011898..1012296	-	132	32266531	-	HH1032	-	hypothetical protein
1033	 41.81	+1	1012403..1013440	-	345	32266532	-	HH1033	-	hypothetical protein
1034	 39.94	+1	1013457..1014530	-	357	32266533	-	HH1034	-	hypothetical protein
1035	 41.11	+1	1014704..1015282	+	192	32266534	-	HH1035	-	hypothetical protein
1036	 32.47	0	1015368..1015832	+	154	32266535	-	HH1036	-	hypothetical protein
1037	 47.37	+2	1015879..1016391	+	170	32266536	ogt	HH1037	-	methylated DNA-protein cysteine methyltransferase
1038	 29.37	-1	1016511..1017746	+	411	32266537	-	HH1038	-	type II R/M system
1039	 30.07	-1	1017751..1019649	+	632	32266538	-	HH1039	-	hypothetical protein
1040	 28.75	-1	1019651..1021045	+	464	32266539	-	HH1040	-	hypothetical protein
1041	 41.05	+1	1021081..1021443	+	120	32266540	-	HH1041	-	hypothetical protein
1042	 44.27	+2	1021476..1022060	-	194	32266541	-	HH1042	-	hypothetical protein
1043	 38.89	0	1022057..1022470	-	137	32266542	-	HH1043	-	hypothetical protein
35.80	MEAN

3.58	STD DEV
