IslandPath Analysis: Helicobacter hepaticus ATCC 51449

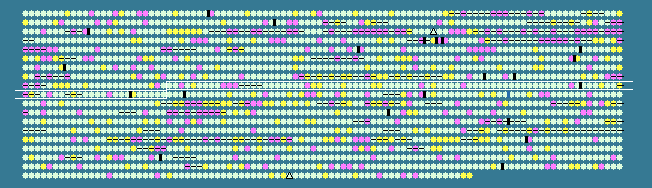

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.80 STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
825	 37.57	0	802806..803183	-	125	32266324	cheY	HH0825	-	chemotaxis regulatory protein CheY
826	 37.57	0	803271..804002	-	243	32266325	hisA	HH0826	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
827	 31.23	-1	804005..804859	-	284	32266326	-	HH0827	-	hypothetical protein
828	 35.82	0	804875..806041	-	388	32266327	amiA	HH0828	-	N-acetylmuramoyl-L-alanine amidase
829	 39.69	+1	806050..807135	-	361	32266328	-	HH0829	-	hypothetical protein
830	 36.24	0	807146..808348	-	400	32266329	tyrS	HH0830	-	tyrosyl-tRNA synthetase
831	 34.12	0	808361..810511	-	716	32266330	spoT	HH0831	-	hypothetical protein
832	 36.89	0	810521..810745	-	74	32266331	rpoZ	HH0832	-	DNA-directed RNA polymerase subunit omega
833	 37.97	0	810823..811533	-	236	32266332	pyrH	HH0833	-	uridylate kinase
834	 31.56	-1	811673..812179	-	168	32266333	-	HH0834	-	hypothetical protein
835	 32.31	0	812262..812651	-	129	32266334	-	HH0835	-	hypothetical protein
836	 32.21	-1	812680..814107	-	475	32266335	-	HH0836	-	hypothetical protein
837	 35.46	0	814150..814902	-	250	32266336	-	HH0837	-	hypothetical protein
838	 36.96	0	814890..815936	-	348	32266337	ribD	HH0838	-	riboflavin biosynthesis protein RibD
839	 33.76	0	815920..816393	-	157	32266338	-	HH0839	-	hypothetical protein
840	 33.62	0	816404..816754	-	116	32266339	rbfA	HH0840	-	ribosome-binding factor A
841	 37.26	0	816744..817889	-	381	32266340	tgt	HH0841	-	queuine tRNA-ribosyltransferase
842	 37.43	0	817903..818757	-	284	32266341	proC	HH0842	-	pyrroline-5-carboxylate reductase
843	 33.11	0	818757..819197	-	146	161546629	-	HH0843	-	flagellar assembly protein FliW
844	 32.71	0	819333..819974	+	213	32266343	comL	HH0844	-	hypothetical protein
845	 37.28	0	819983..822391	+	802	32266344	lon	HH0845	-	ATP-dependent protease LA
846	 34.59	0	822435..823631	-	398	32266345	-	HH0846	-	hypothetical protein
847	 37.85	0	823779..825152	-	457	32266346	-	HH0847	-	hypothetical protein
848	 25.64	-2	825286..825402	-	38	32266347	-	HH0848	-	hypothetical protein
849	 39.42	+1	825490..826392	+	300	32266348	cysK_2	HH0849	-	cysteine synthase
850	 46.07	+2	826490..828208	-	572	32266349	-	HH0850	-	dihydroxy-acid dehydratase
851	 34.55	0	828289..829194	-	301	32266350	metF	HH0851	-	hypothetical protein
852	 36.67	0	829230..831506	-	758	32266351	metE	HH0852	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
853	 35.55	0	831724..832581	-	285	32266352	pldA	HH0853	-	phospholipase A
854	 39.37	0	832635..834488	+	617	32266353	glmS	HH0854	-	D-fructose-6-phosphate amidotransferase
855	 37.38	0	834475..834894	-	139	32266354	-	HH0855	-	hypothetical protein
856	 38.54	0	834934..835836	-	300	32266355	-	HH0856	-	membrane protease subunits
857	 35.76	0	836061..837422	+	453	32266356	-	HH0857	-	hypothetical protein
858	 34.11	0	837433..837561	+	42	32266357	-	HH0858	-	hypothetical protein
859	 39.46	+1	837573..840251	-	892	32266358	alaS	HH0859	-	alanyl-tRNA synthetase
860	 43.59	+2	840303..840731	-	142	32266359	-	HH0860	-	hypothetical protein
861	 38.19	0	840968..841894	-	308	32266360	pdxA	HH0861	-	4-hydroxythreonine-4-phosphate dehydrogenase
862	 39.18	0	841882..842685	-	267	32266361	pdxJ	HH0862	-	pyridoxal phosphate biosynthetic protein PdxJ
863	 34.78	0	842696..843178	-	160	32266362	ilvH	HH0863	-	acetolactate synthase 3 regulatory subunit
864	 38.35	0	843180..844892	-	570	32266363	ilvI	HH0864	-	acetolactate synthase 3 catalytic subunit
865	 35.98	0	845046..846215	+	389	32266364	-	HH0865	-	hypothetical protein
866	 34.34	0	846277..846672	+	131	32266365	-	HH0866	-	hypothetical protein
867	 29.82	-1	846644..846814	+	56	32266366	-	HH0867	-	hypothetical protein
868	 35.75	0	846898..847104	+	68	32266367	-	HH0868	-	hypothetical protein
869	 39.54	+1	847274..848674	-	466	32266368	glcD	HH0869	-	glycolate oxidase
870	 34.40	0	848677..849423	-	248	32266369	-	HH0870	-	hypothetical protein
871	 36.80	0	849434..850096	-	220	32266370	-	HH0871	-	hypothetical protein
872	 36.33	0	850086..851285	-	399	32266371	-	HH0872	-	hypothetical protein
873	 34.39	0	851450..851638	+	62	32266372	-	HH0873	-	hypothetical protein
874	 30.99	-1	851729..851941	+	70	32266373	flgM	HH0874	-	flagellar anti FliA (sigma 28) factor FlgM
875	 34.27	0	852006..852431	+	141	32266374	-	HH0875	-	hypothetical protein
876	 35.04	0	852440..854260	+	606	32266375	flgK	HH0876	-	flagellar hook-associated protein FlgK
877	 32.51	0	854244..854972	+	242	32266376	-	HH0877	-	hypothetical protein
878	 33.60	0	855054..855431	-	125	32266377	-	HH0878	-	hypothetical protein
879	 37.60	0	855412..857100	-	562	32266378	ftsH_1	HH0879	-	ATP-dependent zinc metalloproteinase
880	 36.71	0	857087..858358	-	423	32266379	-	HH0880	-	hypothetical protein
881	 35.43	0	858370..859992	-	540	32266380	-	HH0881	-	hypothetical protein
882	 36.63	0	859989..861050	-	353	32266381	aroB	HH0882	-	3-dehydroquinate synthase
883	 32.50	0	861059..862492	-	477	32266382	-	HH0883	-	hypothetical protein
884	 34.94	0	862557..863240	-	227	32266383	-	HH0884	-	hypothetical protein
885	 34.50	0	863249..863506	-	85	32266384	-	HH0885	-	hypothetical protein
886	 35.97	0	863510..863926	-	138	32266385	-	HH0886	-	hypothetical protein
887	 34.29	0	864254..865507	+	417	32266386	-	HH0887	-	hypothetical protein
888	 37.82	0	865512..866648	-	378	32266387	carA	HH0888	-	carbamoyl phosphate synthase small subunit
889	 32.97	0	866645..867196	-	183	32266388	-	HH0889	-	hypothetical protein
890	 37.16	0	867266..869275	-	669	32266389	pbpA	HH0890	-	penicillin-binding protein
891	 35.54	0	869283..870689	-	468	32266390	-	HH0891	-	hypothetical protein
892	 23.23	-2	870761..870859	-	32	32266391	-	HH0892	-	hypothetical protein
893	 34.85	0	870931..871392	+	153	32266392	fur	HH0893	-	ferric uptake regulation protein
894	 37.30	0	871570..872250	-	226	32266393	-	HH0894	-	hypothetical protein
895	 32.49	0	872253..873557	-	434	32266394	-	HH0895	-	hypothetical protein
896	 38.47	0	873567..874793	-	408	32266395	cysK	HH0896	-	threonine dehydratase
897	 39.29	0	874793..875782	-	329	32266396	-	HH0897	-	hypothetical protein
898	 35.42	0	875779..875874	-	31	32266397	-	HH0898	-	hypothetical protein
899	 39.18	0	875956..876690	+	244	32266398	flgH	HH0899	-	flagellar basal body L-ring protein
900	 39.55	+1	876702..877409	+	235	32266399	neuA	HH0900	-	acylneuraminate cytidylyltransferase
901	 29.32	-1	877412..877660	-	82	32266400	-	HH0901	-	hypothetical protein
902	 40.40	+1	877648..877845	-	65	32266401	-	HH0902	-	hypothetical protein
903	 33.99	0	877863..879089	-	408	32266402	-	HH0903	-	hypothetical protein
904	 37.29	0	879109..879285	-	58	32266403	-	HH0904	-	hypothetical protein
905	 30.61	-1	879333..879662	-	109	32266404	-	HH0905	-	hypothetical protein
906	 37.21	0	879791..880048	+	85	32266405	-	HH0906	-	hypothetical protein
907	 37.47	0	880147..881694	+	515	32266406	-	HH0907	-	hypothetical protein
908	 39.24	0	881691..882740	+	349	32266407	-	HH0908	-	sialic acid synthase
909	 39.70	+1	882806..883921	+	371	32266408	-	HH0909	-	hypothetical protein
910	 37.73	0	883938..884846	+	302	32266409	miaA	HH0910	-	tRNA delta(2)-isopentenylpyrophosphate transferase
911	 36.07	0	884847..885248	-	133	32266410	-	HH0911	-	hypothetical protein
912	 34.49	0	885259..885951	-	230	32266411	-	HH0912	-	hypothetical protein
913	 35.37	0	886069..887445	-	458	32266412	-	HH0913	-	hypothetical protein
914	 38.73	0	887587..889197	+	536	32266413	-	HH0914	-	ABC transport system
915	 31.37	-1	889349..889552	-	67	32266414	-	HH0915	-	hypothetical protein
916	 36.08	0	889539..889829	-	96	32266415	-	HH0916	-	hypothetical protein
917	 35.27	0	889910..890683	-	257	32266416	-	HH0917	-	hypothetical protein
918	 32.85	0	890890..891300	+	136	32266417	-	HH0918	-	hypothetical protein
919	 44.05	+2	891878..892390	-	170	32266418	-	HH0919	-	hypothetical protein
920	 38.98	0	892487..893566	+	359	32266419	-	HH0920	-	hypothetical protein
921	 36.96	0	893662..894405	+	247	32266420	-	HH0921	-	carbonic anhydrase
922	 34.55	0	894455..894784	+	109	32266421	-	HH0922	-	hypothetical protein
923	 35.85	0	894824..895498	+	224	32266422	-	HH0923	-	putative glycerol-3-phosphate acyltransferase PlsY
924	 36.01	0	895498..895833	+	111	32266423	-	HH0924	-	hypothetical protein
35.80	MEAN

3.58	STD DEV
