IslandPath Analysis: Helicobacter hepaticus ATCC 51449

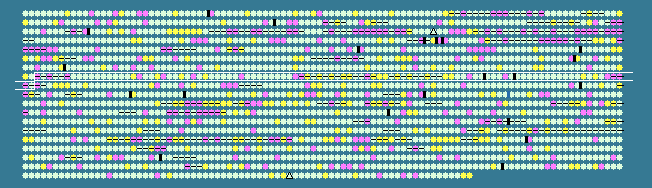

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.80 STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
703	 32.13	-1	683552..683800	+	82	32266202	-	HH0703	-	hypothetical protein
704	 35.65	0	683806..684582	+	258	32266203	fliR	HH0704	-	flagellar biosynthesis protein FliR
705	 32.10	-1	684584..685150	-	188	32266204	-	HH0705	-	hypothetical protein
706	 35.98	0	685229..687043	+	604	32266205	-	HH0706	-	hypothetical protein
707	 35.66	0	687043..687645	+	200	32266206	gmk	HH0707	-	guanylate kinase
708	 30.92	-1	687718..687966	+	82	32266207	-	HH0708	-	component of Sec-independent protein secretion pathway TatA
709	 35.34	0	687966..689612	+	548	32266208	argS	HH0709	-	arginyl-tRNA synthetase
710	 36.93	0	689614..690309	+	231	32266209	-	HH0710	-	hypothetical protein
711	 33.04	0	690299..690640	+	113	32266210	-	HH0711	-	hypothetical protein
712	 34.34	0	690671..691168	-	165	32266211	fldA	HH0712	-	flavodoxin FldA
713	 35.81	0	691320..692126	-	268	32266212	yaeC	HH0713	-	hypothetical protein
714	 37.29	0	692177..693010	-	277	32266213	-	HH0714	-	hypothetical protein
715	 38.12	0	693034..693744	-	236	32266214	-	HH0715	-	hypothetical protein
716	 36.74	0	693755..694810	-	351	32266215	abc	HH0716	-	hypothetical protein
717	 35.65	0	694903..695679	-	258	32266216	-	HH0717	-	hypothetical protein
718	 39.07	0	695680..696813	-	377	32266217	-	HH0718	-	hypothetical protein
719	 39.62	+1	696880..698088	-	402	32266218	dapD	HH0719	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase DapD
720	 29.75	-1	698313..698786	-	157	32266219	-	HH0720	-	hypothetical protein
721	 37.63	0	699209..701395	+	728	32266220	cfrA	HH0721	-	hypothetical protein
722	 38.12	0	701495..702934	+	479	32266221	aspA	HH0722	-	aspartate ammonia-lyase
723	 42.65	+1	703014..704441	+	475	32266222	dcuB	HH0723	-	anaerobic C4-dicarboxylate transporter
724	 17.14	-2	704468..704572	+	34	32266223	-	HH0724	-	hypothetical protein
725	 34.89	0	704613..706670	+	685	32266224	-	HH0725	-	hypothetical protein
726	 36.79	0	706756..707682	-	308	32266225	accA	HH0726	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
727	 41.02	+1	707695..708930	-	411	32266226	fabF	HH0727	-	3-oxoacyl-(acyl carrier protein) synthase II
728	 32.90	0	709006..709236	-	76	32266227	-	HH0728	-	acyl carrier protein
729	 31.22	-1	709267..709455	+	62	32266228	-	HH0729	-	hypothetical protein
730	 33.92	0	709452..710132	-	226	32266229	-	HH0730	-	hypothetical protein
731	 40.38	+1	710145..710300	-	51	32266230	-	HH0731	-	hypothetical protein
732	 38.31	0	710397..711140	-	247	32266231	fabG	HH0732	-	3-ketoacyl-(acyl-carrier-protein) reductase
733	 34.93	0	711191..713506	-	771	32266232	-	HH0733	-	hypothetical protein
734	 35.44	0	713503..718950	-	1815	32266233	-	HH0734	-	hypothetical protein
735	 37.83	0	719034..719945	-	303	32266234	sfhB	HH0735	-	hypothetical protein
736	 33.33	0	720685..722130	-	481	32266235	-	HH0736	-	hypothetical protein
737	 20.00	-2	722273..722392	+	39	32266236	-	HH0737	-	hypothetical protein
738	 35.99	0	722420..723247	+	275	32266237	-	HH0738	-	amino-acid ABC transporter periplasmic solute-binding protein
739	 37.15	0	723285..723782	-	165	32266238	msrA	HH0739	-	methionine sulfoxide reductase A
740	 37.64	0	723867..725237	+	456	32266239	selA	HH0740	-	selenocysteine synthase
741	 36.91	0	725248..727146	+	632	32266240	selB	HH0741	-	selenocysteine-specific elongation factor SelB
742	 36.78	0	727163..728266	+	367	32266241	-	HH0742	-	hypothetical protein
743	 38.50	0	728277..729515	+	412	32266242	moeA_2	HH0743	-	molybdopterin biosynthesis enzyme
744	 34.29	0	729543..729959	+	138	32266243	-	HH0744	-	hypothetical protein
745	 38.16	0	729969..731624	+	551	32266244	-	HH0745	-	hypothetical protein
746	 29.71	-1	731701..732141	+	146	32266245	-	HH0746	-	hypothetical protein
747	 31.58	-1	732226..732339	-	37	32266246	-	HH0747	-	hypothetical protein
748	 39.88	+1	732416..733102	-	228	32266247	-	HH0748	-	hypothetical protein
749	 37.57	0	733425..733613	+	62	32266248	-	HH0749	-	hypothetical protein
750	 42.17	+1	733628..735880	+	750	32266249	-	HH0750	-	hypothetical protein
751	 37.88	0	735939..736070	+	43	32266250	-	HH0751	-	hypothetical protein
752	 41.81	+1	736252..737124	+	290	32266251	-	HH0752	-	hypothetical protein
753	 35.52	0	737135..737317	+	60	32266252	-	HH0753	-	hypothetical protein
754	 40.62	+1	737308..737787	+	159	32266253	-	HH0754	-	hypothetical protein
755	 42.12	+1	737818..738204	+	128	32266254	-	HH0755	-	hypothetical protein
756	 38.10	0	738204..738455	+	83	32266255	-	HH0756	-	hypothetical protein
757	 33.33	0	738627..738857	+	76	32266256	-	HH0757	-	hypothetical protein
758	 28.37	-2	738850..739353	+	167	32266257	-	HH0758	-	hypothetical protein
759	 39.63	+1	739466..740005	-	179	32266258	-	HH0759	-	hypothetical protein
760	 41.42	+1	740016..741512	-	498	32266259	-	HH0760	-	hypothetical protein
761	 40.07	+1	741727..742557	-	276	32266260	-	HH0761	-	hypothetical protein
762	 35.88	0	742721..743074	+	117	32266261	-	HH0762	-	hypothetical protein
763	 42.86	+1	743058..743267	+	69	32266262	-	HH0763	-	hypothetical protein
764	 39.15	0	743264..743452	+	62	32266263	-	HH0764	-	hypothetical protein
765	 43.49	+2	743449..743763	+	104	32266264	-	HH0765	-	hypothetical protein
766	 32.38	0	743760..743864	+	34	32266265	-	HH0766	-	hypothetical protein
767	 38.80	0	743877..744443	+	188	32266266	-	HH0767	-	hypothetical protein
768	 42.06	+1	744506..745078	+	190	32266267	-	HH0768	-	hypothetical protein
769	 34.97	0	745179..745484	+	101	32266268	-	HH0769	-	hypothetical protein
770	 35.94	0	745547..745738	+	63	32266269	-	HH0770	-	hypothetical protein
771	 39.57	+1	745735..747402	+	555	32266270	-	HH0771	-	hypothetical protein
772	 39.40	+1	747418..748290	+	290	32266271	-	HH0772	-	hypothetical protein
773	 35.76	0	748506..750071	+	521	32266272	-	HH0773	-	hypothetical protein
774	 34.76	0	750112..751998	-	628	32266273	-	HH0774	-	hypothetical protein
775	 30.57	-1	751995..752681	-	228	32266274	-	HH0775	-	hypothetical protein
776	 35.75	0	752678..753421	-	247	32266275	yhcG	HH0776	-	ABC transporter
777	 34.27	0	753513..753725	-	70	32266276	rpsU	HH0777	-	30S ribosomal protein S21
778	 38.85	0	753962..755176	-	404	32266277	ftsZ	HH0778	-	cell division protein FtsZ
779	 37.42	0	755189..756559	-	456	32266278	ftsA	HH0779	-	cell division protein FtsA
780	 34.60	0	756567..758066	-	499	32266279	-	HH0780	-	hypothetical protein
781	 20.93	-2	758093..758221	-	42	32266280	-	HH0781	-	hypothetical protein
782	 32.81	0	758294..759436	-	380	32266281	ftsW_1	HH0782	-	cell division membrane protein FtsW/MrdB/SpoVE
783	 37.69	0	759497..760552	+	351	32266282	-	HH0783	-	ribosomal pseudouridine synthase
784	 36.65	0	760482..761747	+	421	32266283	-	HH0784	-	hypothetical protein
785	 34.17	0	761747..762937	+	396	32266284	trmB	HH0785	-	tRNA (guanine-N(7))-methyltransferase
786	 36.02	0	762941..763609	+	222	32266285	ftsE	HH0786	-	ABC transporter
787	 34.57	0	763596..764405	+	269	32266286	ftsX	HH0787	-	cell division protein FtsX
788	 32.70	0	764353..765624	+	423	32266287	-	HH0788	-	hypothetical protein
789	 32.82	0	765679..766071	+	130	32266288	flaG	HH0789	-	flagellar protein FlaG
790	 35.29	0	766121..768169	+	682	32266289	fliD	HH0790	-	flagellar capping protein
791	 35.16	0	768180..768563	+	127	32266290	fliS	HH0791	-	flagellar protein FliS
792	 38.46	0	768547..768780	+	77	32266291	-	HH0792	-	hypothetical protein
793	 34.72	0	768908..769195	+	95	32266292	-	HH0793	-	histone-like DNA-binding protein HU (HupB)
794	 39.42	+1	769221..770156	-	311	32266293	gpsA	HH0794	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
795	 34.36	0	770200..770880	-	226	32266294	-	HH0795	-	hypothetical protein
796	 40.98	+1	771081..772505	+	474	32266295	gatB	HH0796	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
797	 33.63	0	772873..775932	+	1019	32266296	-	HH0797	-	hypothetical protein
798	 32.26	0	775929..779099	+	1056	32266297	-	HH0798	-	hypothetical protein
799	 26.97	-2	779190..780509	+	439	32266298	-	HH0799	-	hypothetical protein
800	 29.43	-1	780641..781690	+	349	32266299	-	HH0800	-	hypothetical protein
801	 23.61	-2	782105..782248	+	47	32266300	-	HH0801	-	hypothetical protein
802	 36.67	0	782301..782450	+	49	32266301	-	HH0802	-	hypothetical protein
35.80	MEAN

3.58	STD DEV
