IslandPath Analysis: Helicobacter hepaticus ATCC 51449

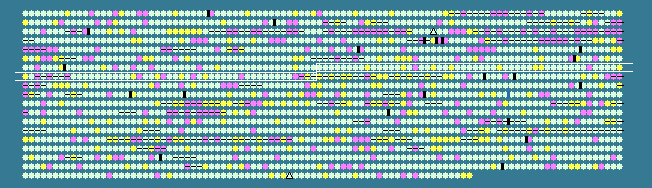

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.80 STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
650	 38.80	0	629022..629753	+	243	32266149	-	HH0650	-	hypothetical protein
651	 38.47	0	629756..631195	+	479	32266150	-	HH0651	-	hypothetical protein
652	 36.99	0	631188..631844	+	218	32266151	-	HH0652	-	hypothetical protein
653	 39.22	0	631855..632262	+	135	32266152	modE	HH0653	-	hypothetical protein
654	 34.37	0	632336..633109	+	257	32266153	modA	HH0654	-	molybdenum-binding periplasmic protein ModA
655	 37.89	0	633131..633547	+	138	32266154	-	HH0655	-	hypothetical protein
656	 36.87	0	633547..634224	+	225	32266155	modB	HH0656	-	molybdenum ABC transporter permease component ModB
657	 36.81	0	634221..635111	+	296	32266156	modC	HH0657	-	molybdenum ABC transporter ATP-binding component ModC
658	 40.21	+1	635116..636438	-	440	32266157	-	HH0658	-	hypothetical protein
659	 35.01	0	636438..637094	-	218	32266158	-	HH0659	-	hypothetical protein
660	 38.06	0	637221..638321	-	366	32266159	prfB	HH0660	-	peptide chain release factor 2
661	 38.60	0	638447..640726	-	759	32266160	-	HH0661	-	hypothetical protein
662	 39.14	0	640898..642034	-	378	32266161	ansB	HH0662	-	L-asparaginase
663	 37.75	0	642110..643987	-	625	32266162	dnaK	HH0663	-	molecular chaperone DnaK
664	 41.04	+1	644009..644566	-	185	32266163	grpE	HH0664	-	heat shock protein GrpE
665	 35.85	0	644588..645382	-	264	32266164	hrcA	HH0665	-	heat-inducible transcription repressor
666	 21.57	-2	645624..645725	+	33	32266165	-	HH0666	-	hypothetical protein
667	 34.62	0	645722..646345	+	207	32266166	-	HH0667	-	hypothetical protein
668	 37.57	0	646362..647729	+	455	32266167	-	HH0668	-	hypothetical protein
669	 39.42	+1	647729..648763	+	344	161546630	argC	HH0669	-	N-acetyl-gamma-glutamyl-phosphate reductase
670	 32.34	0	648773..649678	+	301	32266169	-	HH0670	-	hypothetical protein
671	 34.38	0	649679..650629	+	316	32266170	-	HH0671	-	chemotaxis signal transduction protein CheV
672	 39.74	+1	650672..653029	+	785	32266171	cheA	HH0672	-	chemotaxis protein histidine kinase CheA
673	 35.98	0	653031..653522	+	163	32266172	cheW	HH0673	-	chemotaxis signal transduction response regulator CheW
674	 38.65	0	653611..654438	-	275	32266173	-	HH0674	-	hypothetical protein
675	 36.19	0	655154..656587	+	477	32266174	-	HH0675	-	hypothetical protein
676	 33.33	0	656587..657765	+	392	32266175	-	HH0676	-	hypothetical protein
677	 38.41	0	657892..658305	+	137	32266176	ndk	HH0677	-	nucleoside diphosphate kinase
678	 34.46	0	658306..658659	+	117	32266177	-	HH0678	-	hypothetical protein
679	 38.67	0	658674..658823	+	49	32266178	rpmF	HH0679	-	50S ribosomal protein L32
680	 40.02	+1	658845..659846	+	333	32266179	plsX	HH0680	-	putative glycerol-3-phosphate acyltransferase PlsX
681	 38.64	0	659856..660854	+	332	32266180	fabH	HH0681	-	3-oxoacyl-(acyl carrier protein) synthase III
682	 37.08	0	660935..663178	+	747	32266181	-	HH0682	-	hypothetical protein
683	 35.68	0	663198..663410	+	70	32266182	-	HH0683	-	hypothetical protein
684	 35.02	0	663394..665109	+	571	32266183	msbA	HH0684	-	multidrug resistance protein MsbA
685	 38.39	0	665272..666042	+	256	32266184	frdC	HH0685	-	fumarate reductase cytochrome b-556 subunit
686	 41.88	+1	666043..668019	+	658	32266185	frdA	HH0686	-	fumarate reductase flavoprotein subunit
687	 40.32	+1	668019..668762	+	247	32266186	sdhB	HH0687	-	fumarate reductase iron-sulfur subunit
688	 34.48	0	668814..670376	+	520	32266187	-	HH0688	-	hypothetical protein
689	 37.44	0	670394..670783	-	129	32266188	-	HH0689	-	hypothetical protein
690	 34.30	0	670767..670973	-	68	32266189	-	HH0690	-	hypothetical protein
691	 37.36	0	670973..672337	-	454	32266190	glmU	HH0691	-	UDP-N-acetylglucosamine pyrophosphorylase
692	 38.47	0	672436..673233	+	265	32266191	fliP	HH0692	-	flagellar biosynthesis protein FliP
693	 35.88	0	673245..674459	+	404	32266192	trmA	HH0693	-	tRNA (uracil-5-)-methyltransferase
694	 37.00	0	674462..675634	-	390	32266193	-	HH0694	-	hypothetical protein
695	 31.93	-1	675663..676373	-	236	32266194	-	HH0695	-	hypothetical protein
696	 35.60	0	676571..677365	+	264	32266195	-	HH0696	-	hypothetical protein
697	 33.33	0	677368..678453	+	361	32266196	-	HH0697	-	hypothetical protein
698	 36.02	0	678422..678868	+	148	32266197	rnhA	HH0698	-	ribonuclease H
699	 33.75	0	678861..679583	+	240	32266198	rnc	HH0699	-	ribonuclease III
700	 40.67	+1	679580..680656	+	358	32266199	aroC	HH0700	-	chorismate synthase
701	 39.29	0	680733..682076	+	447	32266200	gatA	HH0701	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
702	 38.17	0	682096..683541	+	481	32266201	guaB	HH0702	-	inositol-5-monophosphate dehydrogenase
703	 32.13	-1	683552..683800	+	82	32266202	-	HH0703	-	hypothetical protein
704	 35.65	0	683806..684582	+	258	32266203	fliR	HH0704	-	flagellar biosynthesis protein FliR
705	 32.10	-1	684584..685150	-	188	32266204	-	HH0705	-	hypothetical protein
706	 35.98	0	685229..687043	+	604	32266205	-	HH0706	-	hypothetical protein
707	 35.66	0	687043..687645	+	200	32266206	gmk	HH0707	-	guanylate kinase
708	 30.92	-1	687718..687966	+	82	32266207	-	HH0708	-	component of Sec-independent protein secretion pathway TatA
709	 35.34	0	687966..689612	+	548	32266208	argS	HH0709	-	arginyl-tRNA synthetase
710	 36.93	0	689614..690309	+	231	32266209	-	HH0710	-	hypothetical protein
711	 33.04	0	690299..690640	+	113	32266210	-	HH0711	-	hypothetical protein
712	 34.34	0	690671..691168	-	165	32266211	fldA	HH0712	-	flavodoxin FldA
713	 35.81	0	691320..692126	-	268	32266212	yaeC	HH0713	-	hypothetical protein
714	 37.29	0	692177..693010	-	277	32266213	-	HH0714	-	hypothetical protein
715	 38.12	0	693034..693744	-	236	32266214	-	HH0715	-	hypothetical protein
716	 36.74	0	693755..694810	-	351	32266215	abc	HH0716	-	hypothetical protein
717	 35.65	0	694903..695679	-	258	32266216	-	HH0717	-	hypothetical protein
718	 39.07	0	695680..696813	-	377	32266217	-	HH0718	-	hypothetical protein
719	 39.62	+1	696880..698088	-	402	32266218	dapD	HH0719	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase DapD
720	 29.75	-1	698313..698786	-	157	32266219	-	HH0720	-	hypothetical protein
721	 37.63	0	699209..701395	+	728	32266220	cfrA	HH0721	-	hypothetical protein
722	 38.12	0	701495..702934	+	479	32266221	aspA	HH0722	-	aspartate ammonia-lyase
723	 42.65	+1	703014..704441	+	475	32266222	dcuB	HH0723	-	anaerobic C4-dicarboxylate transporter
724	 17.14	-2	704468..704572	+	34	32266223	-	HH0724	-	hypothetical protein
725	 34.89	0	704613..706670	+	685	32266224	-	HH0725	-	hypothetical protein
726	 36.79	0	706756..707682	-	308	32266225	accA	HH0726	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
727	 41.02	+1	707695..708930	-	411	32266226	fabF	HH0727	-	3-oxoacyl-(acyl carrier protein) synthase II
728	 32.90	0	709006..709236	-	76	32266227	-	HH0728	-	acyl carrier protein
729	 31.22	-1	709267..709455	+	62	32266228	-	HH0729	-	hypothetical protein
730	 33.92	0	709452..710132	-	226	32266229	-	HH0730	-	hypothetical protein
731	 40.38	+1	710145..710300	-	51	32266230	-	HH0731	-	hypothetical protein
732	 38.31	0	710397..711140	-	247	32266231	fabG	HH0732	-	3-ketoacyl-(acyl-carrier-protein) reductase
733	 34.93	0	711191..713506	-	771	32266232	-	HH0733	-	hypothetical protein
734	 35.44	0	713503..718950	-	1815	32266233	-	HH0734	-	hypothetical protein
735	 37.83	0	719034..719945	-	303	32266234	sfhB	HH0735	-	hypothetical protein
736	 33.33	0	720685..722130	-	481	32266235	-	HH0736	-	hypothetical protein
737	 20.00	-2	722273..722392	+	39	32266236	-	HH0737	-	hypothetical protein
738	 35.99	0	722420..723247	+	275	32266237	-	HH0738	-	amino-acid ABC transporter periplasmic solute-binding protein
739	 37.15	0	723285..723782	-	165	32266238	msrA	HH0739	-	methionine sulfoxide reductase A
740	 37.64	0	723867..725237	+	456	32266239	selA	HH0740	-	selenocysteine synthase
741	 36.91	0	725248..727146	+	632	32266240	selB	HH0741	-	selenocysteine-specific elongation factor SelB
742	 36.78	0	727163..728266	+	367	32266241	-	HH0742	-	hypothetical protein
743	 38.50	0	728277..729515	+	412	32266242	moeA_2	HH0743	-	molybdopterin biosynthesis enzyme
744	 34.29	0	729543..729959	+	138	32266243	-	HH0744	-	hypothetical protein
745	 38.16	0	729969..731624	+	551	32266244	-	HH0745	-	hypothetical protein
746	 29.71	-1	731701..732141	+	146	32266245	-	HH0746	-	hypothetical protein
747	 31.58	-1	732226..732339	-	37	32266246	-	HH0747	-	hypothetical protein
748	 39.88	+1	732416..733102	-	228	32266247	-	HH0748	-	hypothetical protein
749	 37.57	0	733425..733613	+	62	32266248	-	HH0749	-	hypothetical protein
35.80	MEAN

3.58	STD DEV
