IslandPath Analysis: Helicobacter hepaticus ATCC 51449

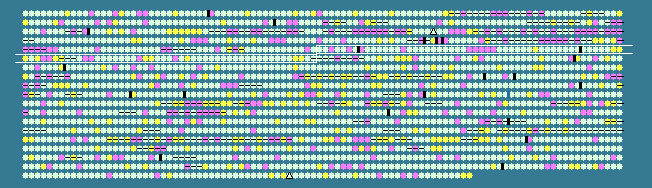

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.80   STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
450	 38.71	0	428134..429231	-	365	32265949	-	HH0450	-	hypothetical protein
451	 39.23	0	429233..430165	-	310	32265950	ilvE	HH0451	-	branched-chain amino acid aminotransferase
452	 31.36	-1	430298..431770	-	490	32265951	-	HH0452	-	hypothetical protein
453	 35.56	0	432151..434976	+	941	32265952	ftsK	HH0453	-	DNA segregation ATPase FtsK/SpoIIIE
454	 37.24	0	435032..436465	+	477	32265953	htrA	HH0454	-	serine protease
455	 30.59	-1	436487..437323	+	278	32265954	cheR	HH0455	-	chemotaxis protein methyltransferase CheR
456	 38.80	0	437327..438040	+	237	32265955	cheB	HH0456	-	chemotaxis protein methylesterase CheB
457	 31.73	-1	438246..438494	-	82	32265956	-	HH0457	-	hypothetical protein
458	 35.53	0	438504..441509	-	1001	32265957	mfd	HH0458	-	transcription-repair coupling factor
459	 38.57	0	441536..441955	-	139	32265958	-	HH0459	-	hypothetical protein
460	 34.33	0	441913..442812	-	299	32265959	-	HH0460	-	membrane proteins related to metalloendopeptidase
461	 34.47	0	442816..443691	-	291	32265960	tagE	HH0461	-	hypothetical protein
462	 36.72	0	443692..444900	-	402	32265961	folC	HH0462	-	folylpolyglutamate synthase
463	 32.46	0	444897..445931	-	344	32265962	-	HH0463	-	hypothetical protein
464	 31.58	-1	445906..446418	-	170	32265963	-	HH0464	-	hypothetical protein
465	 37.51	0	446418..448910	-	830	32265964	leuS	HH0465	-	leucyl-tRNA synthetase
466	 34.70	0	449135..450376	+	413	32265965	alr	HH0466	-	alanine racemase
467	 38.09	0	450486..452693	+	735	32265966	flhA	HH0467	-	flagellar biosynthesis protein FlhA
468	 33.87	0	452702..453829	+	375	32265967	-	HH0468	-	hypothetical protein
469	 33.33	0	453826..454095	+	89	32265968	-	HH0469	-	hypothetical protein
470	 35.24	0	454156..454731	+	191	32265969	purN	HH0470	-	GAR transformylase PurN
471	 35.86	0	454728..455912	+	394	32265970	kefB_1	HH0471	-	hypothetical protein
472	 38.56	0	455912..457309	+	465	32265971	-	HH0472	-	SNF family sodium-dependent transporter
473	 38.68	0	457376..459151	+	591	32265972	-	HH0473	-	periplasmic binding component of ABC-type transport system
474	 35.10	0	459280..461037	+	585	32265973	-	HH0474	-	ATPase
475	 30.77	-1	461338..461649	+	103	32265974	-	HH0475	-	hypothetical protein
476	 29.84	-1	461646..462074	+	142	32265975	-	HH0476	-	hypothetical protein
477	 25.69	-2	462353..462679	+	108	32265976	-	HH0477	-	hypothetical protein
478	 29.43	-1	462752..463801	+	349	32265977	-	HH0478	-	ATPase
479	 23.61	-2	464216..464359	+	47	32265978	-	HH0479	-	hypothetical protein
480	 33.33	0	464383..464481	+	32	32265979	-	HH0480	-	hypothetical protein
481	 35.92	0	464452..466539	-	695	32265980	-	HH0481	-	hypothetical protein
482	 34.37	0	466710..467774	+	354	32265981	-	HH0482	-	ATPase
483	 38.88	0	467785..469155	-	456	32265982	purH	HH0483	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
484	 36.86	0	469382..470260	+	292	32265983	-	HH0484	-	hypothetical protein
485	 37.31	0	470499..471152	+	217	32265984	hisH	HH0485	-	glutamine amidotransferase HisH
486	 39.64	+1	471235..472170	+	311	32265985	trxB_1	HH0486	-	thioredoxin reductase TrxB
487	 39.19	0	472213..472980	+	255	32265986	dapB	HH0487	-	dihydrodipicolinate reductase
488	 38.95	0	473048..474472	+	474	32265987	purF	HH0488	-	amidophosphoribosyltransferase
489	 37.28	0	474482..475444	+	320	32265988	-	HH0489	-	hypothetical protein
490	 34.84	0	475476..476339	-	287	32265989	-	HH0490	-	hypothetical protein
491	 37.01	0	476357..477607	-	416	32265990	pgi	HH0491	-	glucose-6-phosphate isomerase
492	 38.72	0	477614..478597	-	327	32265991	gap_2	HH0492	-	glyceraldehyde-3-phosphate dehydrogenase
493	 36.11	0	478612..478719	-	35	32265992	-	HH0493	-	hypothetical protein
494	 34.33	0	478824..479723	-	299	32265993	-	HH0494	-	hypothetical protein
495	 36.29	0	479804..481897	-	697	32265994	ppk	HH0495	-	polyphosphate kinase
496	 33.92	0	482101..482613	+	170	32265995	-	HH0496	-	hypothetical protein
497	 37.62	0	482701..484545	+	614	32265996	yigC	HH0497	-	hypothetical protein
498	 38.69	0	484628..485056	+	142	32265997	rplM	HH0498	-	50S ribosomal protein L13
499	 40.77	+1	485065..485454	+	129	32265998	rpsI	HH0499	-	30S ribosomal protein S9
500	 39.51	+1	485552..486085	+	177	32265999	ycbL	HH0500	-	hydrolase
501	 43.32	+2	486136..486906	+	256	32266000	motA	HH0501	-	flagellar motor protein MotA
502	 38.76	0	486926..487681	+	251	32266001	motB	HH0502	-	flagellar motor protein MotB
503	 41.46	+1	487742..487864	+	40	32266002	-	HH0503	-	hypothetical protein
504	 27.85	-2	487930..488166	+	78	32266003	-	HH0504	-	hypothetical protein
505	 30.95	-1	488422..488631	+	69	32266004	-	HH0505	-	hypothetical protein
506	 40.95	+1	488672..489682	-	336	32266005	ruvB	HH0506	-	Holliday junction DNA helicase B
507	 39.50	+1	489763..490557	-	264	32266006	panB	HH0507	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
508	 34.27	0	490584..490904	-	106	32266007	-	HH0508	-	efflux protein
509	 36.13	0	490905..491261	-	118	32266008	-	HH0509	-	efflux protein
510	 35.04	0	491258..492136	-	292	32266009	lgt	HH0510	-	prolipoprotein diacylglyceryl transferase
511	 32.09	-1	492139..492459	-	106	32266010	-	HH0511	-	hypothetical protein
512	 32.29	0	492519..492995	-	158	32266011	-	HH0512	-	hypothetical protein
513	 34.58	0	493011..494609	-	532	32266012	-	HH0513	-	hypothetical protein
514	 34.52	0	494637..495227	-	196	32266013	ruvA	HH0514	-	Holliday junction DNA helicase motor protein
515	 35.27	0	495283..497139	-	618	32266014	-	HH0515	-	hypothetical protein
516	 36.59	0	497317..498699	+	460	32266015	-	HH0516	-	hypothetical protein
517	 35.58	0	498696..500162	+	488	32266016	cysS	HH0517	-	cysteinyl-tRNA synthetase
518	 34.61	0	500164..501024	-	286	32266017	ribF	HH0518	-	bifunctional riboflavin kinase/FMN adenylyltransferase
519	 38.71	0	500993..501718	-	241	32266018	-	HH0519	-	hypothetical protein
520	 30.62	-1	501727..502242	-	171	32266019	-	HH0520	-	hypothetical protein
521	 39.60	+1	502410..503303	+	297	32266020	pyrB	HH0521	-	aspartate carbamoyltransferase catalytic subunit
522	 39.66	+1	503427..504737	+	436	32266021	-	HH0522	-	hypothetical protein
523	 39.18	0	504844..505698	+	284	32266022	cdsA	HH0523	-	CDP-diglyceride synthetase CdsA
524	 38.11	0	505702..506811	+	369	32266023	dxr	HH0524	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
525	 38.50	0	506966..507604	+	212	32266024	-	HH0525	-	hypothetical protein
526	 31.25	-1	507605..507700	+	31	32266025	-	HH0526	-	hypothetical protein
527	 37.67	0	507717..509261	+	514	32266026	thrC	HH0527	-	threonine synthase
528	 41.82	+1	509346..509840	+	164	32266027	purE	HH0528	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
529	 37.27	0	509850..510332	+	160	32266028	-	HH0529	-	hypothetical protein
530	 38.33	0	510329..511249	+	306	32266029	-	HH0530	-	hypothetical protein
531	 38.24	0	511258..512154	+	298	32266030	glyQ	HH0531	-	glycyl-tRNA synthetase subunit alpha
532	 38.54	0	512154..514208	+	684	32266031	-	HH0532	-	hypothetical protein
533	 36.97	0	514218..514904	+	228	32266032	-	HH0533	-	hypothetical protein
534	 37.18	0	515008..516852	+	614	32266033	-	HH0534	-	hypothetical protein
535	 32.74	0	517329..518339	+	336	32266034	-	HH0535	-	DNA polymerase III subunit delta
536	 35.99	0	518434..518847	+	137	32266035	rpsF	HH0536	-	30S ribosomal protein S6
537	 38.99	0	518865..519377	+	170	32266036	ssb	HH0537	-	single-strand DNA-binding protein
538	 37.25	0	519396..519650	+	84	161546631	rpsR	HH0538	-	30S ribosomal protein S18
539	 36.24	0	519753..521816	+	687	32266038	-	HH0539	-	hypothetical protein
540	 36.71	0	521952..522722	+	256	32266039	-	HH0540	-	hypothetical protein
541	 37.00	0	522724..522996	-	90	32266040	rpsO	HH0541	-	30S ribosomal protein S15
542	 32.65	0	523088..523234	-	48	32266041	-	HH0542	-	hypothetical protein
543	 35.90	0	523405..523560	-	51	32266042	-	HH0543	-	hypothetical protein
544	 32.44	0	523699..523923	-	74	32266043	-	HH0544	-	hypothetical protein
545	 35.58	0	523978..525849	-	623	32266044	rpoD	HH0545	-	RNA polymerase sigma factor RpoD
546	 39.87	+1	525972..526919	-	315	32266045	porB	HH0546	-	ferrodoxin oxidoreductase beta subunit
547	 42.26	+1	526930..528150	-	406	32266046	porA	HH0547	-	pyruvate flavodoxin oxidoreductase subunit alpha
548	 37.23	0	528162..528572	-	136	32266047	porD	HH0548	-	pyruvate flavodoxin oxidoreductase subunit delta
549	 38.15	0	528592..529152	-	186	32266048	porG	HH0549	-	pyruvate flavodoxin oxidoreductase subunit gamma
35.80	MEAN

3.58	STD DEV
