IslandPath Analysis: Helicobacter hepaticus ATCC 51449

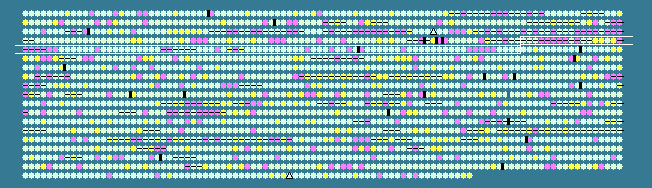

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.80 STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
384	 32.39	0	376094..376621	+	175	32265883	-	HH0384	-	hypothetical protein
385	 32.97	0	376621..377163	+	180	32265884	-	HH0385	-	hypothetical protein
386	 35.80	0	377153..377800	+	215	32265885	-	HH0386	-	hypothetical protein
387	 30.85	-1	377800..378363	+	187	32265886	-	HH0387	-	hypothetical protein
388	 32.28	0	378353..378733	+	126	32265887	-	HH0388	-	hypothetical protein
389	 27.40	-2	378733..379086	+	117	32265888	-	HH0389	-	hypothetical protein
390	 32.05	-1	379101..379646	+	181	32265889	-	HH0390	-	hypothetical protein
391	 27.66	-2	379627..380208	+	193	32265890	-	HH0391	-	hypothetical protein
392	 34.79	0	380201..380680	+	159	32265891	-	HH0392	-	hypothetical protein
393	 28.08	-2	380691..381185	+	164	32265892	-	HH0393	-	hypothetical protein
394	 33.61	0	381160..381522	+	120	32265893	-	HH0394	-	hypothetical protein
395	 36.60	0	381504..382451	-	315	32265894	-	HH0395	-	hypothetical protein
396	 41.22	+1	382630..384531	+	633	32265895	acoE	HH0396	-	acetyl-CoA synthetase
397	 39.38	+1	384535..385410	+	291	32265896	prpB	HH0397	-	2-methylisocitrate lyase
398	 38.90	0	385421..386569	+	382	32265897	prpC	HH0398	-	citrate synthase PrpC
399	 41.98	+1	386603..388060	+	485	32265898	prpD	HH0399	-	2-methylcitrate dehydratase
400	 30.23	-1	388108..388623	+	171	32265899	-	HH0400	-	hypothetical protein
401	 26.55	-2	388738..389253	-	171	32265900	-	HH0401	-	hypothetical protein
402	 30.77	-1	389536..389691	-	51	32265901	-	HH0402	-	hypothetical protein
403	 28.91	-1	389688..390569	-	293	32265902	-	HH0403	-	hypothetical protein
404	 31.39	-1	390631..390990	-	119	32265903	-	HH0404	-	hypothetical protein
405	 32.12	-1	391029..391439	-	136	32265904	-	HH0405	-	hypothetical protein
406	 23.98	-2	391621..391866	+	81	32265905	-	HH0406	-	hypothetical protein
407	 36.58	0	391929..392606	+	225	32265906	ureA	HH0407	-	bifunctional urease subunit gamma/beta
408	 38.65	0	392628..394337	+	569	32265907	ureC	HH0408	-	urease subunit alpha
409	 36.45	0	394347..394859	+	170	32265908	ureI	HH0409	-	urease accessory protein UreI
410	 33.71	0	394859..395383	+	174	161546633	ureE	HH0410	-	urease accessory protein UreE
411	 33.03	0	395380..396042	+	220	32265910	ureF	HH0411	-	urease accessory protein UreF
412	 38.14	0	396053..396655	+	200	32265911	ureG	HH0412	-	urease/hydrogenase-associated GTPase UreG
413	 32.31	0	396730..397410	+	226	32265912	ureH	HH0413	-	urease accessory protein UreH
414	 35.57	0	397413..398126	-	237	32265913	nikE	HH0414	-	nickel transport ATP-binding protein NikE
415	 37.41	0	398120..399787	-	555	32265914	nikD	HH0415	-	nickel transport permease component NikD
416	 36.57	0	399784..400680	-	298	32265915	nikB	HH0416	-	nickel transport system permease protein NikB
417	 36.91	0	400797..402362	-	521	32265916	nikA	HH0417	-	nickel transport system periplasmic component NikA
418	 35.26	0	402505..404679	+	724	32265917	-	HH0418	-	hypothetical protein
419	 37.36	0	404743..405537	+	264	32265918	proB	HH0419	-	gamma-glutamyl kinase
420	 36.70	0	405498..406448	+	316	32265919	fmt	HH0420	-	methionyl-tRNA formyltransferase
421	 33.19	0	406464..407183	+	239	32265920	birA	HH0421	-	biotin--protein ligase
422	 35.11	0	407194..407979	+	261	32265921	parA	HH0422	-	ATPase involved in chromosome partitioning ParA
423	 34.48	0	407985..408857	+	290	32265922	parB	HH0423	-	transcriptional regulator involved in chromosome partitioning ParB
424	 31.22	-1	408934..409359	+	141	32265923	atpF	HH0424	-	F0F1 ATP synthase subunit B'
425	 29.84	-1	409369..409884	+	171	32265924	atpF'	HH0425	-	F0F1 ATP synthase subunit B
426	 33.33	0	409884..410408	+	174	32265925	atpH	HH0426	-	F0F1 ATP synthase subunit delta
427	 38.09	0	410430..411944	+	504	32265926	atpA	HH0427	-	F0F1 ATP synthase subunit alpha
428	 36.24	0	411957..412850	+	297	32265927	atpG	HH0428	-	F0F1 ATP synthase subunit gamma
429	 38.62	0	412869..414269	+	466	32265928	atpD	HH0429	-	F0F1 ATP synthase subunit beta
430	 37.12	0	414278..414673	+	131	32265929	atpC	HH0430	-	F0F1 ATP synthase subunit epsilon
431	 33.87	0	414683..415246	+	187	32265930	-	HH0431	-	biopolymer transport protein
432	 32.83	0	415254..415649	+	131	32265931	-	HH0432	-	biopolymer transport protein ExbD-like
433	 31.75	-1	415651..416343	+	230	32265932	-	HH0433	-	hypothetical protein
434	 34.60	0	416353..417612	+	419	32265933	tolB	HH0434	-	translocation protein TolB
435	 40.04	+1	417669..418130	+	153	32265934	-	HH0435	-	hypothetical protein
436	 31.32	-1	418154..418999	+	281	32265935	-	HH0436	-	hypothetical protein
437	 44.50	+2	418996..419550	+	184	32265936	slyD	HH0437	-	FKBP-type peptidyl-prolyl cis-trans isomerase 2
438	 34.83	0	419734..420000	+	88	32265937	fliQ	HH0438	-	flagellar biosynthesis protein FliQ
439	 38.76	0	420004..420795	+	263	32265938	murB	HH0439	-	UDP-N-acetylenolpyruvoylglucosamine reductase
440	 36.34	0	421336..421734	+	132	32265939	secG	HH0440	-	preprotein translocase subunit SecG
441	 36.02	0	421749..422306	+	185	32265940	frr	HH0441	-	ribosome recycling factor
442	 37.69	0	422309..424123	+	604	32265941	thrS	HH0442	-	threonyl-tRNA synthetase
443	 36.57	0	424120..424644	+	174	32265942	infC	HH0443	-	translation initiation factor IF-3
444	 33.33	0	424667..424861	+	64	161546632	rpmI	HH0444	-	50S ribosomal protein L35
445	 37.29	0	424944..425297	+	117	32265944	rplT	HH0445	-	50S ribosomal protein L20
446	 34.80	0	425458..426615	+	385	32265945	-	HH0446	-	hypothetical protein
447	 35.14	0	426584..427249	-	221	32265946	-	HH0447	-	hypothetical protein
448	 31.03	-1	427246..427419	-	57	32265947	-	HH0448	-	hypothetical protein
449	 36.35	0	427434..428129	-	231	32265948	hisI	HH0449	-	phosphoribosyl-AMP cyclohydrolase/ phosphoribosyl-ATP pyrophosphohydrolase
450	 38.71	0	428134..429231	-	365	32265949	-	HH0450	-	hypothetical protein
451	 39.23	0	429233..430165	-	310	32265950	ilvE	HH0451	-	branched-chain amino acid aminotransferase
452	 31.36	-1	430298..431770	-	490	32265951	-	HH0452	-	hypothetical protein
453	 35.56	0	432151..434976	+	941	32265952	ftsK	HH0453	-	DNA segregation ATPase FtsK/SpoIIIE
454	 37.24	0	435032..436465	+	477	32265953	htrA	HH0454	-	serine protease
455	 30.59	-1	436487..437323	+	278	32265954	cheR	HH0455	-	chemotaxis protein methyltransferase CheR
456	 38.80	0	437327..438040	+	237	32265955	cheB	HH0456	-	chemotaxis protein methylesterase CheB
457	 31.73	-1	438246..438494	-	82	32265956	-	HH0457	-	hypothetical protein
458	 35.53	0	438504..441509	-	1001	32265957	mfd	HH0458	-	transcription-repair coupling factor
459	 38.57	0	441536..441955	-	139	32265958	-	HH0459	-	hypothetical protein
460	 34.33	0	441913..442812	-	299	32265959	-	HH0460	-	membrane proteins related to metalloendopeptidase
461	 34.47	0	442816..443691	-	291	32265960	tagE	HH0461	-	hypothetical protein
462	 36.72	0	443692..444900	-	402	32265961	folC	HH0462	-	folylpolyglutamate synthase
463	 32.46	0	444897..445931	-	344	32265962	-	HH0463	-	hypothetical protein
464	 31.58	-1	445906..446418	-	170	32265963	-	HH0464	-	hypothetical protein
465	 37.51	0	446418..448910	-	830	32265964	leuS	HH0465	-	leucyl-tRNA synthetase
466	 34.70	0	449135..450376	+	413	32265965	alr	HH0466	-	alanine racemase
467	 38.09	0	450486..452693	+	735	32265966	flhA	HH0467	-	flagellar biosynthesis protein FlhA
468	 33.87	0	452702..453829	+	375	32265967	-	HH0468	-	hypothetical protein
469	 33.33	0	453826..454095	+	89	32265968	-	HH0469	-	hypothetical protein
470	 35.24	0	454156..454731	+	191	32265969	purN	HH0470	-	GAR transformylase PurN
471	 35.86	0	454728..455912	+	394	32265970	kefB_1	HH0471	-	hypothetical protein
472	 38.56	0	455912..457309	+	465	32265971	-	HH0472	-	SNF family sodium-dependent transporter
473	 38.68	0	457376..459151	+	591	32265972	-	HH0473	-	periplasmic binding component of ABC-type transport system
474	 35.10	0	459280..461037	+	585	32265973	-	HH0474	-	ATPase
475	 30.77	-1	461338..461649	+	103	32265974	-	HH0475	-	hypothetical protein
476	 29.84	-1	461646..462074	+	142	32265975	-	HH0476	-	hypothetical protein
477	 25.69	-2	462353..462679	+	108	32265976	-	HH0477	-	hypothetical protein
478	 29.43	-1	462752..463801	+	349	32265977	-	HH0478	-	ATPase
479	 23.61	-2	464216..464359	+	47	32265978	-	HH0479	-	hypothetical protein
480	 33.33	0	464383..464481	+	32	32265979	-	HH0480	-	hypothetical protein
481	 35.92	0	464452..466539	-	695	32265980	-	HH0481	-	hypothetical protein
482	 34.37	0	466710..467774	+	354	32265981	-	HH0482	-	ATPase
483	 38.88	0	467785..469155	-	456	32265982	purH	HH0483	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
35.80	MEAN

3.58	STD DEV
