IslandPath Analysis: Helicobacter hepaticus ATCC 51449

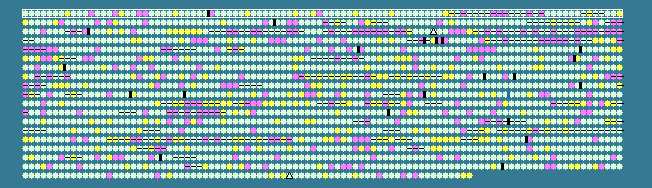

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.80   STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 36.09	0	141..2423	+	760	32265500	-	HH0001	-	hypothetical protein
2	 37.05	0	2484..3989	+	501	32265501	trpC	HH0002	-	phosphoribosylanthranilate isomerase
3	 35.91	0	3986..5032	+	348	32265502	-	HH0003	-	hypothetical protein
4	 32.79	0	5053..5607	-	184	32265503	-	HH0004	-	hypothetical protein
5	 34.57	0	5633..6196	-	187	32265504	-	HH0005	-	hypothetical protein
6	 37.02	0	6282..6905	-	207	32265505	rnhB	HH0006	-	ribonuclease HII
7	 37.77	0	7073..7681	-	202	32265506	hopZ	HH0007	-	hypothetical protein
8	 39.94	+1	7845..8888	-	347	32265507	obgE	HH0008	-	GTPase ObgE
9	 39.15	0	9016..9273	-	85	32265508	rpmA	HH0009	-	50S ribosomal protein L27
10	 36.19	0	9290..9604	-	104	32265509	rplU	HH0010	-	50S ribosomal protein L21
11	 35.51	0	9758..10585	+	275	32265510	-	HH0011	-	hypothetical protein
12	 32.16	-1	10571..11254	-	227	32265511	-	HH0012	-	hypothetical protein
13	 37.04	0	11394..13283	+	629	32265512	gidA	HH0013	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
14	 37.80	0	13308..13934	+	208	32265513	-	HH0014	-	hypothetical protein
15	 36.40	0	13936..15108	+	390	32265514	ygiC	HH0015	-	hypothetical protein
16	 31.74	-1	15102..16670	-	522	32265515	-	HH0016	-	hypothetical protein
17	 41.16	+1	16692..18134	-	480	32265516	-	HH0017	-	aspartate oxidase
18	 35.29	0	18344..18802	+	152	32265517	-	HH0018	-	hypothetical protein
19	 34.62	0	18792..20657	+	621	32265518	uvrC	HH0019	-	excinuclease ABC subunit C
20	 30.56	-1	20820..22151	+	443	32265519	-	HH0020	-	hypothetical protein
21	 31.98	-1	22148..23623	+	491	32265520	-	HH0021	-	two-component sensor histidine kinase family protein
22	 35.11	0	23613..24287	+	224	32265521	-	HH0022	-	two-component response regulator family protein
23	 39.06	0	24450..25742	+	430	32265522	rho	HH0023	-	transcription termination factor Rho
24	 39.25	0	25751..26494	+	247	32265523	murI	HH0024	-	glutamate racemase
25	 34.70	0	26504..28696	-	730	32265524	-	HH0025	-	hypothetical protein
26	 39.82	+1	28808..30766	-	652	32265525	tktA	HH0026	-	transketolase
27	 36.70	0	30801..33206	-	801	32265526	pheT	HH0027	-	phenylalanyl-tRNA synthetase subunit beta
28	 37.03	0	33206..34207	-	333	32265527	pheS	HH0028	-	phenylalanyl-tRNA synthetase subunit alpha
29	 36.84	0	34349..34690	+	113	32265528	-	HH0029	-	HIT hydrolase family protein
30	 35.56	0	34762..35346	+	194	32265529	tehB	HH0030	-	hypothetical protein
31	 38.77	0	35415..36701	+	428	32265530	-	HH0031	-	hypothetical protein
32	 25.57	-2	37157..37594	-	145	32265531	-	HH0032	-	hypothetical protein
33	 35.20	0	37606..39801	-	731	32265532	feoB	HH0033	-	ferrous ion uptake system protein
34	 38.00	0	39885..41126	-	413	32265533	-	HH0034	-	hypothetical protein
35	 37.89	0	41136..41969	-	277	32265534	panC	HH0035	-	pantoate--beta-alanine ligase
36	 36.47	0	42006..42707	-	233	32265535	pyrF	HH0036	-	orotidine 5'-phosphate decarboxylase
37	 38.61	0	42708..43181	-	157	32265536	nusB	HH0037	-	transcription antitermination protein NusB
38	 39.49	+1	43192..43662	-	156	32265537	ribH	HH0038	-	riboflavin synthase subunit beta
39	 38.62	0	43692..44504	-	270	32265538	kdsA	HH0039	-	2-dehydro-3-deoxyphosphooctonate aldolase
40	 36.11	0	44515..45162	-	215	32265539	icfA	HH0040	-	carbonic anhydrase
41	 33.48	0	45310..45990	+	226	32265540	-	HH0041	-	hypothetical protein
42	 35.85	0	46021..46497	-	158	32265541	yahD	HH0042	-	ankyrin repeat-containing protein
43	 37.44	0	46498..47934	-	478	32265542	katA	HH0043	-	catalase
44	 35.90	0	48104..48688	+	194	32265543	ribA	HH0044	-	GTP cyclohydrolase II
45	 37.57	0	48725..49975	+	416	32265544	moeA_1	HH0045	-	molybdopterin biosynthesis enzyme
46	 43.56	+2	50021..50245	+	74	32265545	moaD	HH0046	-	molybdopterin converting factor
47	 38.40	0	50233..50706	+	157	32265546	moaE	HH0047	-	molybdopterin converting factor
48	 35.28	0	50690..51253	+	187	32265547	mobB	HH0048	-	molybdopterin-guanine dinucleotide biosynthesis protein MobB
49	 39.63	+1	51253..51792	+	179	32265548	mogA	HH0049	-	molybdenum cofactor biosynthesis protein
50	 30.36	-1	51968..55228	+	1086	32265549	-	HH0050	-	hypothetical protein
51	 38.28	0	55394..56263	-	289	32265550	-	HH0051	-	hypothetical protein
52	 38.96	0	56477..56956	+	159	32265551	moaC	HH0052	-	molybdenum cofactor biosynthesis protein C
53	 35.81	0	56957..58327	+	456	32265552	-	HH0053	-	hypothetical protein
54	 34.72	0	58324..59910	-	528	32265553	-	HH0054	-	hypothetical protein
55	 34.91	0	59970..60287	-	105	32265554	trxA_2	HH0055	-	thioredoxin
56	 42.64	+1	60643..61803	+	386	32265555	hyaA	HH0056	-	Ni/Fe hydrogenase beta subunit
57	 38.71	0	61814..63544	+	576	32265556	hyaB	HH0057	-	Ni/Fe hydrogenase alpha subunit
58	 35.03	0	63555..64319	+	254	32265557	hyaC	HH0058	-	Ni/Fe hydrogenase cytochrome b subunit
59	 37.78	0	64327..64866	+	179	32265558	hyaD	HH0059	-	hydrogenase formation/expression protease HyaD/HupD
60	 36.40	0	64863..66656	+	597	32265559	-	HH0060	-	hypothetical protein
61	 36.06	0	66709..67479	+	256	32265560	-	HH0061	-	hypothetical protein
62	 39.41	+1	67490..68641	+	383	32265561	metB	HH0062	-	cystathionine gamma-synthase
63	 38.22	0	68643..69584	+	313	32265562	cysK_1	HH0063	-	cysteine synthase
64	 33.72	0	69562..70341	-	259	32265563	-	HH0064	-	hypothetical protein
65	 33.33	0	70335..70496	-	53	32265564	-	HH0065	-	hypothetical protein
66	 36.08	0	70592..71065	+	157	32265565	-	HH0066	-	hypothetical protein
67	 36.78	0	71217..71825	+	202	32265566	-	HH0067	-	hypothetical protein
68	 35.64	0	71863..72771	-	302	32265567	-	HH0068	-	hypothetical protein
69	 37.95	0	72768..73244	-	158	32265568	-	HH0069	-	alpha-1,2-fucosyltransferase fragment
70	 32.89	0	73214..73666	-	150	32265569	-	HH0070	-	alpha-1,2-fucosyltransferase fragment
71	 43.53	+2	73683..74780	-	365	32265570	-	HH0071	-	hypothetical protein
72	 40.08	+1	74801..75763	-	320	32265571	-	HH0072	-	hypothetical protein
73	 35.90	0	75766..76854	-	362	32265572	-	HH0073	-	hypothetical protein
74	 30.17	-1	76926..77558	-	210	32265573	cfa	HH0074	-	hypothetical protein
75	 36.50	0	77551..78276	-	241	32265574	ygeA	HH0075	-	aspartate racemase
76	 33.33	0	78397..79212	-	271	32265575	-	HH0076	-	hypothetical protein
77	 36.60	0	79209..79850	-	213	32265576	-	HH0077	-	hypothetical protein
78	 35.50	0	79823..80422	-	199	32265577	serB	HH0078	-	phosphoserine phosphatase
79	 31.90	-1	80419..81888	-	489	32265578	-	HH0079	-	hypothetical protein
80	 31.61	-1	81950..83107	-	385	32265579	-	HH0080	-	hypothetical protein
81	 31.76	-1	83104..84057	-	317	32265580	-	HH0081	-	hypothetical protein
82	 35.41	0	84050..84868	-	272	32265581	-	HH0082	-	UDP-N-acetylglucosamine 2-epimerase
83	 36.73	0	85287..86021	-	244	32265582	-	HH0083	-	hypothetical protein
84	 34.00	0	86018..87661	-	547	32265583	-	HH0084	-	hypothetical protein
85	 32.32	0	87674..87772	-	32	32265584	-	HH0085	-	hypothetical protein
86	 37.46	0	87774..88088	-	104	32265585	-	HH0086	-	hypothetical protein
87	 30.98	-1	88088..88342	-	84	32265586	-	HH0087	-	acyl carrier protein
88	 33.16	0	88345..88917	-	190	32265587	-	HH0088	-	hypothetical protein
89	 36.86	0	88914..89876	-	320	32265588	-	HH0089	-	hypothetical protein
90	 33.26	0	89982..91340	-	452	32265589	-	HH0090	-	hypothetical protein
91	 35.58	0	91340..92851	-	503	32265590	-	HH0091	-	hypothetical protein
92	 36.73	0	92844..93578	-	244	32265591	-	HH0092	-	hypothetical protein
93	 32.65	0	93571..93864	-	97	32265592	-	HH0093	-	hypothetical protein
94	 37.23	0	93865..94428	-	187	32265593	-	HH0094	-	hypothetical protein
95	 40.43	+1	94428..94991	-	187	32265594	-	HH0095	-	hypothetical protein
96	 36.24	0	95258..95704	+	148	32265595	-	HH0096	-	hypothetical protein
97	 36.57	0	95714..96115	+	133	32265596	-	HH0097	-	hypothetical protein
98	 37.87	0	96474..97508	-	344	32265597	-	HH0098	-	molybdenum cofactor biosynthesis protein A
99	 37.21	0	97587..98618	-	343	32265598	-	HH0099	-	dTDP-D-glucose 4,6-dehydratase
100	 40.87	+1	98618..99493	-	291	32265599	-	HH0100	-	hypothetical protein
35.80	MEAN

3.58	STD DEV
