IslandPath Analysis: Helicobacter hepaticus ATCC 51449

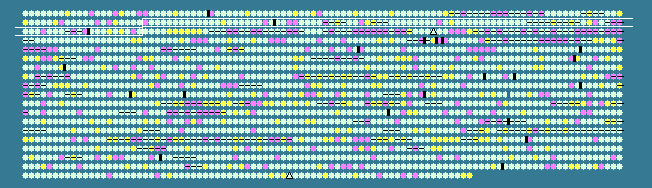

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.80   STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
121	 32.26	0	118056..118523	-	155	32265620	smpB	HH0121	-	SsrA-binding protein
122	 36.86	0	118525..119205	-	226	32265621	-	HH0122	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
123	 36.25	0	119335..119574	-	79	32265622	-	HH0123	-	carbon storage regulator
124	 36.73	0	119546..120400	-	284	32265623	truB	HH0124	-	tRNA pseudouridine synthase B
125	 33.43	0	120463..121524	-	353	32265624	-	HH0125	-	hypothetical protein
126	 37.05	0	121531..122391	-	286	32265625	-	HH0126	-	hypothetical protein
127	 37.55	0	122388..122885	-	165	32265626	-	HH0127	-	hypothetical protein
128	 32.46	0	122898..124379	-	493	32265627	-	HH0128	-	hypothetical protein
129	 32.65	0	124390..124680	-	96	32265628	-	HH0129	-	hypothetical protein
130	 35.15	0	124677..125282	-	201	32265629	-	HH0130	-	hypothetical protein
131	 33.33	0	125433..126485	-	350	32265630	ddl	HH0131	-	D-alanyl-alanine synthetase A
132	 37.43	0	126488..129319	-	943	32265631	uvrA	HH0132	-	excinuclease ABC subunit A
133	 35.48	0	129365..129643	-	92	32265632	-	HH0133	-	hypothetical protein
134	 39.84	+1	129507..129629	+	40	32265633	-	HH0134	-	hypothetical protein
135	 37.89	0	129667..131247	-	526	32265634	serA	HH0135	-	D-3-phosphoglycerate dehydrogenase
136	 35.91	0	131269..131733	-	154	32265635	-	HH0136	-	hypothetical protein
137	 34.30	0	131750..133408	-	552	32265636	rpsA	HH0137	-	30S ribosomal protein S1
138	 34.91	0	133502..134323	-	273	32265637	ispH	HH0138	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
139	 39.26	0	134313..135629	-	438	32265638	aroA	HH0139	-	3-phosphoshikimate 1-carboxyvinyltransferase
140	 35.22	0	135696..136754	-	352	32265639	-	HH0140	-	two component system sensor kinase protein
141	 31.51	-1	136738..137121	-	127	32265640	-	HH0141	-	hypothetical protein
142	 38.20	0	137132..138178	-	348	32265641	flgI	HH0142	-	flagellar basal body P-ring protein
143	 38.89	0	138399..139010	-	203	32265642	-	HH0143	-	hypothetical protein
144	 37.73	0	139010..139441	-	143	32265643	-	HH0144	-	hypothetical protein
145	 30.23	-1	139588..139716	+	42	32265644	-	HH0145	-	hypothetical protein
146	 22.22	-2	139780..139878	-	32	32265645	-	HH0146	-	hypothetical protein
147	 38.61	0	139870..141612	+	580	32265646	-	HH0147	-	hypothetical protein
148	 37.58	0	141622..141951	-	109	32265647	-	HH0148	-	hypothetical protein
149	 35.11	0	141965..142582	-	205	32265648	hisG	HH0149	-	ATP phosphoribosyltransferase catalytic subunit
150	 34.94	0	142614..143234	-	206	32265649	-	HH0150	-	pantothenate kinase
151	 31.09	-1	143234..144259	-	341	32265650	-	HH0151	-	hypothetical protein
152	 34.71	0	144289..144942	-	217	32265651	-	HH0152	-	hypothetical protein
153	 42.35	+1	144953..145429	-	158	32265652	dut	HH0153	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
154	 39.02	0	145433..145924	-	163	32265653	greA	HH0154	-	transcription elongation factor GreA
155	 37.02	0	146038..147339	-	433	32265654	putP	HH0155	-	sodium/proline symporter
156	 32.36	0	147609..151109	-	1166	32265655	-	HH0156	-	hypothetical protein
157	 26.04	-2	151140..151235	-	31	32265656	-	HH0157	-	hypothetical protein
158	 39.59	+1	151422..154235	+	937	32265657	napA	HH0158	-	nitrate reductase
159	 39.98	+1	154245..155087	+	280	32265658	napG	HH0159	-	quinol dehydrogenase periplasmic component
160	 37.20	0	155087..156016	+	309	32265659	napH	HH0160	-	quinol dehydrogenase membrane component
161	 38.12	0	156013..156576	+	187	32265660	napB	HH0161	-	periplasmic nitrate reductase
162	 35.62	0	156588..157637	+	349	32265661	-	HH0162	-	hypothetical protein
163	 33.61	0	157637..157996	+	119	32265662	napD	HH0163	-	periplasmic nitrate reductase component NapD
164	 35.88	0	158071..158463	-	130	32265663	-	HH0164	-	hypothetical protein
165	 34.25	0	158583..159020	-	145	32265664	-	HH0165	-	hypothetical protein
166	 34.44	0	159256..159708	+	150	32265665	-	HH0166	-	hypothetical protein
167	 36.38	0	159703..161079	-	458	32265666	-	HH0167	-	hypothetical protein
168	 38.43	0	161093..161818	-	241	32265667	kdsB	HH0168	-	3-deoxy-manno-octulosonate cytidylyltransferase
169	 34.82	0	161887..163098	-	403	32265668	-	HH0169	-	hypothetical protein
170	 30.56	-1	163233..163412	+	59	32265669	-	HH0170	-	hypothetical protein
171	 35.13	0	163418..165418	+	666	32265670	-	HH0171	-	hypothetical protein
172	 39.31	0	165492..166628	+	378	32265671	gmd	HH0172	-	GDP-D-mannose dehydratase
173	 35.44	0	166657..167700	+	347	32265672	-	HH0173	-	hypothetical protein
174	 38.06	0	167702..170830	-	1042	32265673	-	HH0174	-	hypothetical protein
175	 37.39	0	170840..172021	-	393	32265674	-	HH0175	-	hypothetical protein
176	 37.95	0	172273..172770	-	165	32265675	ygaG	HH0176	-	S-ribosylhomocysteinase
177	 34.48	0	172826..173260	-	144	32265676	-	HH0177	-	hypothetical protein
178	 36.86	0	173304..174239	-	311	32265677	-	HH0178	-	2-hydroxyacid dehydrogenase
179	 37.01	0	174324..175166	+	280	32265678	argB	HH0179	-	acetylglutamate kinase
180	 33.33	0	175163..175642	+	159	32265679	-	HH0180	-	hypothetical protein
181	 37.97	0	175658..175894	+	78	32265680	-	HH0181	-	hypothetical protein
182	 35.57	0	175875..176456	+	193	32265681	-	HH0182	-	hypothetical protein
183	 36.77	0	176944..179181	-	745	32265682	flgE	HH0183	-	flagellar hook protein FlgE
184	 36.01	0	179178..179999	-	273	32265683	flgD	HH0184	-	flagellar basal body rod modification protein
185	 35.28	0	180021..181256	-	411	32265684	-	HH0185	-	hypothetical protein
186	 35.64	0	181393..182301	-	302	32265685	-	HH0186	-	hypothetical protein
187	 36.24	0	182568..183254	-	228	32265686	-	HH0187	-	hypothetical protein
188	 35.79	0	183254..184150	-	298	32265687	-	HH0188	-	hypothetical protein
189	 39.54	+1	184273..185013	-	246	32265688	-	HH0189	-	hypothetical protein
190	 35.92	0	185029..185337	-	102	32265689	-	HH0190	-	hypothetical protein
191	 38.21	0	185594..185716	+	40	32265690	-	HH0191	-	hypothetical protein
192	 40.48	+1	185783..185908	-	41	32265691	-	HH0192	-	hypothetical protein
193	 35.80	0	186061..186627	-	188	161546635	dcd	HH0193	-	deoxycytidine triphosphate deaminase
194	 39.03	0	186721..187194	+	157	32265693	accB	HH0194	-	biotin carboxyl carrier protein
195	 39.56	+1	187204..188568	+	454	32265694	accC	HH0195	-	biotin carboxylase
196	 31.30	-1	188600..189289	+	229	32265695	-	HH0196	-	hypothetical protein
197	 36.13	0	189306..190484	+	392	32265696	-	HH0197	-	hypothetical protein
198	 39.06	0	190571..192229	+	552	32265697	-	HH0198	-	hypothetical protein
199	 31.22	-1	192315..193118	+	267	32265698	-	HH0199	-	hypothetical protein
200	 32.01	-1	193150..193827	+	225	32265699	-	HH0200	-	hypothetical protein
201	 37.25	0	194149..194658	+	169	32265700	-	HH0201	-	hypothetical protein
202	 38.25	0	194663..195130	+	155	32265701	-	HH0202	-	hypothetical protein
203	 34.79	0	195137..196237	-	366	32265702	glf	HH0203	-	UDP-galactopyranose mutase
204	 31.42	-1	196241..197284	-	347	32265703	-	HH0204	-	glycosyl transferase
205	 34.92	0	197365..198495	-	376	32265704	-	HH0205	-	glycosyl transferase
206	 32.48	0	198557..199489	-	310	32265705	-	HH0206	-	hypothetical protein
207	 35.90	0	199492..200310	-	272	32265706	-	HH0207	-	hypothetical protein
208	 38.39	0	200539..201606	-	355	32265707	-	HH0208	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
209	 25.00	-2	201638..201745	-	35	32265708	-	HH0209	-	hypothetical protein
210	 35.88	0	201766..202236	-	156	32265709	dps	HH0210	-	starvation-inducible DNA-binding protein Dps
211	 29.27	-1	202275..202397	-	40	32265710	-	HH0211	-	hypothetical protein
212	 35.22	0	203064..203540	+	158	32265711	-	HH0212	-	hypothetical protein
213	 36.88	0	203584..204456	+	290	32265712	-	HH0213	-	hypothetical protein
214	 34.91	0	204449..205273	-	274	32265713	-	HH0214	-	hypothetical protein
215	 40.04	+1	205388..205894	+	168	32265714	-	HH0215	-	hypothetical protein
216	 34.88	0	205917..206240	+	107	32265715	-	HH0216	-	hypothetical protein
217	 39.87	+1	206284..207768	+	494	32265716	-	HH0217	-	hypothetical protein
218	 36.88	0	207823..207963	+	46	32265717	-	HH0218	-	hypothetical protein
219	 31.52	-1	208046..208870	+	274	32265718	-	HH0219	-	hypothetical protein
220	 36.50	0	208882..209292	+	136	32265719	dgkA	HH0220	-	diacylglycerol kinase
35.80	MEAN

3.58	STD DEV
