IslandPath Analysis: Helicobacter hepaticus ATCC 51449

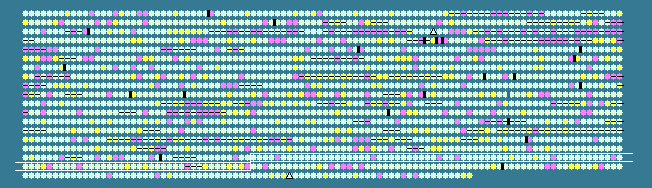

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.80 STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1639	 33.67	0	1564262..1565158	-	298	32267138	-	HH1639	-	hypothetical protein
1640	 36.89	0	1565151..1566386	-	411	32267139	-	HH1640	-	recombination factor protein RarA
1641	 37.83	0	1566380..1566757	-	125	32267140	hspR	HH1641	-	putative heat shock transcriptional regulator
1642	 38.81	0	1566783..1567676	-	297	32267141	cbpA	HH1642	-	curved DNA-binding protein CbpA
1643	 32.00	-1	1567835..1570750	+	971	32267142	-	HH1643	-	putative helicase
1644	 34.35	0	1571029..1572411	+	460	32267143	-	HH1644	-	hypothetical protein
1645	 37.83	0	1572432..1573766	+	444	32267144	nhaA	HH1645	-	Na+/H+ antiporter
1646	 33.33	0	1573817..1574110	+	97	32267145	yajC	HH1646	-	preprotein translocase subunit YajC
1647	 38.01	0	1574117..1575955	+	612	32267146	secD	HH1647	-	preprotein translocase subunit SecD
1648	 35.91	0	1575959..1576930	+	323	32267147	secF	HH1648	-	preprotein translocase subunit SecF
1649	 34.21	0	1576941..1577282	+	113	32267148	-	HH1649	-	hypothetical protein
1650	 35.43	0	1577318..1578031	+	237	32267149	-	HH1650	-	hypothetical protein
1651	 32.95	0	1578043..1580133	+	696	32267150	-	HH1651	-	hypothetical protein
1652	 38.96	0	1580137..1580598	-	153	32267151	-	HH1652	-	hypothetical protein
1653	 37.33	0	1580835..1582361	+	508	32267152	flaA_2	HH1653	-	flagellin A
1654	 35.28	0	1582612..1583280	+	222	32267153	-	HH1654	-	hypothetical protein
1655	 34.53	0	1583353..1583769	+	138	32267154	-	HH1655	-	hypothetical protein
1656	 34.23	0	1583821..1584492	+	223	32267155	-	HH1656	-	hypothetical protein
1657	 32.63	0	1584505..1585788	+	427	32267156	-	HH1657	-	hypothetical protein
1658	 36.20	0	1585869..1587332	+	487	32267157	dnaB	HH1658	-	replicative DNA helicase
1659	 31.99	-1	1587342..1588679	+	445	32267158	-	HH1659	-	hypothetical protein
1660	 37.44	0	1588652..1589941	-	429	32267159	-	HH1660	-	hypothetical protein
1661	 37.46	0	1589941..1590522	-	193	32267160	-	HH1661	-	hypothetical protein
1662	 37.90	0	1590519..1591481	-	320	32267161	wbpB	HH1662	-	lipopolysaccharide biosynthesis protein wbpB
1663	 38.73	0	1591489..1592415	-	308	32267162	-	HH1663	-	hypothetical protein
1664	 35.90	0	1592460..1593005	-	181	32267163	-	HH1664	-	hypothetical protein
1665	 37.57	0	1593017..1594267	-	416	32267164	glyA	HH1665	-	serine hydroxymethyltransferase
1666	 34.43	0	1594267..1595823	-	518	32267165	lysS	HH1666	-	lysyl-tRNA synthetase
1667	 34.62	0	1595836..1596459	-	207	32267166	-	HH1667	-	hypothetical protein
1668	 34.11	0	1596645..1597541	+	298	32267167	ubiA	HH1668	-	prenyltransferase
1669	 34.57	0	1597531..1598097	+	188	32267168	-	HH1669	-	hypothetical protein
1670	 31.25	-1	1598101..1598628	+	175	32267169	-	HH1670	-	hypothetical protein
1671	 37.37	0	1598650..1599837	+	395	32267170	-	HH1671	-	aspartate aminotransferase
1672	 37.12	0	1599841..1601133	+	430	32267171	-	HH1672	-	hypothetical protein
1673	 32.30	0	1601130..1601804	+	224	32267172	-	HH1673	-	hypothetical protein
1674	 32.83	0	1601878..1603848	+	656	32267173	-	HH1674	-	hypothetical protein
1675	 36.46	0	1603852..1604619	+	255	32267174	-	HH1675	-	hypothetical protein
1676	 34.81	0	1604639..1604773	+	44	32267175	-	HH1676	-	hypothetical protein
1677	 37.62	0	1604823..1605452	+	209	32267176	omp30	HH1677	-	hypothetical protein
1678	 33.48	0	1605554..1606231	-	225	32267177	-	HH1678	-	hypothetical protein
1679	 34.67	0	1606267..1607235	-	322	32267178	corA	HH1679	-	Mg and Co transporter
1680	 36.45	0	1607380..1607925	+	181	32267179	pgsA	HH1680	-	phosphatidylglycerophosphate synthase
1681	 36.74	0	1607922..1608977	+	351	32267180	-	HH1681	-	hypothetical protein
1682	 40.06	+1	1608987..1609655	+	222	32267181	-	HH1682	-	hypothetical protein
1683	 35.40	0	1609652..1610038	+	128	32267182	-	HH1683	-	hypothetical protein
1684	 34.02	0	1610064..1611374	+	436	32267183	-	HH1684	-	hypothetical protein
1685	 35.65	0	1611384..1612118	+	244	32267184	-	HH1685	-	hypothetical protein
1686	 40.06	+1	1612194..1613993	+	599	32267185	pycB	HH1686	-	pyruvate carboxylase subunit B
1687	 39.18	0	1613968..1615164	+	398	32267186	nifS_1	HH1687	-	NifS family aminotransferase
1688	 36.52	0	1615161..1618514	-	1117	32267187	carB	HH1688	-	carbamoyl phosphate synthase large subunit
1689	 30.51	-1	1618719..1618895	+	58	32267188	-	HH1689	-	hypothetical protein
1690	 36.11	0	1618906..1619121	-	71	32267189	-	HH1690	-	hypothetical protein
1691	 35.20	0	1619130..1619984	-	284	32267190	purU	HH1691	-	formyltetrahydrofolate deformylase
1692	 34.12	0	1619981..1620865	-	294	32267191	-	HH1692	-	hypothetical protein
1693	 37.01	0	1620888..1621268	-	126	32267192	-	HH1693	-	hypothetical protein
1694	 37.18	0	1621338..1621805	+	155	32267193	-	HH1694	-	hypothetical protein
1695	 34.93	0	1621909..1624476	+	855	32267194	flgL	HH1695	-	flagellar hook-associated protein FlgL
1696	 35.44	0	1624473..1625231	+	252	32267195	-	HH1696	-	hypothetical protein
1697	 37.44	0	1625279..1625959	+	226	32267196	-	HH1697	-	hypothetical protein
1698	 38.24	0	1626045..1626146	-	33	32267197	-	HH1698	-	hypothetical protein
1699	 31.56	-1	1626168..1626956	+	262	161546621	speE	HH1699	-	spermidine synthase
1700	 36.38	0	1626959..1627582	+	207	32267199	coaE	HH1700	-	dephospho-CoA kinase
1701	 36.35	0	1627596..1628390	+	264	32267200	dapF	HH1701	-	diaminopimelate epimerase
1702	 34.13	0	1628399..1628650	-	83	32267201	-	HH1702	-	hypothetical protein
1703	 35.56	0	1628650..1629099	-	149	32267202	-	HH1703	-	hypothetical protein
1704	 39.55	+1	1629286..1631442	+	718	32267203	flgE	HH1704	-	flagellar hook protein FlgE
1705	 31.50	-1	1631612..1632538	+	308	32267204	-	HH1705	-	hypothetical protein
1706	 37.23	0	1632561..1633073	-	170	32267205	-	HH1706	-	hypothetical protein
1707	 37.92	0	1633186..1634340	+	384	32267206	-	HH1707	-	putative oxidoreductase
1708	 37.53	0	1634237..1635643	+	468	32267207	pcnB	HH1708	-	poly(A) polymerase
1709	 37.80	0	1635670..1637574	-	634	32267208	-	HH1709	-	hypothetical protein
1710	 25.81	-2	1637582..1637674	+	30	32267209	-	HH1710	-	hypothetical protein
1711	 37.63	0	1637704..1638633	+	309	32267210	htpX	HH1711	-	heat shock protein HtpX
1712	 38.49	0	1638709..1639329	+	206	32267211	folE	HH1712	-	GTP cyclohydrolase I
1713	 38.30	0	1639445..1640572	+	375	32267212	-	HH1713	-	hypothetical protein
1714	 37.64	0	1640747..1641535	-	262	32267213	-	HH1714	-	hypothetical protein
1715	 37.68	0	1641680..1642093	+	137	32267214	-	HH1715	-	hypothetical protein
1716	 37.50	0	1642090..1642713	+	207	32267215	-	HH1716	-	hypothetical protein
1717	 34.69	0	1642731..1643171	+	146	32267216	-	HH1717	-	hypothetical protein
1718	 39.46	+1	1643182..1644600	+	472	32267217	argH	HH1718	-	argininosuccinate lyase
1719	 37.30	0	1644593..1645324	+	243	32267218	ubiE	HH1719	-	ubiquinone/menaquinone biosynthesis methyltransferase
1720	 37.64	0	1645523..1647007	+	494	32267219	-	HH1720	-	malate:quinone oxidoreductase
1721	 39.51	+1	1647128..1648438	+	436	32267220	hisD	HH1721	-	histidinol dehydrogenase
1722	 37.12	0	1648442..1648705	+	87	32267221	-	HH1722	-	hypothetical protein
1723	 35.01	0	1648698..1649174	+	158	32267222	-	HH1723	-	hypothetical protein
1724	 34.10	0	1649171..1650082	+	303	32267223	-	HH1724	-	hypothetical protein
1725	 36.13	0	1650093..1651415	+	440	32267224	hemA	HH1725	-	glutamyl-tRNA reductase
1726	 36.96	0	1651425..1653191	+	588	32267225	proS	HH1726	-	prolyl-tRNA synthetase
1727	 38.72	0	1653201..1654166	+	321	32267226	hemC	HH1727	-	porphobilinogen deaminase
1728	 31.43	-1	1654306..1654410	-	34	32267227	-	HH1728	-	hypothetical protein
1729	 34.47	0	1654478..1654918	+	146	32267228	-	HH1729	-	hypothetical protein
1730	 34.35	0	1654971..1655858	-	295	32267229	rbn	HH1730	-	tRNA-processing ribonuclease BN
1731	 39.79	+1	1655870..1656721	-	283	32267230	bioB	HH1731	-	biotin synthase
1732	 37.32	0	1656817..1658070	+	417	32267231	xseA	HH1732	-	exodeoxyribonuclease VII large subunit
1733	 33.91	0	1658084..1658776	-	230	32267232	-	HH1733	-	hypothetical protein
1734	 37.14	0	1658852..1659745	-	297	32267233	selD	HH1734	-	selenophosphate synthase
1735	 45.37	+2	1659762..1659869	+	35	32267234	-	HH1735	-	hypothetical protein
1736	 34.96	0	1659908..1660522	-	204	32267235	-	HH1736	-	hypothetical protein
1737	 39.73	+1	1660705..1663284	-	859	32267236	acnB	HH1737	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1738	 24.05	-2	1663392..1663628	+	78	32267237	-	HH1738	-	hypothetical protein
35.80	MEAN

3.58	STD DEV
