IslandPathversion 1.0

IslandPath Analysis: Helicobacter hepaticus ATCC 51449

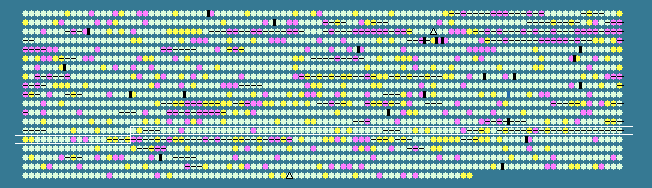

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.80 STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1319	 38.78	0	1279260..1280435	-	391	32266818	-	HH1319	-	hypothetical protein
1320	 39.43	+1	1280432..1280710	-	92	32266819	flhB_2	HH1320	-	flagellar basal body protein FlhB
1321	 39.12	0	1280719..1281357	-	212	32266820	ribC	HH1321	-	riboflavin synthase subunit alpha
1322	 37.59	0	1281447..1282244	+	265	32266821	-	HH1322	-	hypothetical protein
1323	 36.44	0	1282265..1283389	+	374	32266822	dniR	HH1323	-	hypothetical protein
1324	 38.02	0	1283404..1284300	+	298	32266823	rlpA	HH1324	-	rare lipoprotein A
1325	 39.22	0	1284326..1284937	+	203	32266824	hisB	HH1325	-	imidazoleglycerol-phosphate dehydratase
1326	 35.96	0	1284934..1285428	+	164	32266825	-	HH1326	-	hypothetical protein
1327	 31.88	-1	1285394..1285942	+	182	32266826	-	HH1327	-	hypothetical protein
1328	 33.76	0	1285942..1286412	+	156	32266827	-	HH1328	-	hypothetical protein
1329	 35.28	0	1286457..1287125	+	222	32266828	-	HH1329	-	GTPase EngB
1330	 37.15	0	1287115..1287585	+	156	32266829	-	HH1330	-	acetyltransferase
1331	 32.67	0	1287549..1288001	+	150	32266830	-	HH1331	-	hypothetical protein
1332	 36.63	0	1287998..1289785	+	595	32266831	-	HH1332	-	penicillin-binding protein
1333	 36.04	0	1289800..1290798	+	332	32266832	flmA	HH1333	-	flagellar glycosylation protein FlmA
1334	 34.14	0	1290872..1291366	+	164	32266833	-	HH1334	-	ferritin
1335	 37.68	0	1291455..1292696	+	413	32266834	dfp	HH1335	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
1336	 35.11	0	1292693..1293424	+	243	32266835	-	HH1336	-	hypothetical protein
1337	 35.52	0	1293458..1295563	-	701	32266836	-	HH1337	-	hypothetical protein
1338	 33.86	0	1295666..1296043	-	125	32266837	-	HH1338	-	hypothetical protein
1339	 32.32	0	1296081..1296179	+	32	32266838	-	HH1339	-	hypothetical protein
1340	 35.34	0	1296137..1297084	-	315	32266839	-	HH1340	-	hypothetical protein
1341	 32.66	0	1297062..1298105	-	347	32266840	-	HH1341	-	hypothetical protein
1342	 36.65	0	1298124..1300055	-	643	32266841	metG	HH1342	-	methionyl-tRNA synthetase
1343	 35.32	0	1300075..1300275	-	66	32266842	-	HH1343	-	hypothetical protein
1344	 37.62	0	1300268..1301107	-	279	32266843	fbp	HH1344	-	fructose-1,6-bisphosphatase
1345	 33.91	0	1301155..1301850	-	231	32266844	-	HH1345	-	hypothetical protein
1346	 36.87	0	1301932..1302582	+	216	32266845	rpe	HH1346	-	ribulose-phosphate 3-epimerase
1347	 35.58	0	1302588..1303388	+	266	32266846	dnaQ	HH1347	-	DNA polymerase III subunit epsilon
1348	 38.10	0	1303366..1304205	-	279	32266847	hemK	HH1348	-	DNA methylase HemK
1349	 34.07	0	1304195..1305421	-	408	32266848	-	HH1349	-	zinc-metallo protease
1350	 37.65	0	1305554..1307176	+	540	32266849	pyrG	HH1350	-	CTP synthetase
1351	 38.88	0	1307193..1308761	+	522	32266850	recJ	HH1351	-	single-stranded DNA-specific exonuclease
1352	 35.64	0	1308775..1309554	-	259	32266851	-	HH1352	-	hypothetical protein
1353	 41.44	+1	1309759..1311090	+	443	32266852	purB	HH1353	-	adenylosuccinate lyase
1354	 38.00	0	1311068..1311646	-	192	32266853	-	HH1354	-	hypothetical protein
1355	 43.41	+2	1311652..1312266	-	204	32266854	pyrE	HH1355	-	orotate phosphoribosyltransferase
1356	 36.27	0	1312281..1312961	-	226	32266855	-	HH1356	-	hypothetical protein
1357	 33.93	0	1313105..1313611	+	168	32266856	-	HH1357	-	hypothetical protein
1358	 35.32	0	1313613..1315727	+	704	32266857	-	HH1358	-	DNA helicase II
1359	 33.99	0	1315724..1316641	+	305	32266858	flgA	HH1359	-	flagellar basal body P-ring biosynthesis protein FlgA
1360	 36.87	0	1316695..1317288	+	197	32266859	ubiD	HH1360	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1361	 35.54	0	1317288..1317785	+	165	32266860	coaD	HH1361	-	phosphopantetheine adenylyltransferase
1362	 35.88	0	1317785..1318372	+	195	32266861	tdk	HH1362	-	thymidylate kinase
1363	 35.78	0	1318376..1318987	+	203	32266862	-	HH1363	-	hypothetical protein
1364	 37.33	0	1319075..1320601	+	508	32266863	flaA_1	HH1364	-	flagellin A
1365	 33.64	0	1320660..1320986	-	108	32266864	-	HH1365	-	hypothetical protein
1366	 39.61	+1	1321061..1321921	+	286	32266865	folD	HH1366	-	methylenetetrahydrofolate dehydrogenase
1367	 36.19	0	1321918..1322931	+	337	32266866	lepB	HH1367	-	signal peptidase I
1368	 41.44	+1	1322943..1323386	+	147	32266867	rpiB	HH1368	-	ribose-5-phosphate isomerase B
1369	 34.75	0	1323402..1323755	+	117	32266868	-	HH1369	-	hypothetical protein
1370	 36.50	0	1323783..1324319	+	178	32266869	apt	HH1370	-	adenine phosphoribosyltransferase
1371	 35.70	0	1324319..1325080	+	253	32266870	-	HH1371	-	hypothetical protein
1372	 38.95	0	1325120..1326544	+	474	32266871	pepA	HH1372	-	leucyl aminopeptidase
1373	 38.87	0	1326545..1327645	+	366	32266872	-	HH1373	-	translation-associated GTPase
1374	 30.70	-1	1327841..1328068	-	75	32266873	-	HH1374	-	hypothetical protein
1375	 36.24	0	1328065..1328511	-	148	32266874	-	HH1375	-	hypothetical protein
1376	 36.95	0	1328508..1329365	-	285	32266875	-	HH1376	-	hypothetical protein
1377	 41.03	+1	1329706..1330017	+	103	32266876	rpsJ	HH1377	-	30S ribosomal protein S10
1378	 41.28	+1	1330073..1330651	+	192	161546624	rplC	HH1378	-	50S ribosomal protein L3
1379	 37.02	0	1330663..1331286	+	207	32266878	rplD	HH1379	-	50S ribosomal protein L4
1380	 35.11	0	1331287..1331568	+	93	32266879	rplW	HH1380	-	50S ribosomal protein L23
1381	 39.49	+1	1331578..1332405	+	275	32266880	rplB	HH1381	-	50S ribosomal protein L2
1382	 36.17	0	1332416..1332697	+	93	32266881	rpsS	HH1382	-	30S ribosomal protein S19
1383	 38.05	0	1332707..1333279	+	190	32266882	rplV	HH1383	-	50S ribosomal protein L22
1384	 39.10	0	1333282..1333992	+	236	32266883	rpsC	HH1384	-	30S ribosomal protein S3
1385	 39.91	+1	1333996..1334421	+	141	32266884	rplP	HH1385	-	50S ribosomal protein L16
1386	 32.28	0	1334408..1334596	+	62	32266885	rpmC	HH1386	-	50S ribosomal protein L29
1387	 32.96	0	1334600..1334866	+	88	32266886	rpsQ	HH1387	-	30S ribosomal protein S17
1388	 40.38	+1	1334863..1335231	+	122	32266887	rplN	HH1388	-	50S ribosomal protein L14
1389	 36.71	0	1335231..1335467	+	78	32266888	rplX	HH1389	-	50S ribosomal protein L24
1390	 35.53	0	1335467..1336012	+	181	32266889	rplE	HH1390	-	50S ribosomal protein L5
1391	 40.35	+1	1336033..1336146	+	37	32266890	-	HH1391	-	hypothetical protein
1392	 37.88	0	1336209..1336604	+	131	32266891	rpsH	HH1392	-	30S ribosomal protein S8
1393	 38.36	0	1336614..1337150	+	178	32266892	rplF	HH1393	-	50S ribosomal protein L6
1394	 35.29	0	1337166..1337522	+	118	32266893	rplR	HH1394	-	50S ribosomal protein L18
1395	 36.28	0	1337532..1337972	+	146	32266894	rpsE	HH1395	-	30S ribosomal protein S5
1396	 35.32	0	1337983..1338384	+	133	32266895	rplO	HH1396	-	50S ribosomal protein L15
1397	 35.65	0	1338381..1339631	+	416	32266896	secY	HH1397	-	preprotein translocase subunit SecY
1398	 37.29	0	1339633..1340391	+	252	32266897	map	HH1398	-	methionine aminopeptidase
1399	 37.44	0	1340394..1340612	+	72	32266898	infA	HH1399	-	translation initiation factor IF-1
1400	 36.36	0	1340816..1341178	+	120	32266899	rpsM	HH1400	-	30S ribosomal protein S13
1401	 40.20	+1	1341188..1341580	+	130	32266900	rpsK	HH1401	-	30S ribosomal protein S11
1402	 40.99	+1	1341591..1342217	+	208	32266901	rpsD	HH1402	-	30S ribosomal protein S4
1403	 36.02	0	1342245..1343249	+	334	32266902	rpoA	HH1403	-	DNA-directed RNA polymerase subunit alpha
1404	 37.89	0	1343264..1343614	+	116	32266903	rplQ	HH1404	-	50S ribosomal protein L17
1405	 38.30	0	1344048..1345619	+	523	32266904	-	HH1405	-	hypothetical protein
1406	 36.81	0	1345664..1346785	+	373	32266905	-	HH1406	-	hypothetical protein
1407	 37.70	0	1346855..1347289	+	144	32266906	flgB	HH1407	-	flagellar basal body rod protein FlgB
1408	 38.41	0	1347308..1347799	+	163	32266907	flgC	HH1408	-	flagellar basal body rod protein FlgC
1409	 30.77	-1	1347809..1348120	+	103	32266908	fliE	HH1409	-	flagellar hook-basal body protein FliE
1410	 36.68	0	1348129..1349922	+	597	32266909	-	HH1410	-	hypothetical protein
1411	 28.37	-2	1349931..1350071	+	46	32266910	-	HH1411	-	hypothetical protein
1412	 35.14	0	1350151..1350705	+	184	32266911	-	HH1412	-	hypothetical protein
1413	 32.60	0	1350702..1353566	-	954	32266912	-	HH1413	-	hypothetical protein
1414	 39.18	0	1353570..1354373	-	267	32266913	trpA	HH1414	-	tryptophan synthase
1415	 39.67	+1	1354518..1355780	+	420	32266914	trpB	HH1415	-	tryptophan synthase subunit beta
1416	 40.92	+1	1355794..1356162	-	122	32266915	-	HH1416	-	methionine sulfoxide reductase B
1417	 33.74	0	1356164..1357156	-	330	32266916	-	HH1417	-	hypothetical protein
1418	 41.68	+1	1357286..1360006	+	906	32266917	-	HH1418	-	hypothetical protein
35.80	MEAN

3.58	STD DEV
