IslandPath Analysis: Helicobacter hepaticus ATCC 51449

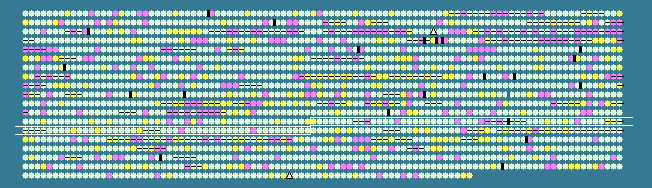

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.80   STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1249	 39.97	+1	1212762..1213469	+	235	32266748	ung	HH1249	-	uracil-DNA glycosylase
1250	 34.81	0	1213476..1215173	-	565	32266749	kefB_2	HH1250	-	glutathione-regulated potassium-efflux system protein KefB
1251	 32.78	0	1215345..1216604	+	419	32266750	-	HH1251	-	hypothetical protein
1252	 34.62	0	1216753..1217451	+	232	32266751	-	HH1252	-	hypothetical protein
1253	 36.00	0	1217538..1217687	-	49	32266752	-	HH1253	-	hypothetical protein
1254	 33.08	0	1217707..1218495	+	262	32266753	-	HH1254	-	hypothetical protein
1255	 34.43	0	1218550..1219821	+	423	32266754	-	HH1255	-	hypothetical protein
1256	 37.09	0	1219927..1221390	+	487	32266755	fixN	HH1256	-	cb-type cytochrome C oxidase subunit I
1257	 38.87	0	1221406..1222146	+	246	32266756	fixO	HH1257	-	cb-type cytochrome C oxidase subunit II
1258	 29.87	-1	1222143..1222373	+	76	32266757	fixQ	HH1258	-	cb-type cytochrome C oxidase subunit IV
1259	 37.57	0	1222370..1223242	+	290	32266758	fixP	HH1259	-	cb-type cytochrome C oxidase subunit III
1260	 37.31	0	1223254..1223454	+	66	32266759	-	HH1260	-	hypothetical protein
1261	 32.41	0	1223464..1223571	+	35	32266760	-	HH1261	-	hypothetical protein
1262	 33.78	0	1223575..1224249	+	224	32266761	-	HH1262	-	hypothetical protein
1263	 32.07	-1	1224266..1224898	+	210	32266762	-	HH1263	-	hypothetical protein
1264	 34.67	0	1224908..1225207	+	99	32266763	-	HH1264	-	hypothetical protein
1265	 38.69	0	1225207..1225971	+	254	32266764	-	HH1265	-	hypothetical protein
1266	 38.84	0	1226034..1226378	+	114	32266765	-	HH1266	-	hypothetical protein
1267	 35.35	0	1226460..1227650	+	396	32266766	-	HH1267	-	hypothetical protein
1268	 36.19	0	1227662..1230562	-	966	32266767	dld	HH1268	-	hypothetical protein
1269	 36.21	0	1230614..1231030	-	138	32266768	-	HH1269	-	hypothetical protein
1270	 36.70	0	1231084..1234740	-	1218	32266769	dnaE	HH1270	-	DNA polymerase III subunit alpha
1271	 35.11	0	1234897..1236300	+	467	32266770	-	HH1271	-	hypothetical protein
1272	 37.32	0	1236297..1237424	-	375	32266771	nusA	HH1272	-	transcription elongation factor NusA
1273	 31.80	-1	1237600..1237860	+	86	32266772	-	HH1273	-	hypothetical protein
1274	 36.86	0	1237945..1239276	+	443	32266773	-	HH1274	-	hypothetical protein
1275	 36.74	0	1239270..1239914	+	214	32266774	-	HH1275	-	hypothetical protein
1276	 36.31	0	1239977..1241017	+	346	32266775	-	HH1276	-	hypothetical protein
1277	 30.78	-1	1241021..1241569	+	182	32266776	-	HH1277	-	hypothetical protein
1278	 31.10	-1	1241562..1242143	+	193	32266777	-	HH1278	-	hypothetical protein
1279	 37.21	0	1242153..1243106	+	317	32266778	mraW	HH1279	-	S-adenosyl-methyltransferase MraW
1280	 31.44	-1	1243107..1243475	+	122	32266779	-	HH1280	-	hypothetical protein
1281	 38.38	0	1243550..1243648	+	32	32266780	-	HH1281	-	hypothetical protein
1282	 37.82	0	1243745..1244680	+	311	161546625	fabD	HH1282	-	acyl-carrier-protein S-malonyltransferase
1283	 37.20	0	1244695..1245393	+	232	32266782	-	HH1283	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
1284	 36.03	0	1245405..1245923	+	172	32266783	-	HH1284	-	hypothetical protein
1285	 39.28	0	1245933..1246403	+	156	32266784	-	HH1285	-	hypothetical protein
1286	 35.68	0	1246804..1247655	-	283	32266785	-	HH1286	-	hypothetical protein
1287	 35.84	0	1247726..1249081	+	451	32266786	-	HH1287	-	hypothetical protein
1288	 40.41	+1	1249103..1250077	+	324	32266787	-	HH1288	-	hypothetical protein
1289	 35.98	0	1250147..1250335	+	62	32266788	rpmB	HH1289	-	50S ribosomal protein L28
1290	 36.70	0	1250353..1251480	+	375	32266789	-	HH1290	-	hypothetical protein
1291	 40.16	+1	1251473..1252687	+	404	32266790	argJ	HH1291	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1292	 36.49	0	1252803..1253024	+	73	32266791	-	HH1292	-	hypothetical protein
1293	 30.95	-1	1253203..1253328	+	41	32266792	-	HH1293	-	hypothetical protein
1294	 36.84	0	1253514..1254881	-	455	32266793	-	HH1294	-	fibronectin/fibrinogen-binding protein
1295	 37.35	0	1254904..1256445	-	513	32266794	recN	HH1295	-	DNA repair protein RecN
1296	 38.74	0	1256460..1257365	-	301	32266795	-	HH1296	-	hypothetical protein
1297	 37.11	0	1257374..1257982	-	202	32266796	-	HH1297	-	hypothetical protein
1298	 43.44	+2	1258222..1259448	+	408	32266797	-	HH1298	-	putative inner membrane protein
1299	 41.67	+1	1259460..1259699	+	79	32266798	-	HH1299	-	hypothetical protein
1300	 34.15	0	1259771..1259893	+	40	32266799	-	HH1300	-	hypothetical protein
1301	 34.30	0	1259972..1260490	+	172	32266800	-	HH1301	-	hypothetical protein
1302	 34.29	0	1260715..1261971	+	418	32266801	-	HH1302	-	hypothetical protein
1303	 37.16	0	1262036..1262218	+	60	32266802	-	HH1303	-	hypothetical protein
1304	 36.27	0	1262296..1262907	+	203	32266803	-	HH1304	-	hypothetical protein
1305	 35.84	0	1262964..1264160	-	398	32266804	-	HH1305	-	hypothetical protein
1306	 33.99	0	1264183..1265091	-	302	32266805	-	HH1306	-	hypothetical protein
1307	 36.90	0	1265215..1265691	-	158	32266806	-	HH1307	-	hypothetical protein
1308	 37.73	0	1265773..1266978	-	401	32266807	ackA	HH1308	-	acetate kinase
1309	 40.06	+1	1266998..1267993	-	331	32266808	pta	HH1309	-	phosphotransacetylase
1310	 33.18	0	1268185..1270191	-	668	32266809	-	HH1310	-	methyl-accepting chemotaxis protein
1311	 38.23	0	1270285..1271631	-	448	32266810	-	HH1311	-	hypothetical protein
1312	 38.55	0	1271792..1272385	+	197	32266811	-	HH1312	-	hypothetical protein
1313	 39.35	0	1272382..1273212	-	276	32266812	-	HH1313	-	enoyl-(acyl carrier protein) reductase
1314	 36.43	0	1273345..1273731	+	128	32266813	-	HH1314	-	hypothetical protein
1315	 37.71	0	1273743..1274450	-	235	32266814	tpiA	HH1315	-	triosephosphate isomerase
1316	 36.06	0	1274627..1275688	+	353	32266815	yhjA	HH1316	-	cytochrome c551 peroxidase
1317	 36.66	0	1275810..1278548	+	912	32266816	polA	HH1317	-	DNA polymerase I
1318	 33.33	0	1278675..1278980	+	101	32266817	-	HH1318	-	hypothetical protein
1319	 38.78	0	1279260..1280435	-	391	32266818	-	HH1319	-	hypothetical protein
1320	 39.43	+1	1280432..1280710	-	92	32266819	flhB_2	HH1320	-	flagellar basal body protein FlhB
1321	 39.12	0	1280719..1281357	-	212	32266820	ribC	HH1321	-	riboflavin synthase subunit alpha
1322	 37.59	0	1281447..1282244	+	265	32266821	-	HH1322	-	hypothetical protein
1323	 36.44	0	1282265..1283389	+	374	32266822	dniR	HH1323	-	hypothetical protein
1324	 38.02	0	1283404..1284300	+	298	32266823	rlpA	HH1324	-	rare lipoprotein A
1325	 39.22	0	1284326..1284937	+	203	32266824	hisB	HH1325	-	imidazoleglycerol-phosphate dehydratase
1326	 35.96	0	1284934..1285428	+	164	32266825	-	HH1326	-	hypothetical protein
1327	 31.88	-1	1285394..1285942	+	182	32266826	-	HH1327	-	hypothetical protein
1328	 33.76	0	1285942..1286412	+	156	32266827	-	HH1328	-	hypothetical protein
1329	 35.28	0	1286457..1287125	+	222	32266828	-	HH1329	-	GTPase EngB
1330	 37.15	0	1287115..1287585	+	156	32266829	-	HH1330	-	acetyltransferase
1331	 32.67	0	1287549..1288001	+	150	32266830	-	HH1331	-	hypothetical protein
1332	 36.63	0	1287998..1289785	+	595	32266831	-	HH1332	-	penicillin-binding protein
1333	 36.04	0	1289800..1290798	+	332	32266832	flmA	HH1333	-	flagellar glycosylation protein FlmA
1334	 34.14	0	1290872..1291366	+	164	32266833	-	HH1334	-	ferritin
1335	 37.68	0	1291455..1292696	+	413	32266834	dfp	HH1335	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
1336	 35.11	0	1292693..1293424	+	243	32266835	-	HH1336	-	hypothetical protein
1337	 35.52	0	1293458..1295563	-	701	32266836	-	HH1337	-	hypothetical protein
1338	 33.86	0	1295666..1296043	-	125	32266837	-	HH1338	-	hypothetical protein
1339	 32.32	0	1296081..1296179	+	32	32266838	-	HH1339	-	hypothetical protein
1340	 35.34	0	1296137..1297084	-	315	32266839	-	HH1340	-	hypothetical protein
1341	 32.66	0	1297062..1298105	-	347	32266840	-	HH1341	-	hypothetical protein
1342	 36.65	0	1298124..1300055	-	643	32266841	metG	HH1342	-	methionyl-tRNA synthetase
1343	 35.32	0	1300075..1300275	-	66	32266842	-	HH1343	-	hypothetical protein
1344	 37.62	0	1300268..1301107	-	279	32266843	fbp	HH1344	-	fructose-1,6-bisphosphatase
1345	 33.91	0	1301155..1301850	-	231	32266844	-	HH1345	-	hypothetical protein
1346	 36.87	0	1301932..1302582	+	216	32266845	rpe	HH1346	-	ribulose-phosphate 3-epimerase
1347	 35.58	0	1302588..1303388	+	266	32266846	dnaQ	HH1347	-	DNA polymerase III subunit epsilon
1348	 38.10	0	1303366..1304205	-	279	32266847	hemK	HH1348	-	DNA methylase HemK
35.80	MEAN

3.58	STD DEV
