IslandPathversion 1.0

IslandPath Analysis: Helicobacter hepaticus ATCC 51449

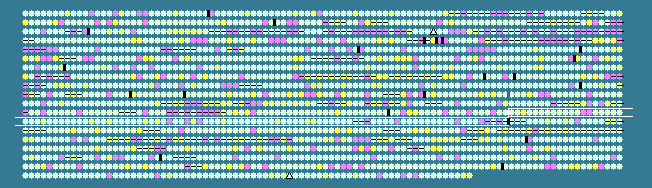

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.80 STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1182	 37.93	0	1147001..1147783	+	260	32266681	lpxA	HH1182	-	UDP-N-acetylglucosamine acyltransferase
1183	 34.50	0	1147776..1149056	+	426	32266682	clpX	HH1183	-	ATP-dependent protease ATP-binding subunit
1184	 41.64	+1	1149139..1150173	+	344	32266683	mreB	HH1184	-	rod shape-determining protein MreB
1185	 35.36	0	1150182..1151069	+	295	32266684	mreC	HH1185	-	rod shape-determining protein MreC
1186	 35.07	0	1150987..1153290	+	767	32266685	-	HH1186	-	hypothetical protein
1187	 37.98	0	1153450..1154892	+	480	32266686	-	HH1187	-	hypothetical protein
1188	 37.58	0	1154913..1156160	+	415	32266687	-	HH1188	-	hypothetical protein
1189	 36.00	0	1156157..1157095	-	312	32266688	-	HH1189	-	hypothetical protein
1190	 38.52	0	1157210..1160002	+	930	32266689	ileS	HH1190	-	isoleucyl-tRNA synthetase
1191	 38.10	0	1160044..1160190	+	48	32266690	-	HH1191	-	hypothetical protein
1192	 35.62	0	1160206..1160730	-	174	32266691	-	HH1192	-	hypothetical protein
1193	 35.44	0	1160896..1161228	+	110	32266692	-	HH1193	-	hypothetical protein
1194	 28.85	-1	1161212..1161523	+	103	32266693	-	HH1194	-	hypothetical protein
1195	 30.39	-1	1161593..1162441	+	282	32266694	-	HH1195	-	hypothetical protein
1196	 38.05	0	1162683..1164887	-	734	32266695	-	HH1196	-	isocitrate dehydrogenase
1197	 37.14	0	1165034..1165243	-	69	32266696	-	HH1197	-	hypothetical protein
1198	 38.49	0	1165389..1166435	-	348	32266697	-	HH1198	-	hypothetical protein
1199	 36.29	0	1166413..1168071	-	552	161546626	dnaG	HH1199	-	DNA primase
1200	 34.07	0	1168356..1168628	+	90	32266699	groES	HH1200	-	co-chaperonin GroES
1201	 38.95	0	1168662..1170299	+	545	32266700	groEL	HH1201	-	chaperonin GroEL
1202	 33.47	0	1170403..1171128	-	241	32266701	-	HH1202	-	hypothetical protein
1203	 35.37	0	1171131..1173830	-	899	32266702	ppc	HH1203	-	phosphoenolpyruvate carboxylase
1204	 41.03	+1	1173945..1174970	+	341	32266703	ilvC	HH1204	-	ketol-acid reductoisomerase
1205	 35.40	0	1175065..1176465	+	466	32266704	ktrB	HH1205	-	hypothetical protein
1206	 35.61	0	1176490..1177149	+	219	32266705	ktrA	HH1206	-	hypothetical protein
1207	 35.56	0	1177139..1177900	-	253	32266706	bioC	HH1207	-	hypothetical protein
1208	 35.49	0	1177879..1178574	-	231	32266707	-	HH1208	-	hypothetical protein
1209	 38.43	0	1178571..1179767	-	398	32266708	bioF	HH1209	-	8-amino-7-oxononanoate synthase
1210	 37.06	0	1179847..1181160	+	437	32266709	bioA	HH1210	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1211	 36.51	0	1181162..1181791	-	209	32266710	bioD	HH1211	-	dethiobiotin synthetase
1212	 39.46	+1	1181829..1182758	-	309	32266711	-	HH1212	-	hypothetical protein
1213	 38.19	0	1182755..1182898	-	47	32266712	-	HH1213	-	hypothetical protein
1214	 36.81	0	1182873..1183880	-	335	32266713	-	HH1214	-	hypothetical protein
1215	 39.42	+1	1183870..1185315	-	481	32266714	-	HH1215	-	hypothetical protein
1216	 39.02	0	1185656..1185919	-	87	32266715	-	HH1216	-	hypothetical protein
1217	 34.29	0	1186029..1186238	+	69	32266716	-	HH1217	-	hypothetical protein
1218	 37.61	0	1186427..1186753	-	108	32266717	cutA	HH1218	-	divalent cation tolerance protein CutA
1219	 35.90	0	1186887..1187861	+	324	32266718	-	HH1219	-	hypothetical protein
1220	 36.44	0	1187865..1188959	-	364	32266719	-	HH1220	-	hypothetical protein
1221	 40.00	+1	1189082..1190296	+	404	32266720	argG	HH1221	-	argininosuccinate synthase
1222	 36.82	0	1190297..1191814	+	505	32266721	-	HH1222	-	hypothetical protein
1223	 39.58	+1	1191873..1192688	+	271	32266722	minD	HH1223	-	cell division inhibitor MinD
1224	 36.29	0	1192685..1192921	+	78	32266723	minE	HH1224	-	cell division topological specificity factor MinE
1225	 30.77	-1	1192918..1193034	-	38	32266724	-	HH1225	-	hypothetical protein
1226	 36.55	0	1193051..1193920	+	289	32266725	-	HH1226	-	hypothetical protein
1227	 37.75	0	1193930..1194721	+	263	32266726	dprA	HH1227	-	DNA processing protein DprA
1228	 30.99	-1	1194781..1195122	+	113	32266727	-	HH1228	-	hypothetical protein
1229	 41.97	+1	1195122..1195538	+	138	32266728	-	HH1229	-	Holliday junction resolvase-like protein
1230	 31.26	-1	1195703..1196137	+	144	32266729	-	HH1230	-	hypothetical protein
1231	 32.57	0	1196390..1197562	+	390	32266730	-	HH1231	-	hypothetical protein
1232	 35.37	0	1197567..1198058	-	163	32266731	-	HH1232	-	putative metalloprotease
1233	 36.46	0	1198153..1200006	+	617	32266732	speA	HH1233	-	arginine decarboxylase
1234	 39.29	0	1200006..1200710	+	234	32266733	cysE	HH1234	-	serine acetyltransferase
1235	 33.14	0	1200719..1201744	-	341	32266734	-	HH1235	-	hypothetical protein
1236	 33.05	0	1201744..1202100	-	118	32266735	dksA	HH1236	-	DnaK suppressor protein DskA
1237	 34.86	0	1202110..1202502	-	130	32266736	-	HH1237	-	SPOUT methyltransferase superfamily protein
1238	 37.77	0	1202543..1203421	-	292	32266737	accD	HH1238	-	acetyl-CoA carboxylase subunit beta
1239	 34.81	0	1203424..1204170	-	248	32266738	suhB	HH1239	-	hypothetical protein
1240	 34.29	0	1204239..1204865	+	208	32266739	-	HH1240	-	hypothetical protein
1241	 39.25	0	1204978..1206330	+	450	32266740	gdhA	HH1241	-	glutamate dehydrogenase
1242	 36.94	0	1206415..1207467	-	350	32266741	mutY	HH1242	-	A/G-specific adenine glycosylase
1243	 39.64	+1	1207616..1208821	+	401	32266742	ndh	HH1243	-	NADH dehydrogenase Ndh
1244	 34.36	0	1209054..1209737	+	227	32266743	-	HH1244	-	adenine-specific DNA methylase
1245	 38.79	0	1209808..1210815	+	335	32266744	purM	HH1245	-	phosphoribosylaminoimidazole synthetase
1246	 35.48	0	1210831..1211622	+	263	32266745	-	HH1246	-	hypothetical protein
1247	 34.82	0	1211625..1212431	+	268	32266746	aroE	HH1247	-	shikimate 5-dehydrogenase
1248	 39.43	+1	1212487..1212765	+	92	32266747	gatC	HH1248	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
1249	 39.97	+1	1212762..1213469	+	235	32266748	ung	HH1249	-	uracil-DNA glycosylase
1250	 34.81	0	1213476..1215173	-	565	32266749	kefB_2	HH1250	-	glutathione-regulated potassium-efflux system protein KefB
1251	 32.78	0	1215345..1216604	+	419	32266750	-	HH1251	-	hypothetical protein
1252	 34.62	0	1216753..1217451	+	232	32266751	-	HH1252	-	hypothetical protein
1253	 36.00	0	1217538..1217687	-	49	32266752	-	HH1253	-	hypothetical protein
1254	 33.08	0	1217707..1218495	+	262	32266753	-	HH1254	-	hypothetical protein
1255	 34.43	0	1218550..1219821	+	423	32266754	-	HH1255	-	hypothetical protein
1256	 37.09	0	1219927..1221390	+	487	32266755	fixN	HH1256	-	cb-type cytochrome C oxidase subunit I
1257	 38.87	0	1221406..1222146	+	246	32266756	fixO	HH1257	-	cb-type cytochrome C oxidase subunit II
1258	 29.87	-1	1222143..1222373	+	76	32266757	fixQ	HH1258	-	cb-type cytochrome C oxidase subunit IV
1259	 37.57	0	1222370..1223242	+	290	32266758	fixP	HH1259	-	cb-type cytochrome C oxidase subunit III
1260	 37.31	0	1223254..1223454	+	66	32266759	-	HH1260	-	hypothetical protein
1261	 32.41	0	1223464..1223571	+	35	32266760	-	HH1261	-	hypothetical protein
1262	 33.78	0	1223575..1224249	+	224	32266761	-	HH1262	-	hypothetical protein
1263	 32.07	-1	1224266..1224898	+	210	32266762	-	HH1263	-	hypothetical protein
1264	 34.67	0	1224908..1225207	+	99	32266763	-	HH1264	-	hypothetical protein
1265	 38.69	0	1225207..1225971	+	254	32266764	-	HH1265	-	hypothetical protein
1266	 38.84	0	1226034..1226378	+	114	32266765	-	HH1266	-	hypothetical protein
1267	 35.35	0	1226460..1227650	+	396	32266766	-	HH1267	-	hypothetical protein
1268	 36.19	0	1227662..1230562	-	966	32266767	dld	HH1268	-	hypothetical protein
1269	 36.21	0	1230614..1231030	-	138	32266768	-	HH1269	-	hypothetical protein
1270	 36.70	0	1231084..1234740	-	1218	32266769	dnaE	HH1270	-	DNA polymerase III subunit alpha
1271	 35.11	0	1234897..1236300	+	467	32266770	-	HH1271	-	hypothetical protein
1272	 37.32	0	1236297..1237424	-	375	32266771	nusA	HH1272	-	transcription elongation factor NusA
1273	 31.80	-1	1237600..1237860	+	86	32266772	-	HH1273	-	hypothetical protein
1274	 36.86	0	1237945..1239276	+	443	32266773	-	HH1274	-	hypothetical protein
1275	 36.74	0	1239270..1239914	+	214	32266774	-	HH1275	-	hypothetical protein
1276	 36.31	0	1239977..1241017	+	346	32266775	-	HH1276	-	hypothetical protein
1277	 30.78	-1	1241021..1241569	+	182	32266776	-	HH1277	-	hypothetical protein
1278	 31.10	-1	1241562..1242143	+	193	32266777	-	HH1278	-	hypothetical protein
1279	 37.21	0	1242153..1243106	+	317	32266778	mraW	HH1279	-	S-adenosyl-methyltransferase MraW
1280	 31.44	-1	1243107..1243475	+	122	32266779	-	HH1280	-	hypothetical protein
1281	 38.38	0	1243550..1243648	+	32	32266780	-	HH1281	-	hypothetical protein
35.80	MEAN

3.58	STD DEV
