IslandPathversion 1.0

IslandPath Analysis: Helicobacter hepaticus ATCC 51449

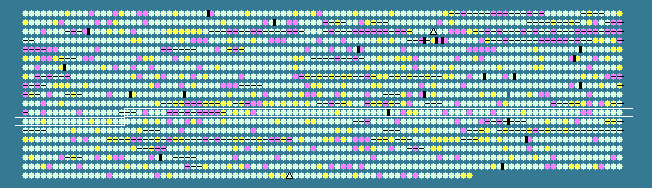

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.80 STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1118	 38.12	0	1089442..1090548	-	368	32266617	-	HH1118	-	hypothetical protein
1119	 38.89	0	1090590..1090733	+	47	32266618	-	HH1119	-	hypothetical protein
1120	 37.17	0	1090633..1091283	+	216	161546628	thyX	HH1120	-	FAD-dependent thymidylate synthase
1121	 31.32	-1	1091289..1091885	-	198	32266620	-	HH1121	-	hypothetical protein
1122	 32.95	0	1091882..1092658	-	258	32266621	-	HH1122	-	hypothetical protein
1123	 32.59	0	1092643..1093449	-	268	32266622	-	HH1123	-	ABC transporter
1124	 32.95	0	1093446..1094492	-	348	32266623	-	HH1124	-	hypothetical protein
1125	 27.62	-2	1094687..1094791	+	34	32266624	-	HH1125	-	hypothetical protein
1126	 31.45	-1	1094815..1095876	+	353	32266625	dnaN	HH1126	-	DNA polymerase III subunit beta
1127	 34.33	0	1095901..1098219	+	772	32266626	gyrB	HH1127	-	DNA gyrase subunit B
1128	 28.23	-2	1098232..1099386	-	384	32266627	-	HH1128	-	hypothetical protein
1129	 33.41	0	1099396..1100643	-	415	32266628	-	HH1129	-	alginate O- acetylation protein
1130	 31.68	-1	1100834..1101136	-	100	32266629	-	HH1130	-	alginate O- acetylation protein
1131	 19.67	-2	1101120..1101302	-	60	32266630	-	HH1131	-	hypothetical protein
1132	 27.78	-2	1101305..1101466	-	53	32266631	-	HH1132	-	hypothetical protein
1133	 31.25	-1	1101584..1101727	-	47	32266632	-	HH1133	-	hypothetical protein
1134	 40.59	+1	1101727..1102677	-	316	32266633	leuB	HH1134	-	isopropylmalate dehydrogenase
1135	 37.35	0	1102817..1103314	-	165	32266634	leuD	HH1135	-	3-isopropylmalate dehydratase
1136	 39.90	+1	1103370..1104632	-	420	32266635	leuC	HH1136	-	3-isopropylmalate dehydratase large subunit
1137	 37.21	0	1104648..1106324	-	558	32266636	leuA	HH1137	-	2-isopropylmalate synthase
1138	 39.30	0	1106493..1106693	-	66	32266637	-	HH1138	-	hypothetical protein
1139	 26.67	-2	1106723..1106827	+	34	32266638	-	HH1139	-	hypothetical protein
1140	 36.04	0	1106917..1107765	+	282	32266639	tal	HH1140	-	transaldolase
1141	 33.20	0	1107776..1108522	-	248	32266640	-	HH1141	-	hypothetical protein
1142	 36.17	0	1108600..1109127	+	175	32266641	folK	HH1142	-	7,8-dihydro-6-hydroxymethylpterin-pyrophosphokinase
1143	 36.29	0	1109219..1110670	+	483	32266642	flhF	HH1143	-	flagellar biosynthesis regulator FlhF
1144	 37.34	0	1110683..1111555	+	290	32266643	-	HH1144	-	hypothetical protein
1145	 32.49	0	1111580..1111936	+	118	32266644	-	HH1145	-	hypothetical protein
1146	 36.86	0	1111948..1112655	+	235	161546627	fliA	HH1146	-	flagellar biosynthesis sigma factor
1147	 37.38	0	1112648..1113709	+	353	32266646	fliM	HH1147	-	flagellar motor switch protein FliM
1148	 37.99	0	1113706..1114542	+	278	32266647	fliY	HH1148	-	flagellar motor switch protein FliY
1149	 35.29	0	1114619..1114822	-	67	32266648	-	HH1149	-	hypothetical protein
1150	 36.22	0	1114921..1115544	+	207	32266649	-	HH1150	-	hypothetical protein
1151	 32.58	0	1115558..1116892	+	444	32266650	-	HH1151	-	hypothetical protein
1152	 32.47	0	1116993..1117568	+	191	32266651	-	HH1152	-	hypothetical protein
1153	 39.40	+1	1117565..1118536	-	323	32266652	trxB_2	HH1153	-	hypothetical protein
1154	 34.67	0	1118529..1118753	-	74	32266653	-	HH1154	-	hypothetical protein
1155	 36.80	0	1118909..1120579	+	556	32266654	-	HH1155	-	hypothetical protein
1156	 36.41	0	1120604..1122490	-	628	32266655	recG	HH1156	-	ATP-dependent DNA recombinase RecG
1157	 37.95	0	1122499..1123515	-	338	32266656	gap_1	HH1157	-	glyceraldehyde-3-phosphate dehydrogenase
1158	 36.86	0	1123611..1124375	+	254	32266657	-	HH1158	-	hypothetical protein
1159	 37.00	0	1124383..1126425	-	680	32266658	-	HH1159	-	hypothetical protein
1160	 38.41	0	1126570..1126884	-	104	32266659	trxA_1	HH1160	-	thioredoxin
1161	 36.61	0	1126893..1127930	-	345	32266660	-	HH1161	-	hypothetical protein
1162	 33.50	0	1128275..1128880	-	201	32266661	-	HH1162	-	hypothetical protein
1163	 35.34	0	1128891..1129388	-	165	32266662	-	HH1163	-	hypothetical protein
1164	 31.43	-1	1129446..1129655	+	69	32266663	-	HH1164	-	hypothetical protein
1165	 39.97	+1	1129745..1132216	+	823	32266664	-	HH1165	-	hypothetical protein
1166	 43.77	+2	1132409..1133500	+	363	32266665	cad	HH1166	-	putative NADP-dependent alcohol dehydrogenase
1167	 37.61	0	1133517..1134779	-	420	32266666	murD	HH1167	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1168	 36.57	0	1134789..1135868	-	359	32266667	mraY	HH1168	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1169	 38.15	0	1135976..1137448	+	490	32266668	pgm	HH1169	-	phosphoglyceromutase
1170	 35.07	0	1137488..1138063	-	191	32266669	-	HH1170	-	hypothetical protein
1171	 29.58	-1	1138204..1138443	-	79	32266670	-	HH1171	-	hypothetical protein
1172	 37.36	0	1138476..1139444	-	322	32266671	-	HH1172	-	hypothetical protein
1173	 36.08	0	1139457..1141604	-	715	32266672	-	HH1173	-	hypothetical protein
1174	 33.80	0	1141558..1142409	-	283	32266673	ksgA	HH1174	-	dimethyladenosine transferase
1175	 20.20	-2	1142449..1142547	+	32	32266674	-	HH1175	-	hypothetical protein
1176	 39.02	0	1142585..1143340	+	251	32266675	hisF	HH1176	-	cyclase HisF
1177	 34.31	0	1143435..1144049	+	204	32266676	-	HH1177	-	hypothetical protein
1178	 36.13	0	1144064..1145173	+	369	32266677	-	HH1178	-	hypothetical protein
1179	 32.29	0	1145202..1145297	+	31	32266678	-	HH1179	-	hypothetical protein
1180	 33.97	0	1145332..1146438	+	368	32266679	-	HH1180	-	hypothetical protein
1181	 34.71	0	1146482..1146991	+	169	32266680	fabZ	HH1181	-	(3R)-hydroxymyristoyl-ACP dehydratase
1182	 37.93	0	1147001..1147783	+	260	32266681	lpxA	HH1182	-	UDP-N-acetylglucosamine acyltransferase
1183	 34.50	0	1147776..1149056	+	426	32266682	clpX	HH1183	-	ATP-dependent protease ATP-binding subunit
1184	 41.64	+1	1149139..1150173	+	344	32266683	mreB	HH1184	-	rod shape-determining protein MreB
1185	 35.36	0	1150182..1151069	+	295	32266684	mreC	HH1185	-	rod shape-determining protein MreC
1186	 35.07	0	1150987..1153290	+	767	32266685	-	HH1186	-	hypothetical protein
1187	 37.98	0	1153450..1154892	+	480	32266686	-	HH1187	-	hypothetical protein
1188	 37.58	0	1154913..1156160	+	415	32266687	-	HH1188	-	hypothetical protein
1189	 36.00	0	1156157..1157095	-	312	32266688	-	HH1189	-	hypothetical protein
1190	 38.52	0	1157210..1160002	+	930	32266689	ileS	HH1190	-	isoleucyl-tRNA synthetase
1191	 38.10	0	1160044..1160190	+	48	32266690	-	HH1191	-	hypothetical protein
1192	 35.62	0	1160206..1160730	-	174	32266691	-	HH1192	-	hypothetical protein
1193	 35.44	0	1160896..1161228	+	110	32266692	-	HH1193	-	hypothetical protein
1194	 28.85	-1	1161212..1161523	+	103	32266693	-	HH1194	-	hypothetical protein
1195	 30.39	-1	1161593..1162441	+	282	32266694	-	HH1195	-	hypothetical protein
1196	 38.05	0	1162683..1164887	-	734	32266695	-	HH1196	-	isocitrate dehydrogenase
1197	 37.14	0	1165034..1165243	-	69	32266696	-	HH1197	-	hypothetical protein
1198	 38.49	0	1165389..1166435	-	348	32266697	-	HH1198	-	hypothetical protein
1199	 36.29	0	1166413..1168071	-	552	161546626	dnaG	HH1199	-	DNA primase
1200	 34.07	0	1168356..1168628	+	90	32266699	groES	HH1200	-	co-chaperonin GroES
1201	 38.95	0	1168662..1170299	+	545	32266700	groEL	HH1201	-	chaperonin GroEL
1202	 33.47	0	1170403..1171128	-	241	32266701	-	HH1202	-	hypothetical protein
1203	 35.37	0	1171131..1173830	-	899	32266702	ppc	HH1203	-	phosphoenolpyruvate carboxylase
1204	 41.03	+1	1173945..1174970	+	341	32266703	ilvC	HH1204	-	ketol-acid reductoisomerase
1205	 35.40	0	1175065..1176465	+	466	32266704	ktrB	HH1205	-	hypothetical protein
1206	 35.61	0	1176490..1177149	+	219	32266705	ktrA	HH1206	-	hypothetical protein
1207	 35.56	0	1177139..1177900	-	253	32266706	bioC	HH1207	-	hypothetical protein
1208	 35.49	0	1177879..1178574	-	231	32266707	-	HH1208	-	hypothetical protein
1209	 38.43	0	1178571..1179767	-	398	32266708	bioF	HH1209	-	8-amino-7-oxononanoate synthase
1210	 37.06	0	1179847..1181160	+	437	32266709	bioA	HH1210	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1211	 36.51	0	1181162..1181791	-	209	32266710	bioD	HH1211	-	dethiobiotin synthetase
1212	 39.46	+1	1181829..1182758	-	309	32266711	-	HH1212	-	hypothetical protein
1213	 38.19	0	1182755..1182898	-	47	32266712	-	HH1213	-	hypothetical protein
1214	 36.81	0	1182873..1183880	-	335	32266713	-	HH1214	-	hypothetical protein
1215	 39.42	+1	1183870..1185315	-	481	32266714	-	HH1215	-	hypothetical protein
1216	 39.02	0	1185656..1185919	-	87	32266715	-	HH1216	-	hypothetical protein
1217	 34.29	0	1186029..1186238	+	69	32266716	-	HH1217	-	hypothetical protein
35.80	MEAN

3.58	STD DEV
