IslandPath Analysis: Helicobacter hepaticus ATCC 51449

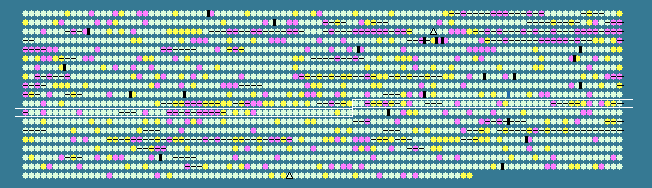

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.80   STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1056	 38.97	0	1030508..1030915	-	135	32266555	-	HH1056	-	hypothetical protein
1057	 38.97	0	1031045..1031665	+	206	32266556	-	HH1057	-	hypothetical protein
1058	 26.19	-2	1031695..1031820	+	41	32266557	-	HH1058	-	hypothetical protein
1059	 41.98	+1	1031810..1032202	+	130	32266558	-	HH1059	-	hypothetical protein
1060	 43.73	+2	1032321..1032878	+	185	32266559	-	HH1060	-	hypothetical protein
1061	 29.76	-1	1032985..1034748	+	587	32266560	-	HH1061	-	hypothetical protein
1062	 41.12	+1	1034767..1035177	+	136	32266561	-	HH1062	-	hypothetical protein
1063	 37.41	0	1035272..1036153	+	293	32266562	-	HH1063	-	hypothetical protein
1064	 40.02	+1	1036272..1037438	+	388	32266563	-	HH1064	-	hypothetical protein
1065	 32.03	-1	1037674..1038366	+	230	32266564	-	HH1065	-	hypothetical protein
1066	 35.34	0	1038471..1039169	-	232	32266565	-	HH1066	-	hypothetical protein
1067	 37.12	0	1039241..1041352	+	703	32266566	glyS	HH1067	-	glycyl-tRNA synthetase subunit beta
1068	 36.45	0	1041349..1042470	+	373	32266567	-	HH1068	-	hypothetical protein
1069	 32.44	0	1042614..1042838	+	74	32266568	-	HH1069	-	hypothetical protein
1070	 35.69	0	1042847..1043611	-	254	32266569	-	HH1070	-	hypothetical protein
1071	 38.58	0	1043638..1044705	-	355	32266570	tsf	HH1071	-	elongation factor Ts
1072	 38.62	0	1044707..1045501	-	264	32266571	rpsB	HH1072	-	30S ribosomal protein S2
1073	 27.08	-2	1045584..1045679	+	31	32266572	-	HH1073	-	hypothetical protein
1074	 37.38	0	1045704..1047014	-	436	32266573	rpoN	HH1074	-	RNA polymerase factor sigma-54
1075	 37.21	0	1047011..1047733	-	240	32266574	yhbG	HH1075	-	ABC-transporter ATP-binding protein
1076	 36.55	0	1047730..1048164	-	144	32266575	-	HH1076	-	hypothetical protein
1077	 37.91	0	1048157..1049752	-	531	32266576	dnaX	HH1077	-	DNA polymerase III subunits gamma and tau
1078	 33.33	0	1049733..1049843	+	36	32266577	-	HH1078	-	hypothetical protein
1079	 39.18	0	1049898..1050530	-	210	32266578	-	HH1079	-	hypothetical protein
1080	 30.77	-1	1050591..1050707	+	38	32266579	-	HH1080	-	hypothetical protein
1081	 41.19	+1	1050682..1051470	+	262	32266580	flgG	HH1081	-	flagellar basal body rod protein FlgG
1082	 36.11	0	1051483..1052742	-	419	32266581	-	HH1082	-	hypothetical protein
1083	 38.02	0	1052733..1054055	-	440	32266582	-	HH1083	-	hypothetical protein
1084	 34.47	0	1054098..1055510	-	470	32266583	-	HH1084	-	hypothetical protein
1085	 33.78	0	1055672..1056340	-	222	32266584	-	HH1085	-	hypothetical protein
1086	 36.30	0	1056454..1057668	-	404	32266585	-	HH1086	-	hypothetical protein
1087	 35.40	0	1057760..1058146	-	128	32266586	-	HH1087	-	hypothetical protein
1088	 34.19	0	1058232..1060208	-	658	32266587	-	HH1088	-	hypothetical protein
1089	 20.37	-2	1060339..1060446	+	35	32266588	-	HH1089	-	hypothetical protein
1090	 38.85	0	1060468..1061301	+	277	32266589	flgG_1	HH1090	-	flagellar distal rod protein FlgG
1091	 36.23	0	1061331..1063022	+	563	32266590	-	HH1091	-	type I restriction enzyme
1092	 41.47	+1	1063023..1063538	+	171	32266591	-	HH1092	-	hypothetical protein
1093	 40.20	+1	1063535..1064248	+	237	32266592	-	HH1093	-	hypothetical protein
1094	 40.82	+1	1064330..1065544	+	404	32266593	-	HH1094	-	malate oxidoreductase
1095	 31.16	-1	1065853..1065990	-	45	32266594	-	HH1095	-	hypothetical protein
1096	 35.27	0	1066084..1066548	-	154	32266595	-	HH1096	-	hypothetical protein
1097	 31.44	-1	1066717..1067298	-	193	32266596	-	HH1097	-	hypothetical protein
1098	 44.22	+2	1067292..1068890	-	532	32266597	-	HH1098	-	hypothetical protein
1099	 40.67	+1	1069035..1070015	+	326	32266598	lpxD	HH1099	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1100	 35.14	0	1070053..1071432	+	459	32266599	sdaC	HH1100	-	serine transporter
1101	 25.00	-2	1071438..1071545	-	35	32266600	-	HH1101	-	hypothetical protein
1102	 38.22	0	1071562..1072686	-	374	32266601	cydB	HH1102	-	cytochrome bd quinol oxidase
1103	 39.05	0	1072686..1074260	-	524	32266602	cydA	HH1103	-	cytochrome bd quinol oxidase
1104	 27.38	-2	1074287..1074538	-	83	32266603	-	HH1104	-	hypothetical protein
1105	 35.86	0	1074682..1077012	+	776	32266604	-	HH1105	-	hypothetical protein
1106	 36.04	0	1077025..1078869	+	614	32266605	-	HH1106	-	hypothetical protein
1107	 33.33	0	1078876..1079049	+	57	32266606	-	HH1107	-	hypothetical protein
1108	 38.89	0	1079084..1079263	+	59	32266607	-	HH1108	-	hypothetical protein
1109	 36.94	0	1079407..1080597	-	396	32266608	-	HH1109	-	hypothetical protein
1110	 31.66	-1	1080619..1081989	-	456	32266609	dnaA	HH1110	-	chromosomal replication initiation protein
1111	 35.13	0	1082089..1082646	+	185	32266610	ruvC	HH1111	-	Holliday junction resolvase
1112	 34.83	0	1082643..1084046	+	467	32266611	-	HH1112	-	hypothetical protein
1113	 35.05	0	1084036..1084674	+	212	32266612	-	HH1113	-	hypothetical protein
1114	 33.59	0	1084671..1085057	+	128	32266613	-	HH1114	-	hypothetical protein
1115	 35.27	0	1085054..1086655	+	533	32266614	-	HH1115	-	hypothetical protein
1116	 36.01	0	1086655..1088223	+	522	32266615	gspE	HH1116	-	hypothetical protein
1117	 34.62	0	1088211..1089455	+	414	32266616	-	HH1117	-	hypothetical protein
1118	 38.12	0	1089442..1090548	-	368	32266617	-	HH1118	-	hypothetical protein
1119	 38.89	0	1090590..1090733	+	47	32266618	-	HH1119	-	hypothetical protein
1120	 37.17	0	1090633..1091283	+	216	161546628	thyX	HH1120	-	FAD-dependent thymidylate synthase
1121	 31.32	-1	1091289..1091885	-	198	32266620	-	HH1121	-	hypothetical protein
1122	 32.95	0	1091882..1092658	-	258	32266621	-	HH1122	-	hypothetical protein
1123	 32.59	0	1092643..1093449	-	268	32266622	-	HH1123	-	ABC transporter
1124	 32.95	0	1093446..1094492	-	348	32266623	-	HH1124	-	hypothetical protein
1125	 27.62	-2	1094687..1094791	+	34	32266624	-	HH1125	-	hypothetical protein
1126	 31.45	-1	1094815..1095876	+	353	32266625	dnaN	HH1126	-	DNA polymerase III subunit beta
1127	 34.33	0	1095901..1098219	+	772	32266626	gyrB	HH1127	-	DNA gyrase subunit B
1128	 28.23	-2	1098232..1099386	-	384	32266627	-	HH1128	-	hypothetical protein
1129	 33.41	0	1099396..1100643	-	415	32266628	-	HH1129	-	alginate O- acetylation protein
1130	 31.68	-1	1100834..1101136	-	100	32266629	-	HH1130	-	alginate O- acetylation protein
1131	 19.67	-2	1101120..1101302	-	60	32266630	-	HH1131	-	hypothetical protein
1132	 27.78	-2	1101305..1101466	-	53	32266631	-	HH1132	-	hypothetical protein
1133	 31.25	-1	1101584..1101727	-	47	32266632	-	HH1133	-	hypothetical protein
1134	 40.59	+1	1101727..1102677	-	316	32266633	leuB	HH1134	-	isopropylmalate dehydrogenase
1135	 37.35	0	1102817..1103314	-	165	32266634	leuD	HH1135	-	3-isopropylmalate dehydratase
1136	 39.90	+1	1103370..1104632	-	420	32266635	leuC	HH1136	-	3-isopropylmalate dehydratase large subunit
1137	 37.21	0	1104648..1106324	-	558	32266636	leuA	HH1137	-	2-isopropylmalate synthase
1138	 39.30	0	1106493..1106693	-	66	32266637	-	HH1138	-	hypothetical protein
1139	 26.67	-2	1106723..1106827	+	34	32266638	-	HH1139	-	hypothetical protein
1140	 36.04	0	1106917..1107765	+	282	32266639	tal	HH1140	-	transaldolase
1141	 33.20	0	1107776..1108522	-	248	32266640	-	HH1141	-	hypothetical protein
1142	 36.17	0	1108600..1109127	+	175	32266641	folK	HH1142	-	7,8-dihydro-6-hydroxymethylpterin-pyrophosphokinase
1143	 36.29	0	1109219..1110670	+	483	32266642	flhF	HH1143	-	flagellar biosynthesis regulator FlhF
1144	 37.34	0	1110683..1111555	+	290	32266643	-	HH1144	-	hypothetical protein
1145	 32.49	0	1111580..1111936	+	118	32266644	-	HH1145	-	hypothetical protein
1146	 36.86	0	1111948..1112655	+	235	161546627	fliA	HH1146	-	flagellar biosynthesis sigma factor
1147	 37.38	0	1112648..1113709	+	353	32266646	fliM	HH1147	-	flagellar motor switch protein FliM
1148	 37.99	0	1113706..1114542	+	278	32266647	fliY	HH1148	-	flagellar motor switch protein FliY
1149	 35.29	0	1114619..1114822	-	67	32266648	-	HH1149	-	hypothetical protein
1150	 36.22	0	1114921..1115544	+	207	32266649	-	HH1150	-	hypothetical protein
1151	 32.58	0	1115558..1116892	+	444	32266650	-	HH1151	-	hypothetical protein
1152	 32.47	0	1116993..1117568	+	191	32266651	-	HH1152	-	hypothetical protein
1153	 39.40	+1	1117565..1118536	-	323	32266652	trxB_2	HH1153	-	hypothetical protein
1154	 34.67	0	1118529..1118753	-	74	32266653	-	HH1154	-	hypothetical protein
1155	 36.80	0	1118909..1120579	+	556	32266654	-	HH1155	-	hypothetical protein
35.80	MEAN

3.58	STD DEV
