IslandPath Analysis: Helicobacter hepaticus ATCC 51449

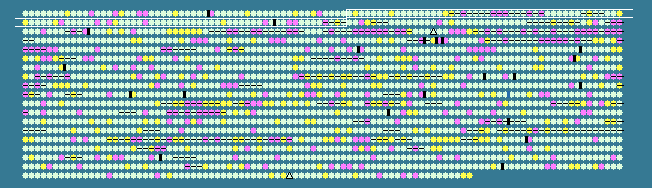

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.80   STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 1..1799146
1875 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
55	 34.91	0	59970..60287	-	105	32265554	trxA_2	HH0055	-	thioredoxin
56	 42.64	+1	60643..61803	+	386	32265555	hyaA	HH0056	-	Ni/Fe hydrogenase beta subunit
57	 38.71	0	61814..63544	+	576	32265556	hyaB	HH0057	-	Ni/Fe hydrogenase alpha subunit
58	 35.03	0	63555..64319	+	254	32265557	hyaC	HH0058	-	Ni/Fe hydrogenase cytochrome b subunit
59	 37.78	0	64327..64866	+	179	32265558	hyaD	HH0059	-	hydrogenase formation/expression protease HyaD/HupD
60	 36.40	0	64863..66656	+	597	32265559	-	HH0060	-	hypothetical protein
61	 36.06	0	66709..67479	+	256	32265560	-	HH0061	-	hypothetical protein
62	 39.41	+1	67490..68641	+	383	32265561	metB	HH0062	-	cystathionine gamma-synthase
63	 38.22	0	68643..69584	+	313	32265562	cysK_1	HH0063	-	cysteine synthase
64	 33.72	0	69562..70341	-	259	32265563	-	HH0064	-	hypothetical protein
65	 33.33	0	70335..70496	-	53	32265564	-	HH0065	-	hypothetical protein
66	 36.08	0	70592..71065	+	157	32265565	-	HH0066	-	hypothetical protein
67	 36.78	0	71217..71825	+	202	32265566	-	HH0067	-	hypothetical protein
68	 35.64	0	71863..72771	-	302	32265567	-	HH0068	-	hypothetical protein
69	 37.95	0	72768..73244	-	158	32265568	-	HH0069	-	alpha-1,2-fucosyltransferase fragment
70	 32.89	0	73214..73666	-	150	32265569	-	HH0070	-	alpha-1,2-fucosyltransferase fragment
71	 43.53	+2	73683..74780	-	365	32265570	-	HH0071	-	hypothetical protein
72	 40.08	+1	74801..75763	-	320	32265571	-	HH0072	-	hypothetical protein
73	 35.90	0	75766..76854	-	362	32265572	-	HH0073	-	hypothetical protein
74	 30.17	-1	76926..77558	-	210	32265573	cfa	HH0074	-	hypothetical protein
75	 36.50	0	77551..78276	-	241	32265574	ygeA	HH0075	-	aspartate racemase
76	 33.33	0	78397..79212	-	271	32265575	-	HH0076	-	hypothetical protein
77	 36.60	0	79209..79850	-	213	32265576	-	HH0077	-	hypothetical protein
78	 35.50	0	79823..80422	-	199	32265577	serB	HH0078	-	phosphoserine phosphatase
79	 31.90	-1	80419..81888	-	489	32265578	-	HH0079	-	hypothetical protein
80	 31.61	-1	81950..83107	-	385	32265579	-	HH0080	-	hypothetical protein
81	 31.76	-1	83104..84057	-	317	32265580	-	HH0081	-	hypothetical protein
82	 35.41	0	84050..84868	-	272	32265581	-	HH0082	-	UDP-N-acetylglucosamine 2-epimerase
83	 36.73	0	85287..86021	-	244	32265582	-	HH0083	-	hypothetical protein
84	 34.00	0	86018..87661	-	547	32265583	-	HH0084	-	hypothetical protein
85	 32.32	0	87674..87772	-	32	32265584	-	HH0085	-	hypothetical protein
86	 37.46	0	87774..88088	-	104	32265585	-	HH0086	-	hypothetical protein
87	 30.98	-1	88088..88342	-	84	32265586	-	HH0087	-	acyl carrier protein
88	 33.16	0	88345..88917	-	190	32265587	-	HH0088	-	hypothetical protein
89	 36.86	0	88914..89876	-	320	32265588	-	HH0089	-	hypothetical protein
90	 33.26	0	89982..91340	-	452	32265589	-	HH0090	-	hypothetical protein
91	 35.58	0	91340..92851	-	503	32265590	-	HH0091	-	hypothetical protein
92	 36.73	0	92844..93578	-	244	32265591	-	HH0092	-	hypothetical protein
93	 32.65	0	93571..93864	-	97	32265592	-	HH0093	-	hypothetical protein
94	 37.23	0	93865..94428	-	187	32265593	-	HH0094	-	hypothetical protein
95	 40.43	+1	94428..94991	-	187	32265594	-	HH0095	-	hypothetical protein
96	 36.24	0	95258..95704	+	148	32265595	-	HH0096	-	hypothetical protein
97	 36.57	0	95714..96115	+	133	32265596	-	HH0097	-	hypothetical protein
98	 37.87	0	96474..97508	-	344	32265597	-	HH0098	-	molybdenum cofactor biosynthesis protein A
99	 37.21	0	97587..98618	-	343	32265598	-	HH0099	-	dTDP-D-glucose 4,6-dehydratase
100	 40.87	+1	98618..99493	-	291	32265599	-	HH0100	-	hypothetical protein
101	 39.72	+1	99550..101364	-	604	32265600	lepA	HH0101	-	GTP-binding protein LepA
102	 37.73	0	101556..102716	+	386	32265601	ftsW_2	HH0102	-	putative cell division protein FtsW
103	 35.84	0	102730..103248	+	172	32265602	-	HH0103	-	hypothetical protein
104	 38.19	0	103256..103996	+	246	32265603	hemD	HH0104	-	uroporphyrinogen-III synthase
105	 34.18	0	104073..104903	+	276	32265604	-	HH0105	-	hypothetical protein
106	 40.37	+1	104932..105855	+	307	32265605	fba	HH0106	-	fructose-bisphosphate aldolase
107	 27.78	-2	105950..106111	+	53	32265606	-	HH0107	-	hypothetical protein
108	 39.18	0	106199..106762	+	187	32265607	efp	HH0108	-	elongation factor P
109	 38.33	0	106821..109400	-	859	32265608	clpA	HH0109	-	ATP-dependent Clp protease ClpA
110	 36.27	0	109547..110977	-	476	32265609	trmE	HH0110	-	tRNA modification GTPase TrmE
111	 33.83	0	110913..111719	-	268	32265610	-	HH0111	-	hypothetical protein
112	 35.30	0	111722..113497	-	591	32265611	-	HH0112	-	putative inner membrane protein translocase component YidC
113	 30.37	-1	113502..113771	-	89	32265612	-	HH0113	-	hypothetical protein
114	 34.50	0	113789..113959	+	56	32265613	-	HH0114	-	hypothetical protein
115	 30.84	-1	113886..114326	-	146	32265614	rnpA	HH0115	-	ribonuclease P
116	 41.48	+1	114350..114484	-	44	32265615	rpmH	HH0116	-	50S ribosomal protein L34
117	 33.19	0	114544..115260	-	238	32265616	-	HH0117	-	hypothetical protein
118	 35.94	0	115267..117186	-	639	32265617	-	HH0118	-	hypothetical protein
119	 33.60	0	117208..117588	-	126	32265618	-	HH0119	-	biopolymer transport protein
120	 38.19	0	117585..118037	-	150	32265619	-	HH0120	-	biopolymer transport protein
121	 32.26	0	118056..118523	-	155	32265620	smpB	HH0121	-	SsrA-binding protein
122	 36.86	0	118525..119205	-	226	32265621	-	HH0122	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
123	 36.25	0	119335..119574	-	79	32265622	-	HH0123	-	carbon storage regulator
124	 36.73	0	119546..120400	-	284	32265623	truB	HH0124	-	tRNA pseudouridine synthase B
125	 33.43	0	120463..121524	-	353	32265624	-	HH0125	-	hypothetical protein
126	 37.05	0	121531..122391	-	286	32265625	-	HH0126	-	hypothetical protein
127	 37.55	0	122388..122885	-	165	32265626	-	HH0127	-	hypothetical protein
128	 32.46	0	122898..124379	-	493	32265627	-	HH0128	-	hypothetical protein
129	 32.65	0	124390..124680	-	96	32265628	-	HH0129	-	hypothetical protein
130	 35.15	0	124677..125282	-	201	32265629	-	HH0130	-	hypothetical protein
131	 33.33	0	125433..126485	-	350	32265630	ddl	HH0131	-	D-alanyl-alanine synthetase A
132	 37.43	0	126488..129319	-	943	32265631	uvrA	HH0132	-	excinuclease ABC subunit A
133	 35.48	0	129365..129643	-	92	32265632	-	HH0133	-	hypothetical protein
134	 39.84	+1	129507..129629	+	40	32265633	-	HH0134	-	hypothetical protein
135	 37.89	0	129667..131247	-	526	32265634	serA	HH0135	-	D-3-phosphoglycerate dehydrogenase
136	 35.91	0	131269..131733	-	154	32265635	-	HH0136	-	hypothetical protein
137	 34.30	0	131750..133408	-	552	32265636	rpsA	HH0137	-	30S ribosomal protein S1
138	 34.91	0	133502..134323	-	273	32265637	ispH	HH0138	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
139	 39.26	0	134313..135629	-	438	32265638	aroA	HH0139	-	3-phosphoshikimate 1-carboxyvinyltransferase
140	 35.22	0	135696..136754	-	352	32265639	-	HH0140	-	two component system sensor kinase protein
141	 31.51	-1	136738..137121	-	127	32265640	-	HH0141	-	hypothetical protein
142	 38.20	0	137132..138178	-	348	32265641	flgI	HH0142	-	flagellar basal body P-ring protein
143	 38.89	0	138399..139010	-	203	32265642	-	HH0143	-	hypothetical protein
144	 37.73	0	139010..139441	-	143	32265643	-	HH0144	-	hypothetical protein
145	 30.23	-1	139588..139716	+	42	32265644	-	HH0145	-	hypothetical protein
146	 22.22	-2	139780..139878	-	32	32265645	-	HH0146	-	hypothetical protein
147	 38.61	0	139870..141612	+	580	32265646	-	HH0147	-	hypothetical protein
148	 37.58	0	141622..141951	-	109	32265647	-	HH0148	-	hypothetical protein
149	 35.11	0	141965..142582	-	205	32265648	hisG	HH0149	-	ATP phosphoribosyltransferase catalytic subunit
150	 34.94	0	142614..143234	-	206	32265649	-	HH0150	-	pantothenate kinase
151	 31.09	-1	143234..144259	-	341	32265650	-	HH0151	-	hypothetical protein
152	 34.71	0	144289..144942	-	217	32265651	-	HH0152	-	hypothetical protein
153	 42.35	+1	144953..145429	-	158	32265652	dut	HH0153	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
154	 39.02	0	145433..145924	-	163	32265653	greA	HH0154	-	transcription elongation factor GreA
35.80	MEAN

3.58	STD DEV
