IslandPathversion 1.0

IslandPath Analysis: Haloquadratum walsbyi DSM 16790

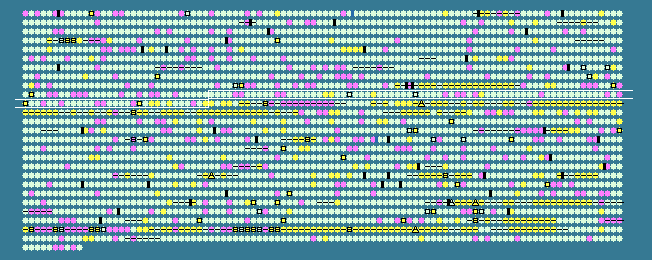

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
932	 50.96	0	1163444..1164793	+	449	110667908	-	HQ1958A	-	hypothetical protein
933	 49.65	0	1165397..1165684	+	95	110667909	-	HQ1959A	-	hypothetical protein
934	 50.91	0	1165886..1166767	-	293	110667910	usp	HQ1960A	-	stress response protein
935	 45.68	0	1167018..1168370	-	450	110667911	-	HQ1961A	-	CBS domain-containing protein
936	 43.40	-1	1168698..1169174	+	158	110667912	-	HQ1962A	-	hypothetical protein
937	 43.94	-1	1169325..1169786	-	153	110667913	-	HQ1963A	-	hypothetical protein
938	 49.23	0	1170023..1170475	-	150	110667914	bcp	HQ1964A	-	peroxiredoxin-like protein
939	 46.54	0	1170733..1172178	-	481	110667915	rtcB	HQ1965A	-	RtcB-like protein
940	 48.71	0	1172505..1173473	-	322	110667916	-	HQ1966A	-	hypothetical protein
941	 47.06	0	1174045..1174809	-	254	110667917	-	HQ1968A	-	dehydrogenase
942	 45.62	0	1175121..1177025	+	634	110667918	-	HQ1969A	-	ABC-type multidrug transport system, ATP-binding and permease protein
943	 42.92	-1	1177308..1178162	+	284	110667919	-	HQ1970A	-	site-specific DNA-methyltransferase
944	 38.79	-2	1178326..1179462	-	378	110667920	-	HQ1971A	-	hypothetical protein
945	 49.71	0	1179797..1181335	+	512	110667921	aldH	HQ1972A	-	aldehyde dehydrogenase
946	 46.52	0	1182463..1183266	-	267	110667922	sfsA	HQ1973A	-	DNA-binding protein, stimulates sugar fermentation
947	 50.78	0	1183918..1184937	+	339	110667923	tauA	HQ1974A	-	ABC-type nitrate/sulfonate/bicarbonate transport system, substrate binding protein
948	 48.73	0	1184944..1185768	+	274	110667924	tauC	HQ1975A	-	ABC-type nitrate/sulfonate/bicarbonate transport system, permease protein
949	 48.67	0	1185765..1186514	+	249	110667925	tauB	HQ1976A	-	ABC-type nitrate/sulfonate/bicarbonate transport system, ATP-binding protein
950	 50.89	0	1186589..1187260	+	223	110667926	tauC	HQ1977A	-	ABC-type nitrate/sulfonate/bicarbonate transport system, permease protein
951	 52.80	+1	1187281..1188030	-	249	110667927	-	HQ1978A	-	NCAIR mutase (PurE)-related protein
952	 53.20	+1	1188040..1189212	-	390	110667928	pncB	HQ1979A	-	nicotinate phosphoribosyltransferase
953	 50.42	0	1189517..1190821	-	434	110667929	-	HQ1980A	-	hypothetical protein
954	 47.83	0	1191077..1193773	-	898	110667930	rad3	HQ1981A	-	DNA repair helicase Rad3
955	 50.24	0	1195763..1196182	+	139	110667931	-	HQ1983A	-	transposase
956	 48.48	0	1196522..1196851	-	109	110667932	-	HQ1984A	-	hypothetical protein
957	 48.74	0	1196851..1198044	-	397	110667933	acaB	HQ1985A	-	acetyl-CoA C-acyltransferase
958	 47.18	0	1198547..1199752	-	401	110667934	-	HQ1986A	-	major facilitator superfamily transporter
959	 52.50	0	1199849..1200829	-	326	110667935	qor	HQ1987A	-	NADPH:quinone reductase
960	 47.98	0	1201277..1202689	-	470	110667936	-	HQ1988A	-	crotonobetainyl-CoA:carnitine CoA-transferase/alpha-methylacyl-CoA racemase
961	 49.92	0	1202700..1203887	-	395	110667937	ugpC	HQ1989A	-	ABC-type sugar/sn-glycerol-3-phosphate transport system, ATP-binding protein
962	 45.78	0	1204041..1204940	-	299	110667938	ugpE	HQ1990A	-	ABC-type sugar/sn-glycerol-3-phosphate transport system, periplasmic protein
963	 46.17	0	1204937..1205902	-	321	110667939	ugpA	HQ1991A	-	ABC-type sugar/sn-glycerol-3-phosphate transport system, periplasmic protein
964	 45.92	0	1206028..1207401	-	457	110667940	ugpB	HQ1992A	-	ABC-type sugar/sn-glycerol-3-phosphate transport system, periplasmic protein
965	 45.44	0	1207602..1208369	-	255	110667941	-	HQ1993A	-	transcription regulator
966	 50.00	0	1208862..1208933	+	23	110667942	-	HQ1993B	-	ISH9-type transposase (nonfunctional, N-terminal part)
967	 45.41	0	1210536..1211123	-	195	110667943	-	HQ1994A	-	hypothetical protein
968	 50.70	0	1211215..1211427	-	70	110667944	-	HQ1995A	-	hypothetical protein
969	 46.94	0	1212274..1213890	+	538	110667945	-	HQ1996A	-	metal-dependent RNase
970	 48.12	0	1214014..1214385	+	123	110667946	-	HQ1997A	-	hypothetical protein
971	 44.36	-1	1214439..1214855	+	138	110667947	dcd	HQ1998A	-	deoxycytidine triphosphate deaminase
972	 51.13	0	1214993..1215745	+	250	110667948	-	HQ1999A	-	dehydrogenase
973	 44.96	0	1216019..1216474	+	151	110667949	-	HQ2000A	-	hypothetical protein
974	 45.04	0	1217113..1217505	-	130	110667950	fdx	HQ2001A	-	ferredoxin (2Fe-2S)
975	 47.79	0	1218101..1218958	+	285	110667951	-	HQ2002A	-	hypothetical protein
976	 42.47	-1	1219079..1219297	-	72	110667952	-	HQ2003A	-	hypothetical protein
977	 53.38	+1	1219396..1220328	+	310	110667953	nolA	HQ2004A	-	NADH dehydrogenase 32K chain-like protein
978	 47.23	0	1220325..1221065	+	246	110667954	-	HQ2005A	-	hypothetical protein
979	 51.84	0	1221156..1221863	-	235	110667955	-	HQ2006A	-	S-adenosylmethionine-dependent methyltransferase
980	 46.83	0	1221865..1223583	-	572	110667956	moaA	HQ2007A	-	molybdopterin-based tungsten cofactor biosynthesis protein
981	 50.18	0	1223658..1223930	+	90	110667957	-	HQ2008A	-	hypothetical protein
982	 46.20	0	1223961..1224473	+	170	110667958	bcp	HQ2009A	-	thioredoxin-dependent hydroperoxide peroxidase
983	 45.67	0	1225086..1225985	+	299	110667959	uvsE	HQ2011A	-	putative UV damage endonuclease
984	 46.53	0	1227235..1227378	-	47	110667960	-	HQ2012A	-	hypothetical protein
985	 47.62	0	1227489..1227635	-	48	110667961	-	HQ2013A	-	hypothetical protein
986	 50.38	0	1227790..1229109	-	439	110667962	ywaD	HQ2014A	-	peptidase
987	 40.00	-2	1229220..1229744	+	174	110667963	-	HQ2015A	-	tRNA splicing protein, cyclic phosphodiesterase
988	 49.09	0	1229891..1230055	-	54	110667964	-	HQ2016A	-	hypothetical protein
989	 49.34	0	1230382..1231974	+	530	110667965	-	HQ2017A	-	hypothetical protein
990	 49.86	0	1231971..1232696	+	241	110667966	salX	HQ2018A	-	peptide ABC transporter ATP-binding protein
991	 48.28	0	1232725..1233828	+	367	110667967	salY	HQ2019A	-	peptide ABC transporter permease
992	 48.07	0	1234053..1235477	-	474	110667968	-	HQ2020A	-	beta,beta-carotene 9',10'-dioxygenase 2
993	 49.29	0	1237785..1238204	-	139	110667969	uspA	HQ2022A	-	universal stress protein
994	 50.69	0	1238500..1239957	+	485	110667970	mntH	HQ2023A	-	manganese transporter NRAMP
995	 52.19	0	1240690..1242057	-	455	110667971	ppsA2	HQ2024A	-	pyruvate, water dikinase (phosphoenolpyruvate synthase)
996	 51.46	0	1242068..1243060	-	330	110667972	gapB	HQ2025A	-	glyceraldehyde-3-phosphate dehydrogenase
997	 48.04	0	1244425..1245138	+	237	110667973	-	HQ2026A	-	phosphotransferase domain-containing protein
998	 42.66	-1	1245338..1247224	+	628	110667974	-	HQ2027A	-	ATP/GTP-binding protein
999	 47.84	0	1247592..1247984	-	130	110667975	nudF	HQ2028A	-	ADP-ribose pyrophosphatase
1000	 44.35	-1	1248221..1248565	+	114	110667976	cad	HQ2029A	-	pterin-4a-carbinolamine dehydratase
1001	 56.64	+2	1248719..1249546	-	275	110667977	-	HQ2030A	-	ISH9-type transposase
1002	 47.02	0	1250232..1252466	-	744	110667978	amyA	HQ2031A	-	alpha amylase
1003	 45.54	0	1252820..1253032	-	70	110667979	xseAs	HQ2032A	-	exonuclease VII small subunit
1004	 44.19	-1	1253029..1254207	-	392	110667980	xseAl	HQ2033A	-	exodeoxyribonuclease VII large subunit
1005	 47.69	0	1254523..1255539	+	338	110667981	-	HQ2034A	-	hypothetical protein
1006	 47.70	0	1255536..1256579	+	347	110667982	-	HQ2035A	-	mandelate racemase/muconate lactonizing enzyme family protein
1007	 45.14	0	1257198..1258112	+	304	110667983	elaC	HQ2036A	-	ribonuclease Z (RNase Z) (tRNA 3 endonuclease)
1008	 48.11	0	1258376..1260148	-	590	110667984	-	HQ2037A	-	hypothetical protein
1009	 47.74	0	1260394..1261323	-	309	110667985	cysA	HQ2038A	-	thiosulfate sulfurtransferase
1010	 49.07	0	1261454..1261828	-	124	110667986	-	HQ2039A	-	hypothetical protein
1011	 48.02	0	1261925..1262884	-	319	110667987	sppA	HQ2040A	-	signal peptide peptidase
1012	 47.35	0	1264711..1265466	+	251	110667988	cinA	HQ2043A	-	CinA-like domain-containing protein
1013	 45.19	0	1265675..1266610	+	311	110667989	-	HQ2044A	-	hypothetical protein
1014	 42.70	-1	1266813..1267538	-	241	110667990	-	HQ2045A	-	phosphoesterase
1015	 45.62	0	1267848..1268441	-	197	110667991	cynT	HQ2046A	-	carbonic anhydrase
1016	 51.82	0	1268610..1268912	-	100	110667992	trzA	HQ2047A	-	Atrazine chlorohydrolase
1017	 49.73	0	1268958..1269140	-	60	110667993	trzA	HQ2048A	-	N-ethylammeline chlorohydrolase (S-triazine hydrolase )
1018	 49.21	0	1269425..1270759	+	444	110667994	guaD	HQ2049A	-	N-ethylammeline chlorohydrolase
1019	 45.05	0	1270976..1271521	+	181	110667995	apt	HQ2050A	-	adenine phosphoribosyltransferase
1020	 56.03	+1	1272280..1273605	+	441	110667996	-	HQ2051A	-	IS1341-type transposase
1021	 50.36	0	1273688..1274932	-	414	110667997	pitA	HQ2052A	-	phosphate permease-like protein
1022	 53.95	+1	1275420..1276229	-	269	110667998	-	HQ2053A	-	signal-transducing histidine kinase/response regulator
1023	 54.30	+1	1276307..1277155	-	282	110667999	-	HQ2054A	-	signal-transducing histidine kinase
1024	 48.76	0	1277657..1278019	+	120	110668000	-	HQ2055A	-	hypothetical protein
1025	 53.49	+1	1279161..1279676	+	171	110668001	-	HQ2056A	-	hypothetical protein
1026	 48.21	0	1281026..1281415	-	129	110668002	-	HQ2057A	-	hypothetical protein
1027	 46.02	0	1281749..1282339	+	196	110668003	-	HQ2058A	-	hypothetical protein
1028	 46.50	0	1282509..1283123	+	204	110668004	-	HQ2059A	-	hypothetical protein
1029	 43.37	-1	1283490..1283768	+	92	110668005	-	HQ2060A	-	hypothetical protein
1030	 51.79	0	1284055..1284249	-	64	110668006	-	HQ2061A	-	hypothetical protein
1031	 56.05	+1	1284236..1284970	-	244	110668007	ldcA	HQ2062A	-	LD-carboxypeptidase
48.79	MEAN

3.84	STD DEV
