IslandPath Analysis: Haloquadratum walsbyi DSM 16790

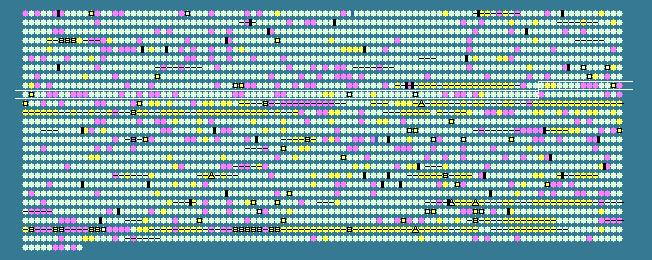

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
887	 49.13	0	1105961..1108309	-	782	110667863	malA	HQ1911A	-	alpha-glucosidase
888	 55.39	+1	1109096..1110115	+	339	110667864	-	HQ1912A	-	hypothetical protein
889	 54.88	+1	1110129..1110425	-	98	110667865	-	HQ1913A	-	hypothetical protein
890	 50.73	0	1110791..1111543	+	250	110667866	ski	HQ1914A	-	two-component system sensor kinase
891	 51.39	0	1111864..1112727	+	287	110667867	-	HQ1915A	-	hypothetical protein
892	 49.76	0	1113104..1113517	+	137	110667868	uspA	HQ1916A	-	universal stress protein
893	 50.71	0	1113999..1114769	+	256	110667869	-	HQ1918A	-	hypothetical protein
894	 44.59	-1	1114894..1116723	+	609	110667870	speE	HQ1919A	-	spermidine synthase
895	 41.95	-1	1116726..1117247	+	173	110667871	-	HQ1920A	-	hypothetical protein
896	 43.78	-1	1117285..1119456	+	723	110667872	-	HQ1921A	-	hypothetical protein
897	 46.17	0	1119512..1120477	+	321	110667873	-	HQ1922A	-	hypothetical protein
898	 46.12	0	1120548..1121024	-	158	110667874	-	HQ1923A	-	hypothetical protein
899	 60.87	+2	1122957..1123025	-	22	110667875	-	HQ1924E	-	IS1341-type transposase (nonfunctional,N-terminal part)
900	 42.71	-1	1123830..1124330	+	166	110667876	-	HQ1925A	-	hypothetical protein
901	 49.01	0	1124937..1126658	+	573	110667877	-	HQ1926A	-	hypothetical protein
902	 53.00	+1	1127007..1127606	+	199	110667878	-	HQ1927A	-	IS1341-type transposase (nonfunctional,N-terminal part)
903	 49.20	0	1128768..1129391	-	207	110667879	msrA	HQ1929A	-	peptide methionine sulfoxide reductase (S-form specific)
904	 50.36	0	1129421..1129831	-	136	110667880	msrB	HQ1930A	-	peptide methionine sulfoxide reductase (R-form specific)
905	 44.77	-1	1129891..1130196	-	101	110667881	cutA	HQ1931A	-	divalent divalent cation tolerance protein
906	 41.96	-1	1130419..1130847	-	142	110667882	-	HQ1932A	-	light-and/or oxygen-sensing histidine kinase
907	 49.35	0	1131335..1133263	-	642	110667883	-	HQ1933A	-	X-Pro dipeptidyl-peptidase
908	 46.28	0	1133763..1135175	+	470	110667884	xup	HQ1934A	-	xanthine/uracil permease family protein
909	 42.82	-1	1135435..1135803	+	122	110667885	-	HQ1935A	-	hypothetical protein
910	 44.63	-1	1135856..1137280	+	474	110667886	pyrC	HQ1936A	-	dihydroorotase
911	 44.71	-1	1137420..1138175	+	251	110667887	-	HQ1937A	-	transcription regulator
912	 47.04	0	1138553..1139311	-	252	110667888	-	HQ1938A	-	cyclase
913	 50.10	0	1139657..1140706	+	349	110667889	qor	HQ1939A	-	NADPH:quinone reductase
914	 46.17	0	1140779..1141978	+	399	110667890	-	HQ1940A	-	crotonobetainyl-CoA:carnitine CoA-transferase/alpha-methylacyl-CoA racemase
915	 46.94	0	1142156..1143316	+	386	110667891	xdhC	HQ1941A	-	xanthine and Co dehydrogenase maturation factor
916	 48.17	0	1143417..1144319	+	300	110667892	coxM	HQ1942A	-	aerobic-type carbon monoxide dehydrogenase,medium subunit
917	 43.63	-1	1144413..1144946	+	177	110667893	coxS	HQ1943A	-	aerobic-type carbon monoxide dehydrogenase,small subunit
918	 46.44	0	1144946..1147417	+	823	110667894	coxL	HQ1944A	-	aerobic-type carbon monoxide dehydrogenase,large subunit
919	 48.01	0	1147516..1148142	-	208	110667895	mobA	HQ1945A	-	molybdopterin-guanine dinucleotide biosynthesis protein A
920	 40.53	-2	1149104..1149937	+	277	110667896	-	HQ1946A	-	response regulator / transcription regulator
921	 49.44	0	1150487..1151200	+	237	110667897	-	HQ1947A	-	hypothetical protein
922	 45.21	0	1151454..1151756	-	100	110667898	-	HQ1948A	-	hypothetical protein
923	 41.93	-1	1151753..1152136	-	127	110667899	-	HQ1949A	-	ArsR family transcriptional regulator
924	 48.72	0	1152667..1154031	-	454	110667900	-	HQ1950A	-	amino acid transporter
925	 46.55	0	1154515..1155225	-	236	110667901	trkA	HQ1951A	-	Trk-type potassium transport system, NAD-binding subunit
926	 45.19	0	1155669..1157312	+	547	110667902	kch	HQ1952A	-	Kef-type K+ transporter NAD-binding component
927	 47.14	0	1157551..1157760	-	69	110667903	-	HQ1953A	-	hypothetical protein
928	 49.07	0	1157924..1159270	-	448	110667904	mntH	HQ1954A	-	manganese transporter NRAMP
929	 49.48	0	1160042..1161856	+	604	110667905	-	HQ1955A	-	sodium/anion symporter ( sulfate or citrate)
930	 50.46	0	1162124..1162777	+	217	110667906	trkA	HQ1956A	-	Trk-type potassium transport system, NAD-binding subunit
931	 52.13	0	1162851..1163297	-	148	110667907	usp	HQ1957A	-	stress response protein
932	 50.96	0	1163444..1164793	+	449	110667908	-	HQ1958A	-	hypothetical protein
933	 49.65	0	1165397..1165684	+	95	110667909	-	HQ1959A	-	hypothetical protein
934	 50.91	0	1165886..1166767	-	293	110667910	usp	HQ1960A	-	stress response protein
935	 45.68	0	1167018..1168370	-	450	110667911	-	HQ1961A	-	CBS domain-containing protein
936	 43.40	-1	1168698..1169174	+	158	110667912	-	HQ1962A	-	hypothetical protein
937	 43.94	-1	1169325..1169786	-	153	110667913	-	HQ1963A	-	hypothetical protein
938	 49.23	0	1170023..1170475	-	150	110667914	bcp	HQ1964A	-	peroxiredoxin-like protein
939	 46.54	0	1170733..1172178	-	481	110667915	rtcB	HQ1965A	-	RtcB-like protein
940	 48.71	0	1172505..1173473	-	322	110667916	-	HQ1966A	-	hypothetical protein
941	 47.06	0	1174045..1174809	-	254	110667917	-	HQ1968A	-	dehydrogenase
942	 45.62	0	1175121..1177025	+	634	110667918	-	HQ1969A	-	ABC-type multidrug transport system, ATP-binding and permease protein
943	 42.92	-1	1177308..1178162	+	284	110667919	-	HQ1970A	-	site-specific DNA-methyltransferase
944	 38.79	-2	1178326..1179462	-	378	110667920	-	HQ1971A	-	hypothetical protein
945	 49.71	0	1179797..1181335	+	512	110667921	aldH	HQ1972A	-	aldehyde dehydrogenase
946	 46.52	0	1182463..1183266	-	267	110667922	sfsA	HQ1973A	-	DNA-binding protein, stimulates sugar fermentation
947	 50.78	0	1183918..1184937	+	339	110667923	tauA	HQ1974A	-	ABC-type nitrate/sulfonate/bicarbonate transport system, substrate binding protein
948	 48.73	0	1184944..1185768	+	274	110667924	tauC	HQ1975A	-	ABC-type nitrate/sulfonate/bicarbonate transport system, permease protein
949	 48.67	0	1185765..1186514	+	249	110667925	tauB	HQ1976A	-	ABC-type nitrate/sulfonate/bicarbonate transport system, ATP-binding protein
950	 50.89	0	1186589..1187260	+	223	110667926	tauC	HQ1977A	-	ABC-type nitrate/sulfonate/bicarbonate transport system, permease protein
951	 52.80	+1	1187281..1188030	-	249	110667927	-	HQ1978A	-	NCAIR mutase (PurE)-related protein
952	 53.20	+1	1188040..1189212	-	390	110667928	pncB	HQ1979A	-	nicotinate phosphoribosyltransferase
953	 50.42	0	1189517..1190821	-	434	110667929	-	HQ1980A	-	hypothetical protein
954	 47.83	0	1191077..1193773	-	898	110667930	rad3	HQ1981A	-	DNA repair helicase Rad3
955	 50.24	0	1195763..1196182	+	139	110667931	-	HQ1983A	-	transposase
956	 48.48	0	1196522..1196851	-	109	110667932	-	HQ1984A	-	hypothetical protein
957	 48.74	0	1196851..1198044	-	397	110667933	acaB	HQ1985A	-	acetyl-CoA C-acyltransferase
958	 47.18	0	1198547..1199752	-	401	110667934	-	HQ1986A	-	major facilitator superfamily transporter
959	 52.50	0	1199849..1200829	-	326	110667935	qor	HQ1987A	-	NADPH:quinone reductase
960	 47.98	0	1201277..1202689	-	470	110667936	-	HQ1988A	-	crotonobetainyl-CoA:carnitine CoA-transferase/alpha-methylacyl-CoA racemase
961	 49.92	0	1202700..1203887	-	395	110667937	ugpC	HQ1989A	-	ABC-type sugar/sn-glycerol-3-phosphate transport system, ATP-binding protein
962	 45.78	0	1204041..1204940	-	299	110667938	ugpE	HQ1990A	-	ABC-type sugar/sn-glycerol-3-phosphate transport system, periplasmic protein
963	 46.17	0	1204937..1205902	-	321	110667939	ugpA	HQ1991A	-	ABC-type sugar/sn-glycerol-3-phosphate transport system, periplasmic protein
964	 45.92	0	1206028..1207401	-	457	110667940	ugpB	HQ1992A	-	ABC-type sugar/sn-glycerol-3-phosphate transport system, periplasmic protein
965	 45.44	0	1207602..1208369	-	255	110667941	-	HQ1993A	-	transcription regulator
966	 50.00	0	1208862..1208933	+	23	110667942	-	HQ1993B	-	ISH9-type transposase (nonfunctional, N-terminal part)
967	 45.41	0	1210536..1211123	-	195	110667943	-	HQ1994A	-	hypothetical protein
968	 50.70	0	1211215..1211427	-	70	110667944	-	HQ1995A	-	hypothetical protein
969	 46.94	0	1212274..1213890	+	538	110667945	-	HQ1996A	-	metal-dependent RNase
970	 48.12	0	1214014..1214385	+	123	110667946	-	HQ1997A	-	hypothetical protein
971	 44.36	-1	1214439..1214855	+	138	110667947	dcd	HQ1998A	-	deoxycytidine triphosphate deaminase
972	 51.13	0	1214993..1215745	+	250	110667948	-	HQ1999A	-	dehydrogenase
973	 44.96	0	1216019..1216474	+	151	110667949	-	HQ2000A	-	hypothetical protein
974	 45.04	0	1217113..1217505	-	130	110667950	fdx	HQ2001A	-	ferredoxin (2Fe-2S)
975	 47.79	0	1218101..1218958	+	285	110667951	-	HQ2002A	-	hypothetical protein
976	 42.47	-1	1219079..1219297	-	72	110667952	-	HQ2003A	-	hypothetical protein
977	 53.38	+1	1219396..1220328	+	310	110667953	nolA	HQ2004A	-	NADH dehydrogenase 32K chain-like protein
978	 47.23	0	1220325..1221065	+	246	110667954	-	HQ2005A	-	hypothetical protein
979	 51.84	0	1221156..1221863	-	235	110667955	-	HQ2006A	-	S-adenosylmethionine-dependent methyltransferase
980	 46.83	0	1221865..1223583	-	572	110667956	moaA	HQ2007A	-	molybdopterin-based tungsten cofactor biosynthesis protein
981	 50.18	0	1223658..1223930	+	90	110667957	-	HQ2008A	-	hypothetical protein
982	 46.20	0	1223961..1224473	+	170	110667958	bcp	HQ2009A	-	thioredoxin-dependent hydroperoxide peroxidase
983	 45.67	0	1225086..1225985	+	299	110667959	uvsE	HQ2011A	-	putative UV damage endonuclease
984	 46.53	0	1227235..1227378	-	47	110667960	-	HQ2012A	-	hypothetical protein
985	 47.62	0	1227489..1227635	-	48	110667961	-	HQ2013A	-	hypothetical protein
986	 50.38	0	1227790..1229109	-	439	110667962	ywaD	HQ2014A	-	peptidase
48.79	MEAN

3.84	STD DEV
