IslandPathversion 1.0

IslandPath Analysis: Haloquadratum walsbyi DSM 16790

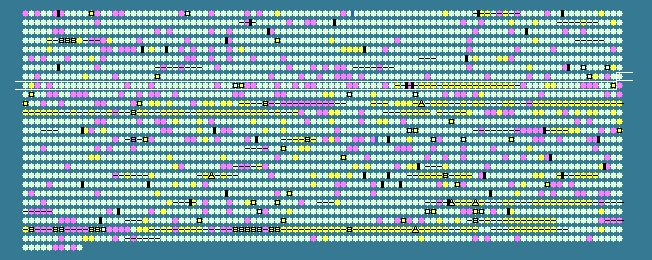

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
800	 45.71	0	1007950..1009290	+	446	110667776	-	HQ1821A	-	hypothetical protein
801	 50.03	0	1010033..1011715	-	560	110667777	-	HQ1822A	-	alkaline phosphatase; cell surface glycoprotein
802	 53.03	+1	1012002..1012199	+	65	110667778	-	HQ1823A	-	hypothetical protein
803	 44.96	0	1013196..1013780	-	194	110667779	-	HQ1824A	-	hypothetical protein
804	 48.10	0	1014646..1015119	-	157	110667780	-	HQ1825A	-	hypothetical protein
805	 44.76	-1	1015234..1015653	-	139	110667781	-	HQ1826A	-	hypothetical protein
806	 47.07	0	1015690..1016082	-	130	110667782	-	HQ1827A	-	hypothetical protein
807	 46.74	0	1016232..1016783	+	183	110667783	cbs	HQ1828A	-	CBS domain-containing protein
808	 49.45	0	1016940..1018304	-	454	110667784	cbiA	HQ1829A	-	cobyrinic acid a,c-diamide synthase
809	 49.57	0	1018301..1018645	-	114	110667785	-	HQ1830A	-	cobalamin operon protein
810	 46.87	0	1018642..1019616	-	324	110667786	cbiG	HQ1831A	-	cobalamin biosynthesis protein CbiG
811	 48.20	0	1019609..1020496	-	295	110667787	cbiF	HQ1832A	-	precorrin-4 C11-methyltransferase
812	 48.23	0	1020493..1021197	-	234	110667788	cbiL	HQ1833A	-	cobalt-precorrin-2 C(20)-methyltransferase
813	 49.10	0	1021197..1021754	-	185	110667789	cbiT	HQ1834A	-	precorrin-8W decarboxylase
814	 50.08	0	1021908..1022570	+	220	110667790	cbiM	HQ1835A	-	cobalt transport protein CbiM
815	 49.83	0	1022567..1022863	+	98	110667791	cbiN	HQ1836A	-	CbiN protein ( ABC-type cobalt transport system, periplasmic component)
816	 45.36	0	1022847..1023578	+	243	110667792	cbiQ	HQ1837A	-	CbiQ protein ( ABC-type cobalt transport system permease protein 1)
817	 48.56	0	1023575..1024303	+	242	110667793	cbiO	HQ1838A	-	CbiO protein ( ABC-type cobalt transport system ATP-binding protein)
818	 43.33	-1	1024583..1024822	+	79	110667794	-	HQ1839A	-	hypothetical protein
819	 50.75	0	1025055..1025852	+	265	110667795	-	HQ1840A	-	short chain dehydrogenase/ reductase
820	 47.94	0	1025940..1027130	+	396	110667796	-	HQ1841A	-	major facilitator superfamily transporter
821	 45.96	0	1028119..1028601	+	160	110667797	folA	HQ1842A	-	dihydrofolate reductase
822	 44.95	0	1029203..1029727	+	174	110667798	msrA	HQ1843A	-	methionine sulfoxide reductase A
823	 47.25	0	1029884..1031263	-	459	110667799	proA	HQ1844A	-	glutamate-5-semialdehyde dehydrogenase
824	 45.52	0	1031473..1032432	-	319	110667800	proB	HQ1845A	-	glutamate 5-kinase
825	 46.33	0	1032425..1033201	-	258	110667801	proC	HQ1846A	-	pyrroline-5-carboxylate reductase
826	 49.19	0	1033487..1034785	+	432	110667802	-	HQ1847A	-	putative acetamidase/formamidase
827	 46.35	0	1034884..1035267	-	127	110667803	-	HQ1848A	-	hypothetical protein
828	 50.00	0	1035526..1036161	+	211	110667804	-	HQ1849A	-	hypothetical protein
829	 49.01	0	1036167..1037825	+	552	110667805	norM	HQ1850A	-	sodium-driven multidrug efflux pump
830	 49.02	0	1037875..1040418	-	847	110667806	-	HQ1851A	-	helicase
831	 49.65	0	1040539..1042101	-	520	110667807	-	HQ1852A	-	DNA repair and recombination protein radA
832	 47.58	0	1042503..1042853	+	116	110667808	-	HQ1853A	-	hypothetical protein
833	 44.98	0	1042956..1044080	+	374	110667809	-	HQ1854A	-	hypothetical protein
834	 49.24	0	1044205..1045323	+	372	110667810	degP	HQ1855A	-	serine proteinase
835	 46.95	0	1045492..1046916	-	474	110667811	gcvT	HQ1856A	-	aminomethyltransferase, glycin cleavage system T protein
836	 46.67	0	1047700..1047849	-	49	110667812	-	HQ1858A	-	IS200-type transposase (nonfunctional,N-terminal part)
837	 55.38	+1	1048040..1049350	+	436	110667813	-	HQ1859A	-	IS1341-type transposase
838	 40.91	-2	1049381..1049512	+	43	110667814	-	HQ1860A	-	hypothetical protein
839	 44.44	-1	1050093..1050758	-	221	110667815	-	HQ1861A	-	DNA binding protein, transcriptional regulator
840	 50.00	0	1051242..1052381	+	379	110667816	nifS	HQ1862A	-	cysteine desulfurase, class V aminotransferase
841	 50.45	0	1052452..1053117	-	221	110667817	-	HQ1863A	-	DNA binding protein, bacterio-opsin activator-like
842	 49.65	0	1053417..1054427	+	336	110667818	brp	HQ1864A	-	bop gene expression regulator
843	 43.46	-1	1054592..1054897	-	101	110667819	-	HQ1865A	-	hypothetical protein
844	 50.26	0	1055014..1055208	+	64	110667820	csp	HQ1866A	-	cold shock protein
845	 49.37	0	1055344..1056297	-	317	110667821	tfbA	HQ1867A	-	transcription initiation factor TFB
846	 44.15	-1	1056801..1057475	+	224	110667822	-	HQ1868A	-	RNA methylase
847	 48.13	0	1058159..1059949	-	596	110667823	-	HQ1869A	-	rhomboid family protein/intramembrane serine protease
848	 40.86	-2	1059983..1060261	-	92	110667824	-	HQ1870A	-	hypothetical protein
849	 43.81	-1	1060319..1060528	-	69	110667825	-	HQ1871A	-	hypothetical protein
850	 49.68	0	1060848..1062572	+	574	110667826	menF	HQ1872A	-	isochorismate synthase
851	 49.30	0	1062572..1064431	+	619	110667827	menD	HQ1873A	-	2-oxoglutarate decarboxylase; 2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylate synthase
852	 49.56	0	1064560..1065477	+	305	110667828	menB	HQ1874A	-	naphthoate synthase
853	 49.69	0	1065619..1066578	+	319	110667829	menA	HQ1875A	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
854	 48.73	0	1066578..1067681	+	367	110667830	menC	HQ1876A	-	O-succinylbenzoate-CoA synthase (OSB synthase; 4-(2'-carboxyphenyl)-4-oxybutyric acid synthase)
855	 44.72	-1	1068020..1068862	-	280	110667831	-	HQ1877A	-	hypothetical protein
856	 43.76	-1	1069476..1070012	-	178	110667832	pyrI	HQ1878A	-	aspartate carbamoyltransferase regulatory subunit
857	 48.42	0	1070009..1070923	-	304	110667833	pyrB	HQ1879A	-	aspartate carbamoyltransferase catalytic subunit
858	 48.33	0	1071120..1072379	-	419	110667834	gdhA	HQ1880A	-	glutamate dehydrogenase (NADP+)
859	 48.62	0	1072493..1073434	-	313	110667835	fbp	HQ1881A	-	fructose-1,6-bisphosphatase
860	 47.06	0	1073681..1073986	+	101	110667836	-	HQ1882A	-	hypothetical protein
861	 44.01	-1	1074198..1074656	-	152	110667837	-	HQ1883A	-	hypothetical protein
862	 48.55	0	1074780..1075640	-	286	110667838	ubiA	HQ1884A	-	prenyltransferase
863	 55.69	+1	1075972..1076463	+	163	110667839	-	HQ1885A	-	hypothetical protein
864	 47.32	0	1076615..1077136	+	173	110667840	mtfK1	HQ1886A	-	FKBP-type peptidylprolyl isomerase 1
865	 39.54	-2	1078117..1078422	+	101	110667841	-	HQ1887A	-	hypothetical protein
866	 51.18	0	1079505..1080311	+	268	110667842	kch	HQ1888A	-	Kef-type K+ transporter NAD-binding component
867	 60.04	+2	1082006..1083001	-	331	110667843	-	HQ1889A	-	hypothetical protein
868	 57.53	+2	1083470..1083907	+	145	110667844	-	HQ1890A	-	hypothetical protein
869	 55.68	+1	1085776..1086585	-	269	110667845	udp	HQ1892A	-	uridine phosphorylase
870	 48.99	0	1088988..1089332	+	114	110667846	-	HQ1893A	-	hypothetical protein
871	 62.25	+2	1089657..1090358	-	233	110667847	-	HQ1894A	-	hypothetical protein
872	 58.33	+2	1090563..1090826	-	87	110667848	-	HQ1895A	-	hypothetical protein
873	 62.39	+2	1091087..1091320	-	77	110667849	-	HQ1896A	-	hypothetical protein
874	 56.98	+2	1091958..1092494	-	178	110667850	-	HQ1898A	-	hypothetical protein
875	 58.60	+2	1092871..1093440	-	189	110667851	-	HQ1899A	-	hypothetical protein
876	 66.83	+2	1093697..1094296	-	199	110667852	-	HQ1900A	-	hypothetical protein
877	 65.87	+2	1094346..1094597	-	83	110667853	-	HQ1901A	-	hypothetical protein
878	 59.31	+2	1094699..1095133	-	144	110667854	-	HQ1902A	-	hypothetical protein
879	 55.03	+1	1095126..1095821	-	231	110667855	-	HQ1903A	-	hypothetical protein
880	 59.93	+2	1095922..1096218	-	98	110667856	-	HQ1904A	-	hypothetical protein
881	 53.84	+1	1097313..1098029	+	238	110667857	-	HQ1905A	-	S-adenosylmethionine-dependent methyltransferase-like protein
882	 53.09	+1	1098414..1098899	-	161	110667858	-	HQ1906A	-	hypothetical protein
883	 46.18	0	1100085..1100411	+	108	110667859	-	HQ1907A	-	hypothetical protein
884	 43.59	-1	1100565..1101188	+	207	110667860	-	HQ1908A	-	hypothetical protein
885	 50.64	0	1101824..1102135	-	103	110667861	nuc	HQ1909A	-	endonuclease staphylococcal nuclease-like
886	 48.57	0	1103407..1104843	+	478	110667862	-	HQ1910A	-	signal-transducing histidine kinase
887	 49.13	0	1105961..1108309	-	782	110667863	malA	HQ1911A	-	alpha-glucosidase
888	 55.39	+1	1109096..1110115	+	339	110667864	-	HQ1912A	-	hypothetical protein
889	 54.88	+1	1110129..1110425	-	98	110667865	-	HQ1913A	-	hypothetical protein
890	 50.73	0	1110791..1111543	+	250	110667866	ski	HQ1914A	-	two-component system sensor kinase
891	 51.39	0	1111864..1112727	+	287	110667867	-	HQ1915A	-	hypothetical protein
892	 49.76	0	1113104..1113517	+	137	110667868	uspA	HQ1916A	-	universal stress protein
893	 50.71	0	1113999..1114769	+	256	110667869	-	HQ1918A	-	hypothetical protein
894	 44.59	-1	1114894..1116723	+	609	110667870	speE	HQ1919A	-	spermidine synthase
895	 41.95	-1	1116726..1117247	+	173	110667871	-	HQ1920A	-	hypothetical protein
896	 43.78	-1	1117285..1119456	+	723	110667872	-	HQ1921A	-	hypothetical protein
897	 46.17	0	1119512..1120477	+	321	110667873	-	HQ1922A	-	hypothetical protein
898	 46.12	0	1120548..1121024	-	158	110667874	-	HQ1923A	-	hypothetical protein
899	 60.87	+2	1122957..1123025	-	22	110667875	-	HQ1924E	-	IS1341-type transposase (nonfunctional,N-terminal part)
48.79	MEAN

3.84	STD DEV
