IslandPath Analysis: Haloquadratum walsbyi DSM 16790

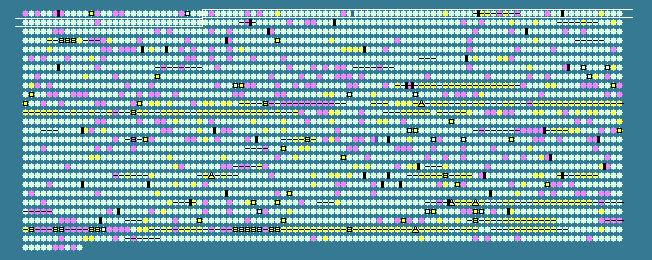

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 48.79   STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
31	 46.45	0	36859..37041	-	60	110667007	-	HQ1030A	-	hypothetical protein
32	 43.68	-1	37194..37541	+	115	110667008	-	HQ1031A	-	hypothetical protein
33	 47.95	0	37712..37930	+	72	110667009	-	HQ1032A	-	hypothetical protein
34	 45.38	0	37976..39295	-	439	110667010	cobW	HQ1033A	-	cobalamin synthesis protein/P47K
35	 46.13	0	39445..39741	+	98	110667011	-	HQ1034A	-	hypothetical protein
36	 46.95	0	39750..40733	+	327	110667012	arsA	HQ1035A	-	transport ATPase ( substrate arsenite)
37	 48.73	0	40822..42627	+	601	110667013	cstA	HQ1036A	-	carbon starvation protein A
38	 44.80	-1	42966..43628	-	220	110667014	-	HQ1037A	-	hypothetical protein
39	 46.88	0	43833..44216	-	127	110667015	-	HQ1038A	-	hypothetical protein
40	 44.00	-1	44335..44559	+	74	110667016	-	HQ1039A	-	hypothetical protein
41	 48.55	0	44645..45334	+	229	110667017	-	HQ1040A	-	hypothetical protein
42	 48.44	0	45461..45844	+	127	110667018	-	HQ1041A	-	transcription regulator
43	 52.69	+1	46022..47287	+	421	110667019	thrC	HQ1042A	-	threonine synthase
44	 50.09	0	47602..49206	-	534	110667020	serA	HQ1043A	-	D-3-phosphoglycerate dehydrogenase
45	 47.48	0	49394..50029	+	211	110667021	serB	HQ1044A	-	phosphoserine phosphatase
46	 48.87	0	50610..51362	-	250	110667022	topA	HQ1045A	-	DNA topoisomerase I
47	 48.54	0	51462..53816	-	784	110667023	mer3	HQ1046A	-	ATP-dependent DNA helicase
48	 47.50	0	54631..55851	+	406	110667024	endA	HQ1047A	-	tRNA splicing endonuclease
49	 46.50	0	55848..57692	+	614	110667025	trpS	HQ1048A	-	tryptophanyl-tRNA synthetase
50	 47.54	0	57894..59456	+	520	110667026	pheS	HQ1049A	-	phenylalanyl-tRNA synthetase subunit alpha
51	 47.88	0	59456..61345	+	629	110667027	pheT	HQ1050A	-	phenylalanyl-tRNA synthetase subunit beta
52	 45.83	0	61567..64359	+	930	110667028	valS	HQ1051A	-	valyl-tRNA synthetase
53	 47.02	0	64522..65595	-	357	110667029	pyrD	HQ1052A	-	dihydroorotate dehydrogenase 2
54	 42.93	-1	65685..65882	-	65	110667030	-	HQ1053A	-	hypothetical protein
55	 45.87	0	66468..66794	-	108	110667031	-	HQ1054A	-	nonhistone chromosomal protein
56	 47.99	0	73639..73986	-	115	110667032	-	HQ1055A	-	hypothetical protein
57	 49.09	0	75661..76263	+	200	110667033	-	HQ1057A	-	hypothetical protein
58	 49.27	0	77290..78450	-	386	110667034	pncB	HQ1058A	-	nicotinate phosphoribosyltransferase
59	 47.65	0	78675..80267	-	530	110667035	-	HQ1059A	-	hypothetical protein
60	 48.80	0	80336..80917	+	193	110667036	entB	HQ1060A	-	isochorismatase; nicotinamidase; N-carbamoylsarcosine amidase
61	 48.51	0	81197..82501	+	434	110667037	pyrC	HQ1061A	-	dihydroorotase
62	 47.71	0	82720..83526	-	268	110667038	-	HQ1062A	-	hypothetical protein
63	 46.45	0	83767..84132	+	121	110667039	usp	HQ1063A	-	homolog to stress response protein
64	 46.63	0	84129..84677	+	182	110667040	-	HQ1064A	-	protein N-acetyltransferase-like protein
65	 49.46	0	84768..85226	-	152	110667041	usp	HQ1065A	-	homolog to stress response protein
66	 46.07	0	85427..85897	+	156	110667042	usp	HQ1066A	-	stress response protein
67	 48.56	0	86162..87481	+	439	110667043	-	HQ1067A	-	hypothetical protein
68	 49.08	0	87646..88134	-	162	110667044	-	HQ1068A	-	hypothetical protein
69	 47.40	0	88364..88747	+	127	110667045	hsp20	HQ1069A	-	hsp20-type chaperone
70	 52.06	0	89157..89642	+	161	110667046	rps6R	HQ1070A	-	30S ribosomal protein S6e
71	 53.15	+1	89648..90091	+	147	110667047	-	HQ1071A	-	hypothetical protein
72	 49.10	0	90663..91328	-	221	110667048	-	HQ1072A	-	hypothetical protein
73	 49.75	0	91700..94117	+	805	110667049	-	HQ1073A	-	signal-transducing histidine kinase/response regulator
74	 49.60	0	94302..95420	-	372	110667050	pepB	HQ1074A	-	aminopeptidase ( leucyl aminopeptidase, aminopeptidase T)
75	 50.71	0	95702..96622	+	306	110667051	gnd	HQ1075A	-	6-phosphogluconate dehydrogenase-like protein
76	 51.61	0	96661..97251	+	196	110667052	fer	HQ1076A	-	ferredoxin (2Fe-2S)
77	 57.76	+2	98129..98521	+	130	110667053	-	HQ1077A	-	hypothetical protein
78	 62.11	+2	98514..98798	+	94	110667054	-	HQ1078A	-	hypothetical protein
79	 51.62	0	100119..100550	-	143	110667055	-	HQ1079A	-	prophage maintenance system killer protein
80	 44.90	-1	102218..103021	-	267	110667056	kch	HQ1080A	-	Kef-type K+ transporter NAD-binding component
81	 57.54	+2	103033..130512	-	9159	110667057	hmu	HQ1081A	-	halomucin
82	 46.62	0	131281..132447	-	388	110667058	capB	HQ1082A	-	capsular biosynthesis protein CapB / polyglutamate synthase
83	 44.06	-1	132450..133661	-	403	110667059	capC	HQ1083A	-	capsule polysaccharide biosynthesis protein, integral membrane protein
84	 47.80	0	134289..136838	+	849	110667060	bat	HQ1084A	-	bacterioopsin activator
85	 50.04	0	136890..138296	-	468	110667061	lpdA	HQ1085A	-	dihydrolipoamide dehydrogenase
86	 48.10	0	138596..139069	-	157	110667062	-	HQ1086A	-	hypothetical protein
87	 46.84	0	139066..139524	-	152	110667063	-	HQ1087A	-	hypothetical protein
88	 44.61	-1	139694..140296	+	200	110667064	-	HQ1088A	-	hypothetical protein
89	 51.58	0	141023..142003	-	326	110667065	-	HQ1090A	-	hypothetical protein
90	 45.53	0	142213..143040	-	275	110667066	nadE	HQ1091A	-	NAD(+) synthase (glutamine-hydrolyzing)
91	 52.24	0	143716..143916	-	66	110667067	-	HQ1092A	-	hypothetical protein
92	 47.63	0	144274..145371	+	365	110667068	-	HQ1093A	-	aldo/keto reductase family oxidoreductase
93	 49.00	0	145427..147022	-	531	110667069	-	HQ1094A	-	hypothetical protein
94	 48.77	0	147190..149016	-	608	110667070	-	HQ1095A	-	metalloprotease/metallo peptidase
95	 47.64	0	149259..149810	+	183	110667071	-	HQ1096A	-	hypothetical protein
96	 46.76	0	150375..152042	-	555	110667072	lysS	HQ1097A	-	lysine--tRNA ligase
97	 52.75	+1	152049..152774	-	241	110667073	pyrH	HQ1098A	-	uridylate kinase
98	 47.25	0	152956..153774	+	272	110667074	moaE	HQ1099A	-	molybdopterin converting factor, large subunit
99	 47.57	0	154132..154398	+	88	110667075	-	HQ1100A	-	hypothetical protein
100	 48.77	0	154723..155862	+	379	110667076	-	HQ1101A	-	membrane associated metalloprotease
101	 50.50	0	156210..157106	-	298	110667077	thiL	HQ1102A	-	thiamin-phosphate kinase
102	 47.66	0	157506..158552	+	348	110667078	-	HQ1103A	-	hypothetical protein
103	 50.44	0	158750..159205	+	151	110667079	rps19R	HQ1104A	-	30S ribosomal protein S19e
104	 50.14	0	159294..159656	+	120	110667080	-	HQ1105A	-	hypothetical protein
105	 48.02	0	159664..160269	+	201	110667081	-	HQ1106A	-	hypothetical protein
106	 48.05	0	160411..161715	+	434	110667082	hisS	HQ1107A	-	histidyl-tRNA synthetase
107	 47.17	0	161787..162617	+	276	110667083	truA	HQ1108A	-	tRNA pseudouridine synthase A
108	 52.20	0	162855..163013	+	52	110667084	-	HQ1109A	-	hypothetical protein
109	 45.78	0	163455..165254	+	599	110667085	pepF	HQ1110A	-	oligoendopeptidase
110	 47.26	0	165437..165637	+	66	110667086	-	HQ1111A	-	hypothetical protein
111	 48.79	0	166117..167106	-	329	110667087	-	HQ1112A	-	hypothetical protein
112	 48.89	0	167121..167345	-	74	110667088	-	HQ1113A	-	hypothetical protein
113	 44.44	-1	167788..168120	+	110	110667089	-	HQ1115A	-	hypothetical protein
114	 48.94	0	168189..169937	+	582	110667090	nirA	HQ1116A	-	ferredoxin--nitrite reductase
115	 49.33	0	169943..170242	+	99	110667091	-	HQ1117A	-	hypothetical protein
116	 49.12	0	170542..171168	+	208	110667092	lrp	HQ1118A	-	transcription regulator
117	 47.86	0	171256..174084	+	942	110667093	copA	HQ1119A	-	transport ATPase 1 ( substrates copper/metal cation)
118	 51.19	0	174224..175651	-	475	110667094	-	HQ1120A	-	ferredoxin-NAD+ reductase
119	 47.20	0	176613..177845	-	410	110667095	epf	HQ1121A	-	mRNA cleavage and polyadenylation specificity factor-like protein
120	 46.36	0	177895..178800	+	301	110667096	-	HQ1122A	-	hypothetical protein
121	 47.02	0	179827..180447	+	206	110667097	glo	HQ1123A	-	lyase/ dioxygenase ( lactoylglutathione lyase, aromatic compounds dioxygenase)
122	 51.73	0	180479..181516	-	345	110667098	adh	HQ1124A	-	alcohol dehydrogenase
123	 47.91	0	181706..183331	+	541	110667099	cat2	HQ1125A	-	cationic amino acid transport protein
124	 49.08	0	183334..183987	+	217	110667100	trkA	HQ1126A	-	K+ transport systems, NAD-binding protein
125	 48.21	0	184916..186199	-	427	110667101	oxlT	HQ1127A	-	major facilitator family oxalate/formate antiporter
126	 52.09	0	186373..187881	+	502	110667102	hoxF	HQ1128A	-	NAD-reducing hydrogenase, alpha subunit
127	 47.61	0	187881..188924	+	347	110667103	fdhAI	HQ1129A	-	NADH:ubiquinone oxidoreductase / formate dehydrogenase alpha subunit I
128	 48.64	0	188921..191239	+	772	110667104	fdhAII	HQ1130A	-	NADH:ubiquinone oxidoreductase / formate dehydrogenase alpha subunit II
129	 48.67	0	191242..192030	+	262	110667105	-	HQ1131A	-	hypothetical protein
130	 48.56	0	192141..194228	+	695	110667106	fdhA	HQ1132A	-	NADH:ubiquinone oxidoreductase / formate dehydrogenase, alpha subunit
48.79	MEAN

3.84	STD DEV
