IslandPath Analysis: Haloquadratum walsbyi DSM 16790

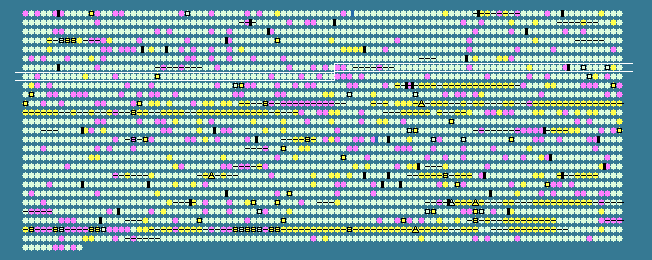

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
653	 44.62	-1	813661..814227	-	188	110667629	apt	HQ1672A	-	adenine phosphoribosyltransferase
654	 44.06	-1	814484..814912	-	142	110667630	-	HQ1673A	-	hypothetical protein
655	 48.36	0	815122..816312	+	396	110667631	phaE	HQ1674A	-	putative monovalent cation/H+ antiporter subunit E
656	 46.18	0	816312..816638	+	108	110667632	phaF	HQ1675A	-	putative monovalent cation/H+ antiporter subunit F
657	 48.35	0	816640..816972	+	110	110667633	phaG	HQ1676A	-	putative monovalent cation/H+ antiporter subunit G
658	 49.27	0	816969..817514	+	181	110667634	phaB1	HQ1677A	-	putative monovalent cation/H+ antiporter subunit B
659	 46.74	0	817511..818047	+	178	110667635	phaB2	HQ1678A	-	putative monovalent cation/H+ antiporter subunit B
660	 42.55	-1	818044..818412	+	122	110667636	phaC	HQ1679A	-	putative monovalent cation/H+ antiporter subunit C
661	 47.64	0	818405..819907	+	500	110667637	phaD	HQ1680A	-	putative monovalent cation/H+ antiporter subunit D
662	 47.21	0	819907..822003	+	698	110667638	phaA	HQ1681A	-	putative monovalent cation/H+ antiporter subunit D
663	 45.85	0	822000..823916	+	638	110667639	-	HQ1682A	-	putative monovalent cation/H+ antiporter subunit D
664	 49.65	0	824263..825420	-	385	110667640	dfp	HQ1683A	-	phosphopantothenoylcysteine decarboxylase/ phosphopantothenate--cysteine ligase
665	 49.17	0	825660..826202	+	180	110667641	-	HQ1684A	-	hypothetical protein
666	 48.88	0	826465..827802	+	445	110667642	trkA	HQ1685A	-	potassium transporter peripheral membrane component
667	 47.98	0	827966..829570	+	534	110667643	trkH	HQ1686A	-	Trk-type potassium transport system, permease protein TrkH
668	 48.79	0	829629..831038	-	469	110667644	aatA	HQ1687A	-	aspartyl-tRNA(Asn) amidotransferase subunit A
669	 50.14	0	831041..831409	-	122	110667645	aatC	HQ1688A	-	aspartyl-tRNA(Asn) amidotransferase subunit C
670	 49.57	0	832265..833305	+	346	110667646	tfbA	HQ1689A	-	transcription initiation factor TFB
671	 48.98	0	833584..834075	+	163	110667647	-	HQ1690A	-	mut/nudix family protein
672	 48.15	0	834232..835527	-	431	110667648	asnB	HQ1691A	-	asparagine synthase (glutamine-hydrolyzing)
673	 50.29	0	835531..836214	-	227	110667649	hisK	HQ1692A	-	histidinol phosphatase
674	 49.82	0	836349..838526	+	725	110667650	purL	HQ1693A	-	phosphoribosylformylglycinamidine synthase, component II
675	 40.48	-2	838574..838741	-	55	110667651	-	HQ1694A	-	hypothetical protein
676	 46.25	0	839061..839873	+	270	110667652	hisF	HQ1695A	-	imidazoleglycerol-phosphate synthase chain hisF
677	 50.17	0	840115..840405	-	96	110667653	rpoL	HQ1696A	-	DNA-directed RNA polymerase subunit L
678	 46.46	0	840947..841990	-	347	110667654	-	HQ1697A	-	metallo-beta-lactamase family protein / hydrolase
679	 46.25	0	842644..843123	-	159	110667655	-	HQ1698A	-	hypothetical protein
680	 46.63	0	843283..844899	-	538	110667656	alkK	HQ1699A	-	long-chain-fatty-acid--CoA ligase
681	 46.82	0	845090..846646	+	518	110667657	mre11	HQ1700A	-	DNA double-strand break repair protein mre11
682	 46.09	0	846647..849343	+	898	110667658	rad50	HQ1701A	-	chromosome segregation protein
683	 46.67	0	849423..849857	-	144	110667659	-	HQ1702A	-	hypothetical protein
684	 47.94	0	850513..850998	-	161	110667660	-	HQ1703A	-	hypothetical protein
685	 52.38	0	851152..851340	-	62	110667661	-	HQ1704A	-	hypothetical protein
686	 45.70	0	852239..858667	+	2142	110667662	polB1	HQ1705A	-	family B DNA-directed DNA polymerase
687	 46.47	0	859037..859972	+	311	110667663	sufC	HQ1706A	-	ABC-type transport system involved in Fe-S cluster assembly, ATP-binding protein
688	 46.89	0	860042..861472	+	476	110667664	sufB	HQ1707A	-	ABC-type transport system involved in Fe-S cluster assembly, permease protein I
689	 49.71	0	861475..862689	+	404	110667665	sufB	HQ1708A	-	ABC-type transport system involved in Fe-S cluster assembly, permease protein II
690	 47.44	0	862947..863492	+	181	110667666	-	HQ1709A	-	hypothetical protein
691	 45.03	0	863489..863941	+	150	110667667	sirR	HQ1710A	-	transcription regulator SirR
692	 45.32	0	864820..865503	-	227	110667668	-	HQ1711A	-	hypothetical protein
693	 46.23	0	865795..866655	+	286	110667669	-	HQ1712A	-	hypothetical protein
694	 48.04	0	866842..867834	-	330	110667670	-	HQ1713A	-	IS1341-type transposase
695	 48.50	0	868466..873034	-	1522	110667671	gltB	HQ1714A	-	glutamate synthase large subunit
696	 45.81	0	873197..874735	-	512	110667672	proS	HQ1715A	-	prolyl-tRNA synthetase
697	 48.75	0	875577..877496	+	639	110667673	epf2	HQ1716A	-	mRNA 3'-end processing factor-like protein
698	 46.03	0	878912..878974	-	20	110667674	-	HQ1717H	-	IS1341-type transposase (nonfunctional,N-terminal part)
699	 53.15	+1	879178..879399	+	73	110667675	-	HQ1718A	-	hypothetical protein
700	 47.62	0	879392..879790	+	132	110667676	-	HQ1719A	-	hypothetical protein
701	 48.39	0	879926..881233	+	435	110667677	citE	HQ1720A	-	citryl-CoA lyase
702	 47.51	0	881304..881684	-	126	110667678	glo	HQ1721A	-	lactoylglutathione lyase
703	 44.86	-1	881859..882587	+	242	110667679	hcpE	HQ1722A	-	2-hydroxyhepta-2,4-diene-1,7-dioate isomerase
704	 50.96	0	883042..883353	+	103	110667680	-	HQ1723A	-	hypothetical protein
705	 45.55	0	883528..884010	-	160	110667681	-	HQ1724A	-	transcription regulator
706	 48.02	0	885580..885831	+	83	162138286	tif1A2	HQ1727A	-	translation initiation factor IF-1A
707	 46.94	0	886143..887516	-	457	110667683	-	HQ1728A	-	glycosyl transferase
708	 46.89	0	887833..889860	+	675	110667684	adh	HQ1729A	-	alcohol dehydrogenase (NADP+)
709	 48.14	0	889857..890741	+	294	110667685	pgsA	HQ1730A	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyl-transferase
710	 50.04	0	890964..892148	-	394	110667686	cdc6_	HQ1731A	-	cell division control protein cdc6-like protein
711	 53.06	+1	892218..893312	-	364	110667687	-	HQ1732A	-	hypothetical protein
712	 49.58	0	893316..894848	-	510	110667688	glpK	HQ1733A	-	glycerol kinase
713	 49.83	0	895287..897026	+	579	110667689	gpdA	HQ1734A	-	glycerol-3-phosphate dehydrogenase chain A
714	 50.69	0	897010..898317	+	435	110667690	gpdB	HQ1735A	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
715	 49.57	0	898322..899701	+	459	110667691	glpC	HQ1736A	-	sn-glycerol-3-phosphate dehydrogenase subunit C
716	 41.81	-1	899754..900449	-	231	110667692	phoU	HQ1737A	-	phosphate transport operon regulator
717	 45.47	0	900876..901691	+	271	110667693	-	HQ1738A	-	hypothetical protein
718	 46.64	0	902058..907475	+	1805	110667694	boa	HQ1739A	-	bacterio-opsin activator-like transcription regulator
719	 45.57	0	908131..908604	-	157	110667695	-	HQ1740A	-	transcription regulator
720	 49.43	0	908769..909992	-	407	110667696	-	HQ1741A	-	FAD-dependent monooxygenase
721	 47.14	0	910444..910827	+	127	110667697	-	HQ1742A	-	transcription regulator
722	 45.97	0	911831..914086	+	751	110667698	ppk	HQ1743A	-	polyphosphate kinase
723	 53.85	+1	914929..915123	+	64	110667699	-	HQ1744C	-	IS1341-type transposase (nonfunctional,N-terminal part)
724	 49.14	0	916434..916781	+	115	110667700	-	HQ1746A	-	hypothetical protein
725	 47.21	0	917154..918176	-	340	110667701	-	HQ1747A	-	hypothetical protein
726	 50.54	0	918346..919368	-	340	110667702	-	HQ1748A	-	hypothetical protein
727	 45.49	0	919733..920596	-	287	110667703	-	HQ1749A	-	hypothetical protein
728	 48.02	0	920593..921552	-	319	110667704	moxR	HQ1750A	-	MoxR-like ATPase
729	 46.63	0	921912..923099	-	395	110667705	-	HQ1751A	-	hypothetical protein
730	 46.24	0	923189..923800	-	203	110667706	smc	HQ1752A	-	chromosome partition protein
731	 49.08	0	923797..926196	-	799	110667707	-	HQ1753A	-	hypothetical protein
732	 48.30	0	926196..927992	-	598	110667708	-	HQ1754A	-	hypothetical protein
733	 48.48	0	928105..928797	-	230	110667709	hadL	HQ1755A	-	2-haloalkanoic acid dehalogenase
734	 48.72	0	929111..929968	-	285	110667710	metF	HQ1756A	-	5,10-methylenetetrahydrofolate reductase
735	 46.53	0	930150..931664	-	504	110667711	-	HQ1757A	-	hypothetical protein
736	 49.60	0	931742..932878	-	378	110667712	-	HQ1758A	-	deacylase
737	 50.82	0	932976..933707	+	243	110667713	-	HQ1759A	-	hypothetical protein
738	 49.96	0	933956..936553	+	865	110667714	gcvT	HQ1760A	-	aminomethyltransferase, glycin cleavage system T protein
739	 49.75	0	936786..939344	+	852	110667715	gcvT	HQ1761A	-	aminomethyltransferase, glycin cleavage system T protein
740	 49.34	0	939374..940660	+	428	110667716	ilvA	HQ1762A	-	threonine dehydratase
741	 47.68	0	941696..942169	+	157	110667717	usp	HQ1763A	-	stress response protein
742	 40.35	-2	942303..942473	-	56	110667718	-	HQ1764A	-	hypothetical protein
743	 47.77	0	942941..944713	+	590	110667719	opuD	HQ1765A	-	glycine betaine transport protein
744	 49.44	0	945731..946264	-	177	110667720	-	HQ1766A	-	hypothetical protein
745	 49.98	0	946278..948788	-	836	110667721	folCP	HQ1767A	-	folylpolyglutamate synthase / dihydropteroate synthase
746	 47.79	0	948994..950736	+	580	110667722	fhs	HQ1768A	-	formyltetrahydrofolate synthetase
747	 45.14	0	951390..951770	-	126	110667723	psp	HQ1769A	-	ribonuclease, PSP-type
748	 48.40	0	952004..952222	-	72	110667724	gvpM	HQ1770A	-	gas-vesicle operon protein gvpM
749	 46.48	0	952262..953242	-	326	110667725	gvpL	HQ1771A	-	gas-vesicle operon protein gvpL
750	 44.44	-1	953363..953767	-	134	110667726	gvpK	HQ1772A	-	gas-vesicle operon protein gvpK
751	 49.44	0	953770..954216	-	148	110667727	gvpJ	HQ1773A	-	gas-vesicle operon protein gvpJ
752	 48.02	0	954206..954559	-	117	110667728	gvpI	HQ1774A	-	gas-vesicle operon protein gvpI
48.79	MEAN

3.84	STD DEV
