IslandPath Analysis: Haloquadratum walsbyi DSM 16790

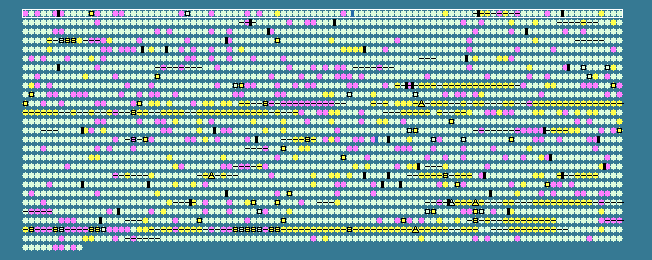

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 41.67	-1	723..2426	+	567	110666977	cdc6_1	HQ1001A	-	cell division control protein cdc6-like protein
2	 47.20	0	2461..3318	-	285	110666978	sec11	HQ1002A	-	signal sequence peptidase
3	 44.98	0	3557..5179	+	540	110666979	polA1	HQ1003A	-	DNA polymerase II small subunit
4	 50.69	0	5330..5836	-	168	110666980	-	HQ1004A	-	hypothetical protein
5	 48.77	0	6224..7402	+	392	110666981	lysC	HQ1005A	-	aspartate kinase
6	 44.05	-1	8631..9218	-	195	110666982	purH	HQ1006A	-	IMP cyclohydrolase
7	 44.58	-1	9618..10115	-	165	110666983	-	HQ1007A	-	hypothetical protein
8	 48.74	0	10112..12565	-	817	110666984	mer3	HQ1008A	-	ski2-like helicase
9	 45.32	0	12683..12949	-	88	110666985	-	HQ1009A	-	hypothetical protein
10	 48.48	0	13384..13581	+	65	110666986	-	HQ1010A	-	hypothetical protein
11	 49.31	0	13585..15894	+	769	110666987	aaa3	HQ1011A	-	AAA-type ATPase (transitional ATPase homolog)
12	 54.41	+1	16126..17406	+	426	110666988	-	HQ1012A	-	IS1341-type transposase
13	 43.25	-1	17473..17724	-	83	110666989	-	HQ1013A	-	hypothetical protein
14	 50.20	0	18032..18796	-	254	110666990	bopI	HQ1014A	-	bacteriorhodopsin precursor (Squarebop I)
15	 46.50	0	19008..19364	+	118	110666991	-	HQ1015A	-	hypothetical protein
16	 41.98	-1	19917..20159	+	80	110666992	ferC	HQ1016A	-	ferredoxin III
17	 45.21	0	20392..21132	-	246	110666993	bopII	HQ1017A	-	bacteriorhodopsin precursor (Squarebop II)
18	 47.83	0	21920..22678	+	252	110666994	crtY	HQ1018A	-	lycopene cyclase
19	 48.27	0	22669..23706	+	345	110666995	brp	HQ1019A	-	brp-like protein
20	 47.42	0	23883..26438	+	851	110666996	-	HQ1020A	-	Hef nuclease
21	 48.36	0	26523..27560	+	345	110666997	-	HQ1021A	-	prepilin signal peptidase
22	 48.37	0	28538..28936	+	132	110666998	hisI	HQ1022A	-	phosphoribosyl-AMP cyclohydrolase
23	 47.58	0	28951..30129	+	392	110666999	-	HQ1023A	-	hypothetical protein
24	 48.77	0	30255..31634	-	459	110667000	pmm	HQ1024A	-	phosphohexomutase (phosphoglucomutase; phosphomannomutase)
25	 50.14	0	31872..32609	+	245	110667001	hisA	HQ1025A	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
26	 48.01	0	33047..33673	+	208	110667002	hisB	HQ1026A	-	imidazoleglycerol-phosphate dehydratase
27	 44.64	-1	33877..34380	+	167	110667003	-	HQ1027A	-	hypothetical protein
28	 50.83	0	34530..34889	+	119	110667004	-	HQ1027C	-	IS1341-type transposase (nonfunctional,N-terminal part)
29	 45.52	0	34897..35577	+	226	110667005	-	HQ1028A	-	hypothetical protein
30	 47.58	0	36040..36720	-	226	110667006	upp	HQ1029A	-	uracil phosphoribosyltransferase
31	 46.45	0	36859..37041	-	60	110667007	-	HQ1030A	-	hypothetical protein
32	 43.68	-1	37194..37541	+	115	110667008	-	HQ1031A	-	hypothetical protein
33	 47.95	0	37712..37930	+	72	110667009	-	HQ1032A	-	hypothetical protein
34	 45.38	0	37976..39295	-	439	110667010	cobW	HQ1033A	-	cobalamin synthesis protein/P47K
35	 46.13	0	39445..39741	+	98	110667011	-	HQ1034A	-	hypothetical protein
36	 46.95	0	39750..40733	+	327	110667012	arsA	HQ1035A	-	transport ATPase ( substrate arsenite)
37	 48.73	0	40822..42627	+	601	110667013	cstA	HQ1036A	-	carbon starvation protein A
38	 44.80	-1	42966..43628	-	220	110667014	-	HQ1037A	-	hypothetical protein
39	 46.88	0	43833..44216	-	127	110667015	-	HQ1038A	-	hypothetical protein
40	 44.00	-1	44335..44559	+	74	110667016	-	HQ1039A	-	hypothetical protein
41	 48.55	0	44645..45334	+	229	110667017	-	HQ1040A	-	hypothetical protein
42	 48.44	0	45461..45844	+	127	110667018	-	HQ1041A	-	transcription regulator
43	 52.69	+1	46022..47287	+	421	110667019	thrC	HQ1042A	-	threonine synthase
44	 50.09	0	47602..49206	-	534	110667020	serA	HQ1043A	-	D-3-phosphoglycerate dehydrogenase
45	 47.48	0	49394..50029	+	211	110667021	serB	HQ1044A	-	phosphoserine phosphatase
46	 48.87	0	50610..51362	-	250	110667022	topA	HQ1045A	-	DNA topoisomerase I
47	 48.54	0	51462..53816	-	784	110667023	mer3	HQ1046A	-	ATP-dependent DNA helicase
48	 47.50	0	54631..55851	+	406	110667024	endA	HQ1047A	-	tRNA splicing endonuclease
49	 46.50	0	55848..57692	+	614	110667025	trpS	HQ1048A	-	tryptophanyl-tRNA synthetase
50	 47.54	0	57894..59456	+	520	110667026	pheS	HQ1049A	-	phenylalanyl-tRNA synthetase subunit alpha
51	 47.88	0	59456..61345	+	629	110667027	pheT	HQ1050A	-	phenylalanyl-tRNA synthetase subunit beta
52	 45.83	0	61567..64359	+	930	110667028	valS	HQ1051A	-	valyl-tRNA synthetase
53	 47.02	0	64522..65595	-	357	110667029	pyrD	HQ1052A	-	dihydroorotate dehydrogenase 2
54	 42.93	-1	65685..65882	-	65	110667030	-	HQ1053A	-	hypothetical protein
55	 45.87	0	66468..66794	-	108	110667031	-	HQ1054A	-	nonhistone chromosomal protein
56	 47.99	0	73639..73986	-	115	110667032	-	HQ1055A	-	hypothetical protein
57	 49.09	0	75661..76263	+	200	110667033	-	HQ1057A	-	hypothetical protein
58	 49.27	0	77290..78450	-	386	110667034	pncB	HQ1058A	-	nicotinate phosphoribosyltransferase
59	 47.65	0	78675..80267	-	530	110667035	-	HQ1059A	-	hypothetical protein
60	 48.80	0	80336..80917	+	193	110667036	entB	HQ1060A	-	isochorismatase; nicotinamidase; N-carbamoylsarcosine amidase
61	 48.51	0	81197..82501	+	434	110667037	pyrC	HQ1061A	-	dihydroorotase
62	 47.71	0	82720..83526	-	268	110667038	-	HQ1062A	-	hypothetical protein
63	 46.45	0	83767..84132	+	121	110667039	usp	HQ1063A	-	homolog to stress response protein
64	 46.63	0	84129..84677	+	182	110667040	-	HQ1064A	-	protein N-acetyltransferase-like protein
65	 49.46	0	84768..85226	-	152	110667041	usp	HQ1065A	-	homolog to stress response protein
66	 46.07	0	85427..85897	+	156	110667042	usp	HQ1066A	-	stress response protein
67	 48.56	0	86162..87481	+	439	110667043	-	HQ1067A	-	hypothetical protein
68	 49.08	0	87646..88134	-	162	110667044	-	HQ1068A	-	hypothetical protein
69	 47.40	0	88364..88747	+	127	110667045	hsp20	HQ1069A	-	hsp20-type chaperone
70	 52.06	0	89157..89642	+	161	110667046	rps6R	HQ1070A	-	30S ribosomal protein S6e
71	 53.15	+1	89648..90091	+	147	110667047	-	HQ1071A	-	hypothetical protein
72	 49.10	0	90663..91328	-	221	110667048	-	HQ1072A	-	hypothetical protein
73	 49.75	0	91700..94117	+	805	110667049	-	HQ1073A	-	signal-transducing histidine kinase/response regulator
74	 49.60	0	94302..95420	-	372	110667050	pepB	HQ1074A	-	aminopeptidase ( leucyl aminopeptidase, aminopeptidase T)
75	 50.71	0	95702..96622	+	306	110667051	gnd	HQ1075A	-	6-phosphogluconate dehydrogenase-like protein
76	 51.61	0	96661..97251	+	196	110667052	fer	HQ1076A	-	ferredoxin (2Fe-2S)
77	 57.76	+2	98129..98521	+	130	110667053	-	HQ1077A	-	hypothetical protein
78	 62.11	+2	98514..98798	+	94	110667054	-	HQ1078A	-	hypothetical protein
79	 51.62	0	100119..100550	-	143	110667055	-	HQ1079A	-	prophage maintenance system killer protein
80	 44.90	-1	102218..103021	-	267	110667056	kch	HQ1080A	-	Kef-type K+ transporter NAD-binding component
81	 57.54	+2	103033..130512	-	9159	110667057	hmu	HQ1081A	-	halomucin
82	 46.62	0	131281..132447	-	388	110667058	capB	HQ1082A	-	capsular biosynthesis protein CapB / polyglutamate synthase
83	 44.06	-1	132450..133661	-	403	110667059	capC	HQ1083A	-	capsule polysaccharide biosynthesis protein, integral membrane protein
84	 47.80	0	134289..136838	+	849	110667060	bat	HQ1084A	-	bacterioopsin activator
85	 50.04	0	136890..138296	-	468	110667061	lpdA	HQ1085A	-	dihydrolipoamide dehydrogenase
86	 48.10	0	138596..139069	-	157	110667062	-	HQ1086A	-	hypothetical protein
87	 46.84	0	139066..139524	-	152	110667063	-	HQ1087A	-	hypothetical protein
88	 44.61	-1	139694..140296	+	200	110667064	-	HQ1088A	-	hypothetical protein
89	 51.58	0	141023..142003	-	326	110667065	-	HQ1090A	-	hypothetical protein
90	 45.53	0	142213..143040	-	275	110667066	nadE	HQ1091A	-	NAD(+) synthase (glutamine-hydrolyzing)
91	 52.24	0	143716..143916	-	66	110667067	-	HQ1092A	-	hypothetical protein
92	 47.63	0	144274..145371	+	365	110667068	-	HQ1093A	-	aldo/keto reductase family oxidoreductase
93	 49.00	0	145427..147022	-	531	110667069	-	HQ1094A	-	hypothetical protein
94	 48.77	0	147190..149016	-	608	110667070	-	HQ1095A	-	metalloprotease/metallo peptidase
95	 47.64	0	149259..149810	+	183	110667071	-	HQ1096A	-	hypothetical protein
96	 46.76	0	150375..152042	-	555	110667072	lysS	HQ1097A	-	lysine--tRNA ligase
97	 52.75	+1	152049..152774	-	241	110667073	pyrH	HQ1098A	-	uridylate kinase
98	 47.25	0	152956..153774	+	272	110667074	moaE	HQ1099A	-	molybdopterin converting factor, large subunit
99	 47.57	0	154132..154398	+	88	110667075	-	HQ1100A	-	hypothetical protein
100	 48.77	0	154723..155862	+	379	110667076	-	HQ1101A	-	membrane associated metalloprotease
48.79	MEAN

3.84	STD DEV
