IslandPath Analysis: Haloquadratum walsbyi DSM 16790

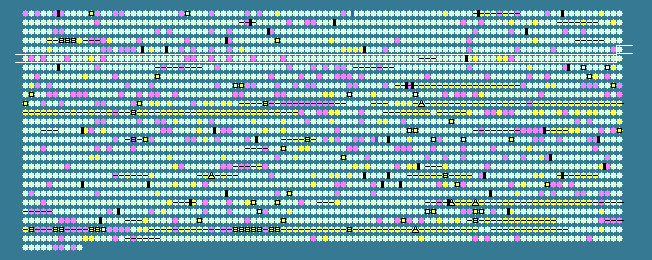

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
500	 49.44	0	633910..634443	+	177	110667476	rnp2	HQ1515A	-	ribonuclease P protein component 2
501	 48.74	0	634448..635200	+	250	110667477	psmA1	HQ1516A	-	proteasome subunit alpha
502	 44.73	-1	635561..635911	-	116	110667478	-	HQ1517A	-	transcription regulator / transcriptional repressor CinR
503	 45.58	0	636387..637235	-	282	110667479	-	HQ1518A	-	hypothetical protein
504	 43.50	-1	637939..638184	+	81	110667480	-	HQ1519A	-	hypothetical protein
505	 47.44	0	638311..639699	-	462	110667481	-	HQ1520A	-	electron-transferring-flavoprotein dehydrogenase
506	 52.03	0	640873..641904	-	343	110667482	pmm3	HQ1522A	-	phosphohexomutase 3 (phosphoglucomutase); phosphomannomutase)
507	 49.29	0	642053..642334	+	93	110667483	acyP	HQ1523A	-	acylphosphatase
508	 45.03	0	642614..643066	-	150	110667484	-	HQ1524A	-	hypothetical protein
509	 48.62	0	643155..644129	+	324	110667485	mvaD	HQ1525A	-	diphosphomevalonate decarboxylase
510	 49.92	0	644167..645414	+	415	110667486	ndh	HQ1526A	-	NADH dehydrogenase
511	 49.77	0	645541..645984	+	147	110667487	mgsA	HQ1527A	-	methylglyoxal synthase
512	 57.36	+2	646207..646539	+	110	110667488	-	HQ1528A	-	hypothetical protein
513	 46.42	0	646855..647343	-	162	110667489	-	HQ1529A	-	hypothetical protein
514	 44.81	-1	648642..649565	+	307	110667490	-	HQ1530A	-	hypothetical protein
515	 47.03	0	649914..651023	+	369	110667491	-	HQ1531A	-	hypothetical protein
516	 46.04	0	653262..654095	-	277	110667492	oxr	HQ1533A	-	aldo/keto reductase family oxidoreductase
517	 47.22	0	654623..655990	-	455	110667493	-	HQ1534A	-	electron-transferring-flavoprotein dehydrogenase
518	 45.72	0	656239..657102	-	287	110667494	korB	HQ1535A	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
519	 50.31	0	657099..658895	-	598	110667495	korA	HQ1536A	-	oxoglutarate--ferredoxin oxidoreductase, alpha subunit
520	 48.53	0	659150..659827	+	225	110667496	-	HQ1537A	-	electron transfer protein
521	 48.79	0	660093..662072	+	659	110667497	acs	HQ1538A	-	acyl-CoA synthetase I
522	 48.17	0	662270..664669	-	799	110667498	-	HQ1539A	-	substrate efflux/proton antiporter
523	 47.04	0	664675..666330	-	551	110667499	-	HQ1540A	-	hypothetical protein
524	 50.76	0	666448..666711	-	87	110667500	-	HQ1541A	-	ArsR family transcriptional regulator
525	 46.47	0	666792..669257	-	821	110667501	-	HQ1542A	-	substrate efflux/proton antiporter
526	 46.93	0	669383..671029	-	548	110667502	-	HQ1543A	-	hypothetical protein
527	 47.45	0	671373..672590	+	405	110667503	pan2	HQ1544A	-	proteasome-activating nucleotidase
528	 44.40	-1	672656..673342	+	228	110667504	nthA	HQ1545A	-	endonuclease III; DNA-(apurinic or apyrimidinic site) lyase
529	 45.00	0	673435..673914	-	159	110667505	-	HQ1546A	-	hypothetical protein
530	 49.03	0	674041..675066	+	341	110667506	-	HQ1547A	-	hypothetical protein
531	 51.30	0	675339..676028	+	229	110667507	hcpE	HQ1548A	-	halocyanin hcpE
532	 44.19	-1	676031..676417	+	128	110667508	-	HQ1549A	-	hypothetical protein
533	 45.35	0	676421..677227	+	268	110667509	petB	HQ1550A	-	menaquinol--cytochrome-c reductase (cytochrome bc complex) cytochrome b subunit
534	 48.47	0	677232..678050	+	272	110667510	petD	HQ1551A	-	menaquinol--cytochrome-c reductase (cytochrome bc complex) cytochrome b/c subunit
535	 44.04	-1	678497..678907	+	136	110667511	-	HQ1552A	-	hypothetical protein
536	 49.45	0	678900..679172	+	90	110667512	-	HQ1553A	-	hypothetical protein
537	 48.00	0	679558..680007	+	149	110667513	-	HQ1554A	-	hypothetical protein
538	 49.41	0	680539..681477	-	312	110667514	-	HQ1555A	-	hydrolase
539	 43.41	-1	681608..681865	-	85	110667515	-	HQ1556A	-	hypothetical protein
540	 50.09	0	681987..682517	+	176	110667516	hcpF	HQ1557A	-	halocyanin hcpF
541	 49.15	0	682679..683740	-	353	110667517	-	HQ1558A	-	hexosyltransferase; glycosyltransferase
542	 45.91	0	684008..684643	-	211	110667518	-	HQ1559A	-	hypothetical protein
543	 48.62	0	684879..685925	-	348	110667519	gldA	HQ1560A	-	glycerol-1-phosphate dehydrogenase (NAD(P))
544	 45.05	0	686129..686905	-	258	110667520	lysE	HQ1561A	-	LysE family L-lysine efflux protein
545	 46.39	0	687148..687867	-	239	110667521	-	HQ1562A	-	hypothetical protein
546	 47.57	0	687864..688811	-	315	110667522	sirR	HQ1563A	-	transcription regulator SirR
547	 50.86	0	688932..690146	-	404	110667523	thrC	HQ1564A	-	threonine synthase
548	 50.04	0	690369..691649	+	426	110667524	crtI	HQ1565A	-	phytoene dehydrogenase (phytoene desaturase)
549	 46.64	0	692330..693103	+	257	110667525	-	HQ1566A	-	short chain dehydrogenase/ reductase
550	 46.47	0	694772..695494	-	240	110667526	-	HQ1567A	-	metallophosphoesterase
551	 49.70	0	696594..697430	+	278	110667527	-	HQ1568A	-	transcription regulator
552	 47.84	0	697576..698223	-	215	110667528	dnaJ	HQ1569A	-	chaperone protein DnaJ
553	 48.69	0	698369..700726	+	785	110667529	ppsA1	HQ1570A	-	phosphoenolpyruvate synthase
554	 46.07	0	701028..701600	+	190	110667530	-	HQ1571A	-	hypothetical protein
555	 47.98	0	701718..703943	+	741	110667531	metG	HQ1572A	-	methionyl-tRNA synthetase
556	 50.14	0	704009..705769	+	586	110667532	pykA	HQ1573A	-	pyruvate kinase
557	 47.19	0	706149..706415	+	88	110667533	-	HQ1574A	-	hypothetical protein
558	 51.55	0	706591..707298	+	235	110667534	-	HQ1575A	-	hypothetical protein
559	 46.72	0	707459..708145	-	228	110667535	-	HQ1576A	-	hypothetical protein
560	 48.82	0	708147..709586	-	479	110667536	ctaB	HQ1577A	-	protoheme IX farnesyltransferase
561	 47.45	0	709696..710439	+	247	110667537	coxB	HQ1578A	-	cytochrome-c-like terminal oxidase, subunit II
562	 47.04	0	710461..711000	-	179	110667538	taqD	HQ1579A	-	glycerol-3-phosphate cytidyltransferase-like protein
563	 49.85	0	710997..711668	-	223	110667539	-	HQ1580A	-	hypothetical protein
564	 48.84	0	711852..713786	+	644	110667540	-	HQ1581A	-	RecJ like exonuclease
565	 48.16	0	714024..714731	-	235	110667541	-	HQ1582A	-	nitroreductase family protein
566	 48.82	0	715829..717604	-	591	110667542	-	HQ1583A	-	phospholipase D
567	 49.70	0	717918..719249	-	443	110667543	-	HQ1584A	-	homolog to phycocyanobilin lyase subunit
568	 50.22	0	719305..720222	-	305	110667544	fhuD	HQ1585A	-	ABC-type Fe3+-hydroxamate transport system,substrate-binding protein
569	 50.27	0	720356..720904	+	182	110667545	dpsA	HQ1586A	-	DNA-binding protein
570	 50.27	0	721065..721247	-	60	110667546	-	HQ1587A	-	hypothetical protein
571	 50.15	0	721488..722498	+	336	110667547	-	HQ1588A	-	hypothetical protein
572	 47.69	0	722522..722953	-	143	110667548	-	HQ1589A	-	hypothetical protein
573	 48.57	0	722950..724104	-	384	110667549	acaB	HQ1590A	-	acetyl-CoA C-acyltransferase
574	 51.25	0	724300..724779	+	159	110667550	-	HQ1591A	-	hypothetical protein
575	 50.00	0	725939..727042	-	367	110667551	trxB	HQ1592A	-	thioredoxin reductase (NADPH)
576	 54.25	+1	727590..727742	-	50	110667552	-	HQ1593A	-	hypothetical protein
577	 48.11	0	727824..729386	-	520	110667553	-	HQ1594A	-	hypothetical protein
578	 49.44	0	729450..730604	-	384	110667554	lepW	HQ1595A	-	signal peptidase I (SPase I) (leader peptidase I)
579	 47.04	0	730971..732539	-	522	110667555	-	HQ1596A	-	hemagglutinin like cellsurface protein
580	 54.44	+1	733907..734536	-	209	110667556	-	HQ1597A	-	hypothetical protein
581	 54.49	+1	734654..735901	-	415	110667557	-	HQ1598A	-	hypothetical protein
582	 43.59	-1	737113..737697	+	194	110667558	-	HQ1599A	-	hypothetical protein
583	 47.08	0	737694..738173	+	159	110667559	-	HQ1600A	-	hypothetical protein
584	 49.40	0	738358..739029	-	223	110667560	-	HQ1601A	-	S-adenosylmethionine-dependent methyltransferase
585	 46.38	0	739477..739821	+	114	110667561	-	HQ1602A	-	hypothetical protein
586	 51.98	0	739870..740652	+	260	110667562	dph5	HQ1603A	-	diphthine synthase
587	 49.68	0	740745..741668	-	307	110667563	-	HQ1604A	-	hypothetical protein
588	 49.16	0	741738..742508	-	256	110667564	glo	HQ1605A	-	lyase/ dioxygenase ( lactoylglutathione lyase, aromatic compounds dioxygenase)
589	 48.26	0	742771..743259	-	162	110667565	-	HQ1606A	-	hypothetical protein
590	 49.33	0	743298..744410	-	370	110667566	drg	HQ1607A	-	GTP-binding protein
591	 49.25	0	744530..744730	+	66	110667567	-	HQ1608A	-	hypothetical protein
592	 51.09	0	745300..745665	+	121	110667568	-	HQ1609A	-	cox cluster protein
593	 45.77	0	745826..746227	+	133	110667569	-	HQ1610A	-	cox cluster protein
594	 47.09	0	746434..748338	+	634	110667570	coxA	HQ1611A	-	cytochrome-c-like terminal oxidase, subunit I
595	 45.52	0	749083..749517	+	144	110667571	-	HQ1612A	-	cox cluster protein
596	 47.41	0	749632..750036	+	134	110667572	usp	HQ1613A	-	homolog to stress response protein
597	 46.72	0	750271..751032	-	253	110667573	trxA	HQ1614A	-	thioredoxin
598	 48.95	0	751095..751907	-	270	110667574	livF	HQ1615A	-	ABC-type branched-chain amino acid transport systems, ATP-binding protein II
599	 47.74	0	751904..752743	-	279	110667575	livG	HQ1616A	-	ABC-type branched-chain amino acid transport systems, ATP-binding protein I
48.79	MEAN

3.84	STD DEV
