IslandPathversion 1.0

IslandPath Analysis: Haloquadratum walsbyi DSM 16790

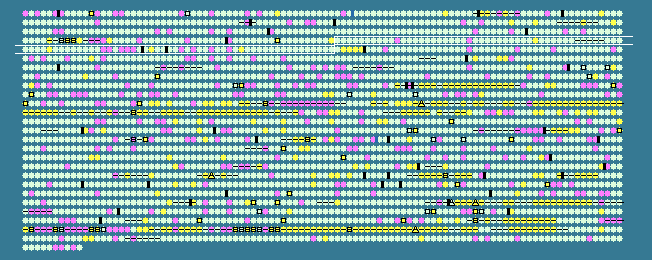

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
353	 46.92	0	463457..465046	-	529	110667329	cxp	HQ1367A	-	carboxypeptidase
354	 49.61	0	465527..466669	-	380	110667330	argE	HQ1368A	-	acetylornithine deacetylase
355	 48.06	0	466800..468707	+	635	110667331	-	HQ1369A	-	ATPase
356	 50.86	0	469155..469502	-	115	110667332	-	HQ1370A	-	ArsR family transcriptional regulator
357	 49.21	0	469624..469938	+	104	110667333	-	HQ1371A	-	hypothetical protein
358	 45.45	0	469943..471790	+	615	110667334	-	HQ1372A	-	putative ATPase RIL
359	 49.57	0	472088..472549	+	153	110667335	-	HQ1373A	-	stress response protein
360	 46.36	0	473342..473863	-	173	110667336	-	HQ1374A	-	archaemetzincin-like protein
361	 48.31	0	473903..474316	+	137	110667337	-	HQ1375A	-	hypothetical protein
362	 45.72	0	474453..475316	+	287	110667338	-	HQ1376A	-	hypothetical protein
363	 44.60	-1	475620..476258	-	212	110667339	-	HQ1377A	-	hydrolase ( hydroxyacylglutathione hydrolase)
364	 46.33	0	476662..476838	+	58	110667340	-	HQ1378A	-	hypothetical protein
365	 49.49	0	477012..477605	+	197	110667341	-	HQ1379A	-	hypothetical protein
366	 47.64	0	477681..478379	+	232	110667342	-	HQ1380A	-	uracil-DNA glycosylase-like protein
367	 46.71	0	478381..479382	-	333	110667343	phnE	HQ1381A	-	ABC-type phosphate/phosphonate/phosphite transport system, permease protein
368	 47.98	0	479379..480293	-	304	110667344	phnC	HQ1382A	-	ABC-type phosphate/phosphonate/phosphite transport system, ATP-binding protein
369	 47.97	0	480324..481307	-	327	110667345	phnD	HQ1383A	-	ABC-type phosphate/phosphonate/phosphite transport system, substrate-binding protein
370	 46.69	0	481417..482127	+	236	110667346	hisH	HQ1384A	-	imidazole glycerol phosphate synthase subunit HisH
371	 48.57	0	482167..482973	+	268	110667347	pheA	HQ1385A	-	prephenate dehydratase
372	 48.29	0	483287..484336	-	349	110667348	ocd	HQ1386A	-	ornithine cyclodeaminase
373	 49.31	0	484527..486203	-	558	110667349	thsB	HQ1387A	-	thermosome, beta subunit
374	 48.15	0	486394..486690	+	98	110667350	csp	HQ1388A	-	cold shock protein
375	 40.44	-2	486813..487220	+	135	110667351	-	HQ1389A	-	hypothetical protein
376	 48.04	0	487228..487941	+	237	110667352	-	HQ1390A	-	hypothetical protein
377	 50.09	0	488010..488540	+	176	110667353	rpl10e	HQ1391A	-	50S ribosomal protein L10e
378	 45.52	0	489831..490700	+	289	110667354	-	HQ1392A	-	homolog of lysine biosynthesis regulator/ribosomal protein S6 modification enzyme (glutaminyl transferase)
379	 45.45	0	490962..491324	-	120	110667355	hsp20	HQ1393A	-	hsp20 type chaperone
380	 45.82	0	491629..492717	+	362	110667356	gapB	HQ1394A	-	glyceraldehyde-3-phosphate dehydrogenase (NAD(P)) (phosphorylating)
381	 45.63	0	492823..494058	+	411	110667357	pgk	HQ1395A	-	phosphoglycerate kinase
382	 45.71	0	494213..494842	+	209	110667358	ribC	HQ1396A	-	riboflavin synthase subunit alpha
383	 45.57	0	495499..496503	-	334	110667359	-	HQ1397A	-	hypothetical protein
384	 49.41	0	496864..498381	+	505	110667360	-	HQ1398A	-	ribonuclease
385	 50.99	0	499223..499675	-	150	110667361	act	HQ1399A	-	acyl-CoA thioester hydrolase
386	 53.70	+1	499936..500097	-	53	110667362	-	HQ1400A	-	hypothetical protein
387	 49.67	0	500236..500541	+	101	110667363	-	HQ1401A	-	hypothetical protein
388	 48.07	0	501226..501951	-	241	110667364	-	HQ1402A	-	hypothetical protein
389	 50.13	0	501953..502726	-	257	110667365	minD	HQ1403A	-	cell division inhibitor MinD
390	 48.68	0	502805..504589	-	594	110667366	cbiP	HQ1404A	-	cobyric acid synthase
391	 46.45	0	504758..505489	-	243	110667367	cobO	HQ1405A	-	cob(I)alamin adenosyltransferase
392	 47.61	0	506233..507255	-	340	110667368	cbiZ	HQ1406A	-	adenosylcobinamide amidohydrolase
393	 50.57	0	507267..508322	-	351	110667369	cobD	HQ1407A	-	L-threonine-O-3-phosphate decarboxylase
394	 50.43	0	508510..509544	-	344	110667370	cobT	HQ1408A	-	hypothetical protein
395	 46.78	0	509535..510263	-	242	110667371	cobY	HQ1409A	-	GTP:adenosylcobinamide-phosphate guanylyltransferase
396	 50.07	0	510266..511030	-	254	110667372	cobS	HQ1410A	-	cobalamin (5'-phosphate) synthase
397	 48.10	0	511021..511941	-	306	110667373	cbiB	HQ1411A	-	cobalamine biosynthesis protein (adenosylcobinamide biosynthesis protein)
398	 48.61	0	512004..512651	-	215	110667374	-	HQ1412A	-	cobalamine operon protein; hydrolase
399	 46.74	0	512793..513344	+	183	110667375	-	HQ1413A	-	hypothetical protein
400	 48.33	0	513546..513725	+	59	110667376	-	HQ1414A	-	transcription regulator
401	 50.37	0	513730..514932	+	400	110667377	ftsZ	HQ1415A	-	cell division protein FtsZ
402	 50.06	0	515131..515943	-	270	110667378	-	HQ1416A	-	S-adenosylmethionine-dependent methyltransferase
403	 45.40	0	515951..516787	-	278	110667379	nfo	HQ1417A	-	endonuclease IV
404	 49.49	0	516933..518294	-	453	110667380	aldH	HQ1418A	-	aldehyde dehydrogenase (succinate-semialdehyde dehydrogenase homolog)
405	 56.08	+1	519309..520460	+	383	110667381	kef	HQ1419A	-	Kef-type K+ transporter NAD-binding component
406	 46.30	0	521230..522147	+	305	110667382	pkn	HQ1420A	-	RIO-like serine/threonine protein kinase
407	 47.58	0	523070..524122	-	350	110667383	cysA	HQ1421A	-	ABC transporter ATP-binding protein
408	 48.77	0	524119..524934	-	271	110667384	modB	HQ1422A	-	ABC transporter permease
409	 46.65	0	525089..526177	-	362	110667385	modA	HQ1423A	-	ABC transporter substrate-binding protein
410	 49.92	0	526579..527169	+	196	110667386	rpl15R	HQ1424A	-	50S ribosomal protein L15e
411	 46.06	0	527238..528125	+	295	110667387	moeB	HQ1425A	-	molybdenum cofactor biosynthesis protein MoeB
412	 47.44	0	528292..529248	-	318	110667388	menA	HQ1426A	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
413	 48.45	0	529272..529787	-	171	110667389	-	HQ1427A	-	hypothetical protein
414	 42.34	-1	530887..531108	+	73	110667390	-	HQ1428A	-	hypothetical protein
415	 42.86	-1	531123..531458	-	111	110667391	-	HQ1429A	-	hypothetical protein
416	 50.48	0	531620..532039	-	139	110667392	-	HQ1430A	-	CBS domain-containing protein
417	 44.59	-1	532392..533501	+	369	110667393	potA	HQ1431A	-	spermidine/putrescine ABC transporter ATPase
418	 41.19	-1	533498..534439	+	313	110667394	potB	HQ1432A	-	spermidine/putrescine ABC transporter permease
419	 43.54	-1	534436..535287	+	283	110667395	potC	HQ1433A	-	spermidine/putrescine ABC transporter permease
420	 46.52	0	535334..536455	+	373	110667396	potD	HQ1434A	-	spermidine/putrescine ABC transporter permease
421	 49.65	0	537725..539281	+	518	110667397	rpa	HQ1435A	-	replication factor A
422	 53.01	+1	539507..539938	+	143	110667398	hstA	HQ1436A	-	histone
423	 49.01	0	539943..540956	+	337	110667399	aup	HQ1437A	-	histone deacetylase
424	 48.43	0	541037..542434	-	465	110667400	cca	HQ1438A	-	tRNA CCA-pyrophosphorylase
425	 46.67	0	543445..543999	-	184	110667401	-	HQ1439A	-	membrane-bound metal-dependent hydrolase
426	 47.19	0	544876..545106	+	76	110667402	-	HQ1440A	-	hypothetical protein
427	 44.57	-1	545235..545501	+	88	110667403	-	HQ1441A	-	hypothetical protein
428	 48.54	0	546031..547056	+	341	110667404	Imp	HQ1442A	-	TRAP-type transport system,periplasmic protein
429	 41.01	-2	547352..547846	+	164	110667405	-	HQ1443A	-	TRAP-type transport system protein
430	 46.33	0	547843..550551	+	902	110667406	-	HQ1444A	-	TRAP-type transport system, permease protein
431	 47.27	0	550701..552860	+	719	110667407	phr	HQ1445A	-	deoxyribodipyrimidine photolyase
432	 43.59	-1	552993..553148	+	51	110667408	-	HQ1446A	-	hypothetical protein
433	 49.41	0	553900..554322	-	140	110667409	-	HQ1448A	-	hypothetical protein
434	 49.55	0	554334..554888	-	184	110667410	adkA	HQ1449A	-	adenylate kinase
435	 43.64	-1	554901..555191	-	96	110667411	-	HQ1450A	-	hypothetical protein
436	 48.31	0	555911..557719	+	602	110667412	focA	HQ1451A	-	formate/nitrate transporter
437	 52.38	0	557832..558272	+	146	110667413	-	HQ1452A	-	hypothetical protein
438	 46.91	0	558279..559103	-	274	110667414	-	HQ1453A	-	hypothetical protein
439	 45.81	0	559305..559793	+	162	110667415	-	HQ1454A	-	hypothetical protein
440	 46.00	0	559871..560920	-	349	110667416	kdgK	HQ1455A	-	2-keto-3-deoxygluconate kinase
441	 46.70	0	560981..563299	-	772	110667417	mutL	HQ1456A	-	DNA mismatch repair protein MutL
442	 50.67	0	563296..563814	-	172	110667418	mutT	HQ1457A	-	mut/nudix family protein
443	 45.99	0	564232..565116	-	294	110667419	-	HQ1458A	-	hypothetical protein
444	 46.74	0	565113..565388	-	91	110667420	-	HQ1459A	-	hypothetical protein
445	 48.39	0	565843..568638	-	931	110667421	mutS1	HQ1460A	-	DNA mismatch repair protein
446	 49.38	0	568952..569998	-	348	110667422	-	HQ1461A	-	short chain dehydrogenase/ reductase
447	 46.69	0	570467..571312	+	281	110667423	-	HQ1462A	-	succinylglutamate desuccinylase / aspartoacylase family protein
448	 47.32	0	571697..572497	+	266	110667424	-	HQ1463A	-	hypothetical protein
449	 51.00	0	572705..573910	+	401	110667425	purT	HQ1464A	-	phosphoribosylglycinamide formyltransferase 2; formate-dependent GAR transformylase
450	 46.49	0	574031..575725	-	564	110667426	suhB	HQ1465A	-	inositol-1(or 4)-monophosphatase/ fructose-1,6-bisphosphatase
451	 50.25	0	575978..576379	+	133	110667427	psp	HQ1466A	-	ribonuclease, PSP-type; translation intitiation inhibition protein
452	 49.47	0	577298..578530	-	410	110667428	narK	HQ1467A	-	nitrate/nitrite transporter
48.79	MEAN

3.84	STD DEV
